supertest 是一个短小精悍的接口测试工具,比如一个登录接口的测试用例如下:
import request from 'supertest' it('登录成功', () => { request('https://127.0.0.1:8080') .post('/login') .send({ username: 'HaiGuai', password: '123456' }) .expect(200) }) 复制代码
整个用例感观上非常简洁易懂。这个库挺小的,设计也不错,还是 TJ Holowaychuk 写的!今天就带大家一起实现一个 supertest 的轮子吧,做一个测试框架!
思路
在写代码前,先根据上面的经典例子设计好整个框架。
还是从上面的例子可以看出:发送请求,处理请求,对结果进行 expect 这三步组成了整个框架的链路,组成一个用例的生命周期。
request -> process -> expect(200) 复制代码
request 这一步可以由第三方 http 库实现,比如 axios、node-fetch、superagent 都可以。
process 这一步就是业务代码不需要理会,最后的 expect 则可以用到 Node.js 自己提供的 assert 库来执行断言语句。所以,我们要把精力放在如何执行这些断言身上。
expect 最后一步是我们框架的整个核心,我们要做的是如何管理好所有的断言,因为开发者很有可能会像下面一样多次执行断言:
xxx .expect(1 + 1, 2) .expect(200) .expect({ result: 'success'}) .expect((res) => console.log(res)) 复制代码
所以,我们需要一个数组 this._asserts = []
来存放这些断言,然后再提供一个 end()
函数,用来最后一次性执行完这些断言:
xxx .expect(1 + 1, 2) .expect(200) .expect({ result: 'success'}) .expect((res) => console.log(res)) .end() // 把上面都执行了 复制代码
有点像事件中心,只不过这里每 expect
一下就相当于给 "expect" 这个事件加一个监听器,最后 end
则类似触发 "expect" 事件,把所有监听器都执行。
我们还注意到一点 expect
函数有可能是用来检查状态码 status
的,有的是检查返回的 body
,还有些检查 headers
的,因此每次调用 expect
函数除了要往 this._asserts
推入断言回调,还要判断所推入的断言回调到底是给 headers
断言、还是给 body
断言或者给 status
断言的。

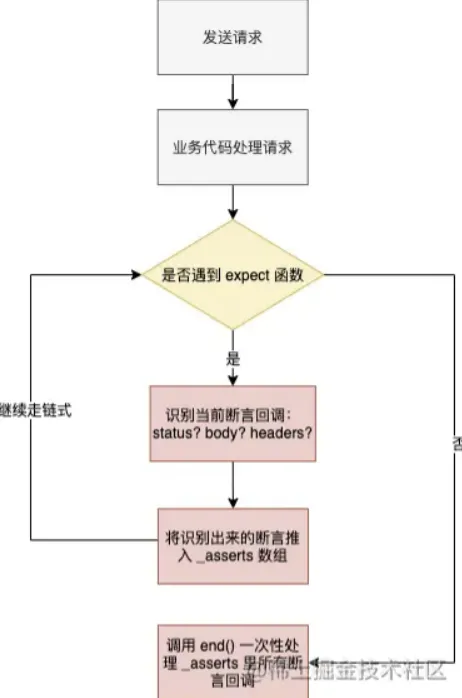

将上面的思路整理出来,图示如下:
其中我们只需要关注黄色和红色部分即可。
简单实现
刚刚说到“发送请求”这一步是可以由第三方库完成的,这里选用 superagent 作为发送 npm 包,因为这个库的用法也是链式调用更符合我们的期望,举个例子:
superagent .post('/api/pet') .send({ name: 'Manny', species: 'cat' }) // sends a JSON post body .set('X-API-Key', 'foobar') .set('accept', 'json') .end((err, res) => { // Calling the end function will send the request }); 复制代码
这也太像了吧!这不禁给了我们一些灵感:基于 superagent,把上面的 expect
加到 superagent 里,然后改写一下 end
以及 restful 的 http 函数就 OK 了呀!“基于 XX,重写方法和加自己的方法”,想到了什么?继承呀!superagent 恰好提供了 Request 这个类,我们只要继承它再重写方法和加 expect
函数就好了!
一个简单 Request 子类实现如下(先不管怎么区分断言回调,只做一个简单的 equals
作为断言回调):
import {Request} from 'superagent' import assert from 'assert' function Test(url, method, path) { // 发送请求 Request.call(this, method.toUpperCase(), path) this.url = url + path // 请求路径 this._asserts = [] // Assertion 队列 } // 继承 Request Object.setPrototypeOf(Test.prototype, Request.prototype) /** * .expect(1 + 1, 2) */ Test.prototype.expect = function(a, b) { this._asserts.push(this.equals.bind(this, a, b)) return this } // 判断两值是否相等 Test.prototype.equals = function(a, b) { try { assert.strictEqual(a, b) } catch (err) { return new Error(`我想要${a},但是你给了我${b}`) } } // 执行所有 Assertion Test.prototype.assert = function(err, res, fn) { let errorObj = null for (let i = 0; i < this._asserts.length; i++) { errorObj = this._asserts[i](res) } fn(errorObj) } // 汇总所有 Assertion 结果 Test.prototype.end = function (fn) { const self = this const end = Request.prototype.end end.call(this, function(err, res) { self.assert(err, res, fn) }) return this } 复制代码
上面继承 Request 父类,提供了 expect
, equals
, assert
函数,并重写了 end
函数,这仅仅是我们自己的 Test
类,最好向外提供一个 request
函数:
import methods from 'methods' import http from 'http' import Test from './Test' function request(path) { const obj = {} methods.forEach(function(method) { obj[method] = function(url) { return new Test(path, method, url) } }) obj.del = obj.delete return obj } 复制代码
methods 这个 npm 包会返回所有 restful 的函数名,如 post
, get
之类的。在新创建的对象里添加这些 restful 函数,并通过传入对应的 path
, method
和 url
创建 Test
对象,然后间接创建一个 http 请求,以此完成 “发送请求” 这一步。
然后可以这样使用我们的框架了:
it('should be supported', function (done) { const app = express(); let s; app.get('/', function (req, res) { res.send('hello'); }); s = app.listen(function () { const url = 'http://localhost:' + s.address().port; request(url) .get('/') .expect(1 + 1, 1) .end(done); }); }); 复制代码
创建一个服务器
上面 request
函数调用的时候会有个问题:我们每次都要在 app.listen
函数里测试,那能不能在 request 的时候就传入 app,然后直接发请求测试呢?比如:
it('should fire up the app on an ephemeral port', function (done) { const app = express(); app.get('/', function (req, res) { res.send('hey'); }); request(app) .get('/') .end(function (err, res) { expect(res.status).toEqual(200) expect(res.text).toEqual('hey') done(); }); }); 复制代码
首先,我们在 request
函数里检测如果传入的是 app 函数,那么创建服务器。
function request(app) { const obj = {} if (typeof app === 'function') { app = http.createServer(app) // 创建内部服务器 } methods.forEach(function(method) { obj[method] = function(url) { return new Test(app, method, url) } }) obj.del = obj.delete return obj } 复制代码
然后在 Test
类的 constructor 里也可以获取对应的 path,并监听 0 号端口:
function Test(app, method, path) { // 发送请求 Request.call(this, method.toUpperCase(), path) this.redirects(0) // 禁止重定向 this.app = app // app/string this.url = typeof app === 'string' ? app + path : this.serverAddress(app, path) // 请求路径 this._asserts = [] // Assertion 队列 } // 通过 app 获取请求路径 Test.prototype.serverAddress = function(app, path) { if (!app.address()) { this._server = app.listen(0) // 内部 server } const port = app.address().port const protocol = app instanceof https.Server ? 'https' : 'http' return `${protocol}://127.0.0.1:${port}${path}` } 复制代码
最后,在 end
函数里把刚刚创建的服务器关闭:
// 汇总所有 Assertion 结果 Test.prototype.end = function (fn) { const self = this const server = this._server const end = Request.prototype.end end.call(this, function(err, res) { if (server && server._handle) return server.close(localAssert) localAssert() function localAssert() { self.assert(err, res, fn) } }) return this } 复制代码
封装报错信息
再来看看我们是如何处理断言的:断言失败会走到 catch 语句并返回一个 Error,最后返回 Error 传入 end(fn)
的 fn

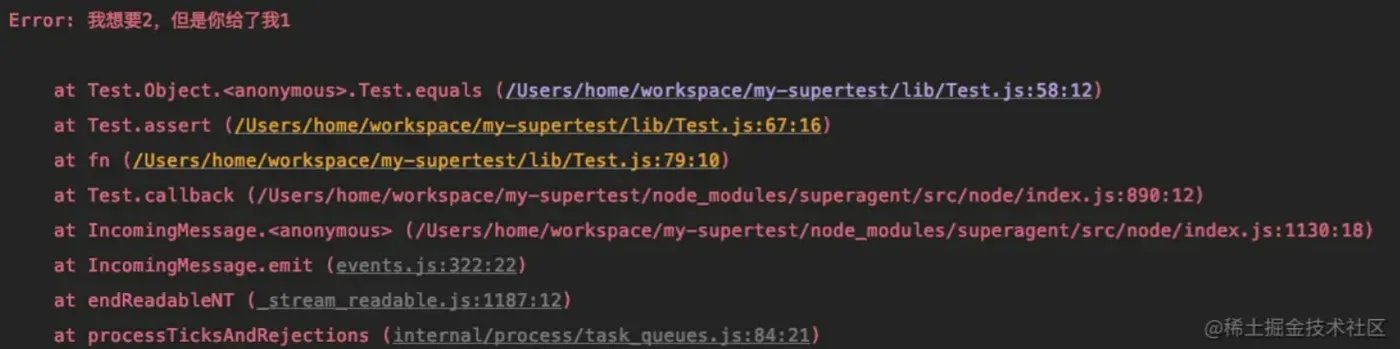

回调入参。但是这会有一个问题啊,我们看错误堆栈的时候就蒙逼了:
错误信息是符合预期的,但是错误堆栈就不太友好了:前三行会定位到我们自己的框架代码里!试想一下,如果别人用我们的库 expect
出错了,点了错误堆栈结果后,发现定位到了我们的源码会不会觉得蒙逼?所以,我们要对 Error 的 err.stack
进行改造:
// 包裹原函数,提供更优雅的报错堆栈 function wrapAssertFn(assertFn) { // 保留最后 3 行 const savedStack = new Error().stack.split('\n').slice(3) return function(res) { const err = assertFn(res) if (err instanceof Error && err.stack) { // 去掉第 1 行 const badStack = err.stack.replace(err.message, '').split('\n').slice(1) err.stack = [err.toString()] .concat(savedStack) .concat('--------') .concat(badStack) .join('\n') } return err } } Test.prototype.expect = function(a, b) { this._asserts.push(wrapAssertFn(this.equals.bind(this, a, b))) return this } 复制代码
上面首先去掉当前调用栈前 3 行,也就是上面截图的前 3 行,因为这都属于源码里的报错,对开发者会有干扰,而后面的堆栈可以帮助开发者直接定位到那个凉了的 expect
了。当然,我们还把真实的源码出错地方作为 badStack

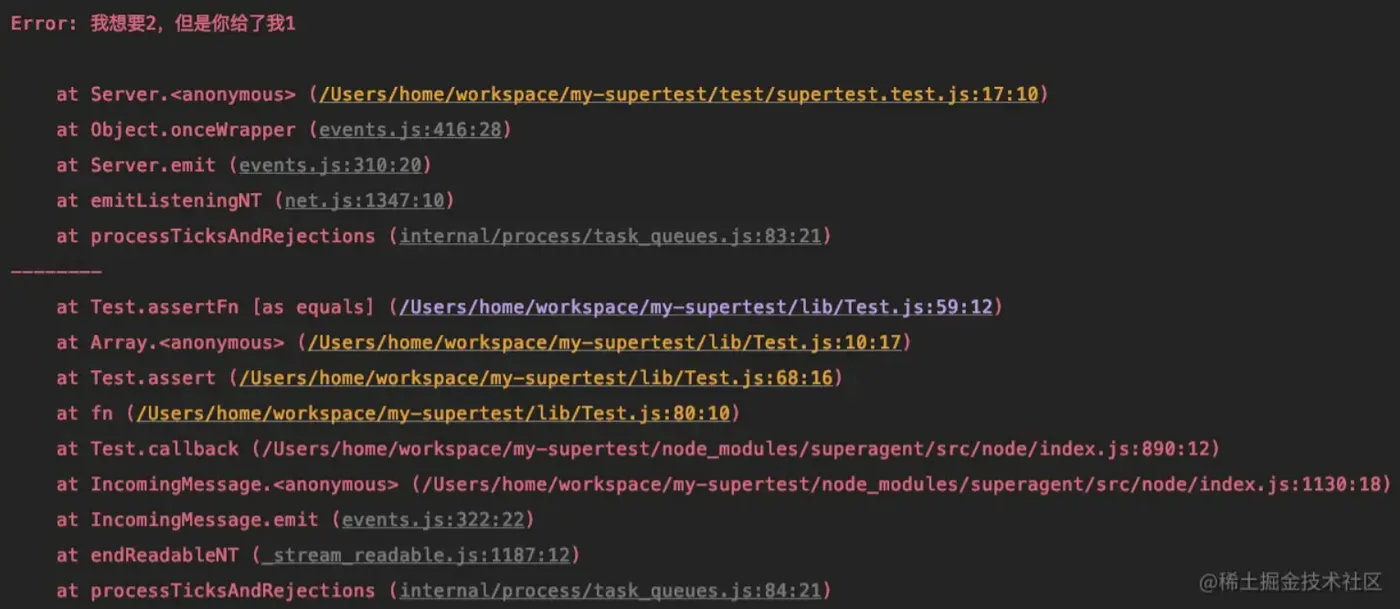

也显示出来,只是用 '------' 作为分割了,最后的错误结果如下:
区分断言回调
现在把注意力都放在 expect
这个最最核心的函数上,刚刚已用 equal
实现最简单的断言了,现在我们要添加对 headers
, status
和 body
的断言,对它们的断言函数的简单实现如下:
import util from "util"; import assert from 'assert' // 判断当前状态码是否相等 Test.prototype._assertStatus = function(status, res) { if (status !== res.status) { const expectStatusContent = http.STATUS_CODES[status] const actualStatusContent = http.STATUS_CODES[res.status] return new Error('expected ' + status + ' "' + expectStatusContent + '", got ' + res.status + ' "' + actualStatusContent + '"') } } // 判断当前 body 是否相等 // 判断当前 body 是否相等 Test.prototype._assertBody = function(body, res) { const isRegExp = body instanceof RegExp if (typeof body === 'object' && !isRegExp) { // 普通 body 的对比 try { assert.deepStrictEqual(body, res.body) } catch (err) { const expectBody = util.inspect(body) const actualBody = util.inspect(res.body) return error('expected ' + expectBody + ' response body, got ' + actualBody, body, res.body); } } else if (body !== res.text) { // 普通文本内容的对比 const expectBody = util.inspect(body) const actualBody = util.inspect(res.text) if (isRegExp) { if (!body.test(res.text)) { // body 是正则表达式的情况 return error('expected body ' + actualBody + ' to match ' + body, body, res.body); } } else { return error(`expected ${expectBody} response body, got ${actualBody}`, body, res.body) } } } // 判断当前 header 是否相等 Test.prototype._assertHeader = function(header, res) { const field = header.name const actualValue = res.header[field.toLowerCase()] const expectValue = header.value // field 不存在 if (typeof actualValue === 'undefined') { return new Error('expected "' + field + '" header field'); } // 相等的情况 if ((Array.isArray(actualValue) && actualValue.toString() === expectValue) || actualValue === expectValue) { return } // 检查正则的情况 if (expectValue instanceof RegExp) { if (!expectValue.test(actualValue)) { return new Error('expected "' + field + '" matching ' + expectValue + ', got "' + actualValue + '"') } } else { return new Error('expected "' + field + '" of "' + expectValue + '", got "' + actualValue + '"') } } // 优化错误展示内容 function error(msg, expected, actual) { const err = new Error(msg) err.expected = expected err.actual = actual err.showDiff = true return err } 复制代码
然后在 expect
函数里通过参数类型的判断选择对应的 _assertXXX
函数:
/** * .expect(200) * .expect(200, fn) * .expect(200, body) * .expect('Some body') * .expect('Some body', fn) * .expect('Content-Type', 'application/json') * .expect('Content-Type', 'application/json', fn) * .expect(fn) */ Test.prototype.expect = function(a, b, c) { // 回调 if (typeof a === 'function') { this._asserts.push(wrapAssertFn(a)) return this } if (typeof b === 'function') this.end(b) if (typeof c === 'function') this.end(c) // 状态码 if (typeof a === 'number') { this._asserts.push(wrapAssertFn(this._assertStatus.bind(this, a))) // body if (typeof b !== 'function' && arguments.length > 1) { this._asserts.push(wrapAssertFn(this._assertBody.bind(this, b))) } return this } // header if (typeof b === 'string' || typeof b === 'number' || b instanceof RegExp) { this._asserts.push(wrapAssertFn(this._assertHeader.bind(this, { name: '' + a, value: b }))) return this } // body this._asserts.push(wrapAssertFn(this._assertBody.bind(this, a))) return this } 复制代码
至此,我们完成基本的断言功能了。
处理网络错误
有时候会抛出的错误可能并不是因为业务代码出错了,而是像网络断网这种异常情况。我们也要对这类错误进行处理,以更友好的方式展示给开发者,可以对 assert
函数进行改造:
// 执行所有 Assertion Test.prototype.assert = function(resError, res, fn) { // 通用网络错误 const sysErrors = { ECONNREFUSED: 'Connection refused', ECONNRESET: 'Connection reset by peer', EPIPE: 'Broken pipe', ETIMEDOUT: 'Operation timed out' }; let errorObj = null // 处理返回的错误 if (!res && resError) { if (resError instanceof Error && resError.syscall === 'connect' && sysErrors[resError.code]) { errorObj = new Error(resError.code + ': ' + sysErrors[resError.code]) } else { errorObj = resError } } // 执行所有 Assertion for (let i = 0; i < this._asserts.length && !errorObj; i++) { errorObj = this._assertFunction(this._asserts[i], res) } // 处理 superagent 的错误 if (!errorObj && resError instanceof Error && (!res || resError.status !== res.status)) { errorObj = resError } fn.call(this, errorObj || null, res) } 复制代码
至此,对于 status
, body
, headers
的断言都实现了,并在 expect
里合理使用这三者的断言回调,同时还处理了网络异常的情况。
Agent 代理
再来回顾一下我们是怎么使用框架来写测试用例的:
it('should handle redirects', function (done) { const app = express(); app.get('/login', function (req, res) { res.end('Login'); }); app.get('/', function (req, res) { res.redirect('/login'); }); request(app) .get('/') .redirects(1) .end(function (err, res) { expect(res).toBeTruthy() expect(res.status).toEqual(200) expect(res.text).toEqual('Login') done(); }); }); 复制代码
可以观察到:每次调用 request
函数内部都会马上创建一个服务器,调用 end
的时候又马上关闭,连续测试的时候消耗很大而且完全可以公用一个 server。能不能对 A 系列的用例用 A_Server,而对 B 系列的用例用 B_Server 呢?
superagent 除了 Request 类,还提供强大的 Agent 类来解决这类的需求。参考刚刚写的 Test
类,照猫画虎写一个自己的 TestAgent
类继承原 Agent 类:
import http from 'http' import methods from 'methods' import {agent as Agent} from 'superagent' import Test from './Test' function TestAgent(app, options) { // 普通函数调用 TestAgent(app, options) if (!(this instanceof TestAgent)) { return new TestAgent(app, options) } // 创建服务器 if (typeof app === 'function') { app = http.createServer(app) } // https if (options) { this._ca = options.ca this._key = options.key this._cert = options.cert } // 使用 superagent 的代理 Agent.call(this) this.app = app } // 继承 Agent Object.setPrototypeOf(TestAgent.prototype, Agent.prototype) // host 函数 TestAgent.prototype.host = function(host) { this._host = host return this } // delete TestAgent.prototype.del = TestAgent.prototype.delete 复制代码
当然不要忘了把 restful 的方法也重载了:
// 重写 http 的 restful method methods.forEach(function(method) { TestAgent.prototype[method] = function(url, fn) { // 初始化请求 const req = new Test(this.app, method.toLowerCase(), url) // https req.ca(this._ca) req.key(this._key) req.cert(this._cert) // host if (this._host) { req.set('host', this._host) } // http 返回时保存 Cookie req.on('response', this._saveCookies.bind(this)) // 重定向除了保存 Cookie,同时附带上 Cookie req.on('redirect', this._saveCookies.bind(this)) req.on('redirect', this._attachCookies.bind(this)) // 本次请求就带上 Cookie this._attachCookies(req) this._setDefaults(req) return req } }) 复制代码
重写的时候除了返回创建的 Test
对象,还对 https, host, cookie 做了一些处理。其实这些处理也不是我想出来的,是 superagent 里的对它自己 Agent 类的处理,这里就照抄过来而已 :)
使用 Class 继承
上面都是用 prototype 来实现继承,非常的蛋疼。这里直接把代码都改写成 class 形式,同时整理 Test
和 TestAgent
两个类的代码:
// Test.js import http from 'http' import https from 'https' import assert from 'assert' import {Request} from 'superagent' import util from 'util' // 包裹原函数,提供更优雅的报错堆栈 function wrapAssertFn(assertFn) { // 保留最后 3 行 const savedStack = new Error().stack.split('\n').slice(3) return function (res) { const err = assertFn(res) if (err instanceof Error && err.stack) { // 去掉第 1 行 const badStack = err.stack.replace(err.message, '').split('\n').slice(1) err.stack = [err.toString()] .concat(savedStack) .concat('--------') .concat(badStack) .join('\n') } return err } } // 优化错误展示内容 function error(msg, expected, actual) { const err = new Error(msg) err.expected = expected err.actual = actual err.showDiff = true return err } class Test extends Request { // 初始化 constructor(app, method, path) { super(method.toUpperCase(), path) this.redirects(0) // 禁止重定向 this.app = app // app/string this.url = typeof app === 'string' ? app + path : this.serverAddress(app, path) // 请求路径 this._asserts = [] // Assertion 队列 } // 通过 app 获取请求路径 serverAddress(app, path) { if (!app.address()) { this._server = app.listen(0) // 内部 server } const port = app.address().port const protocol = app instanceof https.Server ? 'https' : 'http' return `${protocol}://127.0.0.1:${port}${path}` } /** * .expect(200) * .expect(200, fn) * .expect(200, body) * .expect('Some body') * .expect('Some body', fn) * .expect('Content-Type', 'application/json') * .expect('Content-Type', 'application/json', fn) * .expect(fn) */ expect(a, b, c) { // 回调 if (typeof a === 'function') { this._asserts.push(wrapAssertFn(a)) return this } if (typeof b === 'function') this.end(b) if (typeof c === 'function') this.end(c) // 状态码 if (typeof a === 'number') { this._asserts.push(wrapAssertFn(this._assertStatus.bind(this, a))) // body if (typeof b !== 'function' && arguments.length > 1) { this._asserts.push(wrapAssertFn(this._assertBody.bind(this, b))) } return this } // header if (typeof b === 'string' || typeof b === 'number' || b instanceof RegExp) { this._asserts.push(wrapAssertFn(this._assertHeader.bind(this, {name: '' + a, value: b}))) return this } // body this._asserts.push(wrapAssertFn(this._assertBody.bind(this, a))) return this } // 汇总所有 Assertion 结果 end(fn) { const self = this const server = this._server const end = Request.prototype.end end.call(this, function (err, res) { if (server && server._handle) return server.close(localAssert) localAssert() function localAssert() { self.assert(err, res, fn) } }) return this } // 执行所有 Assertion assert(resError, res, fn) { // 通用网络错误 const sysErrors = { ECONNREFUSED: 'Connection refused', ECONNRESET: 'Connection reset by peer', EPIPE: 'Broken pipe', ETIMEDOUT: 'Operation timed out' } let errorObj = null // 处理返回的错误 if (!res && resError) { if (resError instanceof Error && resError.syscall === 'connect' && sysErrors[resError.code]) { errorObj = new Error(resError.code + ': ' + sysErrors[resError.code]) } else { errorObj = resError } } // 执行所有 Assertion for (let i = 0; i < this._asserts.length && !errorObj; i++) { errorObj = this._assertFunction(this._asserts[i], res) } // 处理 superagent 的错误 if (!errorObj && resError instanceof Error && (!res || resError.status !== res.status)) { errorObj = resError } fn.call(this, errorObj || null, res) } // 判断当前状态码是否相等 _assertStatus(status, res) { if (status !== res.status) { const expectStatusContent = http.STATUS_CODES[status] const actualStatusContent = http.STATUS_CODES[res.status] return new Error('expected ' + status + ' "' + expectStatusContent + '", got ' + res.status + ' "' + actualStatusContent + '"') } } // 判断当前 body 是否相等 _assertBody(body, res) { const isRegExp = body instanceof RegExp if (typeof body === 'object' && !isRegExp) { // 普通 body 的对比 try { assert.deepStrictEqual(body, res.body) } catch (err) { const expectBody = util.inspect(body) const actualBody = util.inspect(res.body) return error('expected ' + expectBody + ' response body, got ' + actualBody, body, res.body) } } else if (body !== res.text) { // 普通文本内容的对比 const expectBody = util.inspect(body) const actualBody = util.inspect(res.text) if (isRegExp) { if (!body.test(res.text)) { // body 是正则表达式的情况 return error('expected body ' + actualBody + ' to match ' + body, body, res.body) } } else { return error(`expected ${expectBody} response body, got ${actualBody}`, body, res.body) } } } // 判断当前 header 是否相等 _assertHeader(header, res) { const field = header.name const actualValue = res.header[field.toLowerCase()] const expectValue = header.value // field 不存在 if (typeof actualValue === 'undefined') { return new Error('expected "' + field + '" header field') } // 相等的情况 if ((Array.isArray(actualValue) && actualValue.toString() === expectValue) || actualValue === expectValue) { return } // 检查正则的情况 if (expectValue instanceof RegExp) { if (!expectValue.test(actualValue)) { return new Error('expected "' + field + '" matching ' + expectValue + ', got "' + actualValue + '"') } } else { return new Error('expected "' + field + '" of "' + expectValue + '", got "' + actualValue + '"') } } // 执行单个 Assertion _assertFunction(fn, res) { let err try { err = fn(res) } catch (e) { err = e } if (err instanceof Error) return err } } export default Test 复制代码
还有 TestAgent
import http from 'http' import methods from 'methods' import {agent as Agent} from 'superagent' import Test from './Test' class TestAgent extends Agent { // 初始化 constructor(app, options) { super() // 创建服务器 if (typeof app === 'function') { app = http.createServer(app) } // https if (options) { this._ca = options.ca this._key = options.key this._cert = options.cert } // 使用 superagent 的代理 Agent.call(this) this.app = app } // host 函数 host(host) { this._host = host return this } // 重用 delete del(...args) { this.delete(args) } } // 重写 http 的 restful method methods.forEach(function (method) { TestAgent.prototype[method] = function (url, fn) { // 初始化请求 const req = new Test(this.app, method.toLowerCase(), url) // https req.ca(this._ca) req.key(this._key) req.cert(this._cert) // host if (this._host) { req.set('host', this._host) } // http 返回时保存 Cookie req.on('response', this._saveCookies.bind(this)) // 重定向除了保存 Cookie,同时附带上 Cookie req.on('redirect', this._saveCookies.bind(this)) req.on('redirect', this._attachCookies.bind(this)) // 本次请求就带上 Cookie this._attachCookies(req) this._setDefaults(req) return req } }) export default TestAgent 复制代码
最后再给大家看一下 request
函数的代码:
import methods from 'methods' import http from 'http' import TestAgent from './TestAgent' import Test from './Test' function request(app) { const obj = {} if (typeof app === 'function') { app = http.createServer(app) } methods.forEach(function(method) { obj[method] = function(url) { return new Test(app, method, url) } }) obj.del = obj.delete return obj } request.agent = TestAgent export default request 复制代码
总结
至此,已经完美地实现了 supertest 这个库啦,来总结一下我们都干了什么:
- 确定了
request -> process -> expect
的整体链路,expect 这一环是整个测试库的核心 - 向外暴露
expect
函数用于收集断言语句,以及end
函数用于批量执行断言回调 - 在
expect
函数里根据入参要将_asssertStatus
或_assertBody
还是_assertHeaders
推入_asserts
数组里 end
函数执行assert
函数来执行所有_asserts
里所有的断言回调,并对网络错误也做了相应的处理- 对抛出的错误 stack 也做了修改,更友好地展示错误
- 除了用
request
函数测试单个用例,也提供TestAgent
作为 agent 测试一批的用例
最后
这是这期 “造轮子” 的最后一篇文章了,目前只出了 10 篇关于 “造轮子” 的文章。
虽然这系列的文章标题都是以 “造轮子” 为开头,但本质上是带大家一步一步地阅读源码。相比于市面上 “精读源码” 的文章,这一系列的文章不会一上来就看源码,而是从一个简单需求开始,先实现一个最 Low 的代码来解决问题,然后再慢慢地优化,最后进化成源码的样子。希望这样可以由浅入深地带大家看一遍源码,同时又不会有太大的心理负担 :)
为什么只写 10 篇呢?一个原因是想尝试一下别的领域了和看看书了。另一个原因是因为每周都研究源码,再从头开始推演源码的进化路程是十分消耗精力的,真的会累,怕后面会烂尾,就以现在最好的状态收尾吧。
(完结散花🎉🎉)
