dns服务目前正常运行,以下开始使用zabbix监控DNS服务.
一、客户端操作
1.登陆dns部署的服务器,安装zabbix客户端,安装客户端 (http://douya.blog.51cto.com/6173221/1431074)
1
2
3
|
我的客户端安装路径:
/usr/local/zabbix_agent/etc/zabbix_agent
.conf 添加以下内容:vim
/usr/local/zabbix_agent/etc/zabbix_agent
.conf
UserParameter=check_dns[*],
/usr/local/zabbix_agent/bin/zabbix_monitor_dns
.sh $1
然后在
cd
/usr/local/zabbix_agent/bin
|
添加一个zabbix_monitor_dns.sh文件,内容为
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
|
#!/bin/bash
#Description :By DNS SERVER
named_stats=
'/tmp/named_stats.txt'
###++ Incoming Requests ++
Incoming_QUERY=`
awk
'/QUERY/{print $1}'
$named_stats`
Incoming_RESERVED9=`
awk
'/RESERVED9/{print $1}'
$named_stats`
###++ Incoming Queries ++
Incoming_A=`
grep
A $named_stats |
awk
'NR==1{print $1}'
`
Incoming_SOA=`
grep
SOA $named_stats |
awk
'NR==1{print $1}'
`
Incoming_PTR=`
grep
PTR $named_stats |
awk
'NR==1{print $1}'
`
Incoming_MX=`
grep
MX $named_stats |
awk
'NR==1{print $1}'
`
Incoming_TXT=`
grep
TXT $named_stats |
awk
'NR==1{print $1}'
`
Incoming_AAAA=`
grep
AAAA $named_stats |
awk
'NR==1{print $1}'
`
Incoming_A6=`
grep
A6 $named_stats |
awk
'NR==1{print $1}'
`
Incoming_IXFR=`
grep
IXFR $named_stats |
awk
'NR==1{print $1}'
`
Incoming_ANY=`
grep
ANY $named_stats |
awk
'NR==1{print $1}'
`
###++ Outgoing Queries ++
Outgoing_A=`
grep
"\<A\>"
$named_stats |
awk
'NR==2{print $1}'
`
Outgoing_NS=`
grep
NS $named_stats |
awk
'NR==1{print $1}'
`
Outgoing_PTR=`
grep
PTR $named_stats |
awk
'NR==2{print $1}'
`
#Outgoing_AAAA=`grep NS $named_stats |awk 'NR==2{print $1}'`
Outgoing_DNSKEY=`
grep
DNSKEY $named_stats |
awk
'NR==1{print $1}'
`
Outgoing_ANY=`
grep
ANY $named_stats |
awk
'NR==2{print $1}'
`
Outgoing_DLV=`
grep
DLV $named_stats |
awk
'NR==2{print $1}'
`
###++ Name Server Statistics ++
Statistics_IPv4_requests=`
grep
"IPv4 requests received"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_requests_received=`
grep
"requests with EDNS(0) received"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_TCP_requests=`
grep
"TCP requests received"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_queries_rejected=`
grep
"recursive queries rejected"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_responses_sent=`
grep
"responses sent"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_EDNS_sent=`
grep
"responses with EDNS(0) sent"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_successful_answer=`
grep
"queries resulted in successful answer"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_authoritative_answer=`
grep
"queries resulted in authoritative answer"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_non_authoritative_answer=`
grep
"queries resulted in non authoritative answer"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_nxrrset=`
grep
"queries resulted in nxrrset"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_SERVFAIL=`
grep
"queries resulted in SERVFAIL"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_NXDOMAIN=`
grep
"queries resulted in NXDOMAIN"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_recursion=`
grep
"queries resulted in recursion"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_received=`
grep
"queries resulted in received"
$named_stats |
awk
'NR==1{print $1}'
`
Statistics_dropped=`
grep
"queries resulted in dropped"
$named_stats |
awk
'NR==1{print $1}'
`
###++ Resolver Statistics ++
Resolver_sent=`
grep
"IPv4 queries sent"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_received=`
grep
"IPv4 responses received"
$named_stats |
awk
'NR==1{print $1}'
`
#Resolver_NXDOMAIN_received=`grep "" $named_stats |awk 'NR==1{print $1}'`
#Resolver_responses_received=`sed -n '49p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
#Resolver_delegations_received=`sed -n '50p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
Resolver_query_retries=`
grep
"query retries"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_query_timeouts=`
grep
"query timeouts"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_fetches=`
grep
"IPv4 NS address fetches"
$named_stats |
awk
'NR==1{print $1}'
`
#Resolver_fetch_failed=`sed -n '54p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
Resolver_validation_attempted=`
grep
"DNSSEC validation attempted"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_validation_succeeded=`
grep
"DNSSEC validation succeeded"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_NX_validation_succeeded=`
grep
"DNSSEC NX validation succeeded"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_RTT_10ms=`
grep
"queries with RTT < 10ms"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_RTT_100ms=`
grep
"queries with RTT 10-100ms"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_RTT_500ms=`
grep
"queries with RTT 100-500ms"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_RTT_800ms=`
grep
"queries with RTT 500-800ms"
$named_stats |
awk
'NR==1{print $1}'
`
Resolver_RTT_1600ms=`
grep
"queries with RTT 800-1600ms"
$named_stats |
awk
'NR==1{print $1}'
`
#Resolver_RTT_gt_1600ms=`sed -n '63p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
###++ Cache DB RRsets ++
Cache_A=`
grep
"\<A\>"
$named_stats |
awk
'NR==3{print $1}'
`
Cache_NS=`
grep
"\<NS\>"
$named_stats |
awk
'NR==3{print $1}'
`
#Cache_CNAME=`sed -n '69p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
#Cache_SOA=`sed -n '70p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
#Cache_PTR=`sed -n '71p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
Cache_AAAA=`
grep
"\<AAAA\>"
$named_stats |
awk
'NR==2{print $1}'
`
Cache_DS=`
grep
"DS"
$named_stats |
awk
'NR==1{print $1}'
`
Cache_RRSIG=`
grep
"RRSIG"
$named_stats |
awk
'NR==1{print $1}'
`
Cache_NSEC=`
grep
"NSEC"
$named_stats |
awk
'NR==1{print $1}'
`
Cache_DNSKEY=`
grep
"DNSKEY"
$named_stats |
awk
'NR==2{print $1}'
`
#Cache_AAA=`sed -n '77p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
Cache_cDLV=`
grep
"DLV"
$named_stats |
awk
'NR==2{print $1}'
`
#Cache_NXDOMAIN=`sed -n '79p' $named_stats |sed 's/^[ \t]*//g'|cut -d ' ' -f 1`
###++ Socket I/O Statistics ++
Socket_UDP_opened=`
grep
"UDP/IPv4 sockets opened"
$named_stats |
awk
'NR==1{print $1}'
`
Socket_TCP_opened=`
grep
"TCP/IPv4 sockets opened"
$named_stats |
awk
'NR==1{print $1}'
`
Socket_UDP_closed=`
grep
"UDP/IPv4 sockets closed"
$named_stats |
awk
'NR==1{print $1}'
`
Socket_TCP_closed=`
grep
" TCP/IPv4 sockets closed"
$named_stats |
awk
'NR==1{print $1}'
`
Socket_UDP_established=`
grep
"UDP/IPv4 connections established"
$named_stats |
awk
'NR==1{print $1}'
`
Socket_TCP_established=`
grep
"TCP/IPv4 connections accepted"
$named_stats |
awk
'NR==1{print $1}'
`
Socket_TCP_accepted=`
grep
"TCP/IPv4 recv errors"
$named_stats |
awk
'NR==1{print $1}'
`
eval
echo
\$$1
|
这个脚本的内容就是监控bind管理工具rndc stats产生的一个dns状态信息文件named_stats.txt,这个文件的地址是被/etc/named.conf控制,默认是在var/named/data目录
此脚本给与755权限,zabbix用户与组
1
2
|
1、
chmod
755
/usr/local/zabbix_agent/bin/zabbix_monitor_dns
.sh
2、
chown
zabbix:zabbix
/bin/bash
/usr/local/zabbix_agent/bin//zabbix_monitor_dns
.sh
|
然后在crontab里使用root用户添加
1
1
|
*
/1
* * * *
/bin/bash
/usr/local/zabbix_agent/bin/monitor_dns
.sh
|
/usr/local/zabbix_agent/bin/monitor_dns.sh的内容为
1
2
3
4
5
6
7
|
#!/bin/bash
named_stats=
'/var/named/data/named_stats.txt'
if
[ -e $named_stats ];
then
rm
-rf $named_stats
fi
/usr/sbin/rndc
stats >>
/dev/null
2>&1
mv
$named_stats
/tmp/
|
这个脚本的作用是每1分钟运行一次rndc status命令,然后把named_stats.txt放到tmp目录下,如果在旧目录里已有这个文件就删除(这样做是因为rndc stats运行后会不断的把信息追加到文件里,而不是覆盖,为了统计方便才删除旧文件,在运行命令生成新文件)
给与脚本755权限
重启zabbix agent服务
1
2
|
ps
-ef|
grep
zabbix_agentd|
grep
-
v
grep
|
awk
-F
" "
'{print $2}'
|
xargs
kill
-9
/usr/local/zabbix_agent/sbin/zabbix_agentd
-c
/usr/local/zabbix_agent/etc/zabbix_agentd
.conf
|
二、zabbix服务端操作
1.在zabbix的web界面里连接监控dns模板
在web里选择配置-模板
然后选择导入
然后把之前下载的dns模板。
然后在选择主机加入这个模板即可。
下面是监控的效果图

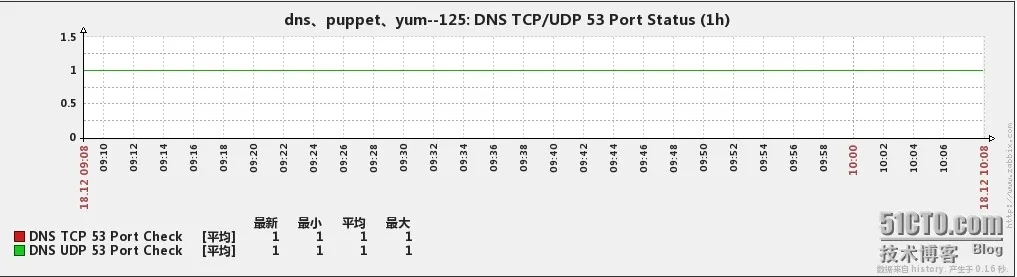

1、dns的tcp/udp 53端口的监控

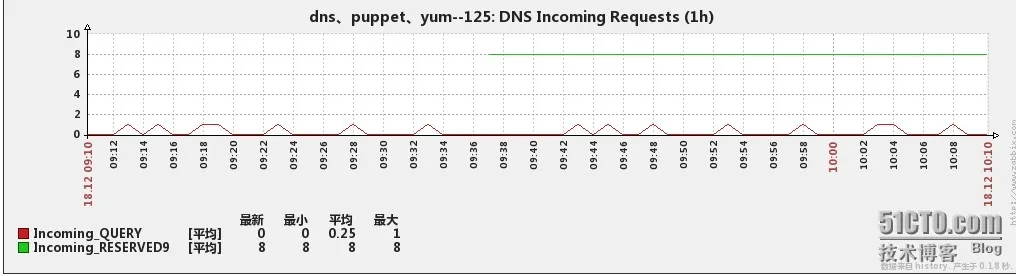

2、Incoming Requests

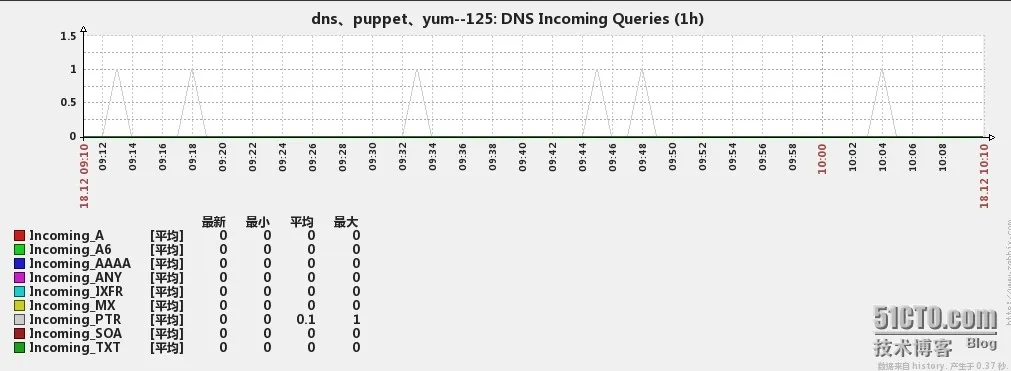

3、Incoming Queries

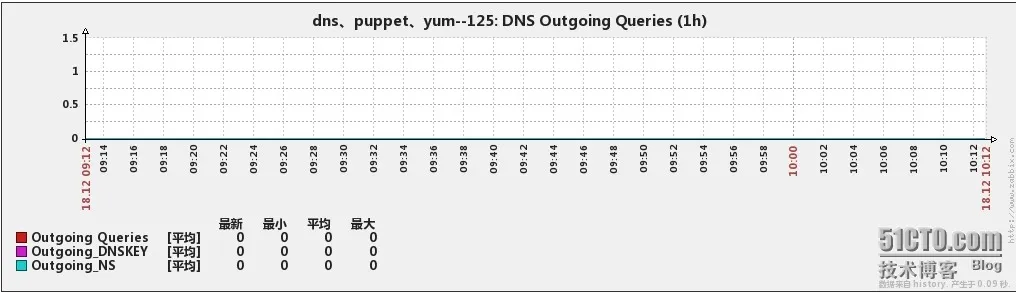

4、Outgoing Queries

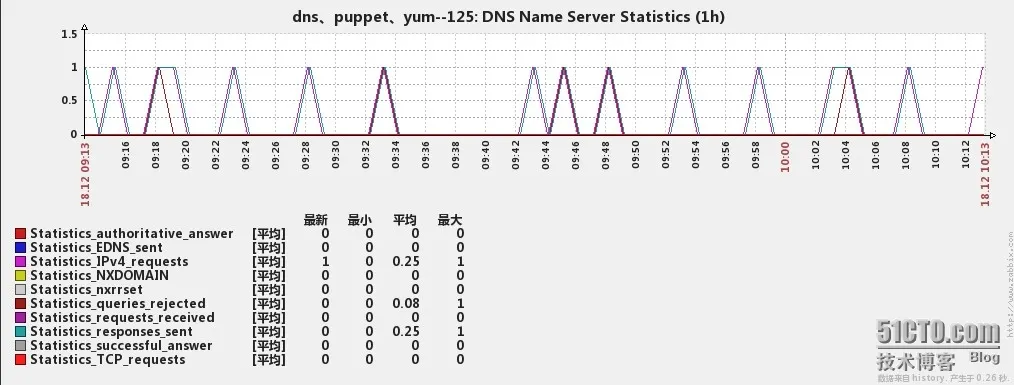

5、Name Server Statistics

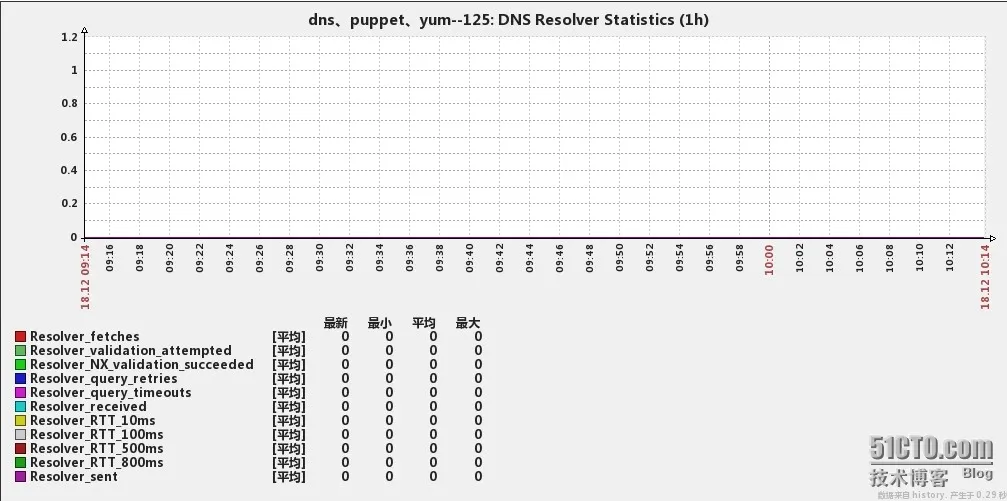

6、Resolver Statistics

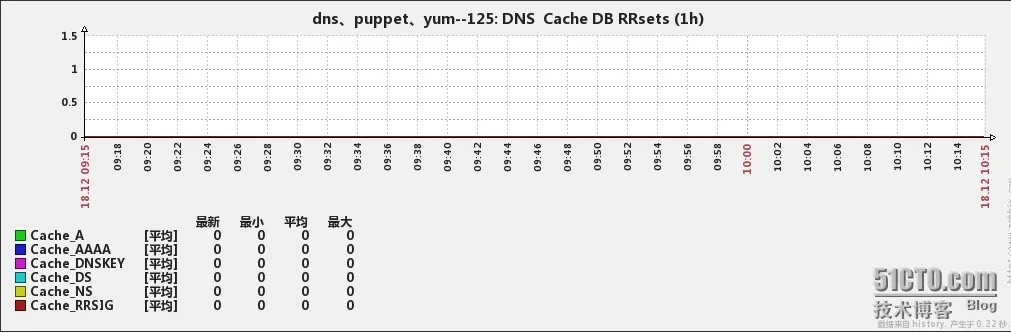

7、Cache DB RRsets

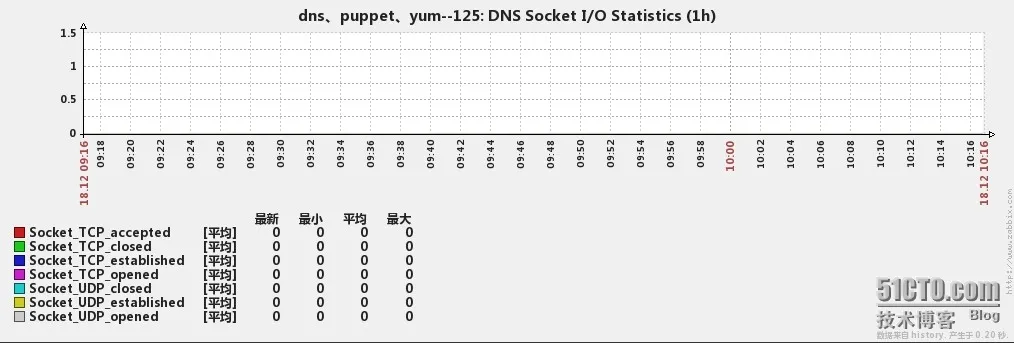

8、Socket I/O Statistics
目前监控展示方式为增量变化,所以图上显示的值肯定比named_stats.txt里的少。建议还是大家自己根据需要来修改与优化,我这个只是提供一个样例而已,模拟在附件里。
原文链接:http://dl528888.blog.51cto.com/2382721/1341799?utm_source=tuicool&utm_medium=referral
附件:http://down.51cto.com/data/2367603
