标题是不是可以翻译成这样：logstash Filters nginx access log
好了，进入正题，日志管理服务器我用ElasticSearch+LogStash+Kibana+Redis

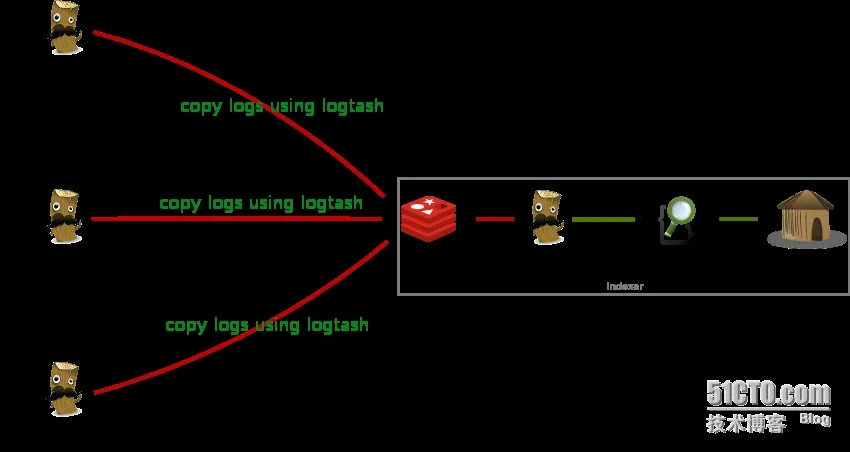

先说下我的架构：
远程NGINX采集日志数据到REDIS+logstash+elasticsearch+kibana服务器
至于怎么部署，因本人之前用baidu博客写在那上面了，以后有时间把百度的搬过来
好了，这里就先不说部署了，我们直接进入配置正题
在nginx服务器，我们一、先配置nginx的日志格式
|
1
2
3
|
log_format main
'$http_host $remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$upstream_addr" $request_time'
;
|
二、配置logstash采集文件
1.1 配置logstash patterns
|
1
2
3
4
|
logstash
/patterns
# vi nginx
NGUSERNAME [a-zA-Z\.\@\-\+_%]+
NGUSER %{NGUSERNAME}
NGINXACCESS %{IPORHOST:http_host} %{IPORHOST:clientip} - %{USERNAME:remote_user} \[%{HTTPDATE:timestamp}\] \"(?:%{WORD:http_verb} %{NOTSPACE:http_request}(?: HTTP/%{NUMBER:http_version})?|%{DATA:raw_http_request})\" %{NUMBER:response} (?:%{NUMBER:bytes_read}|-) %{QS:referrer} %{QS:agent} %{QS:xforwardedfor} %{NUMBER:request_time:float}
|
注意，我们配置的日志格式完全要和我们的patterns解析出来
具体解析方式，可以到https://grokdebug.herokuapp.com/
input：nginx的日志
patterns:就是要过滤的格式，如图
2.1 配置nginx日志采集脚本
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
logstash
#vi nginx_logs.conf
input {
file
{
type
=>
"nginx-access"
path =>
"/www/log/nginx/access/default.log"
start_position =>
"beginning"
}
}
filter {
if
[
type
] ==
"nginx-access"
{
grok {
match => {
"message"
=>
"%{NGINXACCESS}"
}
}
date
{
match => [
"timestamp"
,
"dd/MMM/YYYY:HH:mm:ss Z"
]
}
geoip {
source
=>
"clientip"
target =>
"geoip"
database =>
"/server/logstash/vendor/geoip/GeoLiteCity.dat"
add_field => [
"[geoip][coordinates]"
,
"%{[geoip][longitude]}"
]
add_field => [
"[geoip][coordinates]"
,
"%{[geoip][latitude]}"
]
}
mutate {
convert => [
"[geoip][coordinates]"
,
"float"
]
}
}
}
output {
redis {
host =>
"10.252.35.170"
port => 6379
data_type =>
"list"
key =>
"logstash"
}
}
|
这个脚本里，我主要采集了geoip的信息，当然，你也直接可以将数据导入到redis,我就附上我的全脚本吧~~
启动：
|
1
|
#/server/logstash/bin/logstash agent -f /alidata/server/logstash/nginx_logs.conf &
|
三、配置REDIS+logstash
直接写logstash脚本
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
logstash
# vi nginx.conf
input {
redis {
host =>
"127.0.0.1"
port =>
"6379"
data_type =>
"list"
key =>
"logstash"
type
=>
"redis-input"
codec =>
"json"
}
}
output {
elasticsearch {
embedded =>
false
protocol =>
"http"
host =>
"localhost"
port =>
"9200"
}
}
|
启动脚本
|
1
|
#/logstash/bin/logstash agent -f /alidata/server/logstash/nginx.conf &
|

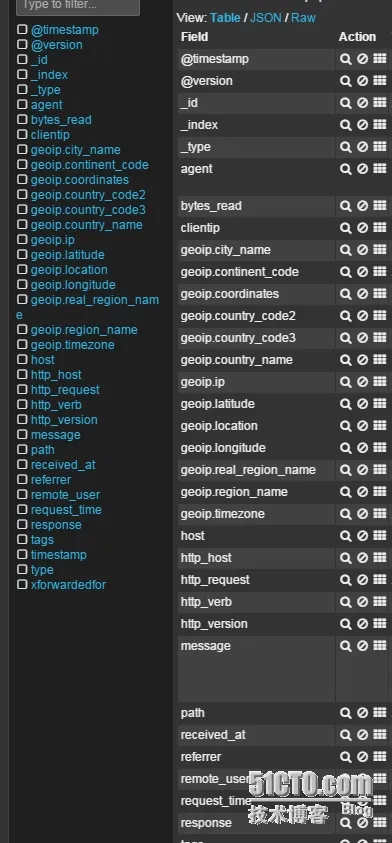

好的，脚本配置完毕，接下来我们访问看看
