Openstack Mitaka在图形化界面的时候出现以下报错：
|
1
2
3
|
[root@linux-node1 ~]
# openstack server create --flavor m1.tiny --image cirros --nic net-id=2d79dc77-be66-4850-af01-8e6946f16035 --security-group default --key-name mykey provider-instance
Unexpected API Error. Please report this at http:
//bugs
.launchpad.net
/nova/
and attach the Nova API log
if
possible.
<class
'neutronclient.common.exceptions.Unauthorized'
> (HTTP 500) (Request-ID: req-1d4cf44f-8b06-43e0-8392-25296b29eecb)
|
查了下网上资料，各种奇葩版本都有，但是对我的这个问题没有任何效果，核查下配置文件：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
[root@linux-node1 ~]
# . demo-openrc
[root@linux-node1 ~]
# openstack keypair list
+-------+-------------------------------------------------+
| Name | Fingerprint |
+-------+-------------------------------------------------+
| mykey | 1f:48:e1:77:bb:ea:ea:c8:7b:08:39:b1:96:8d:48:28 |
+-------+-------------------------------------------------+
[root@linux-node1 ~]
# openstack flavor list
+----+-----------+-------+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+-----------+-------+------+-----------+-------+-----------+
| 0 | m1.nano | 64 | 1 | 0 | 1 | True |
| 1 | m1.tiny | 512 | 1 | 0 | 1 | True |
| 2 | m1.small | 2048 | 20 | 0 | 1 | True |
| 3 | m1.medium | 4096 | 40 | 0 | 2 | True |
| 4 | m1.large | 8192 | 80 | 0 | 4 | True |
| 5 | m1.xlarge | 16384 | 160 | 0 | 8 | True |
+----+-----------+-------+------+-----------+-------+-----------+
[root@linux-node1 ~]
# openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| e2a8ac12-1a02-4f5b-bb7d-83064926ccbc | cirros | active |
+--------------------------------------+--------+--------+
You have new mail
in
/var/spool/mail/root
[root@linux-node1 ~]
# openstack network list
+--------------------------------------+----------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+----------+--------------------------------------+
| 2d79dc77-be66-4850-af01-8e6946f16035 | provider | 270b8cca-c8bc-4413-a035-8ed9b77230b6 |
+--------------------------------------+----------+--------------------------------------+
[root@linux-node1 ~]
# openstack security group list
+--------------------------------------+---------+------------------------+-----------------------------
| ID | Name | Description | Project |
+--------------------------------------+---------+------------------------+----------------------------------+
| eb33483e-827d-480c-8b08-776f1e3a1223 | default | Default security group | cb870d39c2f54546a3de1b64c758bb16 |
+--------------------------------------+---------+------------------------+----------------------------
|
查看错误日志信息：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
[root@linux-node1 nova]
# grep ERROR nova-api.log |tail -30
2017-03-14 12:52:38.675 5035 ERROR nova.api.openstack.extensions Unauthorized: Unknown auth
type
: None
2017-03-14 12:52:38.675 5035 ERROR nova.api.openstack.extensions
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions [req-1d4cf44f-8b06-43e0-8392-25296b29eecb d02c78a51a72449589c8b63b51fb1c0d cb870d39c2f54546a3de1b64c758bb16 - - -] Unexpected exception
in
API method
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions Traceback (most recent call last):
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/api/openstack/extensions.py"
, line 478,
in
wrapped
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions
return
f(*args, **kwargs)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/api/validation/__init__.py"
, line 73,
in
wrapper
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions
return
func(*args, **kwargs)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/api/validation/__init__.py"
, line 73,
in
wrapper
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions
return
func(*args, **kwargs)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/api/validation/__init__.py"
, line 73,
in
wrapper
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions
return
func(*args, **kwargs)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/api/openstack/compute/servers.py"
, line 629,
in
create
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions **create_kwargs)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/hooks.py"
, line 154,
in
inner
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions rv = f(*args, **kwargs)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/compute/api.py"
, line 1563,
in
create
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions check_server_group_quota=check_server_group_quota)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/compute/api.py"
, line 1146,
in
_create_instance
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions reservation_id, max_count)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/compute/api.py"
, line 873,
in
_validate_and_build_base_options
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions pci_request_info, requested_networks)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/network/neutronv2/api.py"
, line 1081,
in
create_pci_requests_for_sriov_ports
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions neutron = get_client(context, admin=True)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/network/neutronv2/api.py"
, line 141,
in
get_client
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions _ADMIN_AUTH = _load_auth_plugin(CONF)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions File
"/usr/lib/python2.7/site-packages/nova/network/neutronv2/api.py"
, line 122,
in
_load_auth_plugin
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions raise neutron_client_exc.Unauthorized(message=err_msg)
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions Unauthorized: Unknown auth
type
: None
2017-03-14 12:58:11.089 5035 ERROR nova.api.openstack.extensions
|
按照报错提示，检查我的nova配置，检查控制节点和计算节点，也没发现有啥异常
|
1
2
3
4
|
grep
'ERROR'
/var/log/nova/
*
grep
'ERROR'
/var/log/neutron/
*
grep
'ERROR'
/var/log/glance/
*
grep
'ERROR'
/var/log/keystone/
*
|

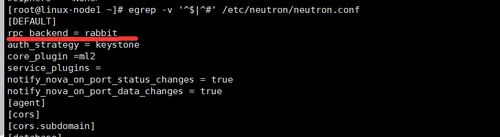

后来排查发现（自己在编辑neutron的时候，忘记添加rpc_backend = rabbit）：
在计算节点后控制节点都添加后，重启neutron相关服务，然后再次执行创建云主机的操作
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
[root@linux-node1 ~]
# openstack server create --flavor m1.tiny --image cirros --nic net-id=2d79dc77-be66-4850-af01-8e6946f16035 --security-group default --key-name mykey provider-instance
[root@linux-node1 ~]
# openstack network list
+--------------------------------------+----------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+----------+--------------------------------------+
| 2d79dc77-be66-4850-af01-8e6946f16035 | provider | 270b8cca-c8bc-4413-a035-8ed9b77230b6 |
+--------------------------------------+----------+--------------------------------------+
You have new mail
in
/var/spool/mail/root
查看发现云主机已经生效
[root@linux-node1 ~]
# openstack server list
+--------------------------------------+-------------------+--------+----------------------+
| ID | Name | Status | Networks |
+--------------------------------------+-------------------+--------+----------------------+
| 3ffb5d28-bfee-4562-bbb2-57d3956a8f0c | provider-instance | ACTIVE | provider=10.10.10.89 |
+--------------------------------------+-------------------+--------+----------------------+
|
在数据库中进行核对：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
|
[root@linux-node1 ~]
# mysql -unova -p
Enter password:
MariaDB [(none)]> use nova;
MariaDB [nova]> show tables;
+--------------------------------------------+
| Tables_in_nova |
+--------------------------------------------+
| agent_builds |
| aggregate_hosts |
| aggregate_metadata |
| aggregates |
| allocations |
| block_device_mapping |
| bw_usage_cache |
| cells |
| certificates |
| compute_nodes |
| console_pools |
| consoles |
| dns_domains |
| fixed_ips |
| floating_ips |
| instance_actions |
| instance_actions_events |
| instance_extra |
| instance_faults |
| instance_group_member |
| instance_group_policy |
| instance_groups |
| instance_id_mappings |
| instance_info_caches |
| instance_metadata |
| instance_system_metadata |
| instance_type_extra_specs |
| instance_type_projects |
| instance_types |
| instances |
| inventories |
| key_pairs |
| migrate_version |
| migrations |
| networks |
| pci_devices |
| project_user_quotas |
| provider_fw_rules |
| quota_classes |
| quota_usages |
| quotas |
| reservations |
| resource_provider_aggregates |
| resource_providers |
| s3_images |
| security_group_default_rules |
| security_group_instance_association |
| security_group_rules |
| security_groups |
| services |
| shadow_agent_builds |
| shadow_aggregate_hosts |
| shadow_aggregate_metadata |
| shadow_aggregates |
| shadow_block_device_mapping |
| shadow_bw_usage_cache |
| shadow_cells |
| shadow_certificates |
| shadow_compute_nodes |
| shadow_console_pools |
| shadow_consoles |
| shadow_dns_domains |
| shadow_fixed_ips |
| shadow_floating_ips |
| shadow_instance_actions |
| shadow_instance_actions_events |
| shadow_instance_extra |
| shadow_instance_faults |
| shadow_instance_group_member |
| shadow_instance_group_policy |
| shadow_instance_groups |
| shadow_instance_id_mappings |
| shadow_instance_info_caches |
| shadow_instance_metadata |
| shadow_instance_system_metadata |
| shadow_instance_type_extra_specs |
| shadow_instance_type_projects |
| shadow_instance_types |
| shadow_instances |
| shadow_key_pairs |
| shadow_migrate_version |
| shadow_migrations |
| shadow_networks |
| shadow_pci_devices |
| shadow_project_user_quotas |
| shadow_provider_fw_rules |
| shadow_quota_classes |
| shadow_quota_usages |
| shadow_quotas |
| shadow_reservations |
| shadow_s3_images |
| shadow_security_group_default_rules |
| shadow_security_group_instance_association |
| shadow_security_group_rules |
| shadow_security_groups |
| shadow_services |
| shadow_snapshot_id_mappings |
| shadow_snapshots |
| shadow_task_log |
| shadow_virtual_interfaces |
| shadow_volume_id_mappings |
| shadow_volume_usage_cache |
| snapshot_id_mappings |
| snapshots |
| tags |
| task_log |
| virtual_interfaces |
| volume_id_mappings |
| volume_usage_cache |
+--------------------------------------------+
109 rows
in
set
(0.02 sec)
MariaDB [nova]>
select
uuid from instances \G;
*************************** 1. row ***************************
uuid: 3ffb5d28-bfee-4562-bbb2-57d3956a8f0c
*************************** 2. row ***************************
uuid: 55cbd36c-0308-4d9a-b43e-978680002abf
2 rows
in
set
(0.01 sec)
ERROR: No query specified
在计算节点上进行比对：
[root@linux-node2 nova]
# virsh list --all
Id Name State
----------------------------------------------------
1 instance-00000001 running
2 instance-00000002 running
[root@linux-node2 nova]
# virsh domuuid instance-00000001
3ffb5d28-bfee-4562-bbb2-57d3956a8f0c
[root@linux-node2 nova]
# virsh domuuid instance-00000002
55cbd36c-0308-4d9a-b43e-978680002abf
|
到此，问题得到解决，OpenStack的配置是个细心活，需要明白它的各个组件的关联，这样排除故障的时候会有的放矢。
