本文紧接《
PrimeFaces布局技巧
》。
要注意:当使用整页布局和表单一起工作时,要避免表单内包含布局单元,它可能会导致错误。比如下面的代码可能就是无效的:
布局单元必定有自己的表单,因此要避免更新布局单元,应该是更新内容而不更新布局。
除了布局的“中中center”区域,其它区域都必须有自己的尺寸大小,使用size选项。
布局的另一种使用情况是基于元素的布局。它实际上相当于把整页布局fullPage属性设置为false。

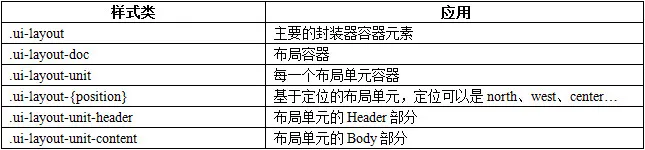

布局使用到的皮肤样式类由于皮肤样式类是全局的,在主题那一章可以看到更详细的信息。
布局单元LayoutUnit
布局单元表示边框布局模型的一个区域。

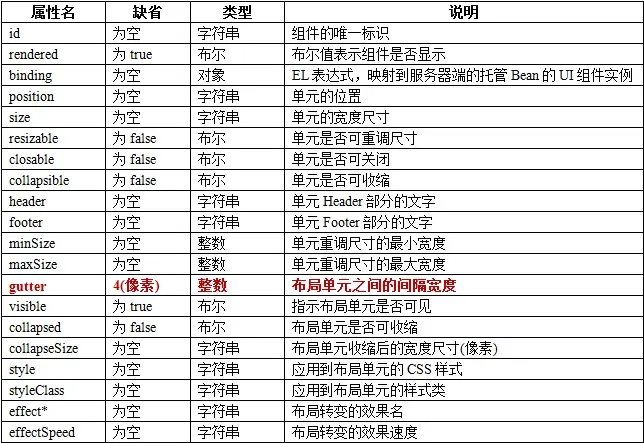

布局单元的属性包括:
注:红色字体部分是我修订过的结果,PrimeFaces官网的文档有错误。
布局示例:
代码样例:
其实布局很简单,您认为呢?
要注意:当使用整页布局和表单一起工作时,要避免表单内包含布局单元,它可能会导致错误。比如下面的代码可能就是无效的:
- p:layout fullPage="true">
- h:form>
- p:layoutUnit position="west" size="100">
- h:outputText value="Left Pane" />
- p:layoutUnit>
- p:layoutUnit position="center">
- h:outputText value="Right Pane" />
- p:layoutUnit>
- h:form>
- p:layout>
布局单元必定有自己的表单,因此要避免更新布局单元,应该是更新内容而不更新布局。
除了布局的“中中center”区域,其它区域都必须有自己的尺寸大小,使用size选项。
布局的另一种使用情况是基于元素的布局。它实际上相当于把整页布局fullPage属性设置为false。
布局使用到的皮肤样式类由于皮肤样式类是全局的,在主题那一章可以看到更详细的信息。
布局使用到的皮肤样式类
布局单元LayoutUnit
布局单元表示边框布局模型的一个区域。
布局单元的属性包括:
注:红色字体部分是我修订过的结果,PrimeFaces官网的文档有错误。
布局示例:
代码样例:
- nbsp;HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
- html xmlns="http://www.w3.org/1999/xhtml"
- xmlns:h="http://java.sun.com/jsf/html"
- xmlns:f="http://java.sun.com/jsf/core"
- xmlns:ui="http://java.sun.com/jsf/facelets"
- xmlns:p="http://primefaces.org/ui">
- f:view contentType="text/html">
- h:head>
- f:facet name="first">
- meta http-equiv="X-UA-Compatible" content="EmulateIE8" />
- meta content='text/html; charset=UTF-8' http-equiv="Content-Type" />
- title>PrimeFaces Layouttitle>
- f:facet>
- style type="text/css">
- style>
- h:head>
- h:body>
- p:layout fullPage="true">
- p:layoutUnit position="north" size="100" header="Top" resizable="true" closable="true" collapsible="true">
- h:outputText value="顶部区域" />
- p:layoutUnit>
- p:layoutUnit position="south" size="100" header="Bottom" resizable="true" closable="true" collapsible="true">
- h:outputText value="底部区域" />
- p:layoutUnit>
- p:layoutUnit position="west" size="300" header="左部" collapsible="true" footer="左底" gutter="1" effect="drop">
- p:accordionPanel>
- p:tab title="菜单1">
- h:outputText value="菜单1测试" />
- p:tab>
- p:tab title="菜单2">
- h:outputText value="菜单2测试" />
- p:tab>
- p:tab title="菜单3">
- h:outputText value="菜单3测试" />
- p:tab>
- p:accordionPanel>
- p:layoutUnit>
- p:layoutUnit position="center" closable="true" collapsible="true" header="Contents">
- h:form>
- 布局组件Layout是一个高度可定制的边框布局模型,它可以很轻松地创建复杂的网页布局,即使不懂Web设计。布局组件Layout是一个高度可定制的边框布局模型,它可以很轻松地创建复杂的网页布局,即使不懂Web设计。布局组件Layout是一个高度可定制的边框布局模型,它可以很轻松地创建复杂的网页布局,即使不懂Web设计。布局组件Layout是一个高度可定制的边框布局模型,它可以很轻松地创建复杂的网页布局,即使不懂Web设计。
- h:form>
- p:layoutUnit>
- p:layout>
- h:body>
- f:view>
- html>
其实布局很简单,您认为呢?
