[翻译] CRPixellatedView-用CIPixellate滤镜动态渲染UIView

简介:

CRPixellatedView-用CIPixellate滤镜动态渲染UIView

https://github.com/chroman/CRPixellatedView

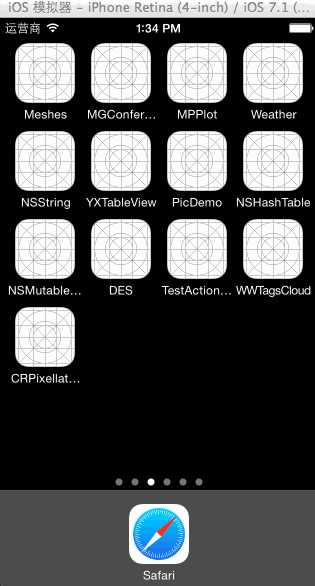

本人测试的效果:

Usage

To use CRPixellatedView, create a CRPixellatedView, configure and animate!

要使用CRPixellatedView的话,创建一个CRPixellatedView,配置以及做动画!



An example of making a CRPixellatedView:

以下是一个使用CRPixellatedView的例子:

CRPixellatedView *pixellatedView = [[CRPixellatedView alloc] initWithFrame:CGRectMake(0, 0, 320, 320)];
pixellatedView.image = [UIImage imageNamed:@"Image"];
[self.view addSubview:pixellatedView]; // Add to your view
[pixellatedView animate];



You can configure this settings, customizable example:

以下是配置设置,自定义的例子:

CRPixellatedView *pixellatedView = [[CRPixellatedView alloc] initWithFrame:CGRectMake(0, 0, 320, 320)];
pixellatedView.image = [UIImage imageNamed:@"Image"];
pixellatedView.pixelScale = 20.0f;
pixellatedView.animationDuration = 0.8f;
[self.view addSubview:pixellatedView]; // Add to your view
[pixellatedView animateWithCompletion:^(BOOL finished) {
    NSLog(@"completed");
}];



Also, you can customize the animation effect using the reverse property:

以下是你使用反转效果的例子:

CRPixellatedView *pixellatedView = [[CRPixellatedView alloc] initWithFrame:CGRectMake(0, 0, 320, 320)];
pixellatedView.image = [UIImage imageNamed:@"Image"];
pixellatedView.pixelScale = 20.0f;
pixellatedView.animationDuration = 0.8f;
pixellatedView.reverse = YES; // Reverse effect
[self.view addSubview:pixellatedView]; // Add to your view
[pixellatedView animateWithCompletion:^(BOOL finished) {
    NSLog(@"completed");
}];

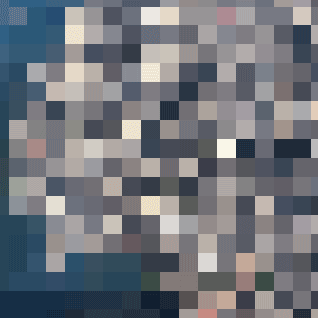

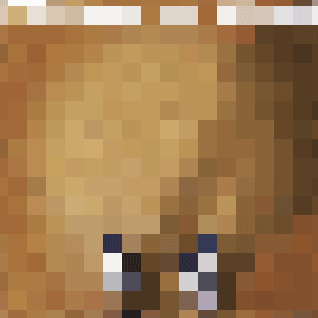

Examples

pixellatedView.reverse = YES; // Reverse effect

pixellatedView.reverse = NO; // (default)
pixellatedView.pixelScale = 30.0f;

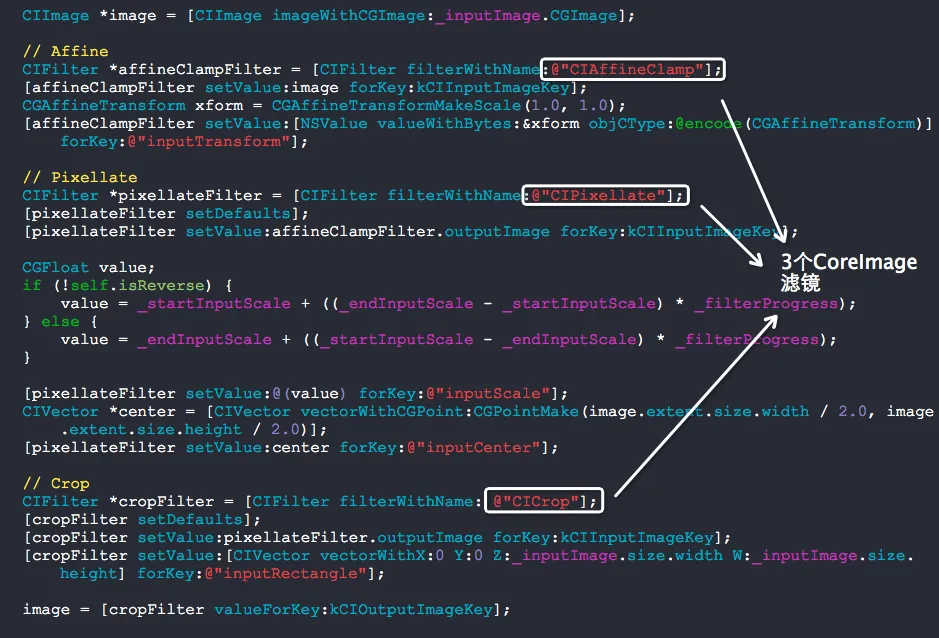

核心的地方:

使用了3个CoreImage的滤镜用来重绘View:)
