设计模式——装饰模式

简介: 设计模式——装饰模式

设计模式——装饰模式

概念

①、什么是装饰模式

动态的给一个对象添加一些额外的职责,就增加功能来说,装饰模式比生成子类更灵活。
②、解决什么问题?

需要动态添加一些额外的职责,解决子类数据过多

③、怎么解决

通过Decorator装饰类一层一层对具体对象进行装饰

④、什么时候使用

可以动态添加或删除对象的职责,并使得需要装饰得具体组件类和具体装饰类可以独立变化,以便增加新的具体组件类和具体装饰类。

⑤、优缺点

优点


1.装饰模式与继承关系得目的都是要扩展对象得功能,但是Decorator可以提供比继承更多得灵活性

2.通过使用不同得具体装饰类以及这些装饰类得排列组合,设计师可以创造出很多不同行为得组合

缺点
3.这种比继承更加灵活机动得特性,也同时意味着更多得复杂性

4.装饰模式会导设计中出现许多小类,如果过度使用,会使程序变得很复杂

5.装饰模式是针对抽象组件(Component)类型编程。但是,如果你要针对具体组件编程时,就应该重新思考你得应用架构,以及装饰着是否合适。当然也可以改变Component接口,增加新的公开得行为,实现半透明得装饰者模式。

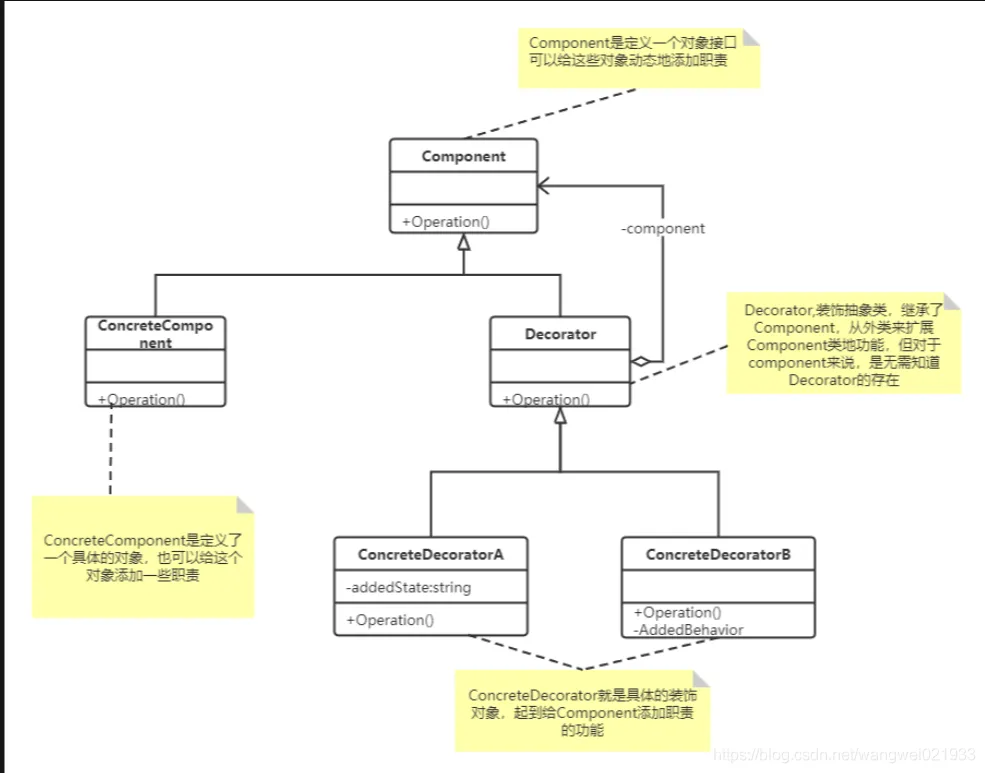

Component:是定义一个对象接口,可以给这些对象动态的添加职责。

ConcreteComponent:是定义了一个具体的对象,也可以给这个对象添加一些职责。

Decorator:装饰抽象类,继承了Component,从外类来扩展Component类的功能,但对于Component来说,是无需知道Decorator的存在的。

ConcreteDecorator:具体的装饰对象,起到给Component添加职责的功能。

实例

Component类

abstract  class Component
    {
        public abstract void Operation();
    }

ConcreteComponent类

class ConcreteComponent:Component
    {
        public override void Operation()
        {
            Console.WriteLine("具体对象的操作");
        }
    }

Decorator类

abstract class Decorator:Component  //继承Component类
    {
        protected Component component;
        public void SetComponent(Component component)//设置Component
        {
            this.component = component;
        }
        public override void Operation()//重写Operation(),实际执行的时Component的Operation()
        {
            if (component!=null )
            {
                component.Operation();
            }
        }
    }

ConcreteDecoratorA类

class ConcreteDecoratorA:Decorator //继承Decorator类
{
        private string addedState;          //本类独有的功能
        public override void Operation()
        {
            base.Operation();                   //首先郧西那个原component的Operation(),在执行苯类的功能,如addedState,
                                                //相当于对原Component进行了装饰
            addedState = "new State";
            Console.WriteLine("具体装饰对象A的操作");
        }
    }

ConcreteDecoratorB类

class ConcreteDecoratorB:Decorator
    {
        public override void Operation()
        {
            base.Operation();
            AddedBehavior();
            Console.WriteLine("具体装饰对象B的操作");
        }
        private  void AddedBehavior()
        {
        }
    }

客户端代码

static void Main(string[] args)
{
            ConcreteComponent c = new ConcreteComponent();
            ConcreteDecoratorA d1 = new ConcreteDecoratorA();
            ConcreteDecoratorB d2 = new ConcreteDecoratorB();
            d1.SetComponent(c);   //装饰的方法是:首先用ConcreteComponent实例化对象c,然后
            d2.SetComponent(d1);    //用ConcreteDecoratorA的实例化对象d1来包装c,再用
            d2.Operation();         //ConcrteDecoratorB的对象d2包装d1,最终执行d2的Operation()
            Console.Read();
        }

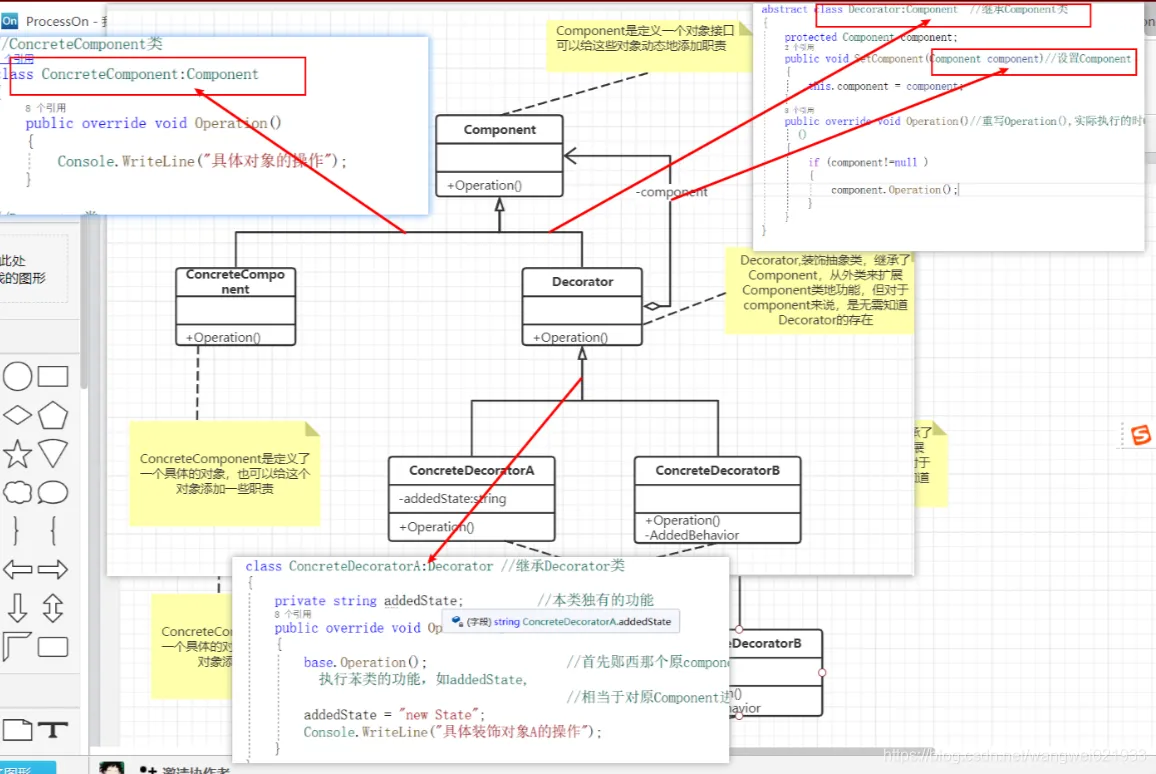

类图关系展示
