STM32F103C8T6 TFTILI9328液晶显示屏使用教程

2023-06-15 102
版权
版权声明：
本文内容由阿里云实名注册用户自发贡献，版权归原作者所有，阿里云开发者社区不拥有其著作权，亦不承担相应法律责任。具体规则请查看《 阿里云开发者社区用户服务协议》和 《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容，填写 侵权投诉表单进行举报，一经查实，本社区将立刻删除涉嫌侵权内容。
简介： STM32F103C8T6 TFTILI9328液晶显示屏使用教程

STM32F103C8T6 TFTILI9328液晶显示屏使用教程

硬件

STM32F103C8T6 TFTILI9328 ST-LINKV2下载 杜帮线

STMF103C8T6

在这里插入图片描述

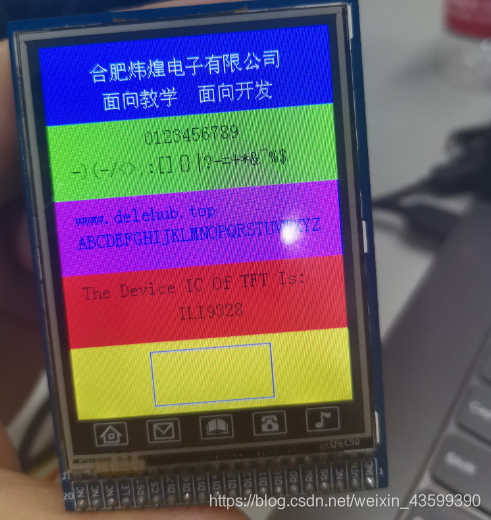

TFTILI9328液晶显示屏

在这里插入图片描述

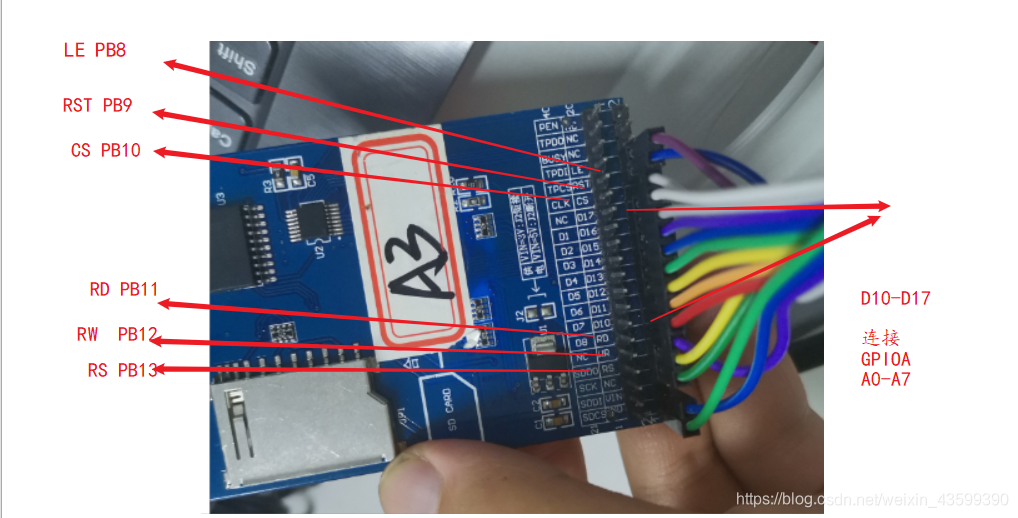

硬件连接(按照下面代码连接)

在这里插入图片描述

代码

TFT.C

/****************************************************************************************************
文件功能描述：320x240TFT驱动程序，控制TFT实现汉字,字符显示,画点功能。
****************************************************************************************************/

#include "stm32f10x.h"                   //STM32器件寄存器定义头文件，必须包含
#include "user_Config.h"                  //用户配置头文件，用于配置硬件连接资源,位于项目文件夹下
#include "Ascii_8x16.h"                  //8x16大小字符
#include "Chinese.h"                     //16x16像素大小的汉字

//**************声明外部函数和变量**************

extern unsigned int Device_code;

/****************************************************************************************************
//    实现功能：    延时
//    输入参数：    count 设置延时时间
****************************************************************************************************/
void delayms(unsigned int count)
{


    int i,j;
    for(i=0;i<count;i++)
       {


         for(j=0;j<0x640;j++);
       }
}



/****************************************************************************************************
//    实现功能：    写命令
//    输入参数：  DH 需要输入16bits命令的高8位
//              DL 需要输入16bits命令的低8位
****************************************************************************************************/
void Write_Cmd(unsigned char DH,unsigned char DL)
{


    CS_CLR;
    RS_CLR;
    RD_SET;
    RW_CLR;


    //注意：当使用8位数据口驱动16位数据模式时，使用74HC573作为IO扩展，程序如下
    GPIO_Write(DataPort,(u16)(DL | 0xff00));             //送低8位命令给573待锁存
    LE_SET;                                               //锁存位
    LE_CLR;                                               //断开锁存,位选573的Q7~Q0仍保持
    GPIO_Write(DataPort,(u16)(DH | 0xff00));            //送高8位命令给TFT


    /*
    //如果使用16位数据口驱动16位数据模式，则无需IO扩展，直接将数据送到数据口即可
    DataPort_L=DL;
    DataPort_H=DH;
    */

    RW_SET;
    CS_SET;
}

/****************************************************************************************************
//    实现功能：    写数据(2*8bits)
//    输入参数：  DH 需要输入16bits数据的高8位
//              DL 需要输入16bits数据的低8位
****************************************************************************************************/
void Write_Data(unsigned char DH,unsigned char DL)
{



    CS_CLR;
    RS_SET;

    //注意：当使用8位数据口驱动16位数据模式时，使用74HC573作为IO扩展，程序如下
    GPIO_Write(DataPort,(u16)(DL | 0xff00));         //送低8位命令给573待锁存
    LE_SET;                                                           //锁存位
    LE_CLR;                                                           //断开锁存,位选573的Q7~Q0仍保持
    GPIO_Write(DataPort,(u16)(DH | 0xff00));            //送高8位命令给TFT

    /*
    //如果使用16位数据口驱动16位数据模式，则无需IO扩展，直接将数据送到数据口即可
    DataPort_L=DL;
    DataPort_H=DH;
    */

    RW_CLR;
    RW_SET;
    CS_SET;
}

/****************************************************************************************************
//    实现功能：    写数据(16位)
//    输入参数：  y 需要输入16bits数据
****************************************************************************************************/
void  Write_Data_U16(unsigned int y)
{


    unsigned char m,n;
    m=y>>8;
    n=y;
    Write_Data(m,n);
}

/****************************************************************************************************
//    实现功能：    向x寄存器写入y数据
//    输入参数：  x 需要输入的命令 16位
//              y 需要输入的数据 16位
****************************************************************************************************/
void  Write_Cmd_Data (unsigned char x,unsigned int y)
{


    unsigned char m,n;
    m=y>>8;
    n=y;
    Write_Cmd(0x00,x);
    Write_Data(m,n);
}

/****************************************************************************************************
//    实现功能：    设置坐标
//  输入参数：  x0，y0 起始坐标
//              x1，y1 结束坐标
****************************************************************************************************/
void LCD_SetPos(unsigned int x0,unsigned int x1,unsigned int y0,unsigned int y1)
{



  Write_Cmd_Data(0x50,x0);  // Horizontal GRAM Start Address
  Write_Cmd_Data(0x51,x1);  // Horizontal GRAM End Address
  Write_Cmd_Data(0x52,y0);  // Vertical GRAM Start Address
  Write_Cmd_Data(0x53,y1);  // Vertical GRAM Start Address
  Write_Cmd_Data(0x20,x0);  // GRAM horizontal Address
  Write_Cmd_Data(0x21,y0);  // GRAM Vertical Address
  Write_Cmd (0x00,0x22);    // 0x0022,Start to Write Data to GRAM
}

/****************************************************************************************************
//    实现功能：    TFT清屏
//    输入参数：    bColor 清屏所使用的背景色
****************************************************************************************************/
void CLR_Screen(unsigned int bColor)
{


 unsigned int i,j;
 LCD_SetPos(0,240,0,320);                                                    //320x240，坐标从0开始
 for (i=0;i<320;i++)
    {


       for (j=0;j<240;j++)
           Write_Data_U16(bColor);
    }
}

/****************************************************************************************************
//    实现功能：    显示Ascii字符
//  输入参数：  x 横坐标
//              y 纵坐标
//                c 需要显示的字符
//                fColor 字符颜色
//                bColor 字符背景颜色
****************************************************************************************************/
void LCD_PutChar(unsigned int x, unsigned int y, char c, unsigned int fColor, unsigned int bColor)
{


     unsigned int i,j;
     LCD_SetPos(x,x+8-1,y,y+16-1);                    //设置字符显示位置
     for(i=0; i<16;i++)
    {

                                //循环写入16字节，一个字符为16字节
        unsigned char m=Font8x16[(c-0x20)*16+i];  //提取c字符的第i个字节以,c减去0x20是由于Ascii码库中的0~1f被去掉
            for(j=0;j<8;j++)
            {

                           //循环写入8位，一个字节为8位
                if((m&0x80)==0x80)
                    {

                     //判断最高位是否为1
                        Write_Data_U16(fColor);           //最高位为1，写入字符颜色
                    }
                else
                    {


                        Write_Data_U16(bColor);           //最高位为0，写入背景颜色
                    }
                m<<=1;                                //左移1位，准备写下一位
            }
    }
}


/****************************************************************************************************
//    实现功能：    显示16x16汉字
//  输入参数： x 横坐标
//            y 纵坐标
//                g 需要显示的字符编码
//                fColor 字符颜色
//                bColor 字符背景颜色
****************************************************************************************************/

void Put16x16(unsigned short x, unsigned short  y, unsigned char g[2], unsigned int fColor,unsigned int bColor)
{


    unsigned int i,j,k;

    LCD_SetPos(x,  x+16-1,y, y+16-1);                       //设置汉字显示位置

    for (k=0;k<64;k++)                                      //循环64次，查询汉字字模位置
    {


      if ((ch16[k].GBK[0]==g[0])&&(ch16[k].GBK[1]==g[1]))   //判断第k个汉字的编码是否与输入汉字g[2]相等
      {


        for(i=0;i<32;i++)                                   //如果相等，既已找到待显示字模位置，循环写入32字节
        {


          unsigned short m=ch16[k].hz16[i];                     //读取32字节中的第i字节
          for(j=0;j<8;j++)                                      //循环写入8位数据
           {


             if((m&0x80)==0x80) Write_Data_U16(fColor);             //判断最高位是否为1,最高位为1，写入字符颜色
             else              Write_Data_U16(bColor);              //最高位为0，写入背景颜色
             m<<=1;                                             //左移1位，准备写下一位
           }
        }
      }
    }
}


/****************************************************************************************************
//    实现功能：    显示中英文字符串
//  输入参数： x 横坐标
//            y 纵坐标
//                *s 待显示的字符串,例如LCD_PutString(24,16,"123Eee",White,Blue);即把"123Eee"的第一个字符地址赋给指针变量s.
//                bColor 字符背景颜色
****************************************************************************************************/
void LCD_PutString(unsigned short x, unsigned short y, unsigned char *s, unsigned int fColor, unsigned int bColor)
{


     unsigned char l=0;                                //显示屏位置增量

     while(*s)
     {


        if( *s < 0x80)                                     //判断s指向的字符串中的某字符的编码值是否小于128,如果小于,即为ASCII字符
            {


             LCD_PutChar(x+l*8,y,*s,fColor,bColor);            //显示该字符
             s++;l++;                                      //指针加1,位置加1
            }
        else
            {


             Put16x16(x+l*8,y,(unsigned char*)s,fColor,bColor);        //显示该汉字
             s+=2;l+=2;                                            //因为汉字为编码为2字节，指针加2,显示16x16所以位置加2
            }
     }
}

/****************************************************************************************************
//    实现功能：    指定位置显示RGB颜色
//  输入参数： x0，y0 起始坐标
//            x1，y1 结束坐标
//                Color  背景颜色
****************************************************************************************************/

void Show_RGB (unsigned short x0,unsigned short x1,unsigned short y0,unsigned short y1,unsigned int Color)
{


    unsigned int i,j;

    LCD_SetPos(x0,x1,y0,y1);                                                //横屏这里要进行坐标变换，如果是竖屏，则直接是x0,x1,y0,y1做参数
    for (i=y0;i<=y1;i++)
    {


       for (j=x0;j<=x1;j++)
           Write_Data_U16(Color);
    }
}

/****************************************************************************************************
//    实现功能：    TFT初始化
****************************************************************************************************/
void TFT_Initial(void)
{


    RST_SET;
    delayms(1);                                // Delay 1ms
    RST_CLR;
    delayms(10);                               // Delay 10ms
    RST_SET;
    delayms(50);                               // Delay 50 ms

    if(Device_code==0x9320)
     {



    //************* Start Initial Sequence **********//
    Write_Cmd_Data(0x00,0x0001);           //Set the OSC bit as ‘1’ to start the internal oscillator
    Write_Cmd_Data(0x01,0x0100);       // set SS and SM bit
    Write_Cmd_Data(0x02,0x0700);           // set 1 line inversion
    Write_Cmd_Data(0x03,0x1030);           //set GRAM Write direction and BGR=1
    Write_Cmd_Data(0x04,0x0000);       // Resize register
    Write_Cmd_Data(0x08,0x0202);           // set the back porch and front porch
    Write_Cmd_Data(0x09,0x0000);       // set non-display area refresh cycle ISC[3:0]
    Write_Cmd_Data(0x0A,0x0000);       // FMARK function
    Write_Cmd_Data(0x0C,0x0000);       // RGB interface setting
    Write_Cmd_Data(0x0D,0x0000);           // Frame marker Position
    Write_Cmd_Data(0x0F,0x0000);       // RGB interface polarity
    delayms(30);
    //*************Power On sequence ****************//
    Write_Cmd_Data(0x10, 0x16b0);   // SAP, BT[3:0], AP, DSTB, SLP, STB
    delayms(30);
    Write_Cmd_Data(0x11, 0x0007);   //Write final user’s setting values to VC bit
    Write_Cmd_Data(0x12, 0x013a);   // set Internal reference voltage
    Write_Cmd_Data(0x13, 0x1a00);   // VDV[4:0] for VCOM amplitude
    delayms(30);
    Write_Cmd_Data(0x29, 0x000c);   // Set VCM[5:0] for VCOMH
    delayms(30); // Delay 50ms

    // ----------- Adjust the Gamma Curve ----------//
    Write_Cmd_Data(0x0030, 0x0000);
    Write_Cmd_Data(0x0031, 0x0505);
    Write_Cmd_Data(0x0032, 0x0304);
    Write_Cmd_Data(0x0035, 0x0006);
    Write_Cmd_Data(0x0036, 0x0707);
    Write_Cmd_Data(0x0037, 0x0105);
    Write_Cmd_Data(0x0038, 0x0002);
    Write_Cmd_Data(0x0039, 0x0707);
    Write_Cmd_Data(0x003C, 0x0704);
    Write_Cmd_Data(0x003D, 0x0807);

    //------------------ Set GRAM area ---------------//
    Write_Cmd_Data(0x0050, 0x0000); // Horizontal GRAM Start Address
    Write_Cmd_Data(0x0051, 0x00EF); // Horizontal GRAM End Address
    Write_Cmd_Data(0x0052, 0x0000); // Vertical GRAM Start Address
    Write_Cmd_Data(0x0053, 0x013F); // Vertical GRAM Start Address
    Write_Cmd_Data(0x0060, 0x2700); // Gate Scan Line
    Write_Cmd_Data(0x0061, 0x0001); // NDL,VLE, REV
    Write_Cmd_Data(0x006A, 0x0000); // set scrolling line
  Write_Cmd_Data(0x20, 0x0000);   // GRAM horizontal Address
    Write_Cmd_Data(0x21, 0x0000);   // GRAM Vertical Address

    //-------------- Partial Display Control ---------//
    Write_Cmd_Data(0x0080, 0x0000);
    Write_Cmd_Data(0x0081, 0x0000);
    Write_Cmd_Data(0x0082, 0x0000);
    Write_Cmd_Data(0x0083, 0x0000);
    Write_Cmd_Data(0x0084, 0x0000);
    Write_Cmd_Data(0x0085, 0x0000);

    //-------------- Panel Control ---------//
  Write_Cmd_Data(0x90,0x0010);   //Frame Cycle Contral
    Write_Cmd_Data(0x92,0x0000);   //Panel Interface Contral
    Write_Cmd_Data(0x93,0x0003);   //Panel Interface Contral 3.
    Write_Cmd_Data(0x95,0x0110);   //Frame Cycle Contral
    Write_Cmd_Data(0x97,0x0000);   //
    Write_Cmd_Data(0x98,0x0000);   //Frame Cycle Contral.

    //-------------- Display on ---------//
  Write_Cmd_Data(0x07,0x0173);

    }

    else if(Device_code==0x1505 )
     {



    //************* Start Initial Sequence **********//
    Write_Cmd_Data(0x00,0x0001);   //Set the OSC bit as ‘1’ to start the internal oscillator
  Write_Cmd_Data(0x01,0x0100);   // set SS and SM bit
    Write_Cmd_Data(0x02,0x0700);   // set 1 line inversion
    Write_Cmd_Data(0x03,0x1030);   //set GRAM Write direction and BGR=1
  Write_Cmd_Data(0x04,0x0000);   // Resize register
    Write_Cmd_Data(0x08,0x0202);   // set the back porch and front porch
  Write_Cmd_Data(0x09,0x0000);   // set non-display area refresh cycle ISC[3:0]
  Write_Cmd_Data(0x0A,0x0000);   // FMARK function
  Write_Cmd_Data(0x0C,0x0000);   // RGB interface setting
    Write_Cmd_Data(0x0D,0x0000);   // Frame marker Position
  Write_Cmd_Data(0x0F,0x0000);   // RGB interface polarity
  delayms(30);
    //*************Power On sequence ****************//
    Write_Cmd_Data(0x10, 0x16b0);   // SAP, BT[3:0], AP, DSTB, SLP, STB
    delayms(30);
    Write_Cmd_Data(0x11, 0x0007);   //Write final user’s setting values to VC bit
    Write_Cmd_Data(0x12, 0x013a);   // set Internal reference voltage
    Write_Cmd_Data(0x13, 0x1a00);   // VDV[4:0] for VCOM amplitude
  delayms(30);
  Write_Cmd_Data(0x29, 0x000c);   // Set VCM[5:0] for VCOMH
    delayms(30); // Delay 50ms

    // ----------- Adjust the Gamma Curve ----------//
    Write_Cmd_Data(0x0030, 0x0000);
    Write_Cmd_Data(0x0031, 0x0505);
    Write_Cmd_Data(0x0032, 0x0304);
    Write_Cmd_Data(0x0035, 0x0006);
    Write_Cmd_Data(0x0036, 0x0707);
    Write_Cmd_Data(0x0037, 0x0105);
    Write_Cmd_Data(0x0038, 0x0002);
    Write_Cmd_Data(0x0039, 0x0707);
    Write_Cmd_Data(0x003C, 0x0704);
    Write_Cmd_Data(0x003D, 0x0807);

    //------------------ Set GRAM area ---------------//
    Write_Cmd_Data(0x0050, 0x0000); // Horizontal GRAM Start Address
    Write_Cmd_Data(0x0051, 0x00EF); // Horizontal GRAM End Address
    Write_Cmd_Data(0x0052, 0x0000); // Vertical GRAM Start Address
    Write_Cmd_Data(0x0053, 0x013F); // Vertical GRAM Start Address
    Write_Cmd_Data(0x0060, 0x2700); // Gate Scan Line
    Write_Cmd_Data(0x0061, 0x0001); // NDL,VLE, REV
    Write_Cmd_Data(0x006A, 0x2700); // set scrolling line
  Write_Cmd_Data(0x20, 0x0000);   // GRAM horizontal Address
    Write_Cmd_Data(0x21, 0x0000);   // GRAM Vertical Address

    //-------------- Partial Display Control ---------//
    Write_Cmd_Data(0x0080, 0x0000);
    Write_Cmd_Data(0x0081, 0x0000);
    Write_Cmd_Data(0x0082, 0x0000);
    Write_Cmd_Data(0x0083, 0x0000);
    Write_Cmd_Data(0x0084, 0x0000);
    Write_Cmd_Data(0x0085, 0x0000);

    //-------------- Panel Control ---------//
  Write_Cmd_Data(0x90,0x0010);   //Frame Cycle Contral
    Write_Cmd_Data(0x92,0x0000);   //Panel Interface Contral
    Write_Cmd_Data(0x93,0x0003);   //Panel Interface Contral 3.
    Write_Cmd_Data(0x95,0x0110);   //Frame Cycle Contral
    Write_Cmd_Data(0x97,0x0000);   //
    Write_Cmd_Data(0x98,0x0000);   //Frame Cycle Contral.

    //-------------- Display on ---------//
  Write_Cmd_Data(0x07,0x0173);

    }

  else if(Device_code==0x9328)
     {



    //************* Start Initial Sequence **********//
     Write_Cmd_Data(0x0001,0x0100);   //set SS and SM bit //设置扫描方向  100
   Write_Cmd_Data(0x0002,0x0700);   //EOR=1 and B/C=1 to set the line inversion  //设置行反转
   Write_Cmd_Data(0x0003,0x1030);   //set Entry Mode  //设置进入模式    1030
   Write_Cmd_Data(0x0004,0x0000);   //
   Write_Cmd_Data(0x00A4,0x0001);
   Write_Cmd_Data(0x0008,0x0202); // set the back porch and front porch
   Write_Cmd_Data(0x0009,0x0000); // set non-display area refresh cycle ISC[3:0]
   Write_Cmd_Data(0x000A,0x0000); // FMARK function
   Write_Cmd_Data(0x000C,0x0000); // RGB interface setting
   Write_Cmd_Data(0x000D, 0x0000); // Frame marker Position
   Write_Cmd_Data(0x000F, 0x0000); // RGB interface polarity



//*************Power On sequence ****************//
    Write_Cmd_Data(0x0010, 0x0000); // SAP, BT[3:0], AP, DSTB, SLP, STB
    Write_Cmd_Data(0x0011, 0x0007); // DC1[2:0], DC0[2:0], VC[2:0]
    Write_Cmd_Data(0x0012, 0x0000); // VREG1OUT voltage
    Write_Cmd_Data(0x0013, 0x0000); // VDV[4:0] for VCOM amplitude
    delayms(30);
    Write_Cmd_Data(0x0010, 0x1690); // SAP, BT[3:0], AP, DSTB, SLP, STB
    Write_Cmd_Data(0x0011, 0x0227); // R11h=0x0221 at VCI=3.3V, DC1[2:0], DC0[2:0], VC[2:0]
    delayms(30);
    Write_Cmd_Data(0x0012, 0x001C); // External reference voltage= Vci;
    delayms(30);
    Write_Cmd_Data(0x0013, 0x1800); // R13=1200 when R12=009D;VDV[4:0] for VCOM amplitude
    Write_Cmd_Data(0x0029, 0x001C); // R29=000C when R12=009D;VCM[5:0] for VCOMH
    Write_Cmd_Data(0x002B, 0x000D); // Frame Rate = 91Hz
    delayms(30);
    Write_Cmd_Data(0x0020, 0x0000); // GRAM horizontal Address
    Write_Cmd_Data(0x0021, 0x0000); // GRAM Vertical Address
// ----------- Adjust the Gamma Curve ----------//
      Write_Cmd_Data(0x0030, 0x0007);
      Write_Cmd_Data(0x0031, 0x0302);
    Write_Cmd_Data(0x0032, 0x0105);
      Write_Cmd_Data(0x0035, 0x0206);
    Write_Cmd_Data(0x0036, 0x0808);
    Write_Cmd_Data(0x0037, 0x0206);
    Write_Cmd_Data(0x0038, 0x0504);
    Write_Cmd_Data(0x0039, 0x0007);
    Write_Cmd_Data(0x003C, 0x0105);
    Write_Cmd_Data(0x003D, 0x0808);
//------------------ Set GRAM area ---------------//
    Write_Cmd_Data(0x0050, 0x0000); // Horizontal GRAM Start Address
    Write_Cmd_Data(0x0051, 0x00EF); // Horizontal GRAM End Address
    Write_Cmd_Data(0x0052, 0x0000); // Vertical GRAM Start Address
      delayms(30);
    Write_Cmd_Data(0x0053, 0x013F); // Vertical GRAM Start Address
      delayms(30);
    Write_Cmd_Data(0x0060, 0xA700); // Gate Scan Line
    Write_Cmd_Data(0x0061, 0x0001); // NDL,VLE, REV
    Write_Cmd_Data(0x006A, 0x0000); // set scrolling line
//-------------- Partial Display Control ---------//
    Write_Cmd_Data(0x0080, 0x0000);
    Write_Cmd_Data(0x0081, 0x0000);
    Write_Cmd_Data(0x0082,0x0000);
    Write_Cmd_Data(0x0083,0x0000);
    Write_Cmd_Data(0x0084,0x0000);
    Write_Cmd_Data(0x0085,0x0000);
//-------------- Panel Control -------------------//
    Write_Cmd_Data(0x0090, 0x0010);
    Write_Cmd_Data(0x0092, 0x0000);
    Write_Cmd_Data(0x0093, 0x0003);
    Write_Cmd_Data(0x0095, 0x0110);
    Write_Cmd_Data(0x0097, 0x0000);
    Write_Cmd_Data(0x0098, 0x0000);
    Write_Cmd_Data(0x0007, 0x0133); // 262K color and display ON

    }
}

/****************************************************************************************************
//    实现功能：    画点
//  输入参数： x，y 需要画点坐标
//            color 点的颜色
****************************************************************************************************/
void Put_pixel(unsigned int x,unsigned int y,unsigned int color)
{


    LCD_SetPos(x,x,y,y);                                                //横屏这里要进行坐标变换，如果是竖屏，则直接是x0,x1,y0,y1做参数
    Write_Data_U16(color);                                                      //在指定点写入颜色数据
}

TFT.H


#ifndef uchar
#define uchar unsigned char
#endif

#ifndef uint
#define uint unsigned int
#endif

unsigned char pic[];

void TFT_Initial(void);
void show_colour_bar (void);
void Write_Cmd_Data(unsigned char x, unsigned int y);
void Write_Cmd(unsigned char DH,unsigned char DL);
void Write_Data(unsigned char DH,unsigned char DL);
void delayms(unsigned int tt);
void show_photo(void);
void Show_RGB (unsigned int x0,unsigned int x1,unsigned int y0,unsigned int y1,unsigned int Color);

void  Write_Data_U16(unsigned int y);
void CLR_Screen(unsigned int bColor);
void PutGB3232(unsigned short x, unsigned short  y, unsigned char c[2], unsigned int fColor,unsigned int bColor);
void LCD_PutChar(unsigned short x, unsigned short y, char c, unsigned int fColor, unsigned int bColor);
void LCD_PutString(unsigned short x, unsigned short y, unsigned char *s, unsigned int fColor, unsigned int bColor);
void LCD_PutString24(unsigned short x, unsigned short y, unsigned char *s, unsigned int fColor, unsigned int bColor);
void LCD_PutChar8x8(unsigned short x, unsigned short y, char c, unsigned int fColor, unsigned int bColor);
void Put16x16(unsigned short x, unsigned short  y, unsigned char g[2], unsigned int fColor,unsigned int bColor);
void Put_pixel(unsigned int x,unsigned int y,unsigned int color);
void address_set(unsigned int x1,unsigned int y1,unsigned int x2,unsigned int y2);
void LCD_SetPos(unsigned short x0,unsigned short x1,unsigned short y0,unsigned short y1);
void line(int x1,int y1,int x2,int y2,int color);
void draw_circle(int x, int y, int r, int color);
void LCD_PutSingleChar(unsigned int x, unsigned int y, char c, unsigned int fColor, unsigned int bColor);


void Line(    uchar X0,
            uchar Y0,
            uchar X1,
            uchar Y1,
            unsigned int color);
void Rectangle( uchar left,
                uchar top,
                uchar right,
                uchar bottom,
                unsigned int color);

void Bar(    uchar left,
            uchar top,
            uchar right,
            uchar bottom,
            unsigned int color);

user_Config.h


/*2.8寸TFT触摸屏接口定义*/

#define GPIO_TFT_DATA                   GPIOA                             //数据口PA0~PA7
#define RCC_GPIO_TFT                    RCC_APB2Periph_GPIOA

#define GPIO_CTRB                        GPIOB                             //控制口PB8~PB13
#define RCC_GPIO_CTRB                    RCC_APB2Periph_GPIOB

#define RS_CLR            GPIO_ResetBits(GPIO_CTRB, GPIO_Pin_13)     //RS置低
#define RS_SET            GPIO_SetBits(GPIO_CTRB, GPIO_Pin_13)       //RS置高

#define RW_CLR            GPIO_ResetBits(GPIO_CTRB, GPIO_Pin_12)     //RW置低
#define RW_SET            GPIO_SetBits(GPIO_CTRB, GPIO_Pin_12)            //RW置高

#define RD_CLR            GPIO_ResetBits(GPIO_CTRB, GPIO_Pin_11)     //E RD置低
#define RD_SET            GPIO_SetBits(GPIO_CTRB, GPIO_Pin_11)       //E ED置高

#define CS_CLR            GPIO_ResetBits(GPIO_CTRB, GPIO_Pin_10)     //CS置低
#define CS_SET            GPIO_SetBits(GPIO_CTRB, GPIO_Pin_10)       //CS置高

#define RST_CLR            GPIO_ResetBits(GPIO_CTRB, GPIO_Pin_9)     //RST置低
#define RST_SET            GPIO_SetBits(GPIO_CTRB, GPIO_Pin_9)       //RST置高

#define LE_CLR            GPIO_ResetBits(GPIO_CTRB, GPIO_Pin_8)     //LE置低
#define LE_SET            GPIO_SetBits(GPIO_CTRB, GPIO_Pin_8)       //LE置高

#define DataPort        GPIOA                                                     //PA口为数据口

#define D0              GPIO_Pin_0                                                     //D0使用的GPIO管脚
#define D1              GPIO_Pin_1                                                    //D1使用的GPIO管脚
#define D2              GPIO_Pin_2                                                  //D2使用的GPIO管脚
#define D3                GPIO_Pin_3                                                    //D3使用的GPIO管脚
#define D4                GPIO_Pin_4                                                     //D4使用的GPIO管脚
#define D5                GPIO_Pin_5                                                    //D5使用的GPIO管脚
#define D6                GPIO_Pin_6                                                  //D6使用的GPIO管脚
#define D7                GPIO_Pin_7                                                    //D7使用的GPIO管脚


/*全局变量-颜色代码*/

#define White          0xFFFF                                                               //显示颜色代码
#define Black          0x0000
#define Blue           0x001F
#define Blue2          0x051F
#define Red            0xF800
#define Magenta        0xF81F
#define Green          0x07E0
#define Cyan           0x7FFF
#define Yellow         0xFFE0

/*函数声明区*/
void RCC_Configuration(void);
void NVIC_Configuration(void);
void Delay(vu32 nCount);

Ascii_8x16.h

//ASCII码的0x20～0x7f,0x00~0x1f为控制命令，所以被去掉
const unsigned char  Font8x16[] =
{



/*--  文字:     ASCII值0x20--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  !  ASCII值0x21--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x18,0x18,0x00,0x00,

/*--  文字:  "  ASCII值0x22--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x12,0x36,0x24,0x48,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  #  ASCII值0x23--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x24,0x24,0x24,0xFE,0x48,0x48,0x48,0xFE,0x48,0x48,0x48,0x00,0x00,

/*--  文字:  $  ASCII值0x24--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x10,0x38,0x54,0x54,0x50,0x30,0x18,0x14,0x14,0x54,0x54,0x38,0x10,0x10,

/*--  文字:  %  ASCII值0x25--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x44,0xA4,0xA8,0xA8,0xA8,0x54,0x1A,0x2A,0x2A,0x2A,0x44,0x00,0x00,

/*--  文字:  &  ASCII值0x26--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x30,0x48,0x48,0x48,0x50,0x6E,0xA4,0x94,0x88,0x89,0x76,0x00,0x00,

/*--  文字:  '  ASCII值0x27--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x60,0x60,0x20,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  (  ASCII值0x28--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x02,0x04,0x08,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x08,0x04,0x02,0x00,

/*--  文字:  )  ASCII值0x29--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x40,0x20,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x10,0x10,0x20,0x40,0x00,

/*--  文字:  *  ASCII值0x2a--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x10,0x10,0xD6,0x38,0x38,0xD6,0x10,0x10,0x00,0x00,0x00,0x00,

/*--  文字:  +  ASCII值0x2b--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0xFE,0x10,0x10,0x10,0x10,0x00,0x00,0x00,

/*--  文字:  ,  ASCII值0x2c--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x20,0xC0,

/*--  文字:  -  ASCII值0x2d--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  .  ASCII值0x2e--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,

/*--  文字:  /  ASCII值0x2f--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x01,0x02,0x02,0x04,0x04,0x08,0x08,0x10,0x10,0x20,0x20,0x40,0x40,0x00,

/*--  文字:  0  ASCII值0x30--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18,0x00,0x00,

/*--  文字:  1  ASCII值0x31--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x10,0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,

/*--  文字:  2  ASCII值0x32--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x04,0x04,0x08,0x10,0x20,0x42,0x7E,0x00,0x00,

/*--  文字:  3  ASCII值0x33--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x04,0x18,0x04,0x02,0x02,0x42,0x44,0x38,0x00,0x00,

/*--  文字:  4 ASCII值0x34--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x04,0x0C,0x14,0x24,0x24,0x44,0x44,0x7E,0x04,0x04,0x1E,0x00,0x00,

/*--  文字:  5  ASCII值0x35--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x7E,0x40,0x40,0x40,0x58,0x64,0x02,0x02,0x42,0x44,0x38,0x00,0x00,

/*--  文字:  6  ASCII值0x36--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x1C,0x24,0x40,0x40,0x58,0x64,0x42,0x42,0x42,0x24,0x18,0x00,0x00,

/*--  文字:  7  ASCII值0x37--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x7E,0x44,0x44,0x08,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,

/*--  文字:  8  ASCII值0x38--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x24,0x18,0x24,0x42,0x42,0x42,0x3C,0x00,0x00,

/*--  文字:  9  ASCII值0x39--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x26,0x1A,0x02,0x02,0x24,0x38,0x00,0x00,

/*--  文字:  :  ASCII值0x3a--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,

/*--  文字:  ;  ASCII值0x3b--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x20,

/*--  文字:  <  ASCII值0x3c--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x02,0x04,0x08,0x10,0x20,0x40,0x20,0x10,0x08,0x04,0x02,0x00,0x00,

/*--  文字:  =  ASCII值0x3d--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  >  ASCII值0x3e--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x40,0x20,0x10,0x08,0x04,0x02,0x04,0x08,0x10,0x20,0x40,0x00,0x00,

/*--  文字:  ?  ASCII值0x3f--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x62,0x02,0x04,0x08,0x08,0x00,0x18,0x18,0x00,0x00,

/*--  文字:  @  ASCII值0x40--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x38,0x44,0x5A,0xAA,0xAA,0xAA,0xAA,0xB4,0x42,0x44,0x38,0x00,0x00,

/*--  文字:  A  ASCII值0x41--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x10,0x10,0x18,0x28,0x28,0x24,0x3C,0x44,0x42,0x42,0xE7,0x00,0x00,

/*--  文字:  B  ASCII值0x42--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xF8,0x44,0x44,0x44,0x78,0x44,0x42,0x42,0x42,0x44,0xF8,0x00,0x00,

/*--  文字:  C  ASCII值0x43--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3E,0x42,0x42,0x80,0x80,0x80,0x80,0x80,0x42,0x44,0x38,0x00,0x00,

/*--  文字:  D  ASCII值0x44--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xF8,0x44,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x44,0xF8,0x00,0x00,

/*--  文字:  E  ASCII值0x45--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xFC,0x42,0x48,0x48,0x78,0x48,0x48,0x40,0x42,0x42,0xFC,0x00,0x00,

/*--  文字:  F  ASCII值0x46--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xFC,0x42,0x48,0x48,0x78,0x48,0x48,0x40,0x40,0x40,0xE0,0x00,0x00,

/*--  文字:  G  ASCII值0x47--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3C,0x44,0x44,0x80,0x80,0x80,0x8E,0x84,0x44,0x44,0x38,0x00,0x00,

/*--  文字:  H  ASCII值0x48--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xE7,0x42,0x42,0x42,0x42,0x7E,0x42,0x42,0x42,0x42,0xE7,0x00,0x00,

/*--  文字:  I  ASCII值0x49--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x7C,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,

/*--  文字:  J  ASCII值0x4a--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x88,0xF0,

/*--  文字:  K  ASCII值0x4b--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xEE,0x44,0x48,0x50,0x70,0x50,0x48,0x48,0x44,0x44,0xEE,0x00,0x00,

/*--  文字:  L  ASCII值0x4c--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xE0,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x42,0xFE,0x00,0x00,

/*--  文字:  M  ASCII值0x4d--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xEE,0x6C,0x6C,0x6C,0x6C,0x54,0x54,0x54,0x54,0x54,0xD6,0x00,0x00,

/*--  文字:  N  ASCII值0x4e--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xC7,0x62,0x62,0x52,0x52,0x4A,0x4A,0x4A,0x46,0x46,0xE2,0x00,0x00,

/*--  文字:  O  ASCII值0x4f--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00,

/*--  文字:  P  ASCII值0x50--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xFC,0x42,0x42,0x42,0x42,0x7C,0x40,0x40,0x40,0x40,0xE0,0x00,0x00,

/*--  文字:  Q  ASCII值0x51--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0xB2,0xCA,0x4C,0x38,0x06,0x00,

/*--  文字:  R  ASCII值0x52--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xFC,0x42,0x42,0x42,0x7C,0x48,0x48,0x44,0x44,0x42,0xE3,0x00,0x00,

/*--  文字:  S  ASCII值0x53--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x3E,0x42,0x42,0x40,0x20,0x18,0x04,0x02,0x42,0x42,0x7C,0x00,0x00,

/*--  文字:  T  ASCII值0x54--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xFE,0x92,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x38,0x00,0x00,

/*--  文字:  U  ASCII值0x55--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xE7,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x3C,0x00,0x00,

/*--  文字:  V  ASCII值0x56--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xE7,0x42,0x42,0x44,0x24,0x24,0x28,0x28,0x18,0x10,0x10,0x00,0x00,

/*--  文字:  W  ASCII值0x57--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xD6,0x92,0x92,0x92,0x92,0xAA,0xAA,0x6C,0x44,0x44,0x44,0x00,0x00,

/*--  文字:  X  ASCII值0x58--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x18,0x18,0x18,0x24,0x24,0x42,0xE7,0x00,0x00,

/*--  文字:  Y  ASCII值0x59--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xEE,0x44,0x44,0x28,0x28,0x10,0x10,0x10,0x10,0x10,0x38,0x00,0x00,

/*--  文字:  Z  ASCII值0x5a--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x7E,0x84,0x04,0x08,0x08,0x10,0x20,0x20,0x42,0x42,0xFC,0x00,0x00,

/*--  文字:  [  ASCII值0x5b--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x1E,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1E,0x00,

/*--  文字:  \  ASCII值0x5c--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x40,0x40,0x20,0x20,0x10,0x10,0x10,0x08,0x08,0x04,0x04,0x04,0x02,0x02,

/*--  文字:  ]  ASCII值0x5d--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x78,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x78,0x00,

/*--  文字:  ^  ASCII值0x5e--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x1C,0x22,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  _  ASCII值0x5f--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,

/*--  文字:  `  ASCII值0x60--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x60,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:  a  ASCII值0x61--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x1E,0x22,0x42,0x42,0x3F,0x00,0x00,

/*--  文字:  b  ASCII值0x62--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xC0,0x40,0x40,0x40,0x58,0x64,0x42,0x42,0x42,0x64,0x58,0x00,0x00,

/*--  文字:  c  ASCII值0x63--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x22,0x40,0x40,0x40,0x22,0x1C,0x00,0x00,

/*--  文字:  d  ASCII值0x64--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x06,0x02,0x02,0x02,0x1E,0x22,0x42,0x42,0x42,0x26,0x1B,0x00,0x00,

/*--  文字:  e  ASCII值0x65--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x7E,0x40,0x40,0x42,0x3C,0x00,0x00,

/*--  文字:  f  ASCII值0x66--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x0F,0x11,0x10,0x10,0x7E,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,

/*--  文字:  g  ASCII值0x67--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x44,0x44,0x38,0x40,0x3C,0x42,0x42,0x3C,

/*--  文字:  h  ASCII值0x68--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xC0,0x40,0x40,0x40,0x5C,0x62,0x42,0x42,0x42,0x42,0xE7,0x00,0x00,

/*--  文字:  i  ASCII值0x69--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x70,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,

/*--  文字:  j  ASCII值0x6a--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x1C,0x04,0x04,0x04,0x04,0x04,0x04,0x44,0x78,

/*--  文字:  k  ASCII值0x6b--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0xC0,0x40,0x40,0x40,0x4E,0x48,0x50,0x68,0x48,0x44,0xEE,0x00,0x00,

/*--  文字:  l  ASCII值0x6c--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,

/*--  文字:  m  ASCII值0x6d--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x49,0x49,0x49,0x49,0x49,0xED,0x00,0x00,

/*--  文字:  n  ASCII值0x6e--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xDC,0x62,0x42,0x42,0x42,0x42,0xE7,0x00,0x00,

/*--  文字:  o  ASCII值0x6f--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x42,0x42,0x3C,0x00,0x00,

/*--  文字:  p  ASCII值0x70--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xD8,0x64,0x42,0x42,0x42,0x44,0x78,0x40,0xE0,

/*--  文字:  q  ASCII值0x71--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1E,0x22,0x42,0x42,0x42,0x22,0x1E,0x02,0x07,

/*--  文字:  r  ASCII值0x72--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x32,0x20,0x20,0x20,0x20,0xF8,0x00,0x00,

/*--  文字:  s  ASCII值0x73--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x42,0x40,0x3C,0x02,0x42,0x7C,0x00,0x00,

/*--  文字:  t  ASCII值0x74--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x7C,0x10,0x10,0x10,0x10,0x10,0x0C,0x00,0x00,

/*--  文字:  u  ASCII值0x75--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC6,0x42,0x42,0x42,0x42,0x46,0x3B,0x00,0x00,

/*--  文字:  v  ASCII值0x76--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x28,0x10,0x10,0x00,0x00,

/*--  文字:  w  ASCII值0x77--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xD7,0x92,0x92,0xAA,0xAA,0x44,0x44,0x00,0x00,

/*--  文字:  x  ASCII值0x78--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x6E,0x24,0x18,0x18,0x18,0x24,0x76,0x00,0x00,

/*--  文字:  y  ASCII值0x79--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x28,0x18,0x10,0x10,0xE0,

/*--  文字:  z  ASCII值0x7a--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x44,0x08,0x10,0x10,0x22,0x7E,0x00,0x00,

/*--  文字:  {  ASCII值0x7b--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x03,0x04,0x04,0x04,0x04,0x04,0x08,0x04,0x04,0x04,0x04,0x04,0x04,0x03,0x00,

/*--  文字:  |  ASCII值0x7c--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,

/*--  文字:  }  ASCII值0x7d--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x60,0x10,0x10,0x10,0x10,0x10,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x60,0x00,

/*--  文字:  ~  ASCII值0x7e--*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=8x16   --*/
0x30,0x4C,0x43,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

/*--  文字:    ASCII值0x7f--*/
/*--  Fixedsys11;  此字体下对应的点阵为：宽x高=8x16   --*/
0x00,0x00,0x00,0x7E,0x7E,0x7E,0x7E,0x7E,0x7E,0x7E,0x7E,0x7E,0x00,0x00,0x00,0x00

};

Chinese.h

/////////////////////////////////////////////////////////////////////////
// 汉字取模步骤:1、在文字输入区输入汉字;2、在输入区鼠标右键选择字体，字体选Fixedsys,大小选12号，即16x16，后点确定
//              3、键盘输入CTRL+ENTER组合键，4、点击左边菜单"取模方式-》C51格式"，即会在点阵生成区中显示结果。
//注意:软件默认为横向取模,如果需要修改取模方式,点击左边菜单"参数设置-》其他选项"即可修改.
/////////////////////////////////////////////////////////////////////////


// ------------------  汉字字模数据结构体定义 ------------------------ //
const struct  hz16_tab                 //结构体名hz16_tab
{


       unsigned char   GBK[2];        //编译器在编译汉字时会编译成GBK码,每个汉字为两字节,例如"北"字内码为0xb1b1.
       unsigned char   hz16[32];      //每个16x16汉字为16x16/8=32字节
} ch16[] =                            //数据表
{



"合",0x01,0x00,0x02,0x80,0x04,0x40,0x08,0x20,0x10,0x18,0x20,0x2E,0xDF,0xF4,0x00,0x00,
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,0x00,0x00,

/*--  文字:  肥  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"肥",0x00,0x00,0x3D,0xFC,0x25,0x24,0x25,0x24,0x3D,0x24,0x25,0x24,0x25,0xFC,0x25,0x04,
0x3D,0x00,0x25,0x00,0x25,0x00,0x25,0x00,0x45,0x02,0x55,0x02,0x88,0xFE,0x00,0x00,

/*--  文字:  炜  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"炜",0x10,0x40,0x10,0x40,0x17,0xFE,0x14,0x40,0x54,0x40,0x5B,0xFC,0x50,0x40,0x90,0x40,
0x17,0xFE,0x10,0x42,0x28,0x42,0x24,0x42,0x44,0x54,0x40,0x48,0x80,0x40,0x00,0x40,

/*--  文字:  煌  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"煌",0x10,0x40,0x10,0x80,0x13,0xFC,0x16,0x04,0x1B,0xFC,0x52,0x04,0x53,0xFC,0x90,0x00,
0x13,0xFC,0x30,0x40,0x2B,0xFC,0x24,0x40,0x44,0x44,0x47,0xFE,0x80,0x00,0x00,0x00,

/*--  文字:  电  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"电",0x01,0x00,0x01,0x00,0x01,0x00,0x3F,0xF8,0x21,0x08,0x21,0x08,0x3F,0xF8,0x21,0x08,
0x21,0x08,0x21,0x08,0x3F,0xF8,0x21,0x08,0x01,0x02,0x01,0x02,0x00,0xFE,0x00,0x00,

/*--  文字:  子  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"子",0x00,0x00,0x3F,0xF0,0x00,0x20,0x00,0x40,0x00,0x80,0x01,0x00,0x01,0x00,0x01,0x04,
0xFF,0xFE,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x05,0x00,0x02,0x00,

/*--  文字:  有  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
"有",0x01,0x00,0x01,0x00,0x7F,0xFE,0x02,0x00,0x04,0x00,0x0F,0xF0,0x18,0x10,0x28,0x10,
0x4F,0xF0,0x88,0x10,0x08,0x10,0x0F,0xF0,0x08,0x10,0x08,0x90,0x08,0x70,0x08,0x20,

/*--  文字:  限  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
"限",0x00,0x00,0xFB,0xF8,0x92,0x08,0x93,0xF8,0xA2,0x08,0xA2,0x08,0x93,0xF8,0x8A,0x80,
0x8A,0x48,0xAA,0x50,0x92,0x20,0x82,0x20,0x82,0x10,0x82,0x8E,0x83,0x04,0x82,0x00,

/*--  文字:  公  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
"公",0x00,0x00,0x04,0x40,0x06,0x40,0x04,0x40,0x08,0x20,0x08,0x10,0x10,0x18,0x22,0x0E,
0x43,0x04,0x02,0x00,0x04,0x20,0x08,0x10,0x11,0xF8,0x3F,0x18,0x10,0x10,0x00,0x00,

/*--  文字:  司  --*/
/*--  宋体12;  此字体下对应的点阵为：宽x高=16x16   --*/
"司",0x00,0x00,0x3F,0xFC,0x00,0x04,0x00,0x04,0x7F,0xE4,0x00,0x04,0x00,0x04,0x3F,0xC4,
0x20,0x44,0x20,0x44,0x3F,0xC4,0x20,0x44,0x20,0x04,0x00,0x14,0x00,0x08,0x00,0x00,

/*--  文字:  面  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"面",0x00,0x00,0x7F,0xFE,0x02,0x00,0x04,0x00,0x3F,0xFC,0x24,0x44,0x24,0x44,0x27,0xC4,
0x24,0x44,0x24,0x44,0x27,0xC4,0x24,0x44,0x24,0x44,0x3F,0xFC,0x20,0x04,0x00,0x00,

/*--  文字:  向  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"向",0x02,0x00,0x04,0x00,0x3F,0xFC,0x20,0x04,0x20,0x04,0x27,0xE4,0x24,0x24,0x24,0x24,
0x24,0x24,0x24,0x24,0x27,0xE4,0x24,0x24,0x20,0x04,0x20,0x14,0x20,0x08,0x00,0x00,

/*--  文字:  教  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"教",0x08,0x20,0x08,0x20,0x7F,0x20,0x0A,0x7E,0xFF,0xC4,0x08,0x44,0x10,0xC4,0x3E,0x48,
0xC4,0x28,0x08,0x28,0x0F,0x10,0xF8,0x10,0x08,0x28,0x08,0xC8,0x2B,0x06,0x10,0x04,

/*--  文字:  学  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"学",0x01,0x08,0x10,0x8C,0x0C,0xC8,0x08,0x90,0x7F,0xFE,0x40,0x04,0x8F,0xE8,0x00,0x40,
0x00,0x80,0x7F,0xFE,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x02,0x80,0x01,0x00,

/*--  文字:  面  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"面",0x00,0x00,0x7F,0xFE,0x02,0x00,0x04,0x00,0x3F,0xFC,0x24,0x44,0x24,0x44,0x27,0xC4,
0x24,0x44,0x24,0x44,0x27,0xC4,0x24,0x44,0x24,0x44,0x3F,0xFC,0x20,0x04,0x00,0x00,

/*--  文字:  向  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"向",0x02,0x00,0x04,0x00,0x3F,0xFC,0x20,0x04,0x20,0x04,0x27,0xE4,0x24,0x24,0x24,0x24,
0x24,0x24,0x24,0x24,0x27,0xE4,0x24,0x24,0x20,0x04,0x20,0x14,0x20,0x08,0x00,0x00,

/*--  文字:  开  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"开",0x00,0x00,0x7F,0xFE,0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x20,0xFF,0xFE,0x04,0x20,
0x04,0x20,0x04,0x20,0x08,0x20,0x08,0x20,0x10,0x20,0x20,0x20,0x40,0x20,0x00,0x00,

/*--  文字:  发  --*/
/*--  Fixedsys12;  此字体下对应的点阵为：宽x高=16x16   --*/
"发",0x02,0x00,0x22,0x40,0x22,0x30,0x22,0x10,0x7F,0xFE,0x24,0x00,0x04,0x00,0x07,0xE0,
0x0C,0x20,0x0A,0x20,0x0A,0x20,0x11,0x40,0x20,0x80,0x41,0x60,0x86,0x1C,0x18,0x08

};
关键词：
STM32教程
Ending
目录
相关文章
人才程序员
|
6天前
|
IDE 编译器 开发工具
【STM32 LVGL基础教程】初识LVGL
【STM32 LVGL基础教程】初识LVGL
人才程序员
275 0
hello533
|
传感器 数据采集 监控
上千个完整设计的单片机、8086、STM32制作教程和资料-转发分享
在网上收集了接近上千个完整设计的单片机、8086、STM32制作教程和资料-转发分享（涵盖了大部分的毕设课设题目），学习单片机的最好教程，也可以作为帮助大家在做电子课设毕设时有利的帮助，可以从以下百度网盘下载（按照编号下载）。
hello533
1854 0
上千个完整设计的单片机、8086、STM32制作教程和资料-转发分享
EmotionFlying
|
11月前
|
存储 IDE 安全
STM32CubeMX开发教程（2）— 使用教程（点亮LED灯）
STM32CubeMX开发教程（2）— 使用教程（点亮LED灯）
EmotionFlying
441 0
EmotionFlying
|
11月前
|
Ubuntu 网络协议 中间件
STM32CubeMX开发教程（1）— 安装教程
STM32CubeMX开发教程（1）— 安装教程
EmotionFlying
742 0
花落已飘
|
传感器 算法
STM32智能小车循迹教程
STM32智能小车循迹教程
花落已飘
606 0
ValentineHP
|
异构计算
STM32F1移植RT_Thread简明教程
笔记
ValentineHP
185 0
STM32F1移植RT_Thread简明教程
terry1121
|
Web App开发 移动开发 测试技术
uCosII移植STM32F103教程
本文介绍如何快速移植uCosII源码到STM32F103工程，使用标准库进行快速开发
terry1121
1594 0
uCosII移植STM32F103教程
热爱嵌入式的小佳同学
|
6天前
|
传感器
STM32标准库ADC和DMA知识点总结-1
STM32标准库ADC和DMA知识点总结
热爱嵌入式的小佳同学
13 1
老板这功能得加钱
|
3天前
|
缓存 网络协议 算法
[蓝桥杯嵌入式]hal库 stm32 PWM的使用（随时修改占空比，随时修改频率）
[蓝桥杯嵌入式]hal库 stm32 PWM的使用（随时修改占空比，随时修改频率）
老板这功能得加钱
15 0
热爱嵌入式的小佳同学
|
6天前
STM32标准库I2C协议与MPU6050-2
STM32标准库I2C协议与MPU6050
热爱嵌入式的小佳同学
14 2
