项目介绍
本次我们学习一种新的网页设计方式,响应式布局。即写一套CSS样式可以适用多种不同屏幕大小的设备,比如PC,ipad,手机端等。看一下本次最终的效果图:

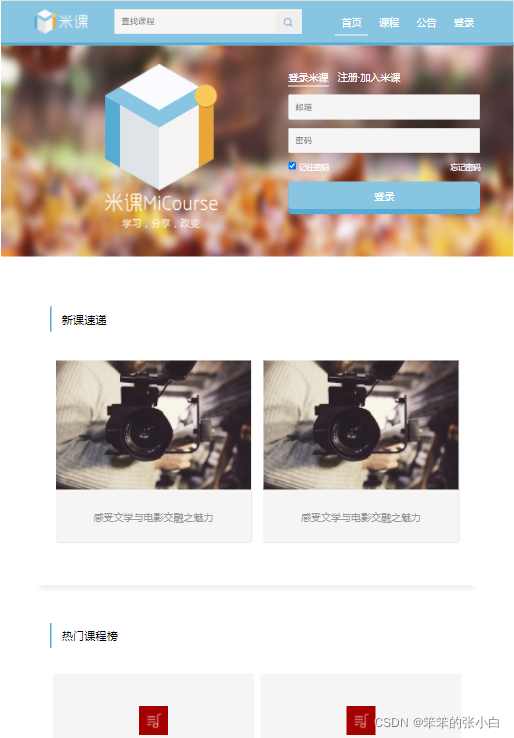

PC端
iPad 端

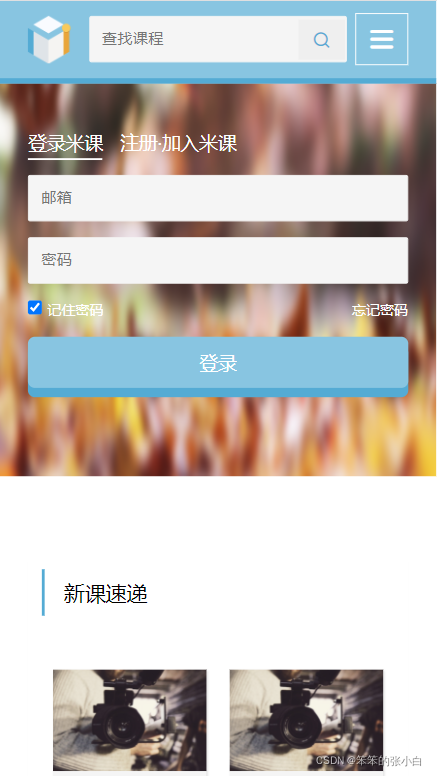

M端(手机)
项目框架流程
1.导航
先写我们的HTML框架
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>米课</title> <link rel="stylesheet" href="../css/reset.css"> <link rel="stylesheet" href="../css/mike.css"> <link rel="stylesheet" href="../css/iconfont/iconfont.css"> </head> <body> <!-- 导航开始 --> <div class="nav"> <div class="wrap"> <div class="logo"></div> <div class="search"> <form> <input class="text-input" type="text" placeholder="查找课程"> <button class="iconfont"></button> </form> </div> <div class="nav-bar"> <ul> <li><a href="#" class="nav-bar-active">首页</a></li> <li><a href="#" >课程</a></li> <li><a href="#" >公告</a></li> <li><a href="#" >登录</a></li> </ul> </div> </div> </div> <!-- 导航结束 --> </body> </html>
接着写CSS样式
/* 导航样式开始 */ .nav{ width: 100%; height: 66px; background-color: #88c5e1; border-bottom: 5px solid #54abd4; } .wrap{ width: 87%; margin: 0 auto; } .logo,.search,.nav-bar{ float: left; height: 66px; } .logo{ width: 25%; background: url("../media/Brand.png") no-repeat left; background-size: 183px; } .search{ width: 40%; position: relative; } .text-input{ width: 100%; height: 40px; background-color: #f5f5f5; border: 1px solid #f5f5f5; box-sizing: border-box; border-radius: 2px; outline: none; margin-top: 13px; padding-left: 10px; transition: all .2s; } .search button{ width: 40px; height: 34px; color: #54abd4; font-weight: 900; position: absolute; right: 2px; top: 16px; } .text-input:hover{ background-color: #fff; border-color: #54abd4; } .nav-bar{ width: 35%; } .nav-bar ul{ float: right; } .nav-bar ul li{ float: left; } .nav-bar ul li a{ color: #fff; padding: 10px; display: block; margin-left: 8px; margin-top: 12.5px; } .nav-bar-active{ border-bottom: 2px solid #fff; } .nav-bar ul li:hover>a{ border-bottom: 2px solid #fff; } /* 导航样式结束 */

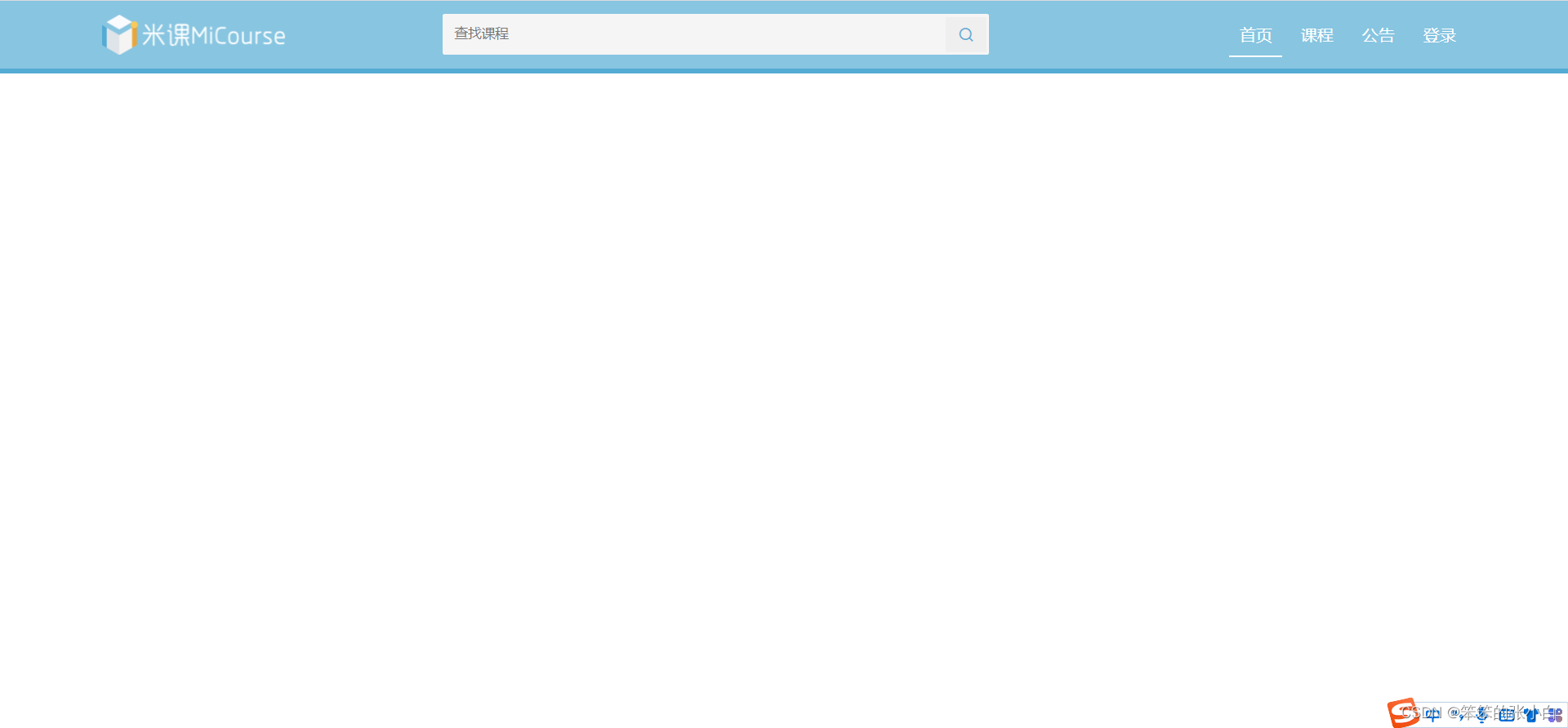

看一下最后效果
2.导航响应式设计
随着页面的不断缩放,我们将页面分为PC端、PAD端和M端(手机),现在只需要将要改变的css样式写到相应的位置下,并改变其相应的大小。在M端中,还有一个字体图标,它只存在M端,所有我们要在PC和PAD里面加上display:none属性。
<div class="btn"> <i class="iconfont"></i> </div>
用CSS写响应式设计
/*******响应式设计******* */ /* PC端 */ @media screen and (min-width:992px) { .logo{ width: 25%; background: url("../media/Brand.png") no-repeat left; background-size: 183px; } .search{ width: 40%; position: relative; } .nav-bar{ width: 35%; } .btn{ display: none; } } /* PAD端 */ @media screen and (min-width:768px) and (max-width:992px){ .logo{ width: 18%; background: url("../media/Brand-M.png") no-repeat left; background-size: 86px; } .search{ width: 42%; position: relative; } .nav-bar{ width: 40%; } .btn{ display: none; } } /* M端 */ @media screen and (max-width:768px) { .logo{ width: 16%; background: url("../media/Brand-S.png") no-repeat left; background-size: 38px; } .search{ width: 68%; position: relative; } .nav-bar{ display: none; } .btn{ width: 43px; height: 43px; border: 1px solid #fff; font-weight: 700; line-height: 43px; float: right; color: #fff; margin-top: 10.5px; } .btn i{ font-size: 20px; } }
看一下最后效果
PC端还是跟上图一样不变

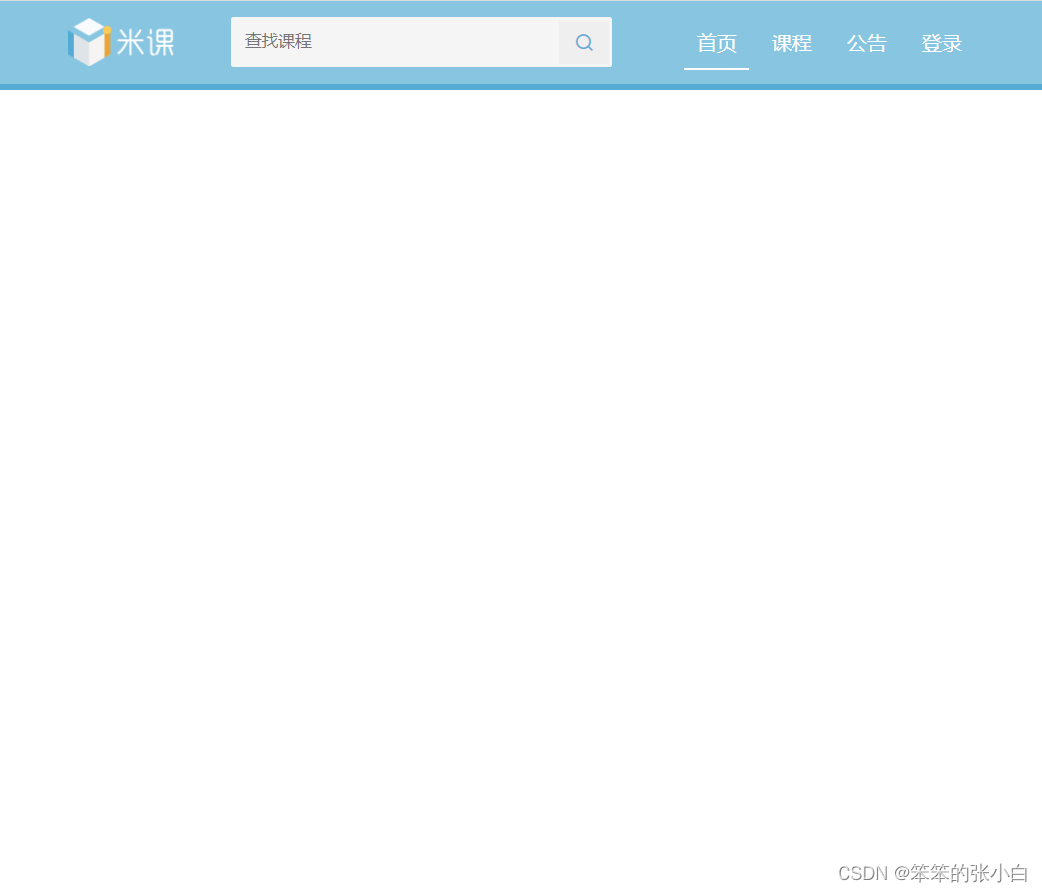

PAD端

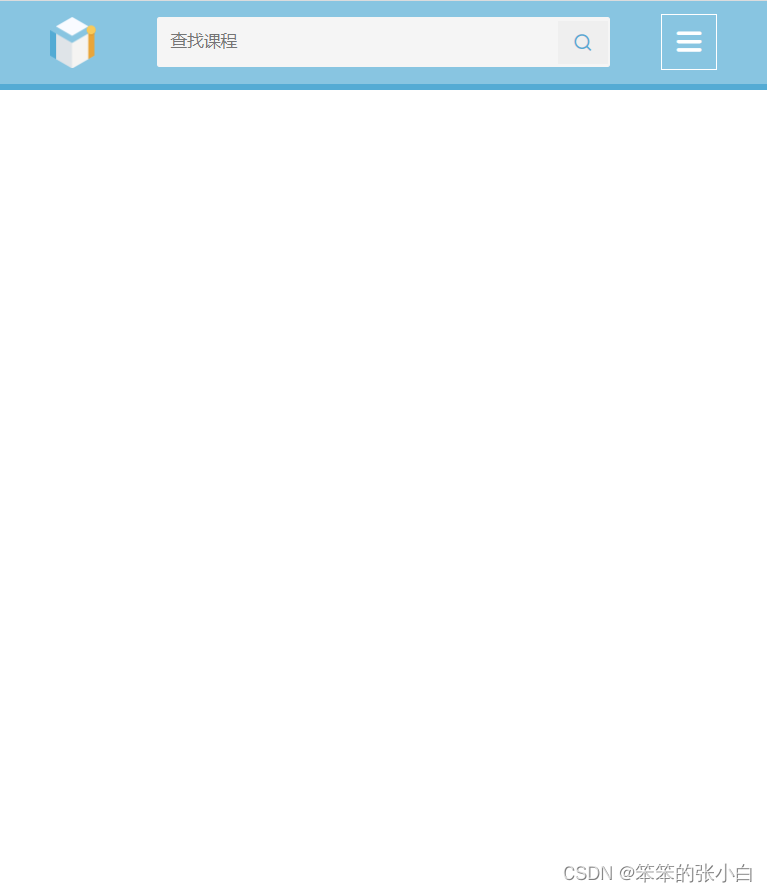

M端
3.登录
先写我们的HTML框架
<!-- 登录开始 --> <div class="login"> <div class="wrap"> <div class="login-logo"> <img src="../media/MiLogo.png" alt=""> <br> <img src="../media/miTitle.png" alt=""> </div> <div class="form"> <form> <ul> <li><a href="#" class="nav-bar-active">登录米课</a></li> <li><a href="#">注册·加入米课</a></li> </ul> <input type="text" class="text-input" placeholder="邮箱"> <input type="text" class="text-input" placeholder="密码"> <div class="rem"> <input type="checkbox" checked> <span>记住密码</span> <a href="#">忘记密码</a> </div> <button>登录</button> </form> </div> </div> </div> <!-- 登录结束 -->
接着写CSS样式
/* 登录样式开始 */ .login{ width: 100%; height: 445px; padding-top: 75px; background-image: url("../media/homeImg.png"); background-repeat: no-repeat; background-size: 100% 100%; box-sizing: border-box; } .login-logo,.form{ float: left; } .login-logo{ width: 70%; } .form{ width: 30%; } .form li{ float: left; } .form li a{ color: #fff; padding: 10px 0 3px; margin-right: 15px; display: block; } .rem{ margin: 15px 0; text-align: left; color: #fff; font-size: 12px; } .rem a{ float: right; color: #fff; } .form button{ width: 100%; height: 44px; background-color: #88c5e1; color: #fff; font-size: 16px; border-radius: 6px; box-shadow: 0 8px #54abd4; } .form button:hover{ transform: translateY(3px); box-shadow: 0 5px #54abd4; } /* 登录样式结束 */

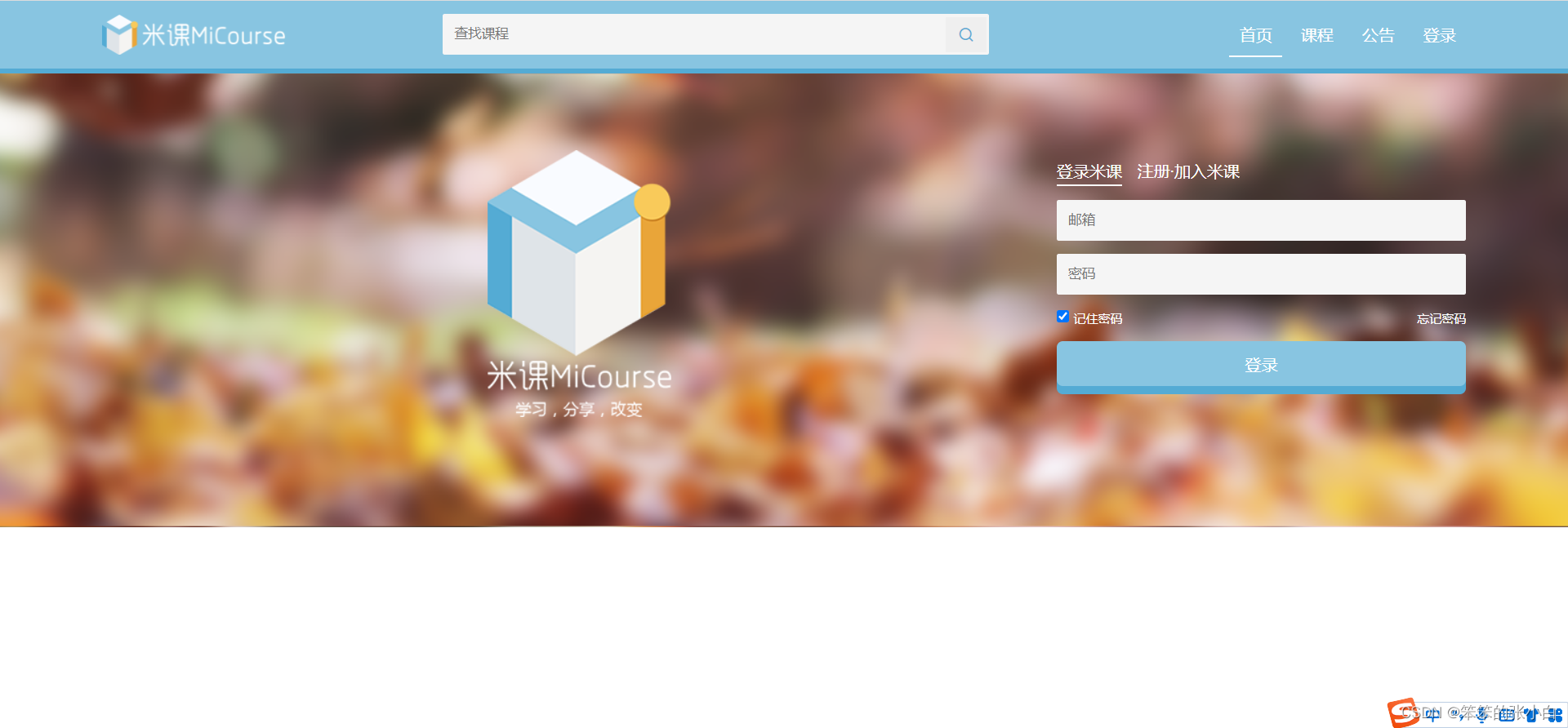

看一下最后效果
看着还不错,继续!
4.登录响应式设计
这里我们只需要在CSS里面把随着页面缩放,要变化的内容进行修改即可
/*******响应式设计******* */ /* PC端 */ @media screen and (min-width:992px) { .logo{ width: 25%; background: url("../media/Brand.png") no-repeat left; background-size: 183px; } .search{ width: 40%; position: relative; } .nav-bar{ width: 35%; } .btn{ display: none; } /* 登录 */ .login{ height: 445px; padding-top: 75px; } .login-logo{ width: 70%; } .form{ width: 30%; } } /* PAD端 */ @media screen and (min-width:768px) and (max-width:992px){ .logo{ width: 18%; background: url("../media/Brand-M.png") no-repeat left; background-size: 86px; } .search{ width: 42%; position: relative; } .nav-bar{ width: 40%; } .btn{ display: none; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ width: 57%; } .form{ width: 43%; } } /* M端 */ @media screen and (max-width:768px) { .logo{ width: 16%; background: url("../media/Brand-S.png") no-repeat left; background-size: 38px; } .search{ width: 68%; position: relative; } .nav-bar{ display: none; } .btn{ width: 43px; height: 43px; border: 1px solid #fff; font-weight: 700; line-height: 43px; float: right; color: #fff; margin-top: 10.5px; } .btn i{ font-size: 20px; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ display: none; } .form{ width: 100%; } }
5.新课速递与响应式设计
先写我们的HTML框架
<!-- 主体部分开始 --> <div class="content"> <div class="wrap"> <!-- 新课速递开始 --> <div class="new-course"> <div class="container"> <h3 class="title">新课速递</h3> <div class="new-course-box"> <div> <div> <a href="#"> <img src="../media/film.jpg" alt=""> <p>感受文学与电影交融之魅力</p> </a> </div> </div> <div> <div> <a href="#"> <img src="../media/film.jpg" alt=""> <p>感受文学与电影交融之魅力</p> </a> </div> </div> </div> </div> </div> <!-- 新课速递结束 --> </div> </div> <!-- 主体部分结束 -->
接着写CSS样式以及响应式设计
/* 主体开始 */ .content{ padding-top: 40px; } /* 主体结束 */ /* 新课速递开始 */ .new-course{ background-color: #fff; margin-bottom: 20px; box-shadow: 0 14px 10px -10px rgba(0, 0, 0, .1); overflow: hidden; padding-bottom: 60px; } .container{ width: 93%; margin: 0 auto; } .title{ font-weight: 400; font-size: 18px; text-align: left; padding: 8px 0 8px 16px; border-left: 3px solid #54abd4; margin: 40px 0 36px; } .new-course-box>div{ width: 50%; float: left; padding: 10px; box-sizing: border-box; } .new-course-box>div>div{ width: 100%; height: 100%; background-color: #f5f5f5; border-radius: 0 0 4px 4px; box-shadow: 1px 1px 2px #ddd; } .new-course-box img{ width: 100%; } .new-course-box p{ color: #999; line-height: 80px; } /* 新课速递结束 */ /*******响应式设计******* */ /* PC端 */ @media screen and (min-width:992px) { .logo{ width: 25%; background: url("../media/Brand.png") no-repeat left; background-size: 183px; } .search{ width: 40%; position: relative; } .nav-bar{ width: 35%; } .btn{ display: none; } /* 登录 */ .login{ height: 445px; padding-top: 75px; } .login-logo{ width: 70%; } .form{ width: 30%; } /* 新课速递 */ .new-course{ width: 64%; } } /* PAD端 */ @media screen and (min-width:768px) and (max-width:992px){ .logo{ width: 18%; background: url("../media/Brand-M.png") no-repeat left; background-size: 86px; } .search{ width: 42%; position: relative; } .nav-bar{ width: 40%; } .btn{ display: none; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ width: 57%; } .form{ width: 43%; } /* 新课速递 */ .new-course{ width: 100%; } } /* M端 */ @media screen and (max-width:768px) { .logo{ width: 16%; background: url("../media/Brand-S.png") no-repeat left; background-size: 38px; } .search{ width: 68%; position: relative; } .nav-bar{ display: none; } .btn{ width: 43px; height: 43px; border: 1px solid #fff; font-weight: 700; line-height: 43px; float: right; color: #fff; margin-top: 10.5px; } .btn i{ font-size: 20px; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ display: none; } .form{ width: 100%; } /* 新课速递 */ .new-course{ width: 100%; } }
6.热门课程榜单与响应式设计
先写我们的HTML框架
<!-- 热门课程榜单开始 --> <div class="hot-course"> <div class="container"> <h3 class="title">热门课程榜</h3> <div class="hot-course-box"> <div> <div> <img class="goods-img" src="../media/music.png" alt=""> <a href="#" class="name">俄罗斯文学经典的当代意义</a> <div class="message"> <a href="#" class="link">文学院</a> <a href="#" class="link">东晓</a> </div> <div class="score"> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <span>4.8分</span> </div> <div class="comment"> <span>3学分</span> <a href="#">68评论</a> </div> </div> </div> <div> <div> <img class="goods-img" src="../media/music.png" alt=""> <a href="#" class="name">俄罗斯文学经典的当代意义</a> <div class="message"> <a href="#" class="link">文学院</a> <a href="#" class="link">东晓</a> </div> <div class="score"> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <span>4.8分</span> </div> <div class="comment"> <span>3学分</span> <a href="#">68评论</a> </div> </div> </div> <div> <div> <img class="goods-img" src="../media/music.png" alt=""> <a href="#" class="name">俄罗斯文学经典的当代意义</a> <div class="message"> <a href="#" class="link">文学院</a> <a href="#" class="link">东晓</a> </div> <div class="score"> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <span>4.8分</span> </div> <div class="comment"> <span>3学分</span> <a href="#">68评论</a> </div> </div> </div> <div> <div> <img class="goods-img" src="../media/music.png" alt=""> <a href="#" class="name">俄罗斯文学经典的当代意义</a> <div class="message"> <a href="#" class="link">文学院</a> <a href="#" class="link">东晓</a> </div> <div class="score"> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <span>4.8分</span> </div> <div class="comment"> <span>3学分</span> <a href="#">68评论</a> </div> </div> </div> <div> <div> <img class="goods-img" src="../media/music.png" alt=""> <a href="#" class="name">俄罗斯文学经典的当代意义</a> <div class="message"> <a href="#" class="link">文学院</a> <a href="#" class="link">东晓</a> </div> <div class="score"> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <span>4.8分</span> </div> <div class="comment"> <span>3学分</span> <a href="#">68评论</a> </div> </div> </div> <div> <div> <img class="goods-img" src="../media/music.png" alt=""> <a href="#" class="name">俄罗斯文学经典的当代意义</a> <div class="message"> <a href="#" class="link">文学院</a> <a href="#" class="link">东晓</a> </div> <div class="score"> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <img src="../media/star.png" alt=""> <span>4.8分</span> </div> <div class="comment"> <span>3学分</span> <a href="#">68评论</a> </div> </div> </div> </div> </div> </div> <!-- 热门课程榜单结束 -->
接着写我们的CSS样式及响应式设计
/* 热门课程榜单开始 */ .hot-course { background-color: #fff; margin-bottom: 20px; box-shadow: 0 14px 10px -10px rgb(0 0 0 / 10%); overflow: hidden; padding-bottom: 60px; } .hot-course-box>div { float: left; padding: 5px; box-sizing: border-box; } .hot-course-box>div>div { width: 100%; height: 100%; background-color: #f5f5f5; padding: 52px 16px; box-sizing: border-box; } .goods-img { width: 46px; } .name { display: block; color: #333; font-size: 18px; font-weight: 700; margin-top: 3px; height: 24px; line-height: 24px; white-space: nowrap; overflow: hidden; text-overflow: ellipsis; } .message { margin-top: 15px; } .link { display: inline-block; color: #fff; font-size: 14px; border-radius: 4px; background-color: #88c5e1; padding: 3px 5px; margin: 0 4px 4px 0; } .score { margin: 10px 0 5px; color: #f8ce38; font-size: 12px; } .score>img { width: 12px; position: relative; top: 2px; } .comment { color: #7d7d7d; font-size: 12px; } .comment>a { color: #7d7d7d; } /* 热门课程榜单结束 */ /*******响应式设计******* */ /* PC端 */ @media screen and (min-width:992px) { .logo{ width: 25%; background: url("../media/Brand.png") no-repeat left; background-size: 183px; } .search{ width: 40%; position: relative; } .nav-bar{ width: 35%; } .btn{ display: none; } /* 登录 */ .login{ height: 445px; padding-top: 75px; } .login-logo{ width: 70%; } .form{ width: 30%; } /* 新课速递 */ .new-course{ width: 64%; } /* 热门课程榜单 */ .hot-course{ width: 64%; } .hot-course-box>div { width: 33%; } } /* PAD端 */ @media screen and (min-width:768px) and (max-width:992px){ .logo{ width: 18%; background: url("../media/Brand-M.png") no-repeat left; background-size: 86px; } .search{ width: 42%; position: relative; } .nav-bar{ width: 40%; } .btn{ display: none; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ width: 57%; } .form{ width: 43%; } /* 新课速递 */ .new-course{ width: 100%; } /* 热门课程榜单 */ .hot-course{ width:100%; } .hot-course-box>div { width: 50%; } } /* M端 */ @media screen and (max-width:768px) { .logo{ width: 16%; background: url("../media/Brand-S.png") no-repeat left; background-size: 38px; } .search{ width: 68%; position: relative; } .nav-bar{ display: none; } .btn{ width: 43px; height: 43px; border: 1px solid #fff; font-weight: 700; line-height: 43px; float: right; color: #fff; margin-top: 10.5px; } .btn i{ font-size: 20px; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ display: none; } .form{ width: 100%; } /* 新课速递 */ .new-course{ width: 100%; } /* 热门课程榜单 */ .hot-course{ width:100%; } .hot-course-box>div { width: 100%; } }
7.热门标签
先写我们的HTML框架
<!-- 热门标签开始 --> <div class="hot-tag"> <div class="container"> <h3 class="title">热门标签</h3> <div class="hot-tag-box"> <h5>学分</h5> <a href="#" class="link">2学分</a> <a href="#" class="link">1学分</a> <a href="#" class="link">3学分</a> </div> <div class="hot-tag-box"> <h5>学分</h5> <a href="#" class="link">2学分</a> <a href="#" class="link">1学分</a> <a href="#" class="link">3学分</a> </div> <div class="hot-tag-box"> <h5>学分</h5> <a href="#" class="link">2学分</a> <a href="#" class="link">1学分</a> <a href="#" class="link">3学分</a> </div> <div class="hot-tag-box"> <h5>学分</h5> <a href="#" class="link">2学分</a> <a href="#" class="link">1学分</a> <a href="#" class="link">3学分</a> </div> <div class="hot-tag-box"> <h5>学分</h5> <a href="#" class="link">2学分</a> <a href="#" class="link">1学分</a> <a href="#" class="link">3学分</a> </div> <div class="hot-tag-box"> <h5>学分</h5> <a href="#" class="link">2学分</a> <a href="#" class="link">1学分</a> <a href="#" class="link">3学分</a> </div> </div> </div> <!-- 热门标签结束 -->
接着写CSS样式以及响应式设计
/* 热门标签开始 */ .hot-tag-box{ text-align: left; margin-bottom: 18px; } .hot-tag-box h5 { text-align: left; font-weight: 400; color: #666; padding: 8px 0 16px; } /* 热门标签结束 */ /*******响应式设计******* */ /* PC端 */ @media screen and (min-width:992px) { .logo{ width: 25%; background: url("../media/Brand.png") no-repeat left; background-size: 183px; } .search{ width: 40%; position: relative; } .nav-bar{ width: 35%; } .btn{ display: none; } /* 登录 */ .login{ height: 445px; padding-top: 75px; } .login-logo{ width: 70%; } .form{ width: 30%; } /* 新课速递 */ .new-course{ width: 64%; } /* 热门课程榜单 */ .hot-course{ width: 64%; } .hot-course-box>div { width: 33%; } /* 热门标签 */ .hot-tag { width: 31%; position: absolute; top: 0; right: 0; } } /* PAD端 */ @media screen and (min-width:768px) and (max-width:992px){ .logo{ width: 18%; background: url("../media/Brand-M.png") no-repeat left; background-size: 86px; } .search{ width: 42%; position: relative; } .nav-bar{ width: 40%; } .btn{ display: none; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ width: 57%; } .form{ width: 43%; } /* 新课速递 */ .new-course{ width: 100%; } /* 热门课程榜单 */ .hot-course{ width:100%; } .hot-course-box>div { width: 50%; } .hot-tag { width: 100%; } } /* M端 */ @media screen and (max-width:768px) { .logo{ width: 16%; background: url("../media/Brand-S.png") no-repeat left; background-size: 38px; } .search{ width: 68%; position: relative; } .nav-bar{ display: none; } .btn{ width: 43px; height: 43px; border: 1px solid #fff; font-weight: 700; line-height: 43px; float: right; color: #fff; margin-top: 10.5px; } .btn i{ font-size: 20px; } /* 登录 */ .login{ height: 338px; padding-top: 30px; } .login-logo{ display: none; } .form{ width: 100%; } /* 新课速递 */ .new-course{ width: 100%; } /* 热门课程榜单 */ .hot-course{ width:100%; } .hot-course-box>div { width: 100%; } .hot-tag { width: 100%; } }
总结
笔者只是完成了网页的大致效果,其中里面还有很多内容没有具体完善, 布局也不是最美观的,与官网比还相差甚远。但是此次制作过程中让笔者收益颇丰。最后希望笔者的制作过程可以帮助到刚刚入门HTML以及CSS的小伙伴,不足之处也请大家多多评判指正!今日的网页界面制作分享到此结束,感谢!
