## Ribbon

Spring Cloud Ribbon是一个负载均衡的解决方案,是netflix发布的负载均衡器,

基于netflix Ribbon实现的,是一个用于对HTTP请求进行控制的负载均衡客户端。


在注册中心对Ribbon进行注册之后,Ribbon就可以基于某种负载均衡算法,如

轮询、随机、加权轮询、加权随机等自动帮助服务消费者调用接口,开发者也

可以自定义Ribbon负载均衡算法。

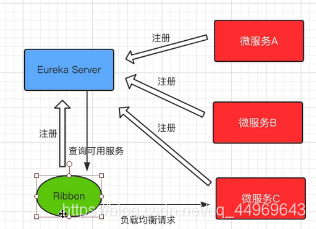

Spring Cloud Ribbon需要结合Spring Cloud Eureka来使用,Eureka server

提供所有可以调用的服务提供者列表,Ribbon基于特定的负载均衡算法从这些服务

提供者中选择要调用的具体实例。

![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/20200711114536192.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQ0OTY5NjQz,size_16,color_FFFFFF,t_70)

**它没有服务,只是提供一个负载均衡的功能**

![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/20200711114603596.png)

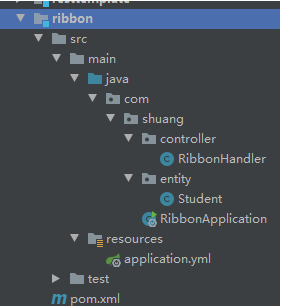

创建模块,pom.xml依赖


```yaml

<dependencies>

   <dependency>

       <groupId>org.springframework.cloud</groupId>

       <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>

       <version>2.0.2.RELEASE</version>

   </dependency>

</dependencies>

```

创建配置文件 application.yml


```yaml

server:

 port: 8084

spring:

 application:

   name: ribbon

eureka:

 client:

   service-url:

     defaultZone: http://localhost:8761/eureka/

 instance:

   prefer-ip-address: true

```

创建启动类


```java

package com.shuang;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;

import org.springframework.context.annotation.Bean;

import org.springframework.web.client.RestTemplate;


@SpringBootApplication

public class RibbonApplication {

   public static void main(String[] args) {

       SpringApplication.run(RibbonApplication.class,args);

   }


   @Bean

   @LoadBalanced

   public RestTemplate restTemplate(){

       return new RestTemplate();

   }

}

```

@LoadBalanced:声明一个基于Ribbon的负载均衡。

Handler


```java

package com.shuang.controller;


import com.shuang.entity.Student;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.web.bind.annotation.GetMapping;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RestController;

import org.springframework.web.client.RestTemplate;


import java.util.Collection;


@RestController

@RequestMapping("/ribbon")

public class RibbonHandler {


   @Autowired

   private RestTemplate restTemplate;


   @GetMapping("/findAll")

   public Collection<Student> findAll(){

       return restTemplate.getForObject("http://provider/student/findAll",Collection.class);

   }


   @GetMapping("/index")

   public String index(){

       return restTemplate.getForObject("http://provider/student/index",String.class);

   }



}

```

**依次启动:注册中心、服务提供者一、服务提供者二、ribbon负载均衡。**

![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/20200711114805373.png)

8080与8082两个服务提供者交替执行。

![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/20200711114825532.png)

![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/2020071111484129.png)
