钉钉互动卡片下拉框选无法选中

我用的是互动卡片普通版功能。在模板配置页面配好之后发送测试卡片到钉钉是没问题的。但是写进代码以后调用接口发送到钉钉就出问题了,下拉框可以展示,但是点击其中某一个选项后没办法选中那个选项
这是我的最终生成的卡片模板

{
  "config": {
    "autoLayout": true,
    "enableForward": true
  },
  "header": {
    "title": {
      "type": "text",
      "text": "会议预约"
    },
    "logo": "@lALPDtXaA1csu9g4MA"
  },
  "contents": [
    {
      "type": "text",
      "text": "会议标题:大模型研讨",
      "id": "text_1694401882766"
    },
    {
      "type": "text",
      "text": "会议时间:2023-09-12 10:00 —— 2023-09-12 12:30",
      "id": "text_1694401882766"
    },
    {
      "type": "text",
      "text": "参会人员:百度团队,小碗,我",
      "id": "text_1694401882766"
    },
    {
      "type": "section",
      "content": {
        "type": "text",
        "text": "会议室",
        "id": "text_1694402253377"
      },
      "extra": {
        "type": "select",
        "options": [{
  "label": {
    "type": "text",
    "text": "集团大厦B塔5楼1104-XYJT(最大容量null人)",
    "id": "text_3e0cd8e74f5f4ea5841f3c2d1e4e93e4"
  },
  "value": "8a058ac3867bd6fc01867d10a3940012"
}
,{
  "label": {
    "type": "text",
    "text": "万科广场8楼8号(最大容量100人)",
    "id": "text_8f474feab7a3400ba5dc935aeaee0ee6"
  },
  "value": "8a058ac484d25c490184e0570c21002d"
}
,{
  "label": {
    "type": "text",
    "text": "万科广场上海区域1号会议室(最大容量12人)",
    "id": "text_d8f1749cffc642908c27d7b4f8282dbb"
  },
  "value": "8a058ac484b38bb90184b3d08ca1000b"
}
],
        "placeholder": {
          "type": "text",
          "text": "请选择",
          "id": "text_1694402253424"
        },
        "id": "select_d8f1749cffc642908c27d7b4f8282dbb"
      },
      "id": "section_1694402253377"
    },
    {
      "type": "divider",
      "id": "divider_1694401882767"
    },
    {
      "type": "divider",
      "id": "divider_1694401882864"
    },
    {
      "type": "action",
      "actions": [
        {
          "type": "button",
          "label": {
            "type": "text",
            "text": "确认预约",
            "id": "text_1694401882771"
          },
          "actionType": "request",
          "url": {
            "all": "https://www.dingtalk.com"
          },
          "status": "primary",
          "id": "button_1647334806546",
          "iconCode": "icon_accept"
        }
      ],
      "id": "action_1694401882767"
    }
  ]
}

这是我发送卡片的代码


public void replayCard (String msg , String openConversationId) throws Exception {
        Client client = createClientKim();
        SendRobotInteractiveCardHeaders sendRobotInteractiveCardHeaders = new SendRobotInteractiveCardHeaders();
        sendRobotInteractiveCardHeaders.xAcsDingtalkAccessToken = getAccessToken();
        MeetingInfo meetingInfo = ernieBotService.getChatResult(msg);
        QueryMeetingRoomResponseDTO meetingRoomResponseDTO = meetingService.getMeetingRoom(meetingInfo.convertToQueryMeetingRoomRequestDTO(meetingInfo));
        String meetingRoomName = null;
        List<String> selectOptions = Lists.newArrayList();
        String selected = null;
        if(Optional.ofNullable(meetingRoomResponseDTO).map(QueryMeetingRoomResponseDTO::getContent).isPresent()){
            List<MeetingRoomInfo> content = meetingRoomResponseDTO.getContent().stream().filter(obj -> obj.getAddressName() != null && obj.getName() != null).collect(Collectors.toList());
            if(content.size() > 3){
                content = content.subList(0,3);
            }
            String optionTemplate = """
                {
                  "label": {
                    "type": "text",
                    "text": "%s(最大容量%s人)",
                    "id": "text_%s"
                  },
                  "value": "%s"
                }
                """;
            for(MeetingRoomInfo meetingRoomInfo : content){
                selected = UUID.randomUUID().toString().replace("-","");
                String option = String.format(optionTemplate, meetingRoomInfo.getAddressName() + meetingRoomInfo.getName(),meetingRoomInfo.getCapacityNum(),selected, meetingRoomInfo.getId());
                selectOptions.add(option);
            }
            meetingRoomName = content.stream().map(obj -> obj.getAddressName() + obj.getName()).collect(Collectors.joining(","));
        }
        // 人员数组处理成字符串
        List<String> participants = meetingInfo.getParticipants();
        String meetPerson = "";
        if (!CollectionUtils.isEmpty(participants)) {
            meetPerson = participants.stream().collect(Collectors.joining(",")).toString();
        }
        String cardData = """
                {
                  "config": {
                    "autoLayout": true,
                    "enableForward": true
                  },
                  "header": {
                    "title": {
                      "type": "text",
                      "text": "会议预约"
                    },
                    "logo": "@lALPDtXaA1csu9g4MA"
                  },
                  "contents": [
                    {
                      "type": "text",
                      "text": "会议标题:%s",
                      "id": "text_1694401882766"
                    },
                    {
                      "type": "text",
                      "text": "会议时间:%s",
                      "id": "text_1694401882766"
                    },
                    {
                      "type": "text",
                      "text": "参会人员:%s",
                      "id": "text_1694401882766"
                    },
                    {
                      "type": "section",
                      "content": {
                        "type": "text",
                        "text": "会议室",
                        "id": "text_1694402253377"
                      },
                      "extra": {
                        "type": "select",
                        "options": %s,
                        "placeholder": {
                          "type": "text",
                          "text": "请选择",
                          "id": "text_1694402253424"
                        },
                        "id": "select_%s"
                      },
                      "id": "section_1694402253377"
                    },
                    {
                      "type": "divider",
                      "id": "divider_1694401882767"
                    },
                    {
                      "type": "divider",
                      "id": "divider_1694401882864"
                    },
                    {
                      "type": "action",
                      "actions": [
                        {
                          "type": "button",
                          "label": {
                            "type": "text",
                            "text": "确认预约",
                            "id": "text_1694401882771"
                          },
                          "actionType": "request",
                          "url": {
                            "all": "https://www.dingtalk.com"
                          },
                          "status": "primary",
                          "id": "button_1647334806546",
                          "iconCode": "icon_accept"
                        }
                      ],
                      "id": "action_1694401882767"
                    }
                  ]
                }
                """.formatted(meetingInfo.getTitle(), meetingInfo.getStartTime() + " —— " + meetingInfo.getEndTime(), meetPerson,"["+ String.join(",", selectOptions) +"]",selected);
        System.out.println(cardData);
        SendRobotInteractiveCardRequest sendRobotInteractiveCardRequest = new SendRobotInteractiveCardRequest()
                .setCardTemplateId("StandardCard")
                .setOpenConversationId(openConversationId)
                .setCardBizId("card_" + UUID.randomUUID())
                .setRobotCode(AppKey)
                .setCallbackUrl("https://***")
                .setCardData(cardData)
                .setPullStrategy(false);
        try {
            SendRobotInteractiveCardResponse sendRobotInteractiveCardResponse = client.sendRobotInteractiveCardWithOptions(sendRobotInteractiveCardRequest, sendRobotInteractiveCardHeaders, new RuntimeOptions());
            System.out.println(JSONObject.toJSONString(sendRobotInteractiveCardResponse.getBody()));
        }  catch (Exception _err) {
            _err.printStackTrace();
        }
    }

展开
收起
icxsodp6z54ui 2023-09-12 15:59:16 327 分享 版权
1 条回答
写回答
取消 提交回答

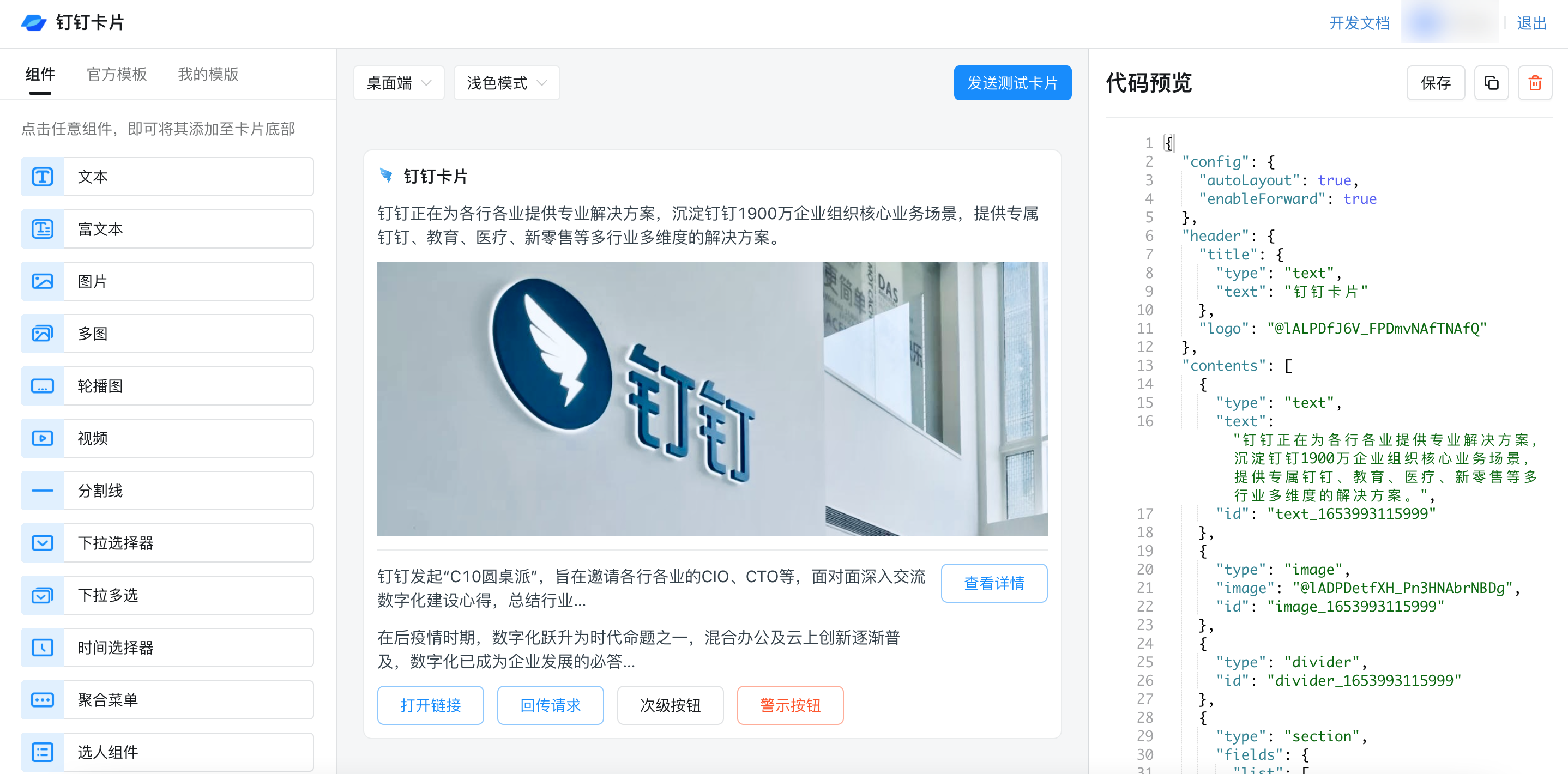

  • 什么是互动卡片普通版搭建平台
    互动卡片普通版搭建平台是在线可视化搭建互动卡片的平台,提供了创建互动卡片、编辑互动卡片等功能,帮助开发者更加方便、快速地接入互动卡片。钉钉同时提供了丰富的组件来满足复杂的样式需求,是一套开箱即用的互动卡片解决方案,开发者无需从零开始搭建卡片模板,可以通过调用接口可发送卡片。

    https://open.dingtalk.com/document/resourcedownload/ding-card-interactive-card-building-platform-new

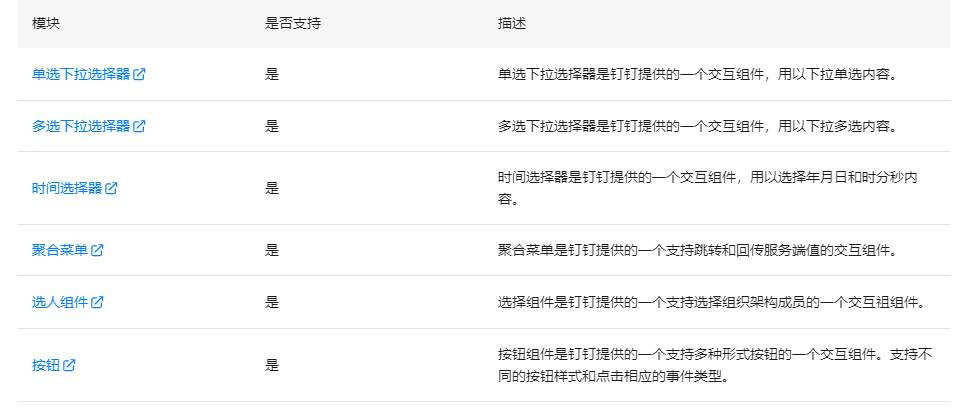

    交互模块
    提供可交互的表单组件,增加卡片的交互性,目前以支持以下6种交互组件:


    2023-09-13 09:36:58
    赞同 展开评论
