windows phone (21) Grid元素的Background和Clip

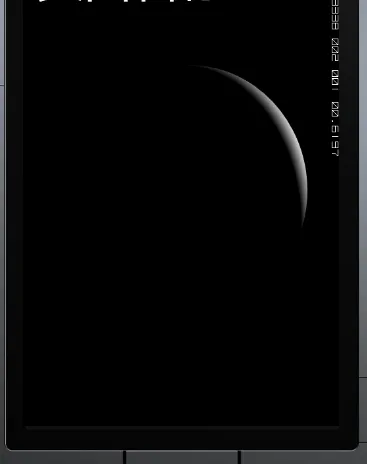

话说这样的效果还不错，只不过他不能通过修改参数实现天狗吃月的全过程，上面出现的效果是无意中做出了的；
Grid是唯一可以在内部定制单元格的panel类，我们可以在grid中定制单元格，然后通过grid.row和grid.column定位grid包含的元素在哪个位置，功能比较强大，用到的时候比较多，且看他的属性：【作者：神舟龙】
Background
获取或设置一个用于填充面板的 Brush所以我们可以对其背景进行绘制 ，比如下面的案例：
<!--ContentPanel - 在此处放置其他内容-->
<Grid x:Name= " ContentPanel " Grid.Row= " 1 " Margin= " 12,0,12,0 "
>
<Grid.Background>
<RadialGradientBrush>
<GradientStop Offset= " 0.9 " Color= " DarkBlue "></GradientStop>
<GradientStop Offset= " 0.8 " Color= " Firebrick "></GradientStop>
</RadialGradientBrush>
</Grid.Background>
</Grid>
<Grid x:Name= " ContentPanel " Grid.Row= " 1 " Margin= " 12,0,12,0 "
>
<Grid.Background>
<RadialGradientBrush>
<GradientStop Offset= " 0.9 " Color= " DarkBlue "></GradientStop>
<GradientStop Offset= " 0.8 " Color= " Firebrick "></GradientStop>
</RadialGradientBrush>
</Grid.Background>
</Grid>
它的显示效果：
获取或设置用于定义Grid的内容边框的 Geometry，下面的效果是实现的类似于天狗吃月最后一刻的效果
xaml代码：
<!--ContentPanel - 在此处放置其他内容-->
<Grid x:Name= " ContentPanel " Grid.Row= " 1 " Margin= " 12,0,12,0 "
>
<Grid.Background>
<RadialGradientBrush>
<GradientStop Offset= " 0.9 " Color= " White "></GradientStop>
<GradientStop Offset= " 0.8 " Color= " Black "></GradientStop>
</RadialGradientBrush>
</Grid.Background>
<Grid.Clip>
<EllipseGeometry Center= " 240 250 " RadiusX= " 180 " RadiusY= " 190 "></EllipseGeometry>
</Grid.Clip>
</Grid>
<Grid x:Name= " ContentPanel " Grid.Row= " 1 " Margin= " 12,0,12,0 "
>
<Grid.Background>
<RadialGradientBrush>
<GradientStop Offset= " 0.9 " Color= " White "></GradientStop>
<GradientStop Offset= " 0.8 " Color= " Black "></GradientStop>
</RadialGradientBrush>
</Grid.Background>
<Grid.Clip>
<EllipseGeometry Center= " 240 250 " RadiusX= " 180 " RadiusY= " 190 "></EllipseGeometry>
</Grid.Clip>
</Grid>
效果：
Geometry 类
为用于定义几何形状的对象提供基类，所以EllipseGeometry,GeometryGroup等所继承它的类都可以，比如我们使用RectangelGeoMetry获取矩形剪辑区域
xaml代码：
<!--ContentPanel - 在此处放置其他内容-->
<Grid x:Name= " ContentPanel " Grid.Row= " 1 " Margin= " 12,0,12,0 "
>
<Grid.Background>
<RadialGradientBrush>
<GradientStop Offset= " 0.1 " Color= " Purple "></GradientStop>
<GradientStop Offset= " 0.2 " Color= " Blue "></GradientStop>
</RadialGradientBrush>
</Grid.Background>
<Grid.Clip>
<RectangleGeometry >
<RectangleGeometry.Rect>
<Rect X= " 20 " Y= " 30 " Width= " 300 " Height= " 400 "></Rect>
</RectangleGeometry.Rect>
</RectangleGeometry>
</Grid.Clip>
</Grid>
<Grid x:Name= " ContentPanel " Grid.Row= " 1 " Margin= " 12,0,12,0 "
>
<Grid.Background>
<RadialGradientBrush>
<GradientStop Offset= " 0.1 " Color= " Purple "></GradientStop>
<GradientStop Offset= " 0.2 " Color= " Blue "></GradientStop>
</RadialGradientBrush>
</Grid.Background>
<Grid.Clip>
<RectangleGeometry >
<RectangleGeometry.Rect>
<Rect X= " 20 " Y= " 30 " Width= " 300 " Height= " 400 "></Rect>
</RectangleGeometry.Rect>
</RectangleGeometry>
</Grid.Clip>
</Grid>
效果：
我们可以从隐藏文件添加一些其他的元素：
//
构造函数
public MainPage()
{
InitializeComponent();
LayoutDesign();
}
private void LayoutDesign()
{
TextBlock DeptListHeading = new TextBlock();
DeptListHeading.Text = " Department ";
ListBox DeptList = new ListBox();
DeptList.Items.Add( " Finance ");
DeptList.Items.Add( " Marketing ");
DeptList.Items.Add( " Human Resources ");
DeptList.Items.Add( " Payroll ");
DeptList.Items.Add(DeptListHeading);
this.ContentPanel.Children.Add(DeptList);
}
public MainPage()
{
InitializeComponent();
LayoutDesign();
}
private void LayoutDesign()
{
TextBlock DeptListHeading = new TextBlock();
DeptListHeading.Text = " Department ";
ListBox DeptList = new ListBox();
DeptList.Items.Add( " Finance ");
DeptList.Items.Add( " Marketing ");
DeptList.Items.Add( " Human Resources ");
DeptList.Items.Add( " Payroll ");
DeptList.Items.Add(DeptListHeading);
this.ContentPanel.Children.Add(DeptList);
}
效果：
这篇比较基础
