五、数据展示组件

5.1 数字翻牌器组件
数字翻牌器是大屏中最常见的数据展示组件之一，用于展示关键指标（如 GMV、用户数、订单量）。它的核心特点是：数据变化时，数字以“翻牌”的动画效果滚动变化，给用户强烈的数据变化感知。

设计思路：

将数字的每一位拆分成独立的位，分别进行动画

支持千分位分隔符、小数位数、单位等配置

支持进入可视区域才开始动画（懒启动）

<template>
  <div class="digital-flop" :class="{ 'is-visible': isVisible }" ref="flopRef">
    <div class="flop-title" v-if="title">{
  { title }}</div>
    <div class="flop-value-wrapper">
      <div class="flop-value">
        <!-- 前缀（如货币符号） -->
        <span v-if="prefix" class="flop-prefix">{
  { prefix }}</span>

        <!-- 整数部分（按位拆分） -->
        <span v-for="(digit, idx) in integerDigits" :key="idx" class="digit">
          <span class="digit-inner">{
  { digit }}</span>
        </span>

        <!-- 小数点 -->
        <span v-if="decimalPart !== null" class="decimal-point">.</span>

        <!-- 小数部分 -->
        <span v-for="(digit, idx) in decimalDigits" :key="idx" class="digit digit-decimal">
          <span class="digit-inner">{
  { digit }}</span>
        </span>

        <!-- 单位 -->
        <span v-if="unit" class="flop-unit">{
  { unit }}</span>
      </div>
    </div>
  </div>
</template>

<script setup>
import { ref, computed, watch, onMounted } from 'vue'

const props = defineProps({
  value: { type: Number, required: true },
  title: { type: String, default: '' },
  unit: { type: String, default: '' },
  prefix: { type: String, default: '' },
  decimalPlaces: { type: Number, default: 0 },
  thousandSeparator: { type: Boolean, default: true },
  animationDuration: { type: Number, default: 1000 },
  useIntersectionObserver: { type: Boolean, default: true }
})

const isVisible = ref(!props.useIntersectionObserver)
const flopRef = ref(null)
const currentValue = ref(0)

// 格式化数字（添加千分位、小数位）
const formattedValue = computed(() => {
  const rounded = currentValue.value.toFixed(props.decimalPlaces)
  const parts = rounded.split('.')
  const integerPart = parts[0]
  const decimalPart = parts[1] || ''

  // 添加千分位分隔符
  const integerWithSeparator = props.thousandSeparator
    ? integerPart.replace(/\B(?=(\d{3})+(?!\d))/g, ',')
    : integerPart

  return { integer: integerWithSeparator, decimal: decimalPart }
})

// 整数部分按位拆分为数组
const integerDigits = computed(() => {
  const intStr = formattedValue.value.integer
  return intStr.split('')
})

// 小数部分按位拆分
const decimalDigits = computed(() => {
  const decStr = formattedValue.value.decimal
  return decStr ? decStr.split('') : []
})

// 小数部分是否存在
const decimalPart = computed(() => props.decimalPlaces > 0)

// 数字滚动动画
const animateValue = () => {
  const startValue = currentValue.value
  const endValue = props.value
  const startTime = performance.now()

  const updateValue = (currentTime) => {
    const elapsed = currentTime - startTime
    const progress = Math.min(1, elapsed / props.animationDuration)

    // 使用 easeOutCubic 缓动函数，使动画更平滑
    const easeProgress = 1 - Math.pow(1 - progress, 3)
    currentValue.value = startValue + (endValue - startValue) * easeProgress

    if (progress < 1) {
      requestAnimationFrame(updateValue)
    } else {
      currentValue.value = endValue
    }
  }

  requestAnimationFrame(updateValue)
}

// 观察组件是否进入可视区域
let observer = null
if (props.useIntersectionObserver) {
  observer = new IntersectionObserver((entries) => {
    if (entries[0].isIntersecting) {
      isVisible.value = true
      observer?.disconnect()
      observer = null
    }
  }, { threshold: 0.1 })
}

onMounted(() => {
  if (observer && flopRef.value) {
    observer.observe(flopRef.value)
  }
  // 初始值直接设为目标值（避免动画）
  currentValue.value = props.value
})

// 监听 value 变化，触发动效
watch(() => props.value, () => {
  if (isVisible.value) {
    animateValue()
  } else {
    currentValue.value = props.value
  }
})
</script>

<style scoped>
.digital-flop {
  text-align: center;
  background: rgba(0, 0, 0, 0.4);
  border-radius: 12px;
  padding: 24px;
  backdrop-filter: blur(10px);
  opacity: 0;
  transform: translateY(20px);
  transition: all 0.5s ease;
}

.digital-flop.is-visible {
  opacity: 1;
  transform: translateY(0);
}

.flop-title {
  font-size: 18px;
  color: rgba(255, 255, 255, 0.7);
  margin-bottom: 16px;
  letter-spacing: 2px;
}

.flop-value {
  font-size: 56px;
  font-weight: bold;
  color: #00ffff;
  text-shadow: 0 0 10px rgba(0, 255, 255, 0.5);
  display: flex;
  justify-content: center;
  align-items: baseline;
  flex-wrap: wrap;
  gap: 4px;
}

.digit {
  display: inline-block;
  min-width: 48px;
  text-align: center;
  background: rgba(0, 0, 0, 0.6);
  border-radius: 8px;
  margin: 0 2px;
  padding: 8px 4px;
  position: relative;
  overflow: hidden;
  box-shadow: 0 0 8px rgba(0, 255, 255, 0.3);
}

.digit-inner {
  display: inline-block;
  animation: flipIn 0.3s ease;
}

@keyframes flipIn {
  0% { transform: translateY(-100%); opacity: 0; }
  100% { transform: translateY(0); opacity: 1; }
}

.digit-decimal {
  min-width: 24px;
}

.decimal-point {
  font-size: 48px;
  margin: 0 2px;
  color: #00ffff;
}

.flop-prefix,
.flop-unit {
  font-size: 32px;
  margin: 0 8px;
  color: rgba(255, 255, 255, 0.7);
}

@media (max-width: 1024px) {
  .flop-value { font-size: 40px; }
  .digit { min-width: 36px; padding: 4px; }
  .decimal-point { font-size: 36px; }
}
</style>

六、实时数据与动态刷新

6.1 实时数据刷新策略

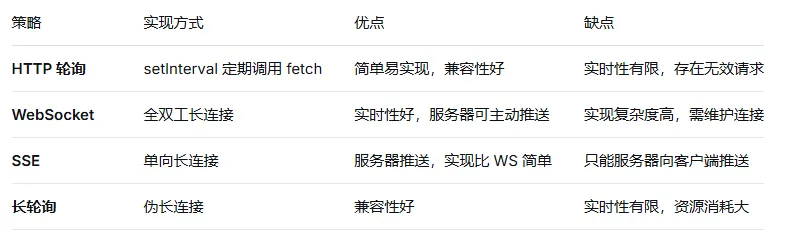

大屏应用通常需要展示实时数据，因此数据刷新是核心功能之一。常见的数据刷新策略有：

在大屏场景下，如果实时性要求高（如金融行情、网络监控），推荐使用 WebSocket；如果实时性要求一般（如每小时更新），使用轮询即可。

6.2 基于 WebSocket 的实时数据实现

// composables/useWebSocket.js
import { ref, onUnmounted } from 'vue'

export function useWebSocket(url, options = {}) {
  const {
    autoConnect = true,
    onMessage = () => {},
    onOpen = () => {},
    onClose = () => {},
    onError = () => {},
    reconnectInterval = 3000,
    maxReconnectAttempts = 10
  } = options

  const ws = ref(null)
  const isConnected = ref(false)
  const reconnectAttempts = ref(0)
  let reconnectTimer = null

  const connect = () => {
    ws.value = new WebSocket(url)

    ws.value.onopen = () => {
      isConnected.value = true
      reconnectAttempts.value = 0
      onOpen()
    }

    ws.value.onmessage = (event) => {
      try {
        const data = JSON.parse(event.data)
        onMessage(data)
      } catch (e) {
        console.error('WebSocket 数据解析失败:', e)
      }
    }

    ws.value.onclose = () => {
      isConnected.value = false
      onClose()

      // 自动重连
      if (reconnectAttempts.value < maxReconnectAttempts) {
        reconnectTimer = setTimeout(() => {
          reconnectAttempts.value++
          connect()
        }, reconnectInterval)
      }
    }

    ws.value.onerror = (error) => {
      onError(error)
    }
  }

  const send = (data) => {
    if (ws.value && isConnected.value) {
      ws.value.send(JSON.stringify(data))
    }
  }

  const close = () => {
    if (reconnectTimer) {
      clearTimeout(reconnectTimer)
    }
    if (ws.value) {
      ws.value.close()
    }
  }

  if (autoConnect) {
    connect()
  }

  onUnmounted(() => {
    close()
  })

  return { isConnected, send, close }
}

在组件中使用：

<script setup>
import { ref } from 'vue'
import { useWebSocket } from '@/composables/useWebSocket'

const realtimeData = ref({})

const handleMessage = (data) => {
  // 更新响应式数据
  realtimeData.value = data
  // 可以在这里触发动画或更新图表
}

const { isConnected } = useWebSocket('ws://localhost:8080/ws', {
  onMessage: handleMessage,
  onOpen: () => console.log('WebSocket 已连接'),
  onClose: () => console.log('WebSocket 已断开')
})
</script>

6.3 数据更新动画
为了让数据变化更加平滑，可以添加过渡动画：

<template>
  <div :key="dataVersion" class="data-container fade-in">
    <!-- 数据内容 -->
  </div>
</template>

<script setup>
import { ref } from 'vue'

const dataVersion = ref(0)

const updateData = (newData) => {
  data.value = newData
  // 刷新 key，触发重新渲染动画
  dataVersion.value++
}
</script>

<style>
@keyframes fadeIn {
  from { opacity: 0; transform: translateY(10px); }
  to { opacity: 1; transform: translateY(0); }
}

.fade-in {
  animation: fadeIn 0.3s ease;
}
</style>

七、性能优化

7.1 组件懒加载
对于大屏页面中的非首屏组件，可以使用 Vue 的异步组件进行懒加载：

import { defineAsyncComponent } from 'vue'

const HeavyChart = defineAsyncComponent(() =>
  import('@/components/HeavyChart.vue')
)

7.2 图表实例复用与销毁

// 组件卸载时销毁图表实例，避免内存泄漏
onBeforeUnmount(() => {
  if (chartInstance) {
    chartInstance.dispose()
    chartInstance = null
  }
})

7.3 数据缓存
对于不常变化的数据（如配置项、字典数据），可以使用缓存减少请求：

const dataCache = new Map()

const fetchData = async (key, fetcher, ttl = 60000) => {
  const cached = dataCache.get(key)
  if (cached && Date.now() - cached.timestamp < ttl) {
    return cached.data
  }
  const data = await fetcher()
  dataCache.set(key, { data, timestamp: Date.now() })
  return data
}

7.4 虚拟滚动
对于超长列表（如日志、排行榜），使用虚拟滚动只渲染可视区域内的数据：

<template>
  <div class="virtual-list-container" ref="container" @scroll="handleScroll">
    <div class="virtual-list-phantom" :style="{ height: totalHeight + 'px' }"></div>
    <div class="virtual-list-content" :style="{ transform: `translateY(${offsetY}px)` }">
      <div v-for="item in visibleData" :key="item.id" class="list-item">
        {
  { item.name }}
      </div>
    </div>
  </div>
</template>

<script setup>
import { ref, computed } from 'vue'

const props = defineProps({
  data: { type: Array, required: true },
  itemHeight: { type: Number, default: 50 },
  bufferSize: { type: Number, default: 5 }
})

const container = ref(null)
const scrollTop = ref(0)

const totalHeight = computed(() => props.data.length * props.itemHeight)

const startIndex = computed(() => {
  const index = Math.floor(scrollTop.value / props.itemHeight)
  return Math.max(0, index - props.bufferSize)
})

const endIndex = computed(() => {
  const visibleCount = Math.ceil(container.value?.clientHeight / props.itemHeight) || 0
  const index = startIndex.value + visibleCount + props.bufferSize
  return Math.min(props.data.length, index)
})

const visibleData = computed(() => props.data.slice(startIndex.value, endIndex.value))

const offsetY = computed(() => startIndex.value * props.itemHeight)

const handleScroll = (e) => {
  scrollTop.value = e.target.scrollTop
}
</script>

<style scoped>
.virtual-list-container {
  height: 400px;
  overflow-y: auto;
  position: relative;
}

.virtual-list-phantom {
  position: absolute;
  top: 0;
  left: 0;
  right: 0;
  z-index: -1;
}

.virtual-list-content {
  position: absolute;
  top: 0;
  left: 0;
  right: 0;
}

.list-item {
  height: 50px;
  padding: 10px;
  border-bottom: 1px solid rgba(255, 255, 255, 0.1);
}
</style>
