使用Direct Exchange点对点的推送一条消息

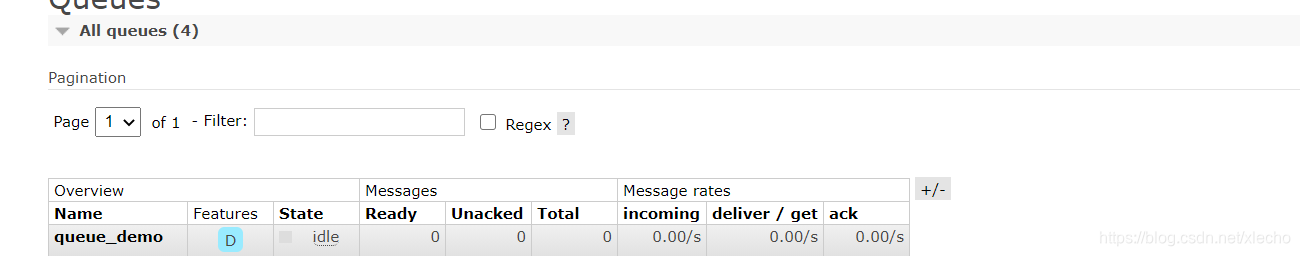

和Fanout Exchange一样,我们可以直接在远程的web端创建一个队列,也可以在我们的代码里面声明(由于是demo所以直接在代码里面声明是没什么问题的,但是一般实际应用都是在web端创建)

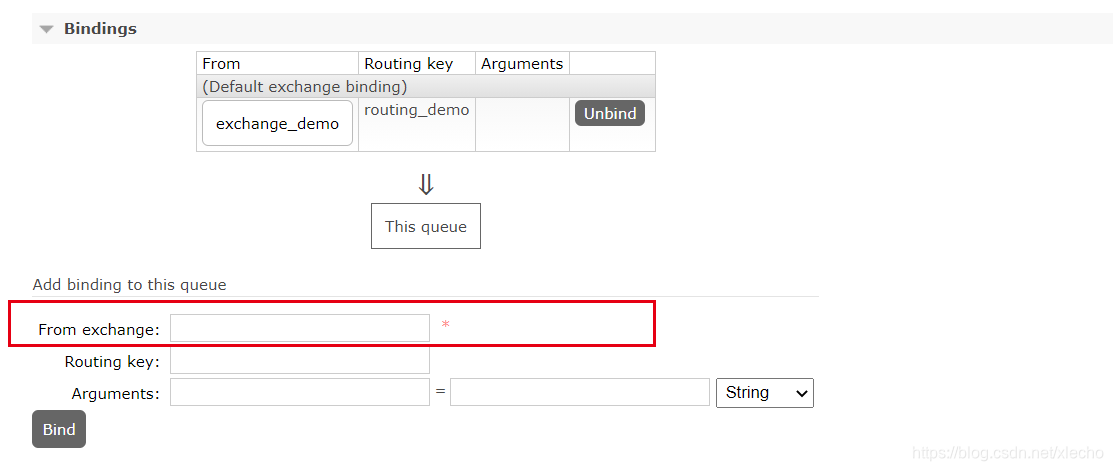

创建好了队列,记得绑定到对应的Exchange上,不然不能使用
手动创建的时候,先创建Direct Exchange,然后用这个队列绑定,代码里面直接使用自己的创建东西接口
- 创建一个生产者
package com.example.demo;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.MessageProperties;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* @author echo
* @date 2021-01-14 14:35
*/
public class DirectProductTest {
private static final String EXCHANGE_NAME = "exchange_demo";
private static final String ROUTING_KEY = "routing_demo";
private static final String QUEUE_NAME = "queue_demo";
private static final String IP_ADDRESS = "192.168.230.131";
private static final int PORT = 5672;
public static void main(String[] args) throws IOException, TimeoutException {
// 创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
// 设置RabbitMQ的链接参数
factory.setHost(IP_ADDRESS);
factory.setPort(PORT);
factory.setUsername("echo");
factory.setPassword("123456");
// 和RabbitMQ建立一个链接
Connection connection = factory.newConnection();
// 创建一个频道
Channel channel = connection.createChannel();
// 创建一个 type="direct" 、持久化的、非自动删除的交换器
channel.exchangeDeclare(EXCHANGE_NAME, "direct", true, false, null);
// 创建一个持久化、非排他的、非自动删除的队列
channel.queueDeclare(QUEUE_NAME, true, false, false, null);
// 将交换器与队列通过路由键绑定
channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, ROUTING_KEY);
// 发送一条持久化的消息: hello world !
String message = "Hello World !";
channel.basicPublish(EXCHANGE_NAME, ROUTING_KEY, MessageProperties.PERSISTENT_TEXT_PLAIN, message.getBytes());
// 关闭资源
channel.close();
connection.close();
}
}

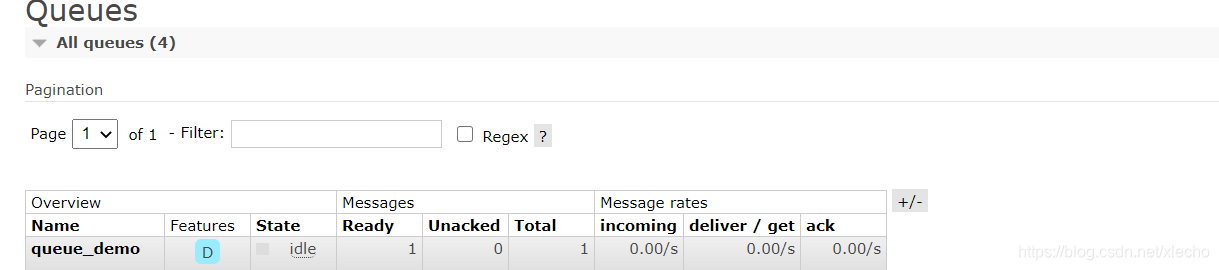

运行一下,我们就可以看到远程有消息拉
- 创建一个消费者
package com.example.demo;
import com.rabbitmq.client.*;
import lombok.SneakyThrows;
import java.io.IOException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
/**
* @author tang.sl
* @date 2021-01-14 15:05
*/
public class DirectConsumerTest {
private static final String EXCHANGE_NAME = "exchange_demo";
private static final String QUEUE_NAME = "queue_demo";
private static final String IP_ADDRESS = "192.168.230.131";
private static final int PORT = 5672;
public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
ConnectionFactory factory = new ConnectionFactory();
// 设置RabbitMQ的链接参数
factory.setUsername("echo");
factory.setPassword("123456");
factory.setPort(PORT);
factory.setHost(IP_ADDRESS);
// 和RabbitMQ建立一个链接
Connection connection = factory.newConnection();
final Channel channel = connection.createChannel();
Consumer consumer = new DefaultConsumer(channel) {
@SneakyThrows
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) {
System.out.println("recv message: " + new String(body));
try {
TimeUnit.SECONDS.sleep(1);
} catch (InterruptedException e) {
e.printStackTrace();
}
channel.basicAck(envelope.getDeliveryTag(), false);
}
};
channel.basicConsume(QUEUE_NAME, consumer);
//等待回调函数执行完毕之后 关闭资源
TimeUnit.SECONDS.sleep(5);
channel.close();
connection.close();
}
}
运行之后我们就可以拿到我们生产者发送的消息啦
总结
Direct Exchange是特别精准的推送,如果业务量不是很大的时候,我们可以直接使用这种模式,容易排查
