🔱前言
如果说作为一名程序员，我要求我自己要不断的求证，那么同时作为一名热爱艺术的人，我则无法忍受主流的那种“丑陋”目标检测框（下图），所以这篇文章也就应用而生了。

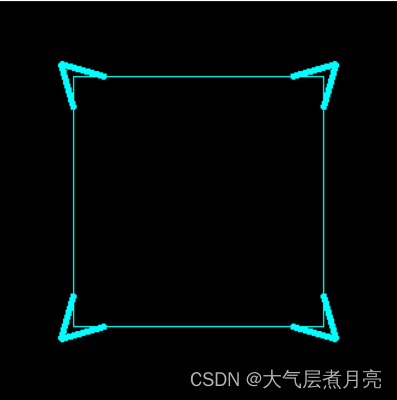

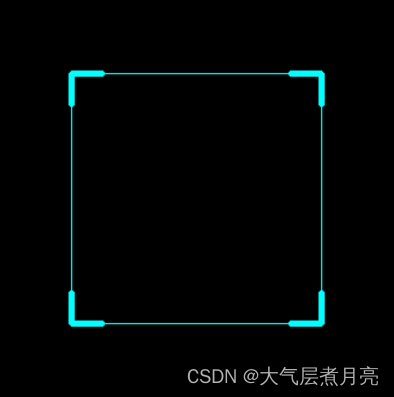

🔱检测框展览
①
②
③
🔱在实际应用中效果的展览
📍Face
📍Body
🔱Code柜
📍magic_bbox.py
# -*- coding: UTF-8 -*- """ @Time : 2022-9-15 @Author : 江子良 @Email : 2642898145@qq.com """ import cv2 import numpy as np class Magic_Bbox(object): def __init__(self, color=(255, 255, 0), threasould=25): self.color = color self.threasould = threasould self.out_img = np.array([]) def draw(self, old_image, b, draw_type): if draw_type == '0': cv2.rectangle(old_image, (b[0], b[1]), (b[2], b[3]), self.color, 1) b0_, b1_, b2_, b3_ = self.threasould, self.threasould, self.threasould, self.threasould # 左上 cv2.line(old_image, (b[0], b[1]), (b[0], b[1] + b1_), self.color, 4, 4) cv2.line(old_image, (b[0], b[1]), (b[0] + b0_, b[1]), self.color, 4, 4) # 右下 cv2.line(old_image, (b[2], b[3]), (b[2], b[3] - b3_), self.color, 4, 4) cv2.line(old_image, (b[2], b[3]), (b[2] - b2_, b[3]), self.color, 4, 4) # 左下 cv2.line(old_image, (b[0], b[3]), (b[0], b[3] - b3_), self.color, 4, 4) cv2.line(old_image, (b[0], b[3]), (b[0] + b0_, b[3]), self.color, 4, 4) # 右上 cv2.line(old_image, (b[2], b[1]), (b[2], b[1] + b1_), self.color, 4, 4) cv2.line(old_image, (b[2], b[1]), (b[2] - b2_, b[1]), self.color, 4, 4) elif draw_type == '1': cv2.rectangle(old_image, (b[0], b[1]), (b[2], b[3]), self.color, 1) b0_, b1_, b2_, b3_ = 25, 25, 25, 25 temp = 10 # 左上 cv2.line(old_image, (b[0] - temp, b[1] - temp), (b[0], b[1] + b1_), self.color, 4, 4) cv2.line(old_image, (b[0] - temp, b[1] - temp), (b[0] + b0_, b[1]), self.color, 4, 4) # 右下 cv2.line(old_image, (b[2] + temp, b[3] + temp), (b[2], b[3] - b3_), self.color, 4, 4) cv2.line(old_image, (b[2] + temp, b[3] + temp), (b[2] - b2_, b[3]), self.color, 4, 4) # 左下 cv2.line(old_image, (b[0] - temp, b[3] + temp), (b[0], b[3] - b3_), self.color, 4, 4) cv2.line(old_image, (b[0] - temp, b[3] + temp), (b[0] + b0_, b[3]), self.color, 4, 4) # 右上 cv2.line(old_image, (b[2] + temp, b[1] - temp), (b[2], b[1] + b1_), self.color, 4, 4) cv2.line(old_image, (b[2] + temp, b[1] - temp), (b[2] - b2_, b[1]), self.color, 4, 4) elif draw_type == '2': cv2.rectangle(old_image, (b[0], b[1]), (b[2], b[3]), self.color, 1) b0_, b1_, b2_, b3_ = 25, 25, 25, 25 temp = 10 # 左上 cv2.line(old_image, (b[0] - temp, b[1] - temp), (b[0] - temp, b[1] + b1_ - temp), self.color, 4, 4) cv2.line(old_image, (b[0] - temp, b[1] - temp), (b[0] - temp + b0_, b[1] - temp), self.color, 4, 4) # 右下 cv2.line(old_image, (b[2] + temp, b[3] + temp), (b[2] + temp, b[3] - b3_ + temp), self.color, 4, 4) cv2.line(old_image, (b[2] + temp, b[3] + temp), (b[2] + temp - b2_, b[3] + temp), self.color, 4, 4) # 左下 cv2.line(old_image, (b[0] - temp, b[3] + temp), (b[0] - temp, b[3] - b3_ + temp), self.color, 4, 4) cv2.line(old_image, (b[0] - temp, b[3] + temp), (b[0] - temp + b0_, b[3] + temp), self.color, 4, 4) # 右上 cv2.line(old_image, (b[2] + temp, b[1] - temp), (b[2] + temp, b[1] + b1_ - temp), self.color, 4, 4) cv2.line(old_image, (b[2] + temp, b[1] - temp), (b[2] + temp - b2_, b[1] - temp), self.color, 4, 4) return old_image def show(self, img): cv2.imshow('fame', img) cv2.waitKey(0)
📍demo.py
@Time : 2022-9-15 @Author : 江子良 @Email : 2642898145@qq.com @param: img | 这个参数是要传入准备被作画的图片 @param:bbox| 这个参数是要传入准备作画的目标框位置 格式：（xmin,ymin,xmax,ymax） @pararm:type| 这个参数是一一对应上面3种不同的目标检测框 @pararm:color| 请根据RGB表自行设置哦！ """
RGB颜色对照表戳这里～
Ｈｏｗ ｔｏ ｕｓｅ？
from magic_bbox import Magic_Bbox import numpy as np import cv2 if __name__ == "__main__": img = np.zeros((320, 320, 3), np.uint8) # 生成一个空灰度图像 bbox = (60, 60, 260, 260) color = (255,255,0) ''' type: 0 | 1 | 2 ''' mb = Magic_Bbox(color=color) img = mb.draw(img, bbox, '1') mb.show(img)
完毕！
如果大家觉得有用的话，欢迎三连喔~
