<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>ECharts</title>
<!-- 引入 echarts.js -->
<script src="js/echarts.min.js"></script>
</head>
<body>
<!-- 为ECharts准备一个具备大小（宽高）的Dom -->
<div id="main" style="width: 600px;height:400px;"></div>
<script type="text/javascript">
// 基于准备好的dom，初始化echarts实例
var myChart = echarts.init(document.getElementById('main'));
var option;
var builderJson = {
"all": 10887,
"charts": {
"map": 3237,
"lines": 2164,
"bar": 7561,
"line": 7778,
"pie": 7355,
"scatter": 2405,
"candlestick": 1842,
"radar": 2090,
"heatmap": 1762,
"treemap": 1593,
"graph": 2060,
"boxplot": 1537,
"parallel": 1908,
"gauge": 2107,
"funnel": 1692,
"sankey": 1568
},
"components": {
"geo": 2788,
"title": 9575,
"legend": 9400,
"tooltip": 9466,
"grid": 9266,
"markPoint": 3419,
"markLine": 2984,
"timeline": 2739,
"dataZoom": 2744,
"visualMap": 2466,
"toolbox": 3034,
"polar": 1945
},
"ie": 9743
};
var downloadJson = {
"echarts.min.js": 17365,
"echarts.simple.min.js": 4079,
"echarts.common.min.js": 6929,
"echarts.js": 14890
};
var themeJson = {
"dark.js": 1594,
"infographic.js": 925,
"shine.js": 1608,
"roma.js": 721,
"macarons.js": 2179,
"vintage.js": 1982
};
var waterMarkText = 'ECHARTS';
var canvas = document.createElement('canvas');
var ctx = canvas.getContext('2d');
canvas.width = canvas.height = 100;
ctx.textAlign = 'center';
ctx.textBaseline = 'middle';
ctx.globalAlpha = 0.08;
ctx.font = '20px Microsoft Yahei';
ctx.translate(50, 50);
ctx.rotate(-Math.PI / 4);
ctx.fillText(waterMarkText, 0, 0);

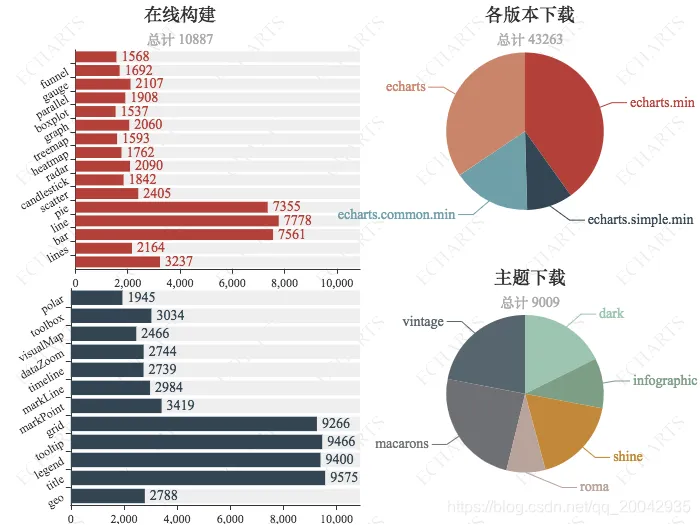

option = {
backgroundColor: {
type: 'pattern',
image: canvas,
repeat: 'repeat'
},
tooltip: {},
title: [{
text: '在线构建',
subtext: '总计 ' + builderJson.all,
x: '25%',
textAlign: 'center'
}, {
text: '各版本下载',
subtext: '总计 ' + Object.keys(downloadJson).reduce(function(all, key) {
return all + downloadJson[key];
}, 0),
x: '75%',
textAlign: 'center'
}, {
text: '主题下载',
subtext: '总计 ' + Object.keys(themeJson).reduce(function(all, key) {
return all + themeJson[key];
}, 0),
x: '75%',
y: '50%',
textAlign: 'center'
}],
grid: [{
top: 50,
width: '50%',
bottom: '45%',
left: 10,
containLabel: true
}, {
top: '55%',
width: '50%',
bottom: 0,
left: 10,
containLabel: true
}],
xAxis: [{
type: 'value',
max: builderJson.all,
splitLine: {
show: false
}
}, {
type: 'value',
max: builderJson.all,
gridIndex: 1,
splitLine: {
show: false
}
}],
yAxis: [{
type: 'category',
data: Object.keys(builderJson.charts),
axisLabel: {
interval: 0,
rotate: 30
},
splitLine: {
show: false
}
}, {
gridIndex: 1,
type: 'category',
data: Object.keys(builderJson.components),
axisLabel: {
interval: 0,
rotate: 30
},
splitLine: {
show: false
}
}],
series: [{
type: 'bar',
stack: 'chart',
z: 3,
label: {
normal: {
position: 'right',
show: true
}
},
data: Object.keys(builderJson.charts).map(function(key) {
return builderJson.charts[key];
})
}, {
type: 'bar',
stack: 'chart',
silent: true,
itemStyle: {
normal: {
color: '#eee'
}
},
data: Object.keys(builderJson.charts).map(function(key) {
return builderJson.all - builderJson.charts[key];
})
}, {
type: 'bar',
stack: 'component',
xAxisIndex: 1,
yAxisIndex: 1,
z: 3,
label: {
normal: {
position: 'right',
show: true
}
},
data: Object.keys(builderJson.components).map(function(key) {
return builderJson.components[key];
})
}, {
type: 'bar',
stack: 'component',
silent: true,
xAxisIndex: 1,
yAxisIndex: 1,
itemStyle: {
normal: {
color: '#eee'
}
},
data: Object.keys(builderJson.components).map(function(key) {
return builderJson.all - builderJson.components[key];
})
}, {
type: 'pie',
radius: [0, '30%'],
center: ['75%', '25%'],
data: Object.keys(downloadJson).map(function(key) {
return {
name: key.replace('.js', ''),
value: downloadJson[key]
}
})
}, {
type: 'pie',
radius: [0, '30%'],
center: ['75%', '75%'],
data: Object.keys(themeJson).map(function(key) {
return {
name: key.replace('.js', ''),
value: themeJson[key]
}
})
}]
}
myChart.setOption(option);
</script>
</body>
</html>
