说明
【跟月影学可视化】学习笔记。
光照效果简介
物体的光照效果是由光源、介质(物体的材质)和反射类型决定的,而反射类型又由物体的材质特点决定。
在 3D 光照模型中,根据不同的光源特点分为四种:
环境光(Ambient Light):指物体所在的三维空间中天然的光,它充满整个空间,在每一处的光照强度都一样。
特点1:在空间中均匀分布,在任何位置上环境光的颜色都相同
特点2:环境光没有方向,与物体的材质有关
平行光(Directional Light):平行光是朝着某个方向照射的光,能够照亮几何体的一部分表面,它属于有向光。
点光源(Positional Light):指空间中某一点发出的光,与方向光不同的是,点光源不仅有方向属性,还有位置属性。
聚光灯(Spot Light):与点光源相比,聚光灯增加了方向以及角度范围,只有在这个范围内,光线才能照到。
点光源跟平行光的示意图:
聚光灯示意图:
有向光在与物体发生作用的时候,根据物体的材质特性,会产生两种反射类型:
漫反射(Diffuse reflection)
镜面反射(Specular reflection)

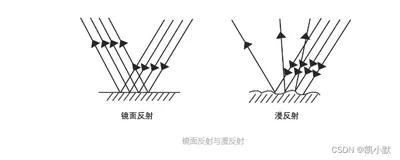

漫反射示意图:
一个物体最终的光照效果,是漫反射、镜面反射以及环境光叠加在一起的效果,示意图如下:
如何给物体增加环境光效果?
环境光没有方向,物体表面反射环境光的效果,只和环境光本身以及材质的反射率有关。
物体在环境光中呈现的颜色的公式如下:(环境光的颜色为 L,材质对光的反射率为 R。)
下面实现给物体增加环境光效果:
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>如何给物体增加环境光效果</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 projectionMatrix; uniform mat3 normalMatrix; void main() { gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0); } `; // 传入环境光 ambientLight 和材质反射率 materialReflection const fragment = ` precision highp float; uniform vec3 ambientLight; uniform vec3 materialReflection; void main() { gl_FragColor.rgb = ambientLight * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体,初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); const program1 = new Program(gl, { vertex, fragment, uniforms: { ambientLight: {value: [1, 1, 1]}, materialReflection: {value: [250/255, 128/255, 114/255]}, }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ambientLight: {value: [1, 1, 1]}, materialReflection: {value: [218/255, 165/255, 32/255]}, }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ambientLight: {value: [1, 1, 1]}, materialReflection: {value: [46/255, 139/255, 87/255]}, }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ambientLight: {value: [1, 1, 1]}, materialReflection: {value: [106/255, 90/255, 205/255]}, }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
如何给物体增加平行光效果?
有向光的漫反射在各个方向上的反射光均匀分布,反射强度与光的射入方向与法线的夹角的余弦成正比。
下面实现给物体增加平行光效果:
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>如何给物体增加平行光效果</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); // 在顶点着色器中计算光线的方向的运算次数少 const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 projectionMatrix; uniform mat4 viewMatrix; uniform mat3 normalMatrix; // 添加一道平行光 uniform vec3 directionalLight; varying vec3 vNormal; varying vec3 vDir; void main() { // 计算光线方向 vec4 invDirectional = viewMatrix * vec4(directionalLight, 0.0); vDir = -invDirectional.xyz; // 计算法向量 vNormal = normalize(normalMatrix * normal); gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0); } `; // 传入环境光 ambientLight 和材质反射率 materialReflection // 在片元着色器里,计算光线方向与法向量夹角的余弦,计算出漫反射光。 const fragment = ` precision highp float; uniform vec3 ambientLight; uniform vec3 materialReflection; uniform vec3 directionalLightColor; varying vec3 vNormal; varying vec3 vDir; void main() { // 求光线与法线夹角的余弦 float cos = max(dot(normalize(vDir), vNormal), 0.0); // 计算漫反射 vec3 diffuse = cos * directionalLightColor; // 合成颜色 gl_FragColor.rgb = (ambientLight + diffuse) * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体,初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); // 添加一个水平向右的白色平行光 const ambientLight = { value: [1, 1, 1] }; const directional = { directionalLight: { value: [1, 0, 0] }, directionalLightColor: { value: [1, 1, 1] } }; const program1 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [250/255, 128/255, 114/255]}, ...directional }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [218/255, 165/255, 32/255]}, ...directional }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [46/255, 139/255, 87/255]}, ...directional }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [106/255, 90/255, 205/255]}, ...directional }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
加了平行光线之后,我们可以感受到明显的阴暗变化,效果如下:
如何给物体添加点光源?
计算点光源的光照,要先根据光源位置和物体表面相对位置来确定方向,然后再和平行光一样,计算光的方向和物体表面法向的夹角。
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>如何给物体添加点光源</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); // 在顶点着色器中,将物体变换后的坐标传给片元着色器 const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 projectionMatrix; uniform mat3 normalMatrix; varying vec3 vNormal; varying vec3 vPos; void main() { vec4 pos = modelViewMatrix * vec4(position, 1.0); vPos = pos.xyz; vNormal = normalize(normalMatrix * normal); gl_Position = projectionMatrix * pos; } `; // 传入环境光 ambientLight 和材质反射率 materialReflection // 片元着色器中计算光线方向与法向量夹角的余弦 const fragment = ` precision highp float; uniform vec3 ambientLight; uniform vec3 materialReflection; uniform vec3 pointLightColor; uniform vec3 pointLightPosition; uniform mat4 viewMatrix; uniform vec3 pointLightDecayFactor; varying vec3 vNormal; varying vec3 vPos; void main() { // 光线到点坐标的方向 vec3 dir = (viewMatrix * vec4(pointLightPosition, 1.0)).xyz - vPos; // 与法线夹角余弦 float cos = max(dot(normalize(dir), vNormal), 0.0); // 计算漫反射 vec3 diffuse = cos * pointLightColor; // 合成颜色 gl_FragColor.rgb = (ambientLight + diffuse) * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体,初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); // 添加一个水平向右的白色平行光 const ambientLight = { value: [1, 1, 1] }; const directional = { pointLightPosition: { value: [3, 3, 0] }, pointLightColor: { value: [1, 1, 1] } }; const program1 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [250/255, 128/255, 114/255]}, ...directional }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [218/255, 165/255, 32/255]}, ...directional }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [46/255, 139/255, 87/255]}, ...directional }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [106/255, 90/255, 205/255]}, ...directional }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
点光源的衰减
真实世界中,点光源的光照强度会随着空间的距离增加而衰减。我们需要模拟一个衰减系数出来。
衰减系数等于一个常量 d 0 d_0 d0(通常为 1),除以衰减函数 P。衰减函数可以用一个二次多项式 P 来描述,公式如下:
- A、B、C 为常量
- z 是当前位置到点光源的距离
然后利用光线到点坐标的距离,用来计算衰减,实现如下:
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>点光源的衰减</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); // 在顶点着色器中,将物体变换后的坐标传给片元着色器 const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 projectionMatrix; uniform mat3 normalMatrix; varying vec3 vNormal; varying vec3 vPos; void main() { vec4 pos = modelViewMatrix * vec4(position, 1.0); vPos = pos.xyz; vNormal = normalize(normalMatrix * normal); gl_Position = projectionMatrix * pos; } `; // 传入环境光 ambientLight 和材质反射率 materialReflection // 片元着色器中计算光线方向与法向量夹角的余弦 const fragment = ` precision highp float; uniform vec3 ambientLight; uniform vec3 materialReflection; uniform vec3 pointLightColor; uniform vec3 pointLightPosition; uniform mat4 viewMatrix; uniform vec3 pointLightDecayFactor; varying vec3 vNormal; varying vec3 vPos; void main() { // 光线到点坐标的方向 vec3 dir = (viewMatrix * vec4(pointLightPosition, 1.0)).xyz - vPos; // 光线到点坐标的距离,用来计算衰减 float dis = length(dir); // 与法线夹角余弦 float cos = max(dot(normalize(dir), vNormal), 0.0); // 计算衰减 float decay = min(1.0, 1.0 / (pointLightDecayFactor.x * pow(dis, 2.0) + pointLightDecayFactor.y * dis + pointLightDecayFactor.z)); // 计算漫反射 vec3 diffuse = decay * cos * pointLightColor; // 合成颜色 gl_FragColor.rgb = (ambientLight + diffuse) * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体,初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); // 添加一个水平向右的白色平行光 const ambientLight = { value: [1, 1, 1] }; const directional = { pointLightPosition: { value: [3, 3, 0] }, pointLightColor: { value: [1, 1, 1] }, pointLightDecayFactor: { value: [0.08, 0, 1] }, }; const program1 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [250/255, 128/255, 114/255]}, ...directional }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [218/255, 165/255, 32/255]}, ...directional }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [46/255, 139/255, 87/255]}, ...directional }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [106/255, 90/255, 205/255]}, ...directional }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
衰减对比效果如下:光线强度随着距离衰减,可以右边较远的几何体几乎没有光照。
如何给物体添加聚光灯效果?
与点光源相比,聚光灯相对来说比较复杂,要用 5 个参数来描述:
spotLightColor
聚光灯颜色spotLightPosition
聚光灯位置spotLightDecayFactor
聚光灯衰减系数spotLightDirection
聚光灯方向spotLightAngle
聚光灯角度
利用聚光灯方向和角度,就可以求法向量与光线方向夹角的余弦值,这个值可以判断坐标是否在夹角内,最终的光照效果就只会出现在光照的角度内。
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>如何给物体添加聚光灯效果</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); // 在顶点着色器中,将物体变换后的坐标传给片元着色器 const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 projectionMatrix; uniform mat3 normalMatrix; varying vec3 vNormal; varying vec3 vPos; void main() { vec4 pos = modelViewMatrix * vec4(position, 1.0); vPos = pos.xyz; vNormal = normalize(normalMatrix * normal); gl_Position = projectionMatrix * pos; } `; // 传入环境光 ambientLight 和材质反射率 materialReflection // 片元着色器中求法向量与光线方向夹角的余弦值 const fragment = ` precision highp float; uniform mat4 viewMatrix; uniform vec3 ambientLight; uniform vec3 materialReflection; uniform vec3 spotLightColor; uniform vec3 spotLightPosition; uniform vec3 spotLightDecayFactor; uniform vec3 spotLightDirection; uniform float spotLightAngle; varying vec3 vNormal; varying vec3 vPos; void main() { // 光线到点坐标的方向 vec3 invLight = (viewMatrix * vec4(spotLightPosition, 1.0)).xyz - vPos; vec3 invNormal = normalize(invLight); // 光线到点坐标的距离,用来计算衰减 float dis = length(invLight); // 聚光灯的朝向 vec3 dir = (viewMatrix * vec4(spotLightDirection, 0.0)).xyz; // 通过余弦值判断夹角范围 float ang = cos(spotLightAngle); float r = step(ang, dot(invNormal, normalize(-dir))); // 与法线夹角余弦 float cos = max(dot(invNormal, vNormal), 0.0); // 计算衰减 float decay = min(1.0, 1.0 / (spotLightDecayFactor.x * pow(dis, 2.0) + spotLightDecayFactor.y * dis + spotLightDecayFactor.z)); // 计算漫反射 vec3 diffuse = r * decay * cos * spotLightColor; // 合成颜色 gl_FragColor.rgb = (ambientLight + diffuse) * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体,初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); // 添加一个水平向右的白色平行光 const ambientLight = { value: [1, 1, 1] }; const directional = { spotLightPosition: { value: [3, 3, 0] }, spotLightColor: { value: [1, 1, 1] }, spotLightDecayFactor: { value: [0.05, 0, 1] }, spotLightDirection: { value: [-1, -1, 0] }, spotLightAngle: { value: Math.PI / 12 }, }; const program1 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [250/255, 128/255, 114/255]}, ...directional }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [218/255, 165/255, 32/255]}, ...directional }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [46/255, 139/255, 87/255]}, ...directional }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [106/255, 90/255, 205/255]}, ...directional }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
大致的效果如下:可以明显的感受到聚光灯的效果
