MOD08_M3 V6 is an atmosphere global product that contains monthly 1 x 1 degree grid average values of atmospheric parameters. These parameters are related to atmospheric aerosol particle properties, total ozone burden, atmospheric water vapor, cloud optical and physical properties, and atmospheric stability indices. The product also provides means, standard deviations, QA weighted statistics, log-normal distributions, uncertainty estimates, and statistics for fractions of pixels that satisfy some condition. Below is a subset of the bands, for a complete list see the MOD08 Band List.
Documentation:
- User's Guide
- Science Data Product Software Documentation
- MYD08_M3 product description
- File specification document
MOD08_M3 V6是一个大气全球产品，包含每月1×1度网格的大气参数平均值。这些参数与大气气溶胶颗粒特性、臭氧总负荷、大气水汽、云的光学和物理特性以及大气稳定性指数有关。该产品还提供平均值、标准偏差、QA加权统计、对数正态分布、不确定性估计，以及满足某些条件的像素比例的统计。下面是一个波段的子集，完整的列表见MOD08波段列表。
文件。
用户指南
科学数据产品软件文档
MYD08_M3产品说明
文件规格文件
Dataset Availability
2000-03-01T00:00:00 - 2018-04-01T00:00:00
Dataset Provider
NASA LAADS DAAC at NASA Goddard Space Flight Center
Collection Snippet
ee.ImageCollection("MODIS/006/MOD08_M3")
Resolution
111320 meters
Bands Table
| Name | Description | Min | Max | Scale |
| Aerosol_Optical_Depth_Land_Ocean_Mean_Mean | Aerosol optical thickness at 0.55 microns for both ocean (best) and land (corrected): mean of daily mean | -100 | 5000 | 0.001 |
| Aerosol_Optical_Depth_Land_Ocean_Std_Deviation_Mean | Aerosol optical thickness at 0.55 microns for both ocean (best) and land (corrected): mean of daily standard deviation | -100 | 5000 | 0.001 |
| Aerosol_Optical_Depth_Land_QA_Mean_Mean_470 | Corrected aerosol optical depth (land) at 0.47 microns: mean of level-3 QA weighted mean | -100 | 5000 | 0.001 |
| Aerosol_Optical_Depth_Land_QA_Std_Deviation_Mean_470 | Corrected aerosol optical depth (land) at 0.47 microns: mean of level-3 weighted QA standard deviation | -100 | 5000 | 0.001 |
| Cirrus_Fraction_SWIR_FMean | Cirrus area fraction: mean of daily fraction | 0 | 10000 | 0.0001 |
| Cirrus_Fraction_SWIR_FStd | Cirrus area fraction: standard deviation of daily fraction | 0 | 10000 | 0.0001 |
| Cloud_Optical_Thickness_Liquid_Log_Mean_Mean | Liquid water cloud optical thickness: mean of daily log mean | 0 | 4176 | 0.001 |
| Cloud_Optical_Thickness_Liquid_Log_Std_Deviation_Mean | Liquid water cloud optical thickness: mean of daily log standard deviation | 0 | 4176 | 0.001 |
| Cloud_Optical_Thickness_Liquid_Mean_Uncertainty | Liquid water cloud optical thickness: multi-day absolute uncertainty estimate derived from the daily absolute uncertainty estimate | 0 | 2000 | 0.01 |
| Cloud_Optical_Thickness_Liquid_Log_Mean_Uncertainty | Liquid water cloud optical thickness: multi-day absolute log uncertainty estimate derived from the daily absolute log uncertainty estimate | 0 | 4477 | 0.001 |
使用说明：
"This dataset is in the public domain and is available
\ without restriction on use and distribution. See NASA\u2019s Earth Science Data & Information Policy
\ for additional information."
引用：
Platnick, S., M. King, P. Hubanks, 2015. MODIS Atmosphere L3 Monthly Product. NASA MODIS Adaptive Processing System, Goddard Space Flight Center, doi:10.5067/MODIS/MOD08_M3.006
代码：

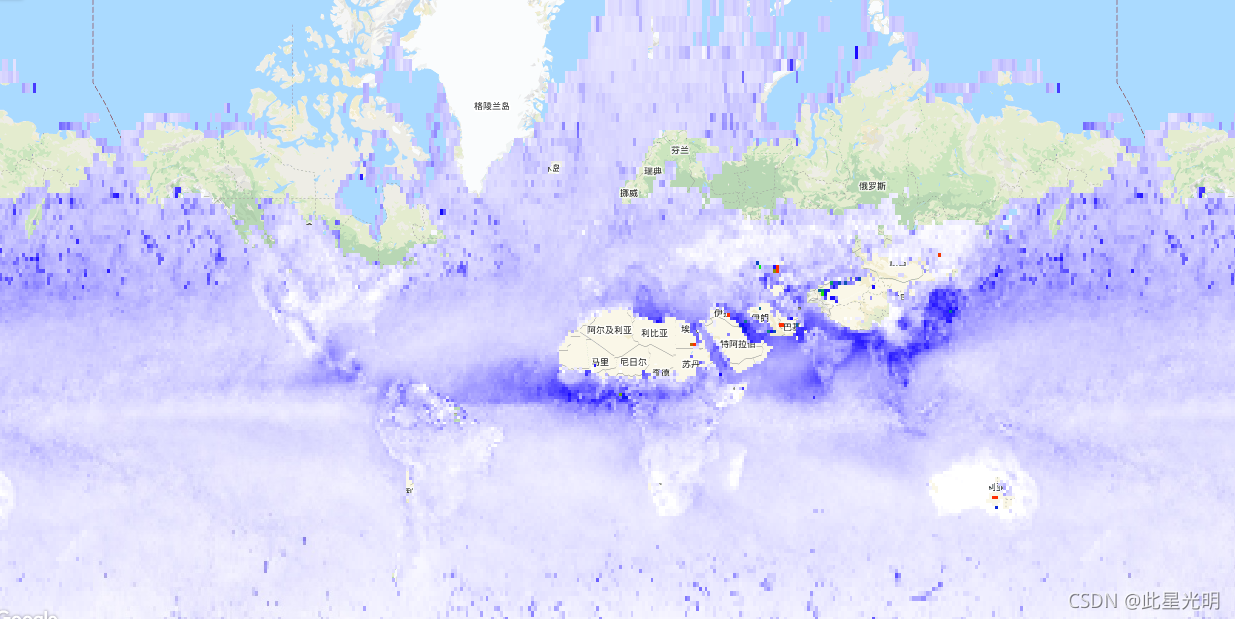

var dataset = ee.ImageCollection('MODIS/006/MOD08_M3') .filter(ee.Filter.date('2018-01-01', '2018-05-01')); var aerosolOpticalDepth = dataset.select('Aerosol_Optical_Depth_Land_Ocean_Mean_Mean'); var aerosolOpticalDepthVis = { min: 0.0, max: 3000.0, palette: ['ffffff', '1303ff', '01ff09', 'ff2f00'], }; Map.setCenter(6.746, 46.529, 2); Map.addLayer( aerosolOpticalDepth, aerosolOpticalDepthVis, 'Aerosol Optical Depth');
