Isolated: Communicates with only promiscuous ports.
Community: Communicates with the other members of the same community VLAN and all promiscuous ports.
Promiscuous: Communicates with all other ports in the same primary VLAN.
Description:

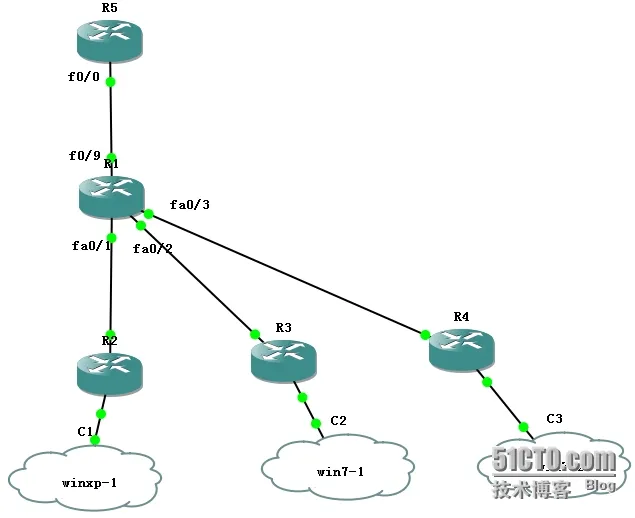

R5: Gateway 10.0.0.1
R1: simulate Switch1.
ConfigureFa0/9 as Promiscuous Port
Fa0/1-2 as Community Port
Fa0/3 as Isolated Port
R2,R3,R4 simulate Switch2, Switch3, Switch4
Purpose:
xp和win7-1属于相同团体vlan，可相互通信。
win7-2属于隔离vlan，只能和混杂端口Fa0/9通信。
所有主机可以和网关(R5 Fa0/0)通信。
主vlan：Vlan 100， 团体vlan：vlan 170 隔离vlan：vlan 200
Switch1(config)# vtp mode transparent
Switch1(config)# vlan 170
Switch1(config-vlan)# private-vlan community
Switch1(config)# vlan 200
Switch1(config-vlan)# private-vlan isolated
Switch1(config)# vlan 100
Switch1(config-vlan)# private-vlan primary
Switch1(config-vlan)# private-vlan association 170 200 定义vlan 170 200为vlan 100的辅助vlan
Switch1(config)# interface Fa0/9
Switch1(config-if)# switchport mode private-vlan promiscuous
Switch1(config-if)# switchport private-vlan mapping 100 170 200 接收100 170 200的流量
Switch1(config)# interface range Fa0/1 - 2
Switch1(config-if)# switchport mode private-vlan host
Switch1(config-if)# switchport private-vlan host-association 100 170
Switch1(config)# interface Fa0/3
Switch1(config-if)# switchport mode private-vlan host
Switch1(config-if)# switchport private-vlan host-association 100 200
