1. 背景

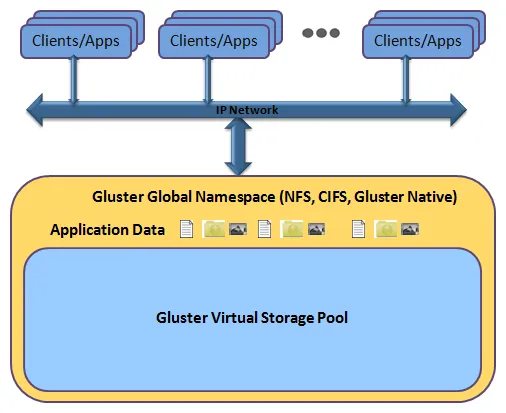

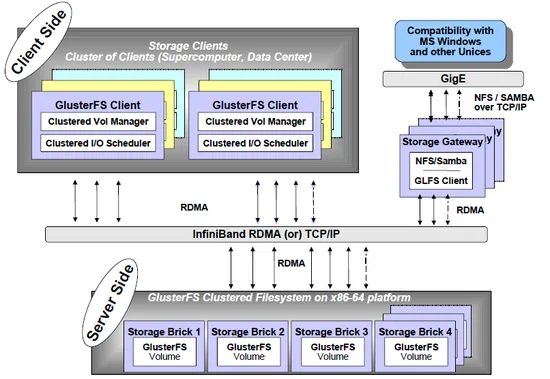

GlusterFS 是一个开源的分布式文件系统，具有强大的横向扩展能力，通过扩展能够支持数PB存储容量和处理数千客户端。GlusterFS借助TCP/IP或InfiniBand RDMA(一种支持多并发链接的“转换线缆”技术)网络将物理分布的存储资源聚集在一起，使用单一全局命名空间来管理数据。GlusterFS基于可堆叠的用户空间设计，可为各种不同的数据负载提供优异的性能。
GlusterFS支持运行在任何标准IP网络上标准应用程序的标准客户端
2. 优势
* 线性横向扩展和高性能
* 高可用性
* 全局统一命名空间
* 弹性哈希算法和弹性卷管理
* 基于标准协议
* 完全软件实现（Software Only）
* 用户空间实现（User Space）
* 模块化堆栈式架构（Modular Stackable Architecture）
* 原始数据格式存储（Data Stored in Native Formats）
* 无元数据服务设计（No Metadata with the Elastic Hash Algorithm）
3. 环境
server_1 CentOS 7.2.1511 (Core) 192.168.60.201
server_2 CentOS 7.2.1511 (Core) 192.168.60.202
4. 安装
* server_1 安装centos-release-gluster
|
1
|
[root@server_1 ~]
# yum install centos-release-gluster -y
|
* server_1 安装 glusterfs-server
|
1
|
[root@server_1 ~]
# yum install glusterfs-server -y
|
* server_1 启动 glusterfs-server 服务
|
1
|
[root@server_1 ~]
# systemctl start glusterd
|
* server_2 安装centos-release-gluster
|
1
|
[root@server_2 ~]
# yum install centos-release-gluster -y
|
* server_2 安装 glusterfs-server
|
1
|
[root@server_2 ~]
# yum install glusterfs-server -y
|
* server_2 启动 glusterfs-server 服务
|
1
|
[root@server_2 ~]
# systemctl start glusterd
|
5. 建立信任池 [ 信任单向建立即可 ]
* server_1 对 server_2 建立信任
|
1
2
|
[root@server_1 ~]
# gluster peer probe 192.168.60.202
peer probe: success.
|
* 查看信任池建立情况
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
[root@server_1 ~]
# gluster peer status
Number of Peers: 1
Hostname: 192.168.60.202
Uuid: 84d98fd8-4500-46d3-9d67-8bafacb5898b
State: Peer
in
Cluster (Connected)
[root@server_2 ~]
# gluster peer status
Number of Peers: 1
Hostname: 192.168.60.201
Uuid: 20722daf-35c4-422c-99ff-6b0a41d07eb4
State: Peer
in
Cluster (Connected)
|
6. 创建分布式卷
* server_1 和 server_2 创建数据存放目录
|
1
2
|
[root@server_1 ~]
# mkdir -p /data/exp1
[root@server_2 ~]
# mkdir -p /data/exp2
|
* 使用命令创建分布式卷，命名为test-volume
|
1
2
|
[root@server_1 ~]
# gluster volume create test-volume 192.168.60.201:/data/exp1 192.168.60.202:/data/exp2 force
volume create:
test
-volume: success: please start the volume to access data
|
* 查看卷信息
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
[root@server_1 ~]
# gluster volume info test-volume
Volume Name:
test
-volume
Type: Distribute
Volume ID: 457ca1ff-ac55-4d59-b827-fb80fc0f4184
Status: Created
Snapshot Count: 0
Number of Bricks: 2
Transport-
type
: tcp
Bricks:
Brick1: 192.168.60.201:
/data/exp1
Brick2: 192.168.60.202:
/data/exp2
Options Reconfigured:
transport.address-family: inet
nfs.disable: on
[root@server_2 ~]
# gluster volume info test-volume
Volume Name:
test
-volume
Type: Distribute
Volume ID: 457ca1ff-ac55-4d59-b827-fb80fc0f4184
Status: Created
Snapshot Count: 0
Number of Bricks: 2
Transport-
type
: tcp
Bricks:
Brick1: 192.168.60.201:
/data/exp1
Brick2: 192.168.60.202:
/data/exp2
Options Reconfigured:
transport.address-family: inet
nfs.disable: on
|
* 启动卷
|
1
2
|
[root@server_1 ~]
# gluster volume start test-volume
volume start:
test
-volume: success
|
7. 创建复制卷 [ 对比Raid 1 ]
* server_1 和 server_2 创建数据存放目录
|
1
2
|
[root@server_1 ~]
# mkdir -p /data/exp3
[root@server_2 ~]
# mkdir -p /data/exp4
|
* 使用命令创建复制卷，命名为repl-volume
|
1
2
|
[root@server_1 ~]
# gluster volume create repl-volume replica 2 transport tcp 192.168.60.201:/data/exp3 192.168.60.202:/data/exp4 force
volume create: repl-volume: success: please start the volume to access data
|
* 查看卷信息
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
[root@server_1 ~]
# gluster volume info repl-volume
Volume Name: repl-volume
Type: Replicate
Volume ID: 1924ed7b-73d4-45a9-af6d-fd19abb384cd
Status: Created
Snapshot Count: 0
Number of Bricks: 1 x 2 = 2
Transport-
type
: tcp
Bricks:
Brick1: 192.168.60.201:
/data/exp3
Brick2: 192.168.60.202:
/data/exp4
Options Reconfigured:
transport.address-family: inet
nfs.disable: on
[root@server_2 ~]
# gluster volume info repl-volume
Volume Name: repl-volume
Type: Replicate
Volume ID: 1924ed7b-73d4-45a9-af6d-fd19abb384cd
Status: Created
Snapshot Count: 0
Number of Bricks: 1 x 2 = 2
Transport-
type
: tcp
Bricks:
Brick1: 192.168.60.201:
/data/exp3
Brick2: 192.168.60.202:
/data/exp4
Options Reconfigured:
transport.address-family: inet
nfs.disable: on
|
* 启动卷
|
1
2
|
[root@server_1 ~]
# gluster volume start repl-volume
volume start: repl-volume: success
|
8. 创建条带卷 [ 对比Raid 0 ]
* server_1 和 server_2 创建数据存放目录
|
1
2
|
[root@server_1 ~]
# mkdir -p /data/exp5
[root@server_2 ~]
# mkdir -p /data/exp6
|
* 使用命令创建复制卷，命名为raid0-volume
|
1
2
|
[root@server_1 ~]
# gluster volume create raid0-volume stripe 2 transport tcp 192.168.60.201:/data/exp5 192.168.60.202:/data/exp6 force
volume create: raid0-volume: success: please start the volume to access data
|
* 查看卷信息
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
[root@server_1 ~]
# gluster volume info raid0-volume
Volume Name: raid0-volume
Type: Stripe
Volume ID: 13b36adb-7e8b-46e2-8949-f54eab5356f6
Status: Created
Snapshot Count: 0
Number of Bricks: 1 x 2 = 2
Transport-
type
: tcp
Bricks:
Brick1: 192.168.60.201:
/data/exp5
Brick2: 192.168.60.202:
/data/exp6
Options Reconfigured:
transport.address-family: inet
nfs.disable: on
[root@server_2 ~]
# gluster volume info raid0-volume
Volume Name: raid0-volume
Type: Stripe
Volume ID: 13b36adb-7e8b-46e2-8949-f54eab5356f6
Status: Created
Snapshot Count: 0
Number of Bricks: 1 x 2 = 2
Transport-
type
: tcp
Bricks:
Brick1: 192.168.60.201:
/data/exp5
Brick2: 192.168.60.202:
/data/exp6
Options Reconfigured:
transport.address-family: inet
nfs.disable: on
|
* 启动卷
|
1
2
|
[root@server_1 ~]
# gluster volume start raid0-volume
volume start: raid0-volume: success
|
9. 客户端应用
* 安装glusterfs-cli
|
1
|
[root@client ~]
# yum install glusterfs-cli -y
|
* 创建挂载目录
|
1
|
[root@client ~]
# mkdir /mnt/g1 /mnt/g2 /mnt/g3
|
* 挂载卷
|
1
2
3
|
[root@server_1 ~]
# mount.glusterfs 192.168.60.201:/test-volume /mnt/g1
[root@server_1 ~]
# mount.glusterfs 192.168.60.202:/repl-volume /mnt/g2
[root@server_1 ~]
# mount.glusterfs 192.168.60.201:/raid0-volume /mnt/g3
|
10. 扩展卷
* 创建存放目录
|
1
|
[root@server_1 ~]
# mkdir -p /data/exp9
|
* 扩展卷
|
1
2
|
[root@server_1 ~]
# gluster volume add-brick test-volume 192.168.60.201:/data/exp9 force
volume add-brick: success
|
* 重新均衡
|
1
2
3
|
[root@server_1 ~]
# gluster volume rebalance test-volume start
volume rebalance:
test
-volume: success: Rebalance on
test
-volume has been started successfully. Use rebalance status
command
to check status of the rebalance process.
ID: 008c3f28-d8a1-4f05-b63c-4543c51050ec
|
11. 总结
以需求驱动技术，技术本身没有优略之分，只有业务之分。
