一、LVS-dr的基本原理
direct routing，它通过修改请求报文的目标MAC地址进行转发。
请求报文经由director发送至RS，那么就不能让除Director外的RS响应，因此，有三种解决方案：1.在上游路由器进行IP和MAC的绑定，2.在RS上做arptables，3.修改RS主机内核参数，也就是说vip别名在环回口，修改的内核参数能使vip对发来的请求不做处理。
响应报文不经由director，而是有vip直接响应cip，其中vip通过rip的MAC和gateway直接响应cip。
dr的基本规则：
（1）保证前端路由器将目标IP为VIP的请求报文发送给director
解决方案：
静态绑定
arptables
修改RS主机内核的参数
（2）RS的RIP可以使用私有地址；但也可以使用公网地址
（3）RS跟Director必须在同一物理网络中
（4）请求报文经由Director调度，但响应报文一定不能经由Director；
（5）不支持端口映射
（6）RS可以大多数OS
（7）RS的网关不能指向DIP
二、实验环境，局域网环境。
|
1
2
3
4
|
Client：本机windows7
Director：CentOS 7.1
RealServer：node1，node2均为CentOS6.7
Director与RealServer的所有IP均为同一网段
|

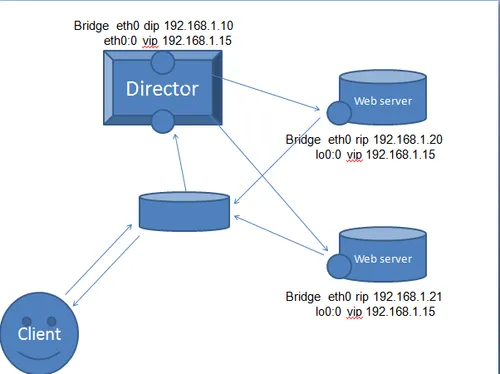

拓扑如下：
三、配置
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
director：
[root@localhost ~]
# ifconfig ens33:0 192.168.1.15/32 broadcast 192.168.1.15 up
[root@localhost ~]
# route add -host 192.168.1.15 dev ens33:0
RS：
node1：
[root@jymlinux ~]
# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@jymlinux ~]
# echo 1 > /proc/sys/net/ipv4/conf/eth2/arp_ignore
[root@jymlinux ~]
# echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
[root@jymlinux ~]
# echo 2 > /proc/sys/net/ipv4/conf/eth2/arp_announce
[root@jymlinux ~]
# ifconfig lo:0 192.168.1.15/32 broadcast 192.168.1.15 up
[root@jymlinux ~]
# route add -host 192.168.1.15 dev lo:0
node2：
[root@jymlinux ~]
# echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
[root@jymlinux ~]
# echo 1 > /proc/sys/net/ipv4/conf/eth0/arp_ignore
[root@jymlinux ~]
# echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
[root@jymlinux ~]
# echo 2 > /proc/sys/net/ipv4/conf/eth0/arp_announce
[root@jymlinux ~]
# ifconfig lo:0 192.168.1.15/32 broadcast 192.168.1.15 up
[root@jymlinux ~]
# route add -host 192.168.1.15 dev lo:0
或写脚本并给予执行权限设置内核参数
[root@jymlinux ~]
# vim lvsdrka.sh
#!/bin/bash
#
case
$1
in
start)
echo
1 >
/proc/sys/net/ipv4/conf/all/arp_ignore
echo
1 >
/proc/sys/net/ipv4/conf/eth2/arp_ignore
echo
2 >
/proc/sys/net/ipv4/conf/all/arp_announce
echo
2 >
/proc/sys/net/ipv4/conf/eth2/arp_announce
;;
stop)
echo
0 >
/proc/sys/net/ipv4/conf/all/arp_ignore
echo
0 >
/proc/sys/net/ipv4/conf/eth2/arp_ignore
echo
0 >
/proc/sys/net/ipv4/conf/all/arp_announce
echo
0 >
/proc/sys/net/ipv4/conf/eth2/arp_announce
;;
esac
[root@jymlinux ~]
# chmod +x lvsdrka.sh
[root@jymlinux ~]
# ./lvsdrka.sh start
[root@jymlinux ~]
# cat /proc/sys/net/ipv4/conf/all/arp_ignore
1
[root@jymlinux ~]
# cat /proc/sys/net/ipv4/conf/all/arp_announce
2
|
两个内核参数：
arp_announce：arp通告
0：通告全部IP 默认
1：尽量避免将非本网络的地址通告给网络中的其他地址
2：总是用最佳本地地址通告网络
arp_ignore：arp响应
0：无论从哪个接口请求的，只要主机有这个地址，就会响应 默认
1：从哪个接口请求的地址，就从哪个接口的地址响应
2,3,4,,5,6,7,8,有9个级别，其余不常用
在lvs-dr中，我们一般使用arp_ignore=1 arp_announce=2
测试web服务
|
1
2
3
4
|
[root@localhost ~]
# curl http://192.168.1.20
<h1>this is node1 <\h1>
[root@localhost ~]
# curl http://192.168.1.21
<h1>this is node2 <\h1>
|
配置集群规则
|
1
2
3
|
[root@localhost ~]
# ipvsadm -A -t 192.168.1.15:80 -s rr
[root@localhost ~]
# ipvsadm -a -t 192.168.1.15:80 -r 192.168.1.20 -g
[root@localhost ~]
# ipvsadm -a -t 192.168.1.15:80 -r 192.168.1.21 -g
|

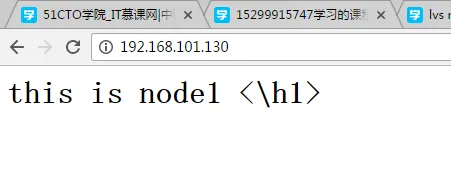

四、测试结果
五、配置http与https双集群服务
此处网段改为192.168.3.0网段。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
|
1、创建私有CA（以Director主机为例）
[root@localhost ~]
# cd /etc/pki/CA
[root@localhost CA]
# (umask 077; openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus
..................+++
.......+++
e is 65537 (0x10001)
[root@localhost CA]
# touch index.txt
[root@localhost CA]
# echo 01 > serial
[root@localhost CA]
# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 365
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter
'.'
, the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:XJ
Locality Name (eg, city) [Default City]:XJ
Organization Name (eg, company) [Default Company Ltd]:JJ
Organizational Unit Name (eg, section) []:Ops
Common Name (eg, your name or your server's
hostname
) []:CA
Email Address []:ca.admin.com
2、RS主机申请证书
[root@jymlinux ~]
# cd /etc/httpd/
[root@jymlinux httpd]
# mkdir ssl
[root@jymlinux httpd]
# cd ssl
[root@jymlinux ssl]
# (umask 077; openssl genrsa -out httpd.key 2048)
Generating RSA private key, 2048 bit long modulus
..............+++
..................................+++
e is 65537 (0x10001)
[root@jymlinux ssl]
# openssl req -new -key httpd.key -out httpd.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter
'.'
, the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:XJ
Locality Name (eg, city) [Default City]:XJ
Organization Name (eg, company) [Default Company Ltd]:JJ
Organizational Unit Name (eg, section) []:Ops
Common Name (eg, your name or your server's
hostname
) []:CA
Email Address []:rs1.admin.com
Please enter the following
'extra'
attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
3、将申请的证书发往CA
[root@jymlinux ssl]
# scp httpd.csr root@192.168.3.10:/root
The authenticity of host
'192.168.3.10 (192.168.3.10)'
can't be established.
RSA key fingerprint is ef:85:f8:aa:1c:de:41:5a:fd:93:8d:9f:83:f7:a2:ff.
Are you sure you want to
continue
connecting (
yes
/no
)? y
Please
type
'yes'
or
'no'
:
yes
Warning: Permanently added
'192.168.3.10'
(RSA) to the list of known hosts.
root@192.168.3.10's password:
httpd.csr 100% 1013 1.0KB
/s
00:00
4、CA签署并发证
[root@localhost CA]
# openssl ca -in /root/httpd.csr -out /root/httpd.crt
Using configuration from
/etc/pki/tls/openssl
.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 1 (0x1)
Validity
Not Before: Nov 9 13:48:21 2016 GMT
Not After : Nov 9 13:48:21 2017 GMT
Subject:
countryName = CN
stateOrProvinceName = XJ
organizationName = JJ
organizationalUnitName = Ops
commonName = CA
emailAddress = rs1.admin.com
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Comment:
OpenSSL Generated Certificate
X509v3 Subject Key Identifier:
7E:FA:3A:6F:89:28:EF:D1:CF:5C:42:75:50:7B:C6:99:1D:98:91:B6
X509v3 Authority Key Identifier:
keyid:91:9D:0E:8E:86:45:09:DE:C3:3F:63:61:C2:3D:CB:E1:E3:1C:F1:B6
Certificate is to be certified
until
Nov 9 13:48:21 2017 GMT (365 days)
Sign the certificate? [y
/n
]:y
1 out of 1 certificate requests certified, commit? [y
/n
]y
Write out database with 1 new entries
Data Base Updated
[root@localhost CA]
# scp /root/httpd.crt root@192.168.3.20:/etc/httpd/ssl/
The authenticity of host
'192.168.3.20 (192.168.3.20)'
can't be established.
RSA key fingerprint is e5:84:6c:f7:c0:60:3d:0b:39:b6:1e:12:0d:48:8b:07.
Are you sure you want to
continue
connecting (
yes
/no
)?
yes
Warning: Permanently added
'192.168.3.20'
(RSA) to the list of known hosts.
root@192.168.3.20's password:
httpd.crt 100% 4482 4.4KB
/s
00:00
4、安装mod-ssl
[root@jymlinux ~]
# yum install mod_ssl
5、修改ssl的配置文件
[root@jymlinux ~]
# cd /etc/httpd/conf.d/
[root@jymlinux conf.d]
# vim ssl.conf
DocumentRoot
"/var/www/html"
#启用
SSLCertificateFile
/etc/httpd/ssl/httpd
.crt
#修改证书以及密钥的所在路径
SSLCertificateKeyFile
/etc/httpd/ssl/httpd
.key
6、重启httpd服务
[root@jymlinux conf.d]
# service httpd restart
7、Director配置ipvsadm规则
#使用iptables在PREROUTING链上的MARK标记将http与https标记为一组
[root@localhost ~]
# iptables -t mangle -A PREROUTING -d 192.168.3.15 -p tcp --dport 80 -j MARK --set-mark 10
[root@localhost ~]
# iptables -t mangle -A PREROUTING -d 192.168.3.15 -p tcp --dport 443 -j MARK --set-mark 10
[root@localhost ~]
# ipvsadm -A -f 10 -s rr
[root@localhost ~]
# ipvsadm -a -f 10 -r 192.168.3.20 -g
[root@localhost ~]
# ipvsadm -a -f 10 -r 192.168.3.21 -g
|

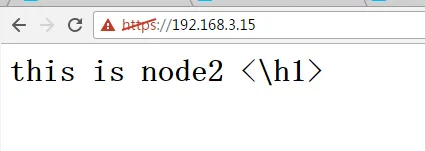

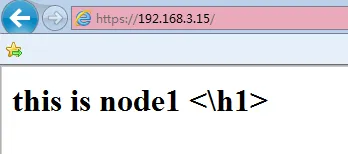

六、测试
