本文在上文的基础上完成用户登录验证功能。

四、获取数据请求业务处理封装

1、配置数据读取方式，它的作用是使用FrameDataGainer响应以.data结尾的请求，并把处理后的数据返回给客户端。打开D:\medical\war\WEB-INF\web.xml文件，填充如下内容：

1
2
3
4
5
6
7
8
9
< servlet >
     < servlet-name >data</ servlet-name >
     < servlet-class >com.medical.frame.FrameDataGainer</ servlet-class >
     < load-on-startup >2</ load-on-startup >
</ servlet >
< servlet-mapping >
     < servlet-name >data</ servlet-name >
     < url-pattern >*.data</ url-pattern >
</ servlet-mapping >


2、FrameDataGainer的作用说明：

当浏览器通过uri下发XXX.data请求时，web容器tomcat将该请求交由FrameDataGainer处理，它通过getDataName()方法获取请求名XXX后，然后再从全局缓存FrameCache中根据XXX获取定义业务类名称，接着根据定义业务类名称把其反射出FrameDefaultAction对象，最后调用FrameDefaultAction对象的execute()进行具体的业务处理，并返回给客户端。这个过程与请求跳转封装类似，接下来跟着思维一步步实现这个过程：


3、定义FrameDataGainer类，让其继承HttpServlet对象，同时在init()方法中初始化配置类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public  class  FrameDataGainer  extends  HttpServlet
{
     /**
      * 定义日志对象
      */
     private  static  final  Logger logger = LoggerFactory.getLogger(FrameDataGainer. class );

     @Override
     public  void  init()
         throws  ServletException
     {
         ServletContext context = getServletContext();

         // 加载业务配置文件
         try
         {
             FrameConfigUtil.loadDataBusiness(context);
         }
         catch  (FrameException e)
         {
             throw  new  ServletException( "[FrameDataGainer] init error." , e);
         }
     }
}


4、在FrameConfigUtil中定义loadDataBusiness()方法，通过该方法把xxx-data.xml等文件加载进入内存

1
2
3
4
5
6
7
8
/**
  * 加载D:\medical\war\WEB-INF\config下的所有数据业务配置文件
  */
  public  static  void  loadDataBusiness(ServletContext context)  throws  FrameException
  {
      findDataFile(context,  "/WEB-INF/config" );
      parseDataBusiness(context);
  }

其中findDataFile()用于查找D:\medical\war\WEB-INF\config下所有的xxx-data.xml文件；parseDataBusiness()用于把xxx-data.xml中的配置加载到内存中。这里不再列出，感兴趣的话可以附件中查看源码。


5、FrameDataGainer.getDataName()方法用于把请求的动作名称从HTTP中解析出来：

1
2
3
4
5
6
7
8
9
public  class  FrameDataGainer  extends  HttpServlet
{
     @Override
     public  void  doGet(HttpServletRequest request, HttpServletResponse response)  throws  ServletException
     {
         String dataName = getDataName(request);
         // 省略
     }
}


6、当dataName为空时通过FrameDataGainer.getErrorResult()返回异常JSON对象，所以这里引入gson.jar

（1）进入https://code.google.com/p/google-gson/downloads/detail?name=google-gson-2.2.4-release.zip下载

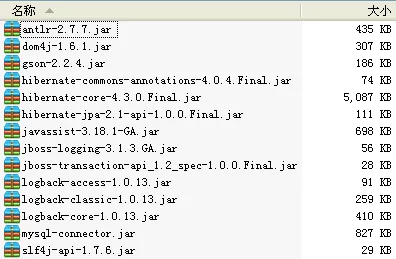

（2）解压后把gson-2.2.4.jar复制到应用运行环境下的WEB-INF\lib下。我的环境位置为D:\medical\war\WEB-INF\lib

（3）在Eclipse工程中引入gson-2.2.4.jar

（4）定义com.medical.frame.bean.FrameResultBean.java对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public  class  FrameResultBean
{
     /**
      * 错误码
      */
     private  int  errorCode =  0 ;

     /**
      * 错误描述
      */
     private  String errorDesc =  null ;

     public  int  getErrorCode()
     {
         return  errorCode;
     }

     public  void  setErrorCode( int  errorCode)
     {
         this .errorCode = errorCode;
     }

     public  String getErrorDesc()
     {
         return  errorDesc;
     }

     public  void  setErrorDesc(String errorDesc)
     {
         this .errorDesc = errorDesc;
     }
}

（5）定义FrameDataGainer.getErrorResult()方法

1
2
3
4
5
6
7
8
9
10
11
12
13
/**
  * 返回请求异常Json对象
  */
private  String getErrorResult()
{
     FrameResultBean resultBean =  new  FrameResultBean();
     resultBean.setErrorCode(FrameErrorCode.REQUEST_BUS_NOT_EXIST);
     String errorCode = String.valueOf(FrameErrorCode.REQUEST_BUS_NOT_EXIST);
     String errorDesc = FrameCache.getInstance().getResourceValue(errorCode);
     resultBean.setErrorDesc(errorDesc);

     return  gson.toJson(resultBean);
}

（6）请求数据名称没有配置返回异常JSON对象

1
2
3
4
5
6
7
8
9
10
11
12
13
public  class  FrameDataGainer  extends  HttpServlet
{
     @Override
     public  void  doGet(HttpServletRequest request, HttpServletResponse response)  throws  ServletException
     {
         String dataName = getDataName(request);
         if  (dataName ==  null )
         {
             response.getWriter().write(getErrorResult());
             return ;
         }
     }
}


7、当请求数据名称存在时，根据数据名称从缓存中读取业务对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public  class  FrameDataGainer  extends  HttpServlet
{
     @Override
     public  void  doGet(HttpServletRequest request, HttpServletResponse response)  throws  ServletException
     {
         // 省略
         FrameDataBusiness business = FrameCache.getInstance().getDataBusinessMap(dataName);
         if  (business ==  null )
         {
             response.getWriter().write(getErrorResult());
             return ;
         }
     }
}


8、从业务配置中反射出数据请求动作处理类对象，并把相应的处理结果写入Response对象中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public  class  FrameDataGainer  extends  HttpServlet
{
     @Override
     public  void  doGet(HttpServletRequest request, HttpServletResponse response)  throws  ServletException
     {
         // 省略
         FrameDefaultAction action = FrameActionFactory.getInstance().implement(business.getBusinessClass());
         action.setRequest(request);
         action.setResponse(response);
         action.setSession(request.getSession());

         String resultData = action.execute();
         response.getWriter().write(resultData ==  null  ? getErrorResult() : resultData);
     }
}


由于描述可能不清楚，可以参见流程，其处理过程与页面跳转的封装类似：



五、开发注册和登录功能

1、为让用户输入的密码不以明文显示，把D:\medical\war\module\login\login.html中的密码输入组件更改为password，如下：

1
< inputtype = "password" class = "login_user_input" placeholder = "请输入密码" id = "login_dynamic_user_pass" />


2、修改login.html文件中注册、登录部分代码如下：

1
2
3
4
< div  class = "login_button_wrapper" >
     < a  class = "login_confirm_button"  href = "javascript:systemUserLogin()" >登录</ a >
     < a  class = "login_regist_button"   href = "javascript:systemUserRegist()" >注册</ a >
</ div >


3、在D:\medical\war\js\login\login.js文件中完成按钮响应动作：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
( function ( window){
     /**
      * 用户登录方法
      */
     function  systemUserLogin(isRegist)
     {
         var  userName = $( "#login_dynamic_user_name" ).val();
         var  userAuth = $( "#login_dynamic_user_pass" ).val();
         //1. 用户名或密码为空
         if (!userName || !userAuth)
         {
             return ;
         }
         //2. 用户名或密码长度不能超过20
         if (userName.length > 20 || userAuth.length > 20)
         {
             return ;
         }
         //3. 下发请求
         var  data = { "isRegist" : isRegist,  "userName" : userName,  "userAuth" : userAuth};
         asyncRequest( "login.data" , data,  function (result)
         {
             // TODO
             alert(1);
         });
     }
     /**
      * 对外公开方法
      */
     window.systemUserLogin = systemUserLogin;
     window.systemUserRegist = systemUserRegist;
})( window );


4、由于在第3步中调用了common.js中封装的asyncRequest()方法，这里把代码粘贴如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
/**
  * 下发AJAX异步请求
  */
function  asyncRequest(action, param, callback)
{
     $.ajax(
     {
         type:  "GET" ,
         dataType:  "JSON" ,
         url: action,
         data: param,
         success:  function (result)
         {
             callback(result);
         }
     });
}


5、定义数据业务处理配置文件login-data.xml，并把其放置到D:\medical\war\WEB-INF\config\login下

1
2
3
4
<? xml  version = "1.0"  encoding = "UTF-8" ?>
< business-config >
     < business  name = "login"  business-class = "com.medical.server.data.UserLoginDataAction"  />
</ business-config >


6、通过第四步的封装和login-data.xml的定义，当在客户端输入用户名和密码后，点击登录或注册按钮，就可以调用到UserLoginDataAction业务处理类，其定义如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
/**
  * 斗医系统用户登录逻辑处理类
  *
  * @author qingkechina
  */
public  class  UserLoginDataAction  extends  FrameDefaultAction
{
     /**
      * 全局Gson对象
      */
     private  final  static  Gson gson =  new  Gson();

     /**
      * 缺省响应动作
      */
     public  String execute()
         throws  FrameException
     {
         // 1.从客户端获取用户名和密码
         String userName = getParameter( "userName" );
         String userAuth = getParameter( "userAuth" );
         if  (FrameUtil.isEmpty(userName) || FrameUtil.isEmpty(userAuth))
         {
             UserLoginBean loginBean =  new  UserLoginBean();
             loginBean.setErrorCode(FrameErrorCode.USER_LOGIN_ERROR);
             loginBean.setErrorDesc(FrameUtil.getErrorDescByCode(loginBean.getErrorCode()));
             return  gson.toJson(loginBean);
         }

         // 2.用户名和密码的长度不能超过数据库字段的长度
         if  (userName.length() >  20  || userAuth.length() >  64 )
         {
             UserLoginBean loginBean =  new  UserLoginBean();
             loginBean.setErrorCode(FrameErrorCode.USER_LOGIN_ERROR);
             loginBean.setErrorDesc(FrameUtil.getErrorDescByCode(loginBean.getErrorCode()));
             return  gson.toJson(loginBean);
         }

         // 3.用户名和密码一般都是汉字、字母、数字和特殊字符
         // 这里留一个雷区,后面再讲解SQL注入时再进行完善

         // 4.判断是注册还是登录
         String isRegistUser = getParameter( "isRegist" );
         if  ( "TRUE" .equalsIgnoreCase(isRegistUser))
         {
             return  doRegistAction(userName, userAuth);
         }
         else
         {
             return  doLoginAction(userName, userAuth);
         }
     }
     // 略去doRegistAction()和doLoginAction()方法
}

【备注】：这里暂时不考虑用户信息安全，自棱镜门之后网络安全在国内得到越来越多的重视。用户注册登录的用户信息在客户端输入、传输、服务端验证、加解密等角度都需要考虑，这里暂时留一个彩蛋，以备后续安全专题时使用。


7、用户注册的处理逻辑：

先拿输入的用户名去数据库查找

（1）若查到说明存在重名的用户，请注册用户再选一个名称

（2）若查不到则把用户数据插入数据库，并返回注册成功信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/**
  * 用户注册处理方法
  */
private  String doRegistAction(String userName, String userAuth)
{
     // 1. 判断数据库中是否已存在该用户名
     UserDAO user = UserUtil.getUserByName(userName);
     if (user !=  null )
     {
         UserLoginBean loginBean =  new  UserLoginBean();
         loginBean.setErrorCode(FrameErrorCode.USER_SAME_ERROR);
         loginBean.setErrorDesc(FrameUtil.getErrorDescByCode(loginBean.getErrorCode()));
         return  gson.toJson(loginBean);
     }

     // 2. 把用户入库
     UserUtil.insertUser(userName, userAuth);

     UserLoginBean loginBean =  new  UserLoginBean();
     loginBean.setErrorCode(FrameErrorCode.USER_REGIST_SUCCESS);
     loginBean.setErrorDesc(FrameUtil.getErrorDescByCode(loginBean.getErrorCode()));
     loginBean.setForwardPath( "main.act" );
     return  gson.toJson(loginBean);
}

【备注】：

（1）、在《【斗医】【9】Web应用开发50天》文中，UserDao对象的数据映射文件主键定义了如下的样式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<? xml  version = "1.0"  encoding = "utf-8" ?>
<!DOCTYPE hibernate-mapping PUBLIC
         "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
         "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">

< hibernate-mapping  package = "com.medical.server.dao" >
     < class  name = "UserDAO"  table = "USERTABLE" >
         < id  name = "userId"  column = "userId"  type = "string" >
             < generator  class = "uuid.hex"  />
         </ id >
         < property  name = "userAuth"  column = "userAuth"  />
         < property  name = "userSign"  column = "userSign"  />
         < property  name = "attention"  column = "attention"  />
     </ class >
</ hibernate-mapping >

请留意<generator class="uuid.hex" />，它表明在向数据库插入记录时，Hibernate会调用uuid.hex的方式生成一个32位的主键；另一方面在创建数据表usertable时，指定userId字段的长度为20，所以入库时会抛字错内容这长的异常提示，这里把映射文件中的<generator class="uuid.hex" />删除掉，具体见附件。

（2）、再说一下Hibernate的保存问题，我在UserUtil.java中定义了保存UserDAO的一个方法，如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
  * 把用户入库
  */
public  static  void  insertUser(String userName, String userAuth)
{
     UserDAO userDao =  new  UserDAO();
     userDao.setUserId(userName);
     userDao.setUserAuth(userAuth);

     Session session = FrameDBUtil.openSession();
     Transaction transaction = session.beginTransaction();
     session.save(userDao);
     transaction.commit();
     FrameDBUtil.closeSession();
}

网上有网友讨论保存不成功，因为他的写法如下：

Session session = FrameDBUtil.openSession();

session.save(userDao);

FrameDBUtil.closeSession();

因为这样的做法只是把userDao对象放入Hibernate缓存，而没有真正的入库。


8、用户登录的处理逻辑。先拿输入的用户名和密码去数据库查找，若查找到说明用户合法，否则用户非法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/**
  * 用户登录处理方法
  */
private  String doLoginAction(String userName, String userAuth)
{
     // 1. 判断数据库中是否已存在该用户名
     boolean  isValideUser = UserUtil.isValideUser(userName, userAuth);
     if  (isValideUser ==  false )
     {
         UserLoginBean loginBean =  new  UserLoginBean();
         loginBean.setErrorCode(FrameErrorCode.USER_NOT_EXIST_ERROR);
         loginBean.setErrorDesc(FrameUtil.getErrorDescByCode(loginBean.getErrorCode()));
         return  gson.toJson(loginBean);
     }

     // 2.返回用户登录成功JSON对象
     UserLoginBean loginBean =  new  UserLoginBean();
     loginBean.setErrorCode(FrameErrorCode.USER_LOGIN_SUCCESS);
     loginBean.setErrorDesc(FrameUtil.getErrorDescByCode(loginBean.getErrorCode()));
     loginBean.setForwardPath( "main.act" );
     return  gson.toJson(loginBean);
}

【备注】：

由于涉及到UserUtil.java的相关方法，没有在文中专门指出，这里列出相关代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
/**
  * 通过用户名称查找用户DAO对象
  */
public  static  UserDAO getUserByName(String userName)
{
     Session session = FrameDBUtil.openSession();
     Criteria criteria = session.createCriteria(UserDAO. class );
     criteria.add(Restrictions.eq( "userId" , userName));
     List<?> userList = criteria.list();
     FrameDBUtil.closeSession();
     if  (FrameUtil.isEmpty(userList))
     {
         return  null ;
     }

     UserDAO userDao = (UserDAO)userList.get( 0 );
     return  userDao;
}
/**
  * 通过用户名和密码验证用户是否合法
  */
public  static  boolean  isValideUser(String userName, String userAuth)
{
     Session session = FrameDBUtil.openSession();
     Criteria criteria = session.createCriteria(UserDAO. class );
     criteria.add(Restrictions.eq( "userId" , userName)).add(Restrictions.eq( "userAuth" , userAuth));
     List<?> userList = criteria.list();
     FrameDBUtil.closeSession();
     if  (FrameUtil.isEmpty(userList))
     {
         return  false ;
     }
     return  true ;
}


8、客户端JS收到服务端返回的结果后进行相应的逻辑处理

（1）若登录或注册失败，用户一定要看到失败信息，所以需要在war\etc\local\zh\resource.properties中定义相关的错误资源

1
2
3
500=用户名或密码错误
505=系统中已有同名用户
515=系统中不存在该用户


（2）完善war\js\login\login.js的异步请求，把从服务端收到的结果进行处理。当用户登录或注册成功后进入系统首页，否则弹框提示用户

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/**
  * 用户登录方法
  */
function  systemUserLogin(isRegist)
{
     var  userName = $( "#login_dynamic_user_name" ).val();
     var  userAuth = $( "#login_dynamic_user_pass" ).val();
     //1. 用户名或密码为空
     if (!userName || !userAuth)
     {
         return ;
     }
     //2. 用户名或密码长度不能超过20
     if (userName.length > 20 || userAuth.length > 20)
     {
         return ;
     }
     //3. 下发请求
     var  data = { "isRegist" : isRegist,  "userName" : userName,  "userAuth" : userAuth};
     asyncRequest( "login.data" , data,  function (result)
     {
         var  resultJson = eval(result);
         if (resultJson.errorCode != 510)
         {
             alert(resultJson.errorDesc);
             return ;
         }
         // 跳转到相应页面
         top.location = resultJson.forwardPath;
     });
}

到此为至，用户的注册和登录已处理完毕，在Eclipse中运行Tomcat，把http://localhost:8080/medical敲入浏览器中后，点击登录出现如下界面：


在该输入框中注册用户后页面可以正确地跳转到系统的首页，但细心的用户会发现系统首页的用户名那儿还是显示“登录”，而不是真正的用户名，由于51cto的这个编辑组件写的内容过长时，系统运行非常迟顿，所以在下一文处理这个问题。


【备注】：

（1）用户若在使用Hibernate过程中出现如下错误，说明是缺少antlr-3.1.2-1.jar.zip包

java.lang.ClassNotFoundException: antlr.SemanticException

at org.apache.catalina.loader.WebappClassLoader.loadClass(WebappClassLoader.java:1462)

（2）截止目前系统所使用的jar包有如下，由于附件大小有限制，所以没有把jar悉数上传，若有需要的用户可以单独找我联系。
