PWESD-24VSSA ESD静电保护管适用于手机、数码相机及电源系统

PWESD-24VSSA ESD 防护器件宣传页
产品概述
Unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 plastic package designed to protect one transmission or data line from the damage caused by ESD and other transients
主要特性
Unidirectional ESD protection of one line
Reverse stand-off voltage: 24V Max
Low leakage current: nA Level
Response time is typically < 1 ns
Low clamping voltage: VC =42 V @ IPP = 6 A (TYP)
ESD Protection: 30kV(air)/ 30kV(contact) ( IEC61000-4-2)
Surge Protection: 6A ( IEC 61000-4-5 8/20 µs)
典型应用
Cellular phones
Portable devices
Digital cameras
Power supplies

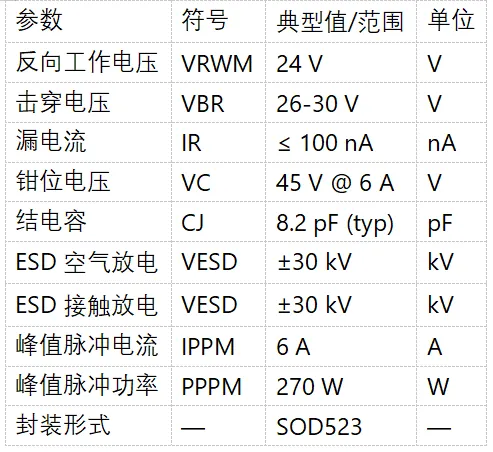

关键参数
