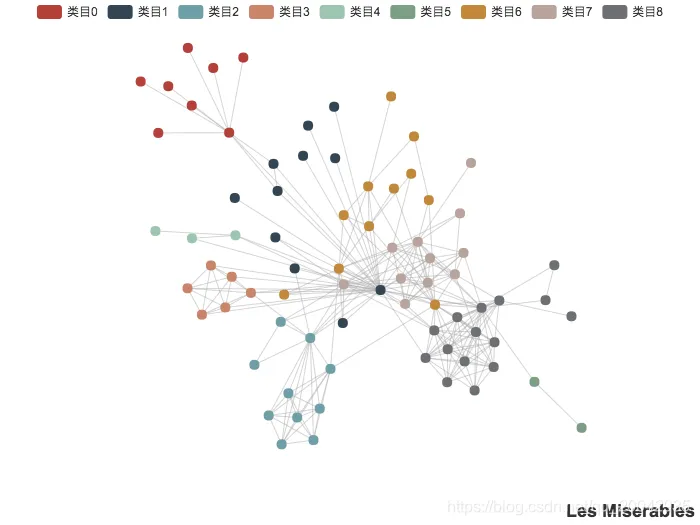

效果图
源代码
<!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>ECharts</title> <!-- 引入 echarts.js --> <script src="js/echarts.min.js"></script> <script src="js/jquery-1.11.0.min.js"></script> <script src="dist/extension/dataTool.js"></script> </head> <body> <!-- 为ECharts准备一个具备大小（宽高）的Dom --> <div id="main" style="width: 600px;height:400px;"></div> <script type="text/javascript"> // 基于准备好的dom，初始化echarts实例 var myChart = echarts.init(document.getElementById('main')); var option; myChart.showLoading(); $.get('data/les-miserables.gexf', function(xml) { myChart.hideLoading(); var graph = echarts.dataTool.gexf.parse(xml); var categories = []; for(var i = 0; i < 9; i++) { categories[i] = { name: '类目' + i }; } graph.nodes.forEach(function(node) { node.itemStyle = null; node.symbolSize = 10; node.value = node.symbolSize; node.category = node.attributes.modularity_class; // Use random x, y node.x = node.y = null; node.draggable = true; }); option = { title: { text: 'Les Miserables', subtext: 'Default layout', top: 'bottom', left: 'right' }, tooltip: {}, legend: [{ // selectedMode: 'single', data: categories.map(function(a) { return a.name; }) }], animation: false, series: [{ name: 'Les Miserables', type: 'graph', layout: 'force', data: graph.nodes, links: graph.links, categories: categories, roam: true, label: { normal: { position: 'right' } }, force: { repulsion: 100 } }] }; myChart.setOption(option); }, 'xml'); //myChart.setOption(option); </script> </body> </html>
les-miserables.gexf
<?xml version="1.0" encoding="UTF-8"?> <gexf xmlns="http://www.gexf.net/1.2draft" version="1.2" xmlns:viz="http://www.gexf.net/1.2draft/viz" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.gexf.net/1.2draft http://www.gexf.net/1.2draft/gexf.xsd"> <meta lastmodifieddate="2014-01-30"> <creator>Gephi 0.8.1</creator> <description></description> </meta> <graph defaultedgetype="undirected" mode="static"> <attributes class="node" mode="static"> <attribute id="modularity_class" title="Modularity Class" type="integer"></attribute> </attributes> <nodes> <node id="0" label="Myriel"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="28.685715"></viz:size> <viz:position x="-266.82776" y="299.6904" z="0.0"></viz:position> <viz:color r="235" g="81" b="72"></viz:color> </node> <node id="1" label="Napoleon"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-418.08344" y="446.8853" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="2" label="MlleBaptistine"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="9.485714"></viz:size> <viz:position x="-212.76357" y="245.29176" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="3" label="MmeMagloire"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="9.485714"></viz:size> <viz:position x="-242.82404" y="235.26283" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="4" label="CountessDeLo"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-379.30386" y="429.06424" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="5" label="Geborand"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-417.26337" y="406.03506" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="6" label="Champtercier"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-332.6012" y="485.16974" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="7" label="Cravatte"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-382.69568" y="475.09113" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="8" label="Count"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-320.384" y="387.17325" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="9" label="OldMan"> <attvalues> <attvalue for="modularity_class" value="0"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-344.39832" y="451.16772" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="10" label="Labarre"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-89.34107" y="234.56128" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="11" label="Valjean"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="100.0"></viz:size> <viz:position x="-87.93029" y="-6.8120565" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="12" label="Marguerite"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="-339.77908" y="-184.69139" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="13" label="MmeDeR"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-194.31313" y="178.55301" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="14" label="Isabeau"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-158.05168" y="201.99768" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="15" label="Gervais"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-127.701546" y="242.55057" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="16" label="Tholomyes"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="25.942856"></viz:size> <viz:position x="-385.2226" y="-393.5572" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="17" label="Listolier"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="-516.55884" y="-393.98975" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="18" label="Fameuil"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="-464.79382" y="-493.57944" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="19" label="Blacheville"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="-515.1624" y="-456.9891" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="20" label="Favourite"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="-408.12122" y="-464.5048" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="21" label="Dahlia"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="-456.44113" y="-425.13303" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="22" label="Zephine"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="-459.1107" y="-362.5133" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="23" label="Fantine"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="42.4"></viz:size> <viz:position x="-313.42786" y="-289.44803" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="24" label="MmeThenardier"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="31.428574"></viz:size> <viz:position x="4.6313396" y="-273.8517" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="25" label="Thenardier"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="45.142853"></viz:size> <viz:position x="82.80825" y="-203.1144" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="26" label="Cosette"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="31.428574"></viz:size> <viz:position x="78.64646" y="-31.512747" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="27" label="Javert"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="47.88571"></viz:size> <viz:position x="-81.46074" y="-204.20204" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="28" label="Fauchelevent"> <attvalues> <attvalue for="modularity_class" value="4"></attvalue> </attvalues> <viz:size value="12.228573"></viz:size> <viz:position x="-225.73984" y="82.41631" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="29" label="Bamatabois"> <attvalues> <attvalue for="modularity_class" value="3"></attvalue> </attvalues> <viz:size value="23.2"></viz:size> <viz:position x="-385.6842" y="-20.206686" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="30" label="Perpetue"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="-403.92447" y="-197.69823" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="31" label="Simplice"> <attvalues> <attvalue for="modularity_class" value="2"></attvalue> </attvalues> <viz:size value="12.228573"></viz:size> <viz:position x="-281.4253" y="-158.45137" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="32" label="Scaufflaire"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-122.41348" y="210.37503" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="33" label="Woman1"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="-234.6001" y="-113.15067" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="34" label="Judge"> <attvalues> <attvalue for="modularity_class" value="3"></attvalue> </attvalues> <viz:size value="17.714287"></viz:size> <viz:position x="-387.84915" y="58.7059" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="35" label="Champmathieu"> <attvalues> <attvalue for="modularity_class" value="3"></attvalue> </attvalues> <viz:size value="17.714287"></viz:size> <viz:position x="-338.2307" y="87.48405" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="36" label="Brevet"> <attvalues> <attvalue for="modularity_class" value="3"></attvalue> </attvalues> <viz:size value="17.714287"></viz:size> <viz:position x="-453.26874" y="58.94648" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="37" label="Chenildieu"> <attvalues> <attvalue for="modularity_class" value="3"></attvalue> </attvalues> <viz:size value="17.714287"></viz:size> <viz:position x="-386.44904" y="140.05937" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="38" label="Cochepaille"> <attvalues> <attvalue for="modularity_class" value="3"></attvalue> </attvalues> <viz:size value="17.714287"></viz:size> <viz:position x="-446.7876" y="123.38005" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="39" label="Pontmercy"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="9.485714"></viz:size> <viz:position x="336.49738" y="-269.55914" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="40" label="Boulatruelle"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="29.187843" y="-460.13132" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="41" label="Eponine"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="31.428574"></viz:size> <viz:position x="238.36697" y="-210.00926" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="42" label="Anzelma"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="9.485714"></viz:size> <viz:position x="189.69513" y="-346.50662" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="43" label="Woman2"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="9.485714"></viz:size> <viz:position x="-187.00418" y="-145.02663" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="44" label="MotherInnocent"> <attvalues> <attvalue for="modularity_class" value="4"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="-252.99521" y="129.87549" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="45" label="Gribier"> <attvalues> <attvalue for="modularity_class" value="4"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="-296.07935" y="163.11964" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="46" label="Jondrette"> <attvalues> <attvalue for="modularity_class" value="5"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="550.3201" y="522.4031" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="47" label="MmeBurgon"> <attvalues> <attvalue for="modularity_class" value="5"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="488.13535" y="356.8573" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="48" label="Gavroche"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="61.600006"></viz:size> <viz:position x="387.89572" y="110.462326" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="49" label="Gillenormand"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="126.4831" y="68.10622" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="50" label="Magnon"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="127.07365" y="-113.05923" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="51" label="MlleGillenormand"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="162.63559" y="117.6565" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="52" label="MmePontmercy"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="353.66415" y="-205.89165" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="53" label="MlleVaubois"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="165.43939" y="339.7736" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="54" label="LtGillenormand"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="12.228573"></viz:size> <viz:position x="137.69348" y="196.1069" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="55" label="Marius"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="53.37143"></viz:size> <viz:position x="206.44687" y="-13.805411" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="56" label="BaronessT"> <attvalues> <attvalue for="modularity_class" value="6"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="194.82993" y="224.78036" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="57" label="Mabeuf"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="31.428574"></viz:size> <viz:position x="597.6618" y="135.18481" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="58" label="Enjolras"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="42.4"></viz:size> <viz:position x="355.78366" y="-74.882454" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="59" label="Combeferre"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="31.428574"></viz:size> <viz:position x="515.2961" y="-46.167564" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="60" label="Prouvaire"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="25.942856"></viz:size> <viz:position x="614.29285" y="-69.3104" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="61" label="Feuilly"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="31.428574"></viz:size> <viz:position x="550.1917" y="-128.17537" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="62" label="Courfeyrac"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="36.91429"></viz:size> <viz:position x="436.17184" y="-12.7286825" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="63" label="Bahorel"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="34.17143"></viz:size> <viz:position x="602.55225" y="16.421427" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="64" label="Bossuet"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="36.91429"></viz:size> <viz:position x="455.81955" y="-115.45826" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="65" label="Joly"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="34.17143"></viz:size> <viz:position x="516.40784" y="47.242233" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="66" label="Grantaire"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="28.685715"></viz:size> <viz:position x="646.4313" y="-151.06331" z="0.0"></viz:position> <viz:color r="235" g="81" b="72"></viz:color> </node> <node id="67" label="MotherPlutarch"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="4.0"></viz:size> <viz:position x="668.9568" y="204.65488" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="68" label="Gueulemer"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="28.685715"></viz:size> <viz:position x="78.4799" y="-347.15146" z="0.0"></viz:position> <viz:color r="235" g="81" b="72"></viz:color> </node> <node id="69" label="Babet"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="28.685715"></viz:size> <viz:position x="150.35959" y="-298.50797" z="0.0"></viz:position> <viz:color r="235" g="81" b="72"></viz:color> </node> <node id="70" label="Claquesous"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="28.685715"></viz:size> <viz:position x="137.3717" y="-410.2809" z="0.0"></viz:position> <viz:color r="235" g="81" b="72"></viz:color> </node> <node id="71" label="Montparnasse"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="25.942856"></viz:size> <viz:position x="234.87747" y="-400.85983" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="72" label="Toussaint"> <attvalues> <attvalue for="modularity_class" value="1"></attvalue> </attvalues> <viz:size value="9.485714"></viz:size> <viz:position x="40.942253" y="113.78272" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="73" label="Child1"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="437.939" y="291.58234" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="74" label="Child2"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="6.742859"></viz:size> <viz:position x="466.04922" y="283.3606" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="75" label="Brujon"> <attvalues> <attvalue for="modularity_class" value="7"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="238.79364" y="-314.06345" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> <node id="76" label="MmeHucheloup"> <attvalues> <attvalue for="modularity_class" value="8"></attvalue> </attvalues> <viz:size value="20.457146"></viz:size> <viz:position x="712.18353" y="4.8131495" z="0.0"></viz:position> <viz:color r="236" g="81" b="72"></viz:color> </node> </nodes> <edges> <edge id="0" source="1" target="0"> <attvalues></attvalues> </edge> <edge id="1" source="2" target="0" weight="8.0"> <attvalues></attvalues> </edge> <edge id="2" source="3" target="0" weight="10.0"> <attvalues></attvalues> </edge> <edge id="3" source="3" target="2" weight="6.0"> <attvalues></attvalues> </edge> <edge id="4" source="4" target="0"> <attvalues></attvalues> </edge> <edge id="5" source="5" target="0"> <attvalues></attvalues> </edge> <edge id="6" source="6" target="0"> <attvalues></attvalues> </edge> <edge id="7" source="7" target="0"> <attvalues></attvalues> </edge> <edge id="8" source="8" target="0" weight="2.0"> <attvalues></attvalues> </edge> <edge id="9" source="9" target="0"> <attvalues></attvalues> </edge> <edge id="13" source="11" target="0" weight="5.0"> <attvalues></attvalues> </edge> <edge source="11" target="2" weight="3.0"> <attvalues></attvalues> </edge> <edge id="11" source="11" target="3" weight="3.0"> <attvalues></attvalues> </edge> <edge id="10" source="11" target="10"> <attvalues></attvalues> </edge> <edge id="14" source="12" target="11"> <attvalues></attvalues> </edge> <edge id="15" source="13" target="11"> <attvalues></attvalues> </edge> <edge id="16" source="14" target="11"> <attvalues></attvalues> </edge> <edge id="17" source="15" target="11"> <attvalues></attvalues> </edge> <edge id="18" source="17" target="16" weight="4.0"> <attvalues></attvalues> </edge> <edge id="19" source="18" target="16" weight="4.0"> <attvalues></attvalues> </edge> <edge id="20" source="18" target="17" weight="4.0"> <attvalues></attvalues> </edge> <edge id="21" source="19" target="16" weight="4.0"> <attvalues></attvalues> </edge> <edge id="22" source="19" target="17" weight="4.0"> <attvalues></attvalues> </edge> <edge id="23" source="19" target="18" weight="4.0"> <attvalues></attvalues> </edge> <edge id="24" source="20" target="16" weight="3.0"> <attvalues></attvalues> </edge> <edge id="25" source="20" target="17" weight="3.0"> <attvalues></attvalues> </edge> <edge id="26" source="20" target="18" weight="3.0"> <attvalues></attvalues> </edge> <edge id="27" source="20" target="19" weight="4.0"> <attvalues></attvalues> </edge> <edge id="28" source="21" target="16" weight="3.0"> <attvalues></attvalues> </edge> <edge id="29" source="21" target="17" weight="3.0"> <attvalues></attvalues> </edge> <edge id="30" source="21" target="18" weight="3.0"> <attvalues></attvalues> </edge> <edge id="31" source="21" target="19" weight="3.0"> <attvalues></attvalues> </edge> <edge id="32" source="21" target="20" weight="5.0"> <attvalues></attvalues> </edge> <edge id="33" source="22" target="16" weight="3.0"> <attvalues></attvalues> </edge> <edge id="34" source="22" target="17" weight="3.0"> <attvalues></attvalues> </edge> <edge id="35" source="22" target="18" weight="3.0"> <attvalues></attvalues> </edge> <edge id="36" source="22" target="19" weight="3.0"> <attvalues></attvalues> </edge> <edge id="37" source="22" target="20" weight="4.0"> <attvalues></attvalues> </edge> <edge id="38" source="22" target="21" weight="4.0"> <attvalues></attvalues> </edge> <edge id="47" source="23" target="11" weight="9.0"> <attvalues></attvalues> </edge> <edge id="46" source="23" target="12" weight="2.0"> <attvalues></attvalues> </edge> <edge id="39" source="23" target="16" weight="3.0"> <attvalues></attvalues> </edge> <edge id="40" source="23" target="17" weight="3.0"> <attvalues></attvalues> </edge> <edge id="41" source="23" target="18" weight="3.0"> <attvalues></attvalues> </edge> <edge id="42" source="23" target="19" weight="3.0"> <attvalues></attvalues> </edge> <edge id="43" source="23" target="20" weight="4.0"> <attvalues></attvalues> </edge> <edge id="44" source="23" target="21" weight="4.0"> <attvalues></attvalues> </edge> <edge id="45" source="23" target="22" weight="4.0"> <attvalues></attvalues> </edge> <edge source="24" target="11" weight="7.0"> <attvalues></attvalues> </edge> <edge id="48" source="24" target="23" weight="2.0"> <attvalues></attvalues> </edge> <edge id="52" source="25" target="11" weight="12.0"> <attvalues></attvalues> </edge> <edge id="51" source="25" target="23"> <attvalues></attvalues> </edge> <edge id="50" source="25" target="24" weight="13.0"> <attvalues></attvalues> </edge> <edge source="26" target="11" weight="31.0"> <attvalues></attvalues> </edge> <edge source="26" target="16"> <attvalues></attvalues> </edge> <edge id="53" source="26" target="24" weight="4.0"> <attvalues></attvalues> </edge> <edge id="56" source="26" target="25"> <attvalues></attvalues> </edge> <edge id="57" source="27" target="11" weight="17.0"> <attvalues></attvalues> </edge> <edge id="58" source="27" target="23" weight="5.0"> <attvalues></attvalues> </edge> <edge source="27" target="24"> <attvalues></attvalues> </edge> <edge id="59" source="27" target="25" weight="5.0"> <attvalues></attvalues> </edge> <edge id="61" source="27" target="26"> <attvalues></attvalues> </edge> <edge id="62" source="28" target="11" weight="8.0"> <attvalues></attvalues> </edge> <edge id="63" source="28" target="27"> <attvalues></attvalues> </edge> <edge id="66" source="29" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="64" source="29" target="23"> <attvalues></attvalues> </edge> <edge id="65" source="29" target="27"> <attvalues></attvalues> </edge> <edge id="67" source="30" target="23"> <attvalues></attvalues> </edge> <edge source="31" target="11" weight="3.0"> <attvalues></attvalues> </edge> <edge source="31" target="23" weight="2.0"> <attvalues></attvalues> </edge> <edge source="31" target="27"> <attvalues></attvalues> </edge> <edge id="68" source="31" target="30" weight="2.0"> <attvalues></attvalues> </edge> <edge id="72" source="32" target="11"> <attvalues></attvalues> </edge> <edge id="73" source="33" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="74" source="33" target="27"> <attvalues></attvalues> </edge> <edge id="75" source="34" target="11" weight="3.0"> <attvalues></attvalues> </edge> <edge id="76" source="34" target="29" weight="2.0"> <attvalues></attvalues> </edge> <edge id="77" source="35" target="11" weight="3.0"> <attvalues></attvalues> </edge> <edge source="35" target="29" weight="2.0"> <attvalues></attvalues> </edge> <edge id="78" source="35" target="34" weight="3.0"> <attvalues></attvalues> </edge> <edge id="82" source="36" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="83" source="36" target="29"> <attvalues></attvalues> </edge> <edge id="80" source="36" target="34" weight="2.0"> <attvalues></attvalues> </edge> <edge id="81" source="36" target="35" weight="2.0"> <attvalues></attvalues> </edge> <edge id="87" source="37" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="88" source="37" target="29"> <attvalues></attvalues> </edge> <edge id="84" source="37" target="34" weight="2.0"> <attvalues></attvalues> </edge> <edge id="85" source="37" target="35" weight="2.0"> <attvalues></attvalues> </edge> <edge id="86" source="37" target="36" weight="2.0"> <attvalues></attvalues> </edge> <edge id="93" source="38" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="94" source="38" target="29"> <attvalues></attvalues> </edge> <edge id="89" source="38" target="34" weight="2.0"> <attvalues></attvalues> </edge> <edge id="90" source="38" target="35" weight="2.0"> <attvalues></attvalues> </edge> <edge id="91" source="38" target="36" weight="2.0"> <attvalues></attvalues> </edge> <edge id="92" source="38" target="37" weight="2.0"> <attvalues></attvalues> </edge> <edge id="95" source="39" target="25"> <attvalues></attvalues> </edge> <edge id="96" source="40" target="25"> <attvalues></attvalues> </edge> <edge id="97" source="41" target="24" weight="2.0"> <attvalues></attvalues> </edge> <edge id="98" source="41" target="25" weight="3.0"> <attvalues></attvalues> </edge> <edge id="101" source="42" target="24"> <attvalues></attvalues> </edge> <edge id="100" source="42" target="25" weight="2.0"> <attvalues></attvalues> </edge> <edge id="99" source="42" target="41" weight="2.0"> <attvalues></attvalues> </edge> <edge id="102" source="43" target="11" weight="3.0"> <attvalues></attvalues> </edge> <edge id="103" source="43" target="26"> <attvalues></attvalues> </edge> <edge id="104" source="43" target="27"> <attvalues></attvalues> </edge> <edge source="44" target="11"> <attvalues></attvalues> </edge> <edge id="105" source="44" target="28" weight="3.0"> <attvalues></attvalues> </edge> <edge id="107" source="45" target="28" weight="2.0"> <attvalues></attvalues> </edge> <edge id="108" source="47" target="46"> <attvalues></attvalues> </edge> <edge id="112" source="48" target="11"> <attvalues></attvalues> </edge> <edge id="110" source="48" target="25"> <attvalues></attvalues> </edge> <edge id="111" source="48" target="27"> <attvalues></attvalues> </edge> <edge id="109" source="48" target="47" weight="2.0"> <attvalues></attvalues> </edge> <edge source="49" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="113" source="49" target="26" weight="3.0"> <attvalues></attvalues> </edge> <edge source="50" target="24"> <attvalues></attvalues> </edge> <edge id="115" source="50" target="49"> <attvalues></attvalues> </edge> <edge id="119" source="51" target="11" weight="2.0"> <attvalues></attvalues> </edge> <edge id="118" source="51" target="26" weight="2.0"> <attvalues></attvalues> </edge> <edge id="117" source="51" target="49" weight="9.0"> <attvalues></attvalues> </edge> <edge source="52" target="39"> <attvalues></attvalues> </edge> <edge id="120" source="52" target="51"> <attvalues></attvalues> </edge> <edge id="122" source="53" target="51"> <attvalues></attvalues> </edge> <edge id="125" source="54" target="26"> <attvalues></attvalues> </edge> <edge id="124" source="54" target="49"> <attvalues></attvalues> </edge> <edge id="123" source="54" target="51" weight="2.0"> <attvalues></attvalues> </edge> <edge id="131" source="55" target="11" weight="19.0"> <attvalues></attvalues> </edge> <edge id="132" source="55" target="16"> <attvalues></attvalues> </edge> <edge id="133" source="55" target="25" weight="2.0"> <attvalues></attvalues> </edge> <edge source="55" target="26" weight="21.0"> <attvalues></attvalues> </edge> <edge id="128" source="55" target="39"> <attvalues></attvalues> </edge> <edge id="134" source="55" target="41" weight="5.0"> <attvalues></attvalues> </edge> <edge id="135" source="55" target="48" weight="4.0"> <attvalues></attvalues> </edge> <edge id="127" source="55" target="49" weight="12.0"> <attvalues></attvalues> </edge> <edge id="126" source="55" target="51" weight="6.0"> <attvalues></attvalues> </edge> <edge id="129" source="55" target="54"> <attvalues></attvalues> </edge> <edge id="136" source="56" target="49"> <attvalues></attvalues> </edge> <edge id="137" source="56" target="55"> <attvalues></attvalues> </edge> <edge source="57" target="41"> <attvalues></attvalues> </edge> <edge source="57" target="48"> <attvalues></attvalues> </edge> <edge id="138" source="57" target="55"> <attvalues></attvalues> </edge> <edge id="145" source="58" target="11" weight="4.0"> <attvalues></attvalues> </edge> <edge source="58" target="27" weight="6.0"> <attvalues></attvalues> </edge> <edge id="142" source="58" target="48" weight="7.0"> <attvalues></attvalues> </edge> <edge id="141" source="58" target="55" weight="7.0"> <attvalues></attvalues> </edge> <edge id="144" source="58" target="57"> <attvalues></attvalues> </edge> <edge id="148" source="59" target="48" weight="6.0"> <attvalues></attvalues> </edge> <edge id="147" source="59" target="55" weight="5.0"> <attvalues></attvalues> </edge> <edge source="59" target="57" weight="2.0"> <attvalues></attvalues> </edge> <edge id="146" source="59" target="58" weight="15.0"> <attvalues></attvalues> </edge> <edge id="150" source="60" target="48"> <attvalues></attvalues> </edge> <edge id="151" source="60" target="58" weight="4.0"> <attvalues></attvalues> </edge> <edge id="152" source="60" target="59" weight="2.0"> <attvalues></attvalues> </edge> <edge id="153" source="61" target="48" weight="2.0"> <attvalues></attvalues> </edge> <edge id="158" source="61" target="55"> <attvalues></attvalues> </edge> <edge id="157" source="61" target="57"> <attvalues></attvalues> </edge> <edge id="154" source="61" target="58" weight="6.0"> <attvalues></attvalues> </edge> <edge id="156" source="61" target="59" weight="5.0"> <attvalues></attvalues> </edge> <edge id="155" source="61" target="60" weight="2.0"> <attvalues></attvalues> </edge> <edge id="164" source="62" target="41"> <attvalues></attvalues> </edge> <edge id="162" source="62" target="48" weight="7.0"> <attvalues></attvalues> </edge> <edge id="159" source="62" target="55" weight="9.0"> <attvalues></attvalues> </edge> <edge source="62" target="57" weight="2.0"> <attvalues></attvalues> </edge> <edge id="160" source="62" target="58" weight="17.0"> <attvalues></attvalues> </edge> <edge id="161" source="62" target="59" weight="13.0"> <attvalues></attvalues> </edge> <edge source="62" target="60" weight="3.0"> <attvalues></attvalues> </edge> <edge id="165" source="62" target="61" weight="6.0"> <attvalues></attvalues> </edge> <edge source="63" target="48" weight="5.0"> <attvalues></attvalues> </edge> <edge id="174" source="63" target="55"> <attvalues></attvalues> </edge> <edge source="63" target="57" weight="2.0"> <attvalues></attvalues> </edge> <edge source="63" target="58" weight="4.0"> <attvalues></attvalues> </edge> <edge id="167" source="63" target="59" weight="5.0"> <attvalues></attvalues> </edge> <edge source="63" target="60" weight="2.0"> <attvalues></attvalues> </edge> <edge id="172" source="63" target="61" weight="3.0"> <attvalues></attvalues> </edge> <edge id="169" source="63" target="62" weight="6.0"> <attvalues></attvalues> </edge> <edge id="184" source="64" target="11"> <attvalues></attvalues> </edge> <edge source="64" target="48" weight="5.0"> <attvalues></attvalues> </edge> <edge id="175" source="64" target="55" weight="5.0"> <attvalues></attvalues> </edge> <edge id="183" source="64" target="57"> <attvalues></attvalues> </edge> <edge id="179" source="64" target="58" weight="10.0"> <attvalues></attvalues> </edge> <edge id="182" source="64" target="59" weight="9.0"> <attvalues></attvalues> </edge> <edge id="181" source="64" target="60" weight="2.0"> <attvalues></attvalues> </edge> <edge id="180" source="64" target="61" weight="6.0"> <attvalues></attvalues> </edge> <edge id="176" source="64" target="62" weight="12.0"> <attvalues></attvalues> </edge> <edge id="178" source="64" target="63" weight="4.0"> <attvalues></attvalues> </edge> <edge id="187" source="65" target="48" weight="3.0"> <attvalues></attvalues> </edge> <edge id="194" source="65" target="55" weight="2.0"> <attvalues></attvalues> </edge> <edge id="193" source="65" target="57"> <attvalues></attvalues> </edge> <edge source="65" target="58" weight="5.0"> <attvalues></attvalues> </edge> <edge id="192" source="65" target="59" weight="5.0"> <attvalues></attvalues> </edge> <edge source="65" target="60" weight="2.0"> <attvalues></attvalues> </edge> <edge id="190" source="65" target="61" weight="5.0"> <attvalues></attvalues> </edge> <edge id="188" source="65" target="62" weight="5.0"> <attvalues></attvalues> </edge> <edge id="185" source="65" target="63" weight="5.0"> <attvalues></attvalues> </edge> <edge id="186" source="65" target="64" weight="7.0"> <attvalues></attvalues> </edge> <edge id="200" source="66" target="48"> <attvalues></attvalues> </edge> <edge id="196" source="66" target="58" weight="3.0"> <attvalues></attvalues> </edge> <edge id="197" source="66" target="59"> <attvalues></attvalues> </edge> <edge id="203" source="66" target="60"> <attvalues></attvalues> </edge> <edge id="202" source="66" target="61"> <attvalues></attvalues> </edge> <edge id="198" source="66" target="62" weight="2.0"> <attvalues></attvalues> </edge> <edge id="201" source="66" target="63"> <attvalues></attvalues> </edge> <edge id="195" source="66" target="64" weight="3.0"> <attvalues></attvalues> </edge> <edge id="199" source="66" target="65" weight="2.0"> <attvalues></attvalues> </edge> <edge id="204" source="67" target="57" weight="3.0"> <attvalues></attvalues> </edge> <edge source="68" target="11"> <attvalues></attvalues> </edge> <edge source="68" target="24"> <attvalues></attvalues> </edge> <edge id="205" source="68" target="25" weight="5.0"> <attvalues></attvalues> </edge> <edge id="208" source="68" target="27"> <attvalues></attvalues> </edge> <edge source="68" target="41"> <attvalues></attvalues> </edge> <edge id="209" source="68" target="48"> <attvalues></attvalues> </edge> <edge id="213" source="69" target="11"> <attvalues></attvalues> </edge> <edge id="214" source="69" target="24"> <attvalues></attvalues> </edge> <edge id="211" source="69" target="25" weight="6.0"> <attvalues></attvalues> </edge> <edge source="69" target="27" weight="2.0"> <attvalues></attvalues> </edge> <edge id="217" source="69" target="41"> <attvalues></attvalues> </edge> <edge id="216" source="69" target="48"> <attvalues></attvalues> </edge> <edge id="212" source="69" target="68" weight="6.0"> <attvalues></attvalues> </edge> <edge id="221" source="70" target="11"> <attvalues></attvalues> </edge> <edge id="222" source="70" target="24"> <attvalues></attvalues> </edge> <edge id="218" source="70" target="25" weight="4.0"> <attvalues></attvalues> </edge> <edge id="223" source="70" target="27"> <attvalues></attvalues> </edge> <edge id="224" source="70" target="41"> <attvalues></attvalues> </edge> <edge id="225" source="70" target="58"> <attvalues></attvalues> </edge> <edge id="220" source="70" target="68" weight="4.0"> <attvalues></attvalues> </edge> <edge id="219" source="70" target="69" weight="4.0"> <attvalues></attvalues> </edge> <edge id="230" source="71" target="11"> <attvalues></attvalues> </edge> <edge id="233" source="71" target="25"> <attvalues></attvalues> </edge> <edge id="226" source="71" target="27"> <attvalues></attvalues> </edge> <edge id="232" source="71" target="41"> <attvalues></attvalues> </edge> <edge source="71" target="48"> <attvalues></attvalues> </edge> <edge id="228" source="71" target="68" weight="2.0"> <attvalues></attvalues> </edge> <edge id="227" source="71" target="69" weight="2.0"> <attvalues></attvalues> </edge> <edge id="229" source="71" target="70" weight="2.0"> <attvalues></attvalues> </edge> <edge id="236" source="72" target="11"> <attvalues></attvalues> </edge> <edge id="234" source="72" target="26" weight="2.0"> <attvalues></attvalues> </edge> <edge id="235" source="72" target="27"> <attvalues></attvalues> </edge> <edge id="237" source="73" target="48" weight="2.0"> <attvalues></attvalues> </edge> <edge id="238" source="74" target="48" weight="2.0"> <attvalues></attvalues> </edge> <edge id="239" source="74" target="73" weight="3.0"> <attvalues></attvalues> </edge> <edge id="242" source="75" target="25" weight="3.0"> <attvalues></attvalues> </edge> <edge id="244" source="75" target="41"> <attvalues></attvalues> </edge> <edge source="75" target="48"> <attvalues></attvalues> </edge> <edge id="241" source="75" target="68" weight="3.0"> <attvalues></attvalues> </edge> <edge id="240" source="75" target="69" weight="3.0"> <attvalues></attvalues> </edge> <edge id="245" source="75" target="70"> <attvalues></attvalues> </edge> <edge id="246" source="75" target="71"> <attvalues></attvalues> </edge> <edge id="252" source="76" target="48"> <attvalues></attvalues> </edge> <edge id="253" source="76" target="58"> <attvalues></attvalues> </edge> <edge id="251" source="76" target="62"> <attvalues></attvalues> </edge> <edge id="250" source="76" target="63"> <attvalues></attvalues> </edge> <edge id="247" source="76" target="64"> <attvalues></attvalues> </edge> <edge id="248" source="76" target="65"> <attvalues></attvalues> </edge> <edge id="249" source="76" target="66"> <attvalues></attvalues> </edge> </edges> </graph> </gexf>
