前言
本篇非常麻烦，博主用QtCreator作为IDE，因为Osg3.6.3放弃对osgQt的支持，集成起来比较繁琐。
前提
基于前面三篇的基础上，才可以进行本篇。
Demo演示：Qt5.15.2+OSG3.6.3+OsgEarth3.1的QtCreator下的msvc2019x64版本
Demo运行程序下载
QQ群：1047134658（点击“文件”搜索“osgEarth v1.0.0”，群内与博文同步更新）
OsgQt下载
OsgQt地址：https://github.com/openscenegraph/osgQt
QQ群：1047134658（点击“文件”搜索“osgQt”，群内与博文同步更新）
osgQt编译
步骤一：下载解压

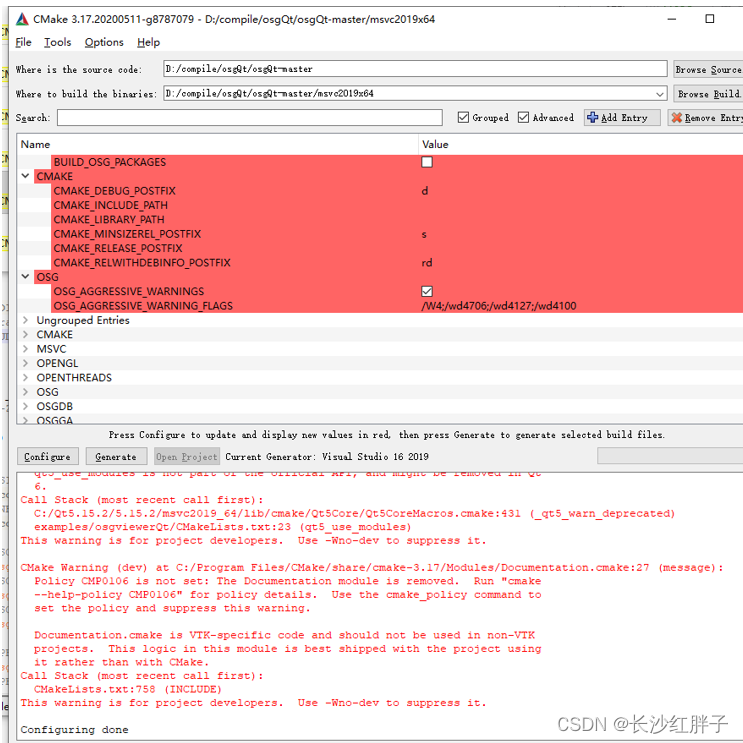

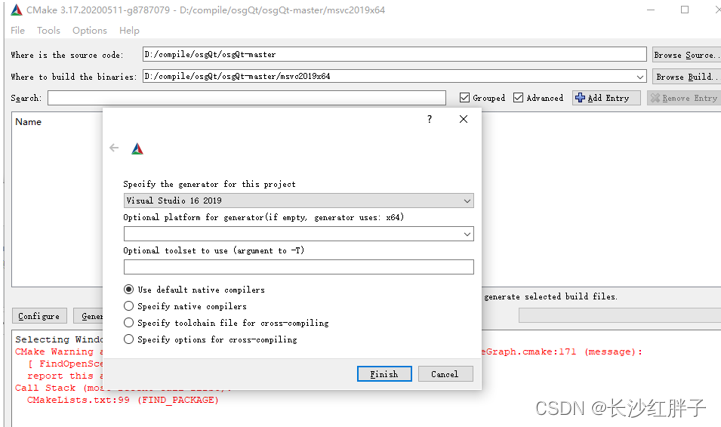

步骤二：CMake配置

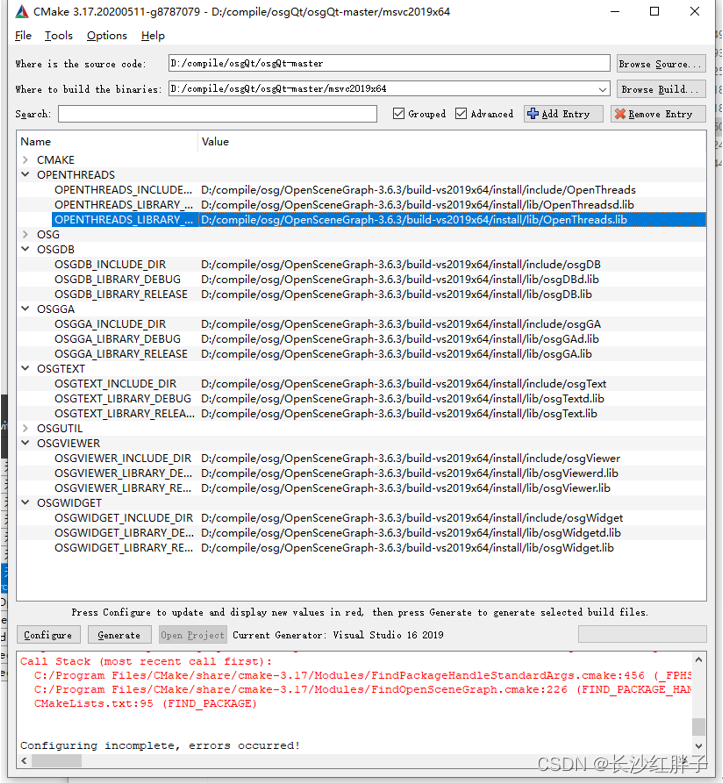

步骤三：CMake配置添加osg环境

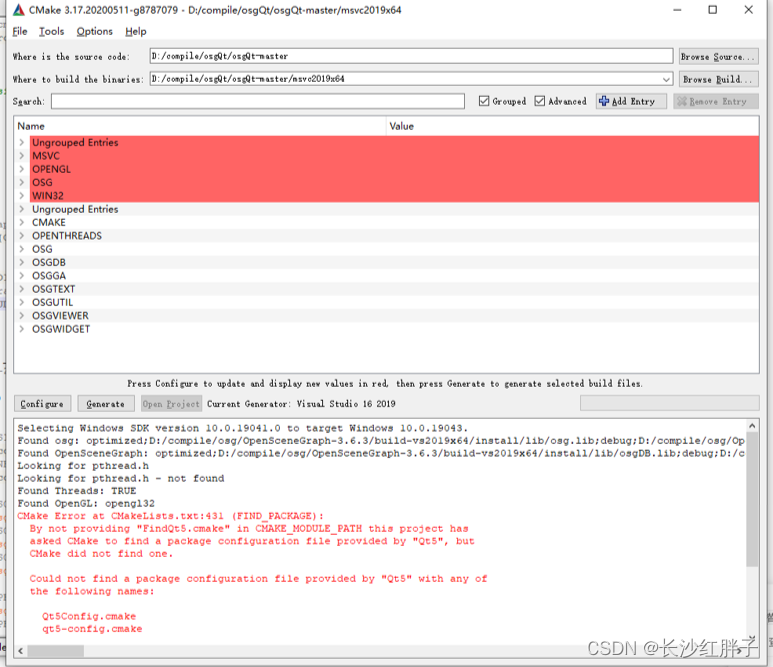

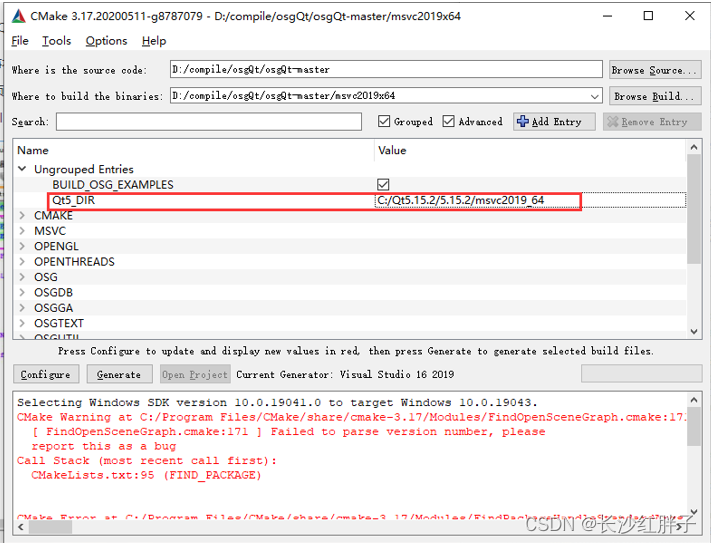

步骤四：CMake配置添加Qt环境

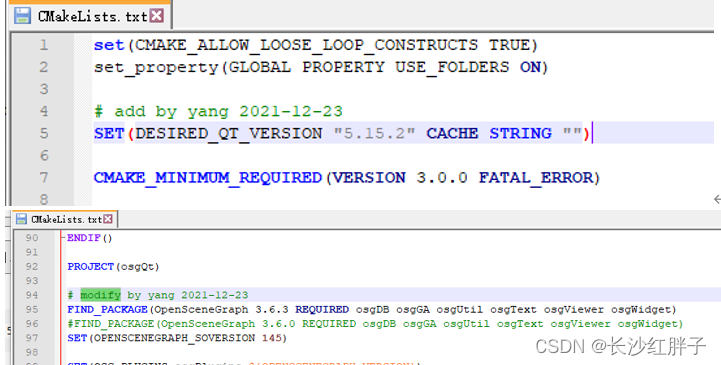

步骤五：CMake修改CMakeLists文件内容：

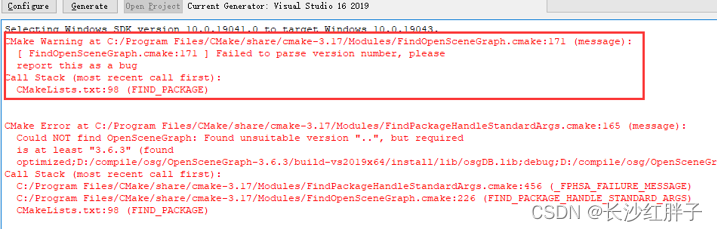

还是出现错误：
检查，并未发现错误

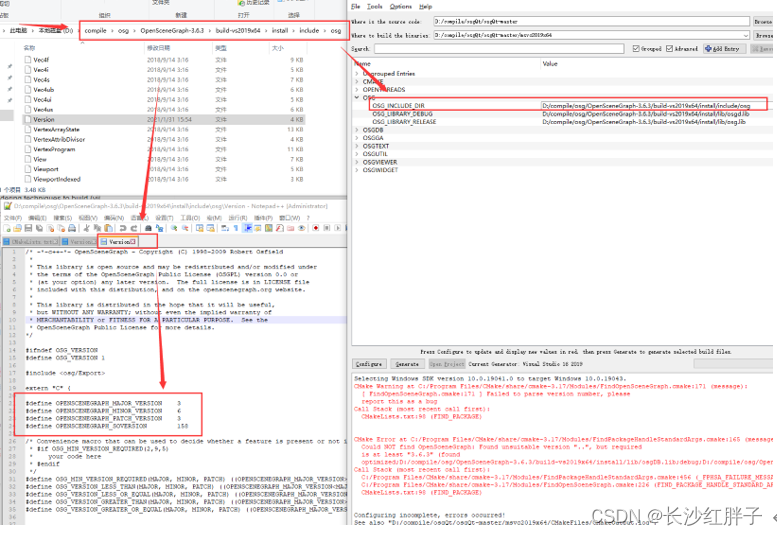

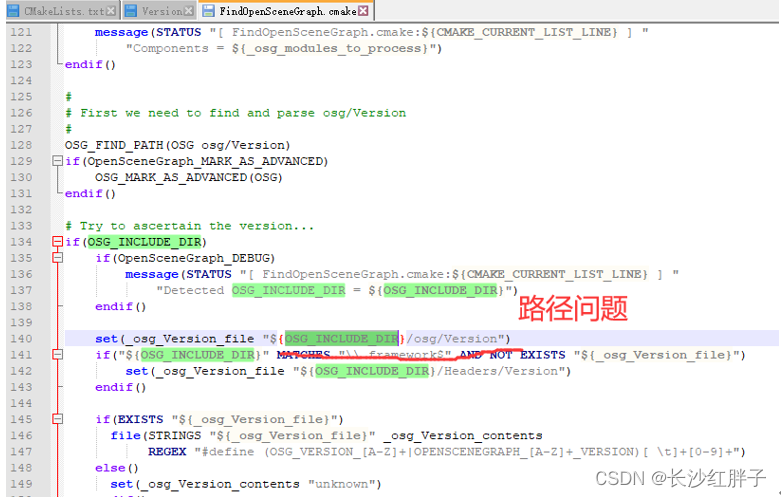

继续深入

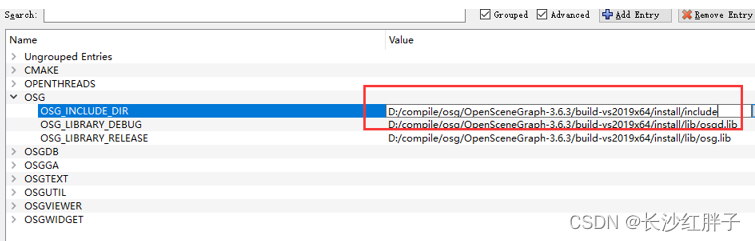

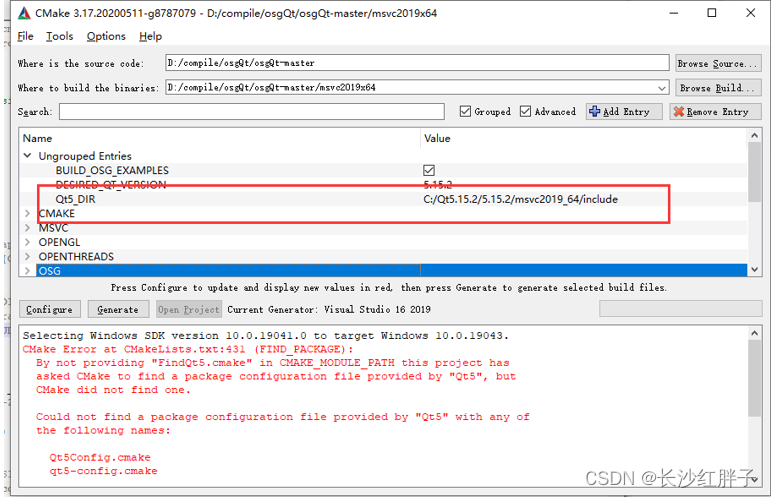

有一个路径填错了：

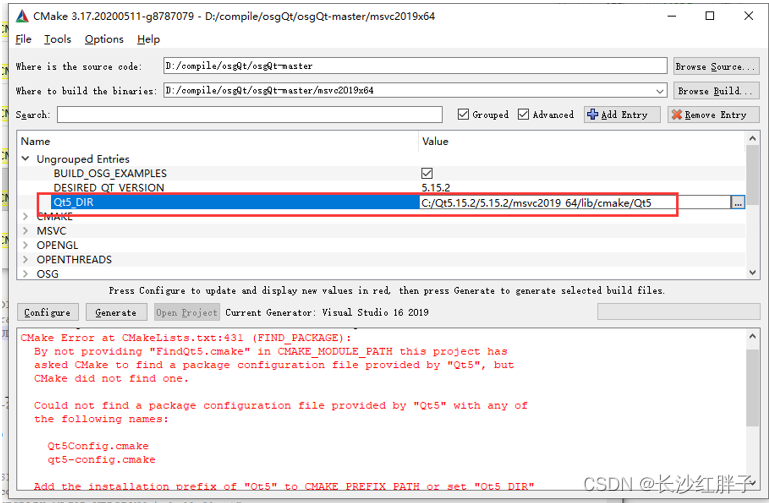

过了，继续配置：
填入其他Qt路径：

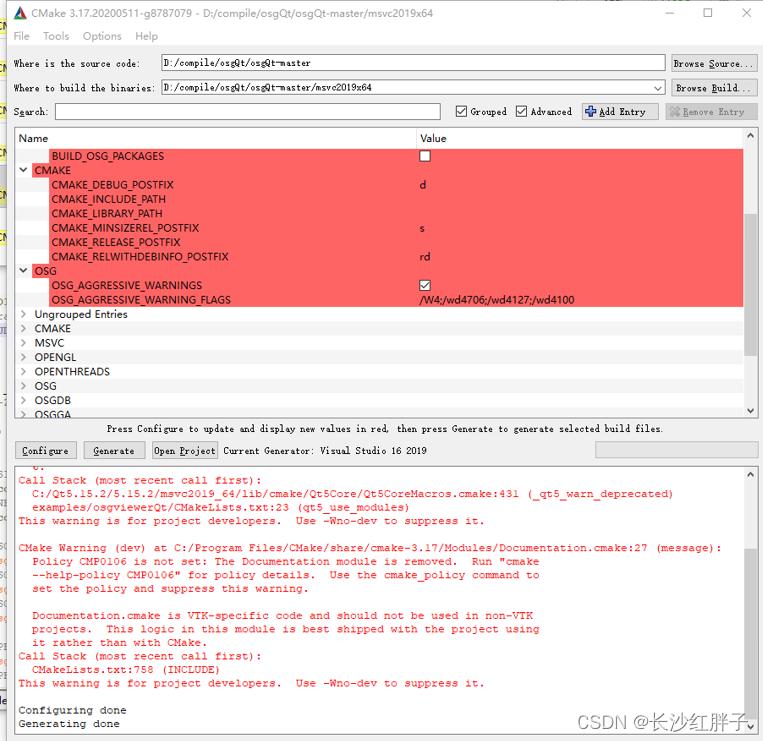

步骤六：配置通过
步骤七：生成成功

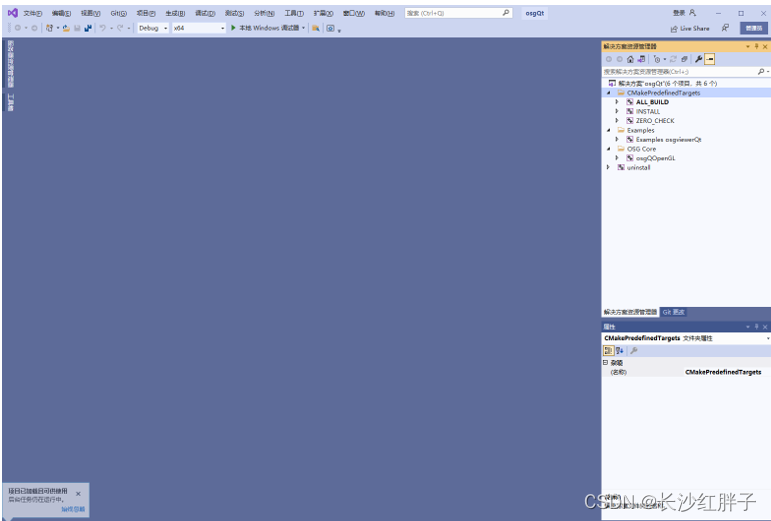

步骤八：打开工程，进行编译

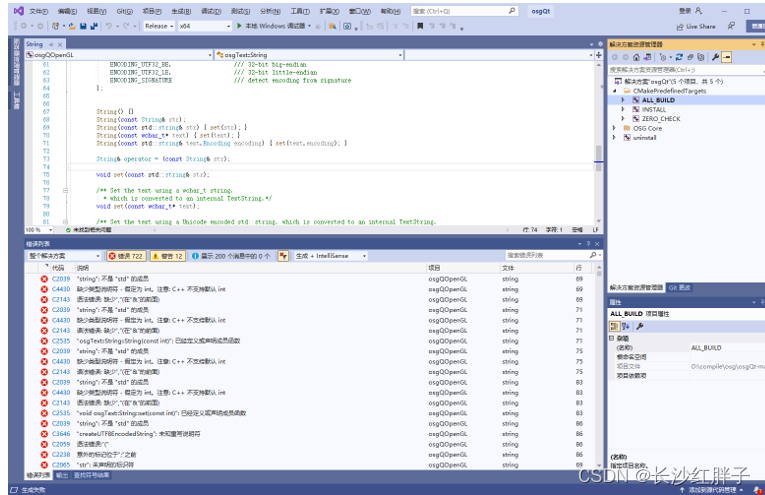

编译各种问，尝试过多次后放弃，看其他博客是可以的。
（后面的复杂，博主直接修改源码开始移植过去，直接加入工程方式，过程比较艰难，如果能编译好osgQt是最好的，改源码问题较多，需要的可联系博主获取，但是不免费，尊重劳动成果，禁止白嫖）

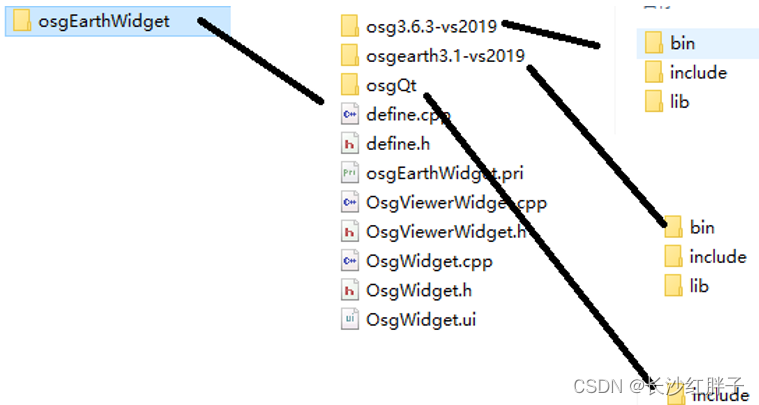

模块化
配置文件
OsgEarthWidget.pri
INCLUDEPATH += $$PWD DEPENDPATH += $$PWD QT += opengl FORMS += \ $$PWD/OsgWidget.ui HEADERS += \ $$PWD/OsgViewerWidget.h \ $$PWD/OsgWidget.h \ $$PWD/define.h \ $$PWD/osgQt/include/osgQOpenGL/Export.h SOURCES += \ $$PWD/OsgViewerWidget.cpp \ $$PWD/OsgWidget.cpp \ $$PWD/define.cpp # osg INCLUDEPATH += $$PWD/osg3.6.3-vs2019/include DEPENDPATH += $$PWD/osg3.6.3-vs2019/include LIBS += -L$$PWD/osg3.6.3-vs2019/lib LIBS += -lOpenThreads \ -losg \ -losgAnimation \ -losgDB \ -losgFX \ -losgGA \ -losgManipulator \ -losgParticle \ -losgPresentation \ -losgShadow \ -losgText \ -losgUI \ -losgUtil \ -losgViewer \ -losgVolume \ -losgWidget \ # -losgQt \ -losgSim \ -losgTerrain # osgQt INCLUDEPATH += $$PWD/osgQt/include DEPENDPATH += $$PWD/osgQt/include HEADERS += \ $$PWD/osgQt/include/osgQOpenGL/CullVisitorEx \ $$PWD/osgQt/include/osgQOpenGL/GraphicsWindowEx \ $$PWD/osgQt/include/osgQOpenGL/OSGRenderer \ $$PWD/osgQt/include/osgQOpenGL/RenderStageEx \ $$PWD/osgQt/include/osgQOpenGL/StateEx \ $$PWD/osgQt/include/osgQOpenGL/osgQOpenGLWidget \ $$PWD/osgQt/include/osgQOpenGL/osgQOpenGLWindow SOURCES += \ $$PWD/osgQt/include/osgQOpenGL/CullVisitorEx.cpp \ $$PWD/osgQt/include/osgQOpenGL/GraphicsWindowEx.cpp \ $$PWD/osgQt/include/osgQOpenGL/OSGRenderer.cpp \ $$PWD/osgQt/include/osgQOpenGL/RenderStageEx.cpp \ $$PWD/osgQt/include/osgQOpenGL/StateEx.cpp \ $$PWD/osgQt/include/osgQOpenGL/osgQOpenGLWidget.cpp \ $$PWD/osgQt/include/osgQOpenGL/osgQOpenGLWindow.cpp # osgEarth INCLUDEPATH += $$PWD/osgearth3.1-vs2019/include LIBS += -L$$PWD/osgearth3.1-vs2019/lib LIBS += -losgEarth
Demo源码
osg::ref_ptr<osg::Node> OsgWidget::getEarthSphiere() { osg::ref_ptr<osg::Group> pGroup = new osg::Group; osgEarth::initialize(); const char* styles_css = R"( p { altitude-clamping: terrain-drape; render-backface-culling: false; } p1: p{ fill: #ff3f3f9f; } p2: p{ fill: #3fff3f9f; } p3: p{ fill: #3f3fff9f; } p4: p{ fill: #ff3fff9f; } p5: p{ fill: #ffff3f9f; } )"; const char* script_source = R"( function getStyleClass() { // Exclude any countries beginning with the letter A: if ( feature.properties.name.charAt(0) === 'A' ) return null; // If it starts with the letter C, return an inline style: if ( feature.properties.name.charAt(0) == 'C' ) return '{ _fill: #ffc838; stroke: #8f8838; extrusion-height: 250000; }'; // Otherwise, return a named style based on some calculations: var pop = parseFloat(feature.properties.pop); if ( pop <= 14045470 ) return "p1"; else if ( pop <= 43410900 ) return "p2"; else if ( pop <= 97228750 ) return "p3"; else if ( pop <= 258833000 ) return "p4"; else return "p5"; } )"; osg::ref_ptr<Map> map = new Map(); GDALImageLayer* basemap = new GDALImageLayer(); basemap->setURL("world.tif"); map->addLayer(basemap); // Next we add a layer to provide the feature data. OGRFeatureSource* features = new OGRFeatureSource(); features->setName("vector-data"); features->setURL("world.shp"); map->addLayer(features); Style style; LineSymbol* ls = style.getOrCreateSymbol<LineSymbol>(); ls->stroke()->color() = Color::Yellow; ls->stroke()->width() = 2.0f; ls->tessellationSize()->set(100, Units::KILOMETERS); FeatureModelLayer* layer = new FeatureModelLayer(); layer->setFeatureSource(features); StyleSheet* styleSheet = new StyleSheet(); styleSheet->addStyle(style); layer->setStyleSheet(styleSheet); map->addLayer(layer); LayerVector layers; map->getLayers(layers); for (LayerVector::const_iterator i = layers.begin(); i != layers.end(); ++i) { Layer* layer = i->get(); if (layer->getStatus().isError() && layer->getEnabled()) { OE_WARN << layer->getName() << " : " << layer->getStatus().toString() << std::endl; } } MapNode* mapNode = new MapNode(map.get()); _pViewer->setCameraManipulator(new EarthManipulator()); pGroup->addChild(mapNode); return pGroup.get(); }
工程模板
osgEarthDemo_工程模板_v1.0.0_搭建好Qt+OSG+EARTH环境显示地球_QtCreaotr下的msvc2019x64版本.rar
