使用步骤

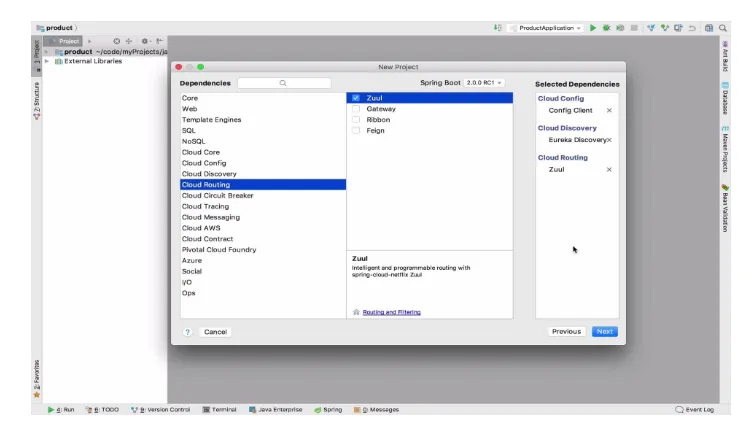

1、引入依赖 spring-cloud-starter-netflix-zuul
2、使用注解 @EnableZuulProxy
3、配置 yml
4、测试：访问zuul所在的IP:端口号 + 你需要的服务名 + 你需要的路由地址来实现
api-gateway
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.imooc</groupId> <artifactId>api-gateway</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>api-gateway</name> <description>Demo project for Spring Boot</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.0.M3</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Finchley.M2</spring-cloud.version> </properties> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-config</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-zuul</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> <repositories> <repository> <id>spring-snapshots</id> <name>Spring Snapshots</name> <url>https://repo.spring.io/snapshot</url> <snapshots> <enabled>true</enabled> </snapshots> </repository> <repository> <id>spring-milestones</id> <name>Spring Milestones</name> <url>https://repo.spring.io/milestone</url> <snapshots> <enabled>false</enabled> </snapshots> </repository> </repositories> <pluginRepositories> <pluginRepository> <id>spring-snapshots</id> <name>Spring Snapshots</name> <url>https://repo.spring.io/snapshot</url> <snapshots> <enabled>true</enabled> </snapshots> </pluginRepository> <pluginRepository> <id>spring-milestones</id> <name>Spring Milestones</name> <url>https://repo.spring.io/milestone</url> <snapshots> <enabled>false</enabled> </snapshots> </pluginRepository> </pluginRepositories> </project>
# bootstrap.yml spring: application: name: api-gateway cloud: config: discovery: enabled: true service-id: CONFIG profile: dev eureka: client: service-url: defaultZone: http://localhost:8761/eureka/ zuul: routes: # 自定义路由地址 # /myProduct/product/list -> /product/product/list aaaaaa: path: /myProduct/** serviceId: product # sensitiveHeaders是敏感头的配置，如果需要传递敏感信息如cookie，将其设置为空。默认是过滤掉 cookie，解除过滤 cookie sensitiveHeaders: # 简洁写法 # product: /myProduct/** # 排除某些路由（路由禁用配置套路，支持通配符） ignored-patterns: - /**/product/listForOrder management: security: enabled: false

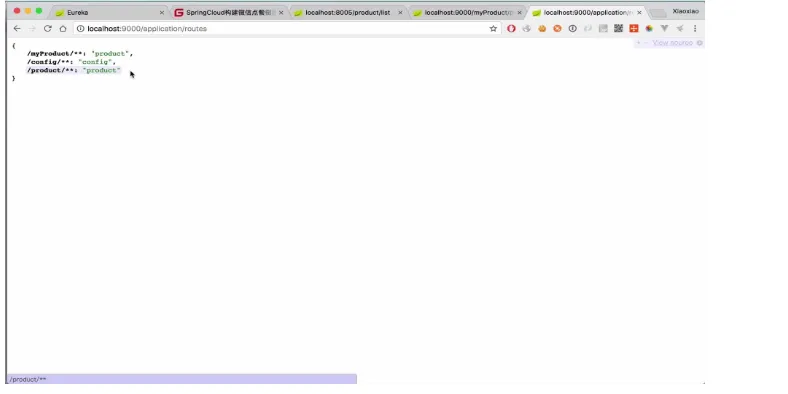

查看所有路由规则，首先需要配置：management.security.enabled: false（查看路由权限打开）
较新版本的配置：
# 新版本中management.security.enabled配置已经过时，改用下面的配置
# 放开请求路径，这样才能在启动日志里面看到隐藏的请求 management.endpoints.web.exposure.include=*
# 新版本查看routes规则，不再是application/routes 而是/actuator/routes
package com.imooc.apigateway; import org.springframework.boot.context.properties.ConfigurationProperties; import org.springframework.cloud.context.config.annotation.RefreshScope; import org.springframework.cloud.netflix.zuul.filters.ZuulProperties; import org.springframework.stereotype.Component; @Component public class ZuulConfig { @ConfigurationProperties("zuul") @RefreshScope public ZuulProperties zuulProperties() { return new ZuulProperties(); } }
或
package com.imooc.apigateway; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.netflix.zuul.EnableZuulProxy; @SpringBootApplication @EnableZuulProxy public class ApiGatewayApplication { public static void main(String[] args) { SpringApplication.run(ApiGatewayApplication.class, args); } @ConfigurationProperties("zuul") @RefreshScope public ZuulProperties zuulProperties() { return new ZuulProperties(); } }
- 这样配置后再到 git 上配置对应的，就可以实现自动刷新啦！
