ESrally介绍
esrally是elastic search官方用于对ES集群进行压力测试的工具，使用esrally可以为我们构建不同版本集群，构造不同的参数和数据来进行压力测试，并且可以对产生的压测结果进行比较，rally顾名思义是拉力赛的意思，esrally的一些名词也都与拉力赛有关。
github地址：https://github.com/elastic/rally
ESrally安装
环境要求
python3.8 pip3 jdk8 git 1.9+
python3.8安装
yum install zlib-devel bzip2-devel openssl-devel ncurses-devel sqlite-devel readline-devel tk-devel gcc make libffi-devel wget https://www.python.org/ftp/python/3.8.2/Python-3.8.2.tar.xz tar -xvJf Python-3.8.2.tar.xz mkdir /usr/local/python3 cd Python-3.8.2/ ./configure --prefix=/usr/local/python3 make && make install ln -s /usr/local/python3/bin/python3 /usr/local/bin/python3 ln -s /usr/local/python3/bin/pip3 /usr/local/bin/pip3
git 2.22安装
由于yum安装的git版本默认为1.8，因此我需要编译安装较新版本的git，如果已通过yum安装过git，可以使用yum remove git卸载
yum install curl-devel expat-devel gettext-devel openssl-devel zlib-devel gcc perl-ExtUtils-MakeMaker cd /tmp wget https://mirrors.edge.kernel.org/pub/software/scm/git/git-2.22.0.tar.gz tar xzf git-2.22.0.tar.gz cd git-2.22.0 make prefix=/usr/local/git all make prefix=/usr/local/git install echo "export PATH=$PATH:/usr/local/git/bin" >> /etc/bashrc source /etc/bashrc
👉jdk安装
rpm -ivh jdk-8u221-linux-x64.rpm
👉esrally安装
python3 -m pip install esrally vim /etc/profile JAVA_HOME=/usr/java/jdk1.8.0_221-amd64/jre export PATH=$PATH:/usr/local/python3/bin/:/usr/local/git/bin JAVA_HOME source /etc/profile
👉配置ESrally
用于定义一些数据的配置，可以选择把结果存储到已有的ES中进行分析
esrally configure

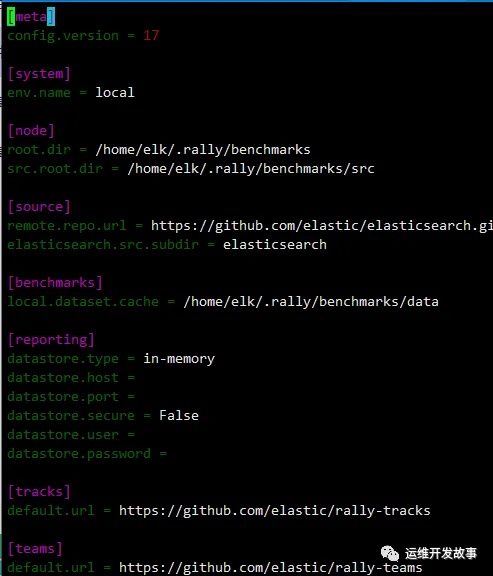

配置完成后，将会覆写ESrally的配置文件/root/.rally/rally.ini
👉ESrally名词解释
👉track
赛道的意思，用于构建不同的数据和策略进行压测，track.json定义压测的数据集，以geonames/track.json为例
{% import "rally.helpers" as rally with context %} { "version": 2, "description": "POIs from Geonames", "data-url": "http://benchmarks.elasticsearch.org.s3.amazonaws.com/corpora/geonames", "indices": [ { "name": "geonames", "body": "index.json" } ], "corpora": [ { "name": "geonames", "base-url": "http://benchmarks.elasticsearch.org.s3.amazonaws.com/corpora/geonames", "documents": [ { "source-file": "documents-2.json.bz2", "document-count": 11396503, "compressed-bytes": 265208777, "uncompressed-bytes": 3547613828 } ] } ], "operations": [ {{ rally.collect(parts="operations/*.json") }} ], "challenges": [ {{ rally.collect(parts="challenges/*.json") }} ] }
当我们开始用esrally开始比赛的时候，会先根据base-url和source-files构建链接从亚马逊下载数据，下载测试数据的速度很慢，我们可以提前下好离线数据来进行测试，测试数据存放在/home/elk/.rally/benchmarks/data/geonames目录下，indices定义了索引名和索引的具体设置，通过index.json文件可以查看
{ "settings": { "index.number_of_shards": {{number_of_shards | default(5)}}, "index.number_of_replicas": {{number_of_replicas | default(0)}}, "index.store.type": "{{store_type | default('fs')}}", "index.requests.cache.enable": false }, "mappings": { "dynamic": "strict", "_source": { "enabled": {{ source_enabled | default(true) | tojson }} }, "properties": { "elevation": { "type": "integer" }, "name": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "geonameid": { "type": "long" }, "feature_class": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "location": { "type": "geo_point" }, "cc2": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "timezone": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "dem": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "country_code": { "type": "text", "fielddata": true, "fields": { "raw": { "type": "keyword" } } }, "admin1_code": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "admin2_code": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "admin3_code": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "admin4_code": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "feature_code": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "alternatenames": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "asciiname": { "type": "text", "fields": { "raw": { "type": "keyword" } } }, "population": { "type": "long" } } } }
operations目录下定义了压测的具体操作，包括索引的写入、更新、段合并、各种查询，每个操作都可以构建不同的参数，
{ "name": "index-append", "operation-type": "bulk", "bulk-size": {{bulk_size | default(5000)}}, "ingest-percentage": {{ingest_percentage | default(100)}} }, { "name": "index-update", "operation-type": "bulk", "bulk-size": {{bulk_size | default(5000)}}, "ingest-percentage": {{ingest_percentage | default(100)}}, "conflicts": "{{conflicts | default('random')}}", "on-conflict": "{{on_conflict | default('index')}}", "conflict-probability": {{conflict_probability | default(25)}}, "recency": {{recency | default(0)}} }, { "name": "default", "operation-type": "search", "body": { "query": { "match_all": {} } } }, { "name": "term", "operation-type": "search", "body": { "query": { "term": { "country_code.raw": "AT" } } } }, { "name": "phrase", "operation-type": "search", "body": { "query": { "match_phrase": { "name": "Sankt Georgen" } } } }, { "name": "country_agg_uncached", "operation-type": "search", "body": { "size": 0, "aggs": { "country_population": { "terms": { "field": "country_code.raw" }, "aggs": { "sum_population": { "sum": { "field": "population" } } } } } } }, { "name": "country_agg_cached", "operation-type": "search", "cache": true, "body": { "size": 0, "aggs": { "country_population": { "terms": { "field": "country_code.raw" }, "aggs": { "sum_population": { "sum": { "field": "population" } } } } } } }, { "name": "scroll", "operation-type": "search", "pages": 25, "results-per-page": 1000, "body": { "query": { "match_all": {} } } }, { "name": "expression", "operation-type": "search", "body": { "query": { "function_score": { "query": { "match_all": {} }, "functions": [ { "script_score": { "script": { "source": "abs(ln(abs(doc['population']) + 1) + doc['location'].lon + doc['location'].lat) * _score", "lang": "expression" } } } ] } } } }, { "name": "painless_dynamic", "operation-type": "search", "body": { "query": { "function_score": { "query": { "match_all": {} }, "functions": [ { "script_score": { "script": { "source": "Math.abs(Math.log(Math.abs(doc['population'].value) + 1) + doc['location'].lon * doc['location'].lat)/_score", "lang": "painless" } } } ] } } } }, { "name": "decay_geo_gauss_function_score", "operation-type": "search", "body": { "query": { "function_score": { "query": { "match_all": {} }, "gauss": { "location": { "origin": "52.37, 4.8951", "scale": "500km", "offset": "0km", "decay" : 0.1 } } } } } }, { "name": "decay_geo_gauss_script_score", "operation-type": "search", "body": { "query": { "script_score": { "query": { "match_all": {} }, "script": { "source": "decayGeoGauss(params.origin, params.scale, params.offset, params.decay, doc['location'].value)", "params": { "origin": "52.37, 4.8951", "scale": "500km", "offset": "0km", "decay" : 0.1 } } } } } }, { "name": "random_script_score", "operation-type": "search", "body": { "query": { "script_score": { "query": { "match_all": {} }, "script": { "source": "randomScore(100, '_seq_no')" } } } } }, { "name": "large_terms", "operation-type": "search", "param-source": "pure-terms-query-source" }, { "name": "desc_sort_population", "operation-type": "search", "body": { "query": { "match_all": {} }, "sort" : [ {"population" : "desc"} ] } }, { "name": "asc_sort_population", "operation-type": "search", "body": { "query": { "match_all": {} }, "sort" : [ {"population" : "asc"} ] } }, { "name": "desc_sort_geonameid", "operation-type": "search", "body": { "query": { "match_all": {} }, "sort" : [ {"geonameid" : "desc"} ] } }, { "name": "asc_sort_geonameid", "operation-type": "search", "body": { "query": { "match_all": {} }, "sort" : [ {"geonameid" : "asc"} ] } }
challenge指定了压测时执行的task,不同的track包含一个或多个challenge,"name": "append-no-conflicts"表示默认的challenge为append-no-conflicts，执行esrally list tracks可以查看不同track支持的challenge，default为true时，为默认执行的challenge，schedule定义了执行的任务列表
{ "name": "append-no-conflicts", "description": "Indexes the whole document corpus using Elasticsearch default settings. We only adjust the number of replicas as we benchmark a single node cluster and Rally will only start the benchmark if the cluster turns green. Document ids are unique so all index operations are append only. After that a couple of queries are run.", "default": true, "schedule": [ { "operation": "delete-index" }, { "operation": { "operation-type": "create-index", "settings": {{index_settings | default({}) | tojson}} } }, { "name": "check-cluster-health", "operation": { "operation-type": "cluster-health", "index": "geonames", "request-params": { "wait_for_status": "{{cluster_health | default('green')}}", "wait_for_no_relocating_shards": "true" } } }, { "operation": "index-append", "warmup-time-period": 120, "clients": {{bulk_indexing_clients | default(8)}} }, { "name": "refresh-after-index", "operation": "refresh" }, { "operation": { "operation-type": "force-merge", "request-timeout": 7200 } }, { "name": "refresh-after-force-merge", "operation": "refresh" }, { "name": "wait-until-merges-finish", "operation": { "operation-type": "index-stats", "index": "_all", "condition": { "path": "_all.total.merges.current", "expected-value": 0 }, "retry-until-success": true, "include-in-reporting": false } }, { "operation": "index-stats", "warmup-iterations": 500, "iterations": 1000, "target-throughput": 90 }, { "operation": "node-stats", "warmup-iterations": 100, "iterations": 1000, "target-throughput": 90 }, { "operation": "default", "warmup-iterations": 500, "iterations": 1000, "target-throughput": 50 }, { "operation": "term", "warmup-iterations": 500, "iterations": 1000, "target-throughput": 150 }, { "operation": "country_agg_uncached", "warmup-iterations": 200, "iterations": 100, "target-throughput": 3.6 }, { "operation": "country_agg_cached", "warmup-iterations": 1000, "iterations": 1000, "target-throughput": 100 }, { "operation": "scroll", "warmup-iterations": 200, "iterations": 100, "#COMMENT": "Throughput is considered per request. So we issue one scroll request per second which will retrieve 25 pages", "target-throughput": 0.8 }, { "operation": "expression", "warmup-iterations": 200, "iterations": 100, "target-throughput": 2 }, { "operation": "painless_static", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.5 }, { "operation": "painless_dynamic", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.5 }, { "operation": "decay_geo_gauss_function_score", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1 }, { "operation": "decay_geo_gauss_script_score", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1 }, { "operation": "field_value_function_score", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.5 }, { "operation": "field_value_script_score", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.5 }, { "operation": "random_function_score", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.5 }, { "operation": "large_filtered_terms", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.1 }, { "operation": "large_prohibited_terms", "warmup-iterations": 200, "iterations": 100, "target-throughput": 1.1 }, { "operation": "desc_sort_geonameid", "warmup-iterations": 200, "iterations": 100, "target-throughput": 6 }, { "operation": "asc_sort_geonameid", "warmup-iterations": 200, "iterations": 100, "target-throughput": 6 } ] }, { "name": "append-fast-with-conflicts", "description": "Indexes the whole document corpus using a setup that will lead to a larger indexing throughput than the default settings. Rally will produce duplicate ids in 25% of all documents (not configurable) so we can simulate a scenario with appends most of the time and some updates in between.", "schedule": [ { "operation": "delete-index" }, { "operation": { "operation-type": "create-index", "settings": {%- if index_settings is defined %} {{index_settings | tojson}} {%- else %} { "index.refresh_interval": "30s", "index.number_of_shards": {{number_of_shards | default(6)}}, "index.translog.flush_threshold_size": "4g" }{%- endif %} } }, { "name": "check-cluster-health", "operation": { "operation-type": "cluster-health", "index": "geonames", "request-params": { "wait_for_status": "{{cluster_health | default('green')}}", "wait_for_no_relocating_shards": "true" } } }, { "operation": "index-update", "warmup-time-period": 45, "clients": {{bulk_indexing_clients | default(8)}} }, { "operation": { "operation-type": "force-merge", "request-timeout": 7200 } }, { "name": "wait-until-merges-finish", "operation": { "operation-type": "index-stats", "index": "_all", "condition": { "path": "_all.total.merges.current", "expected-value": 0 }, "retry-until-success": true, "include-in-reporting": false } } ] }
👉car

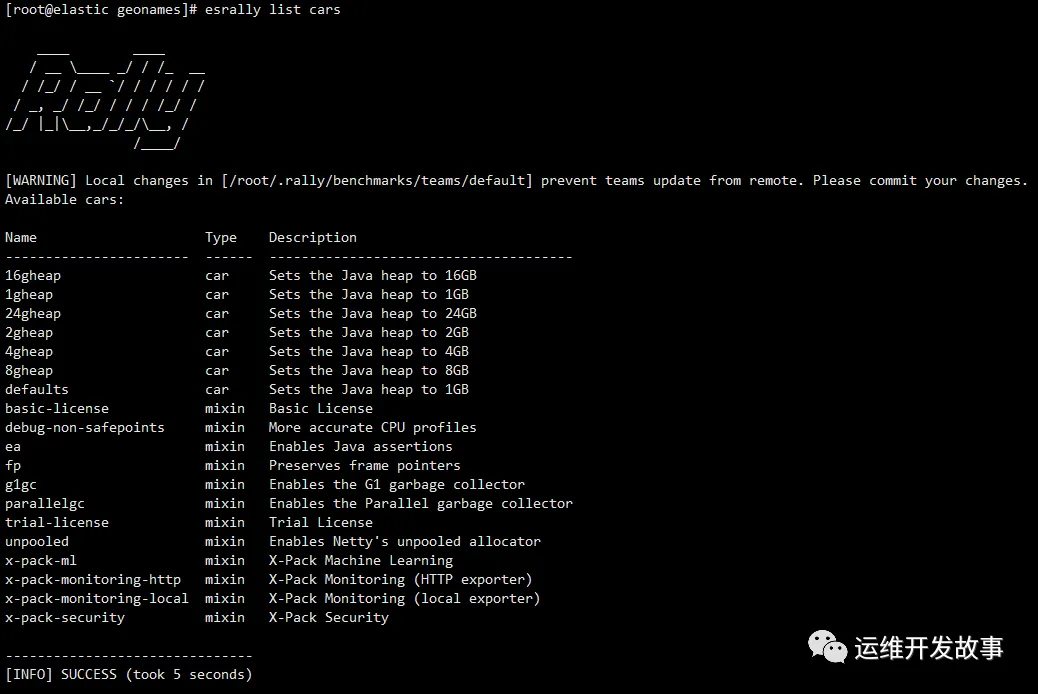

用于定义不同配置的ES实例，我们可以定义堆内存大小，垃圾回收器，既然是赛车，那就可以改装，我们可以自定义不同配置的car，执行命令esrally list car可查看所有的赛车，配置在/home/elk/.rally/benchmarks/teams/default/cars/v1目录下
👉race

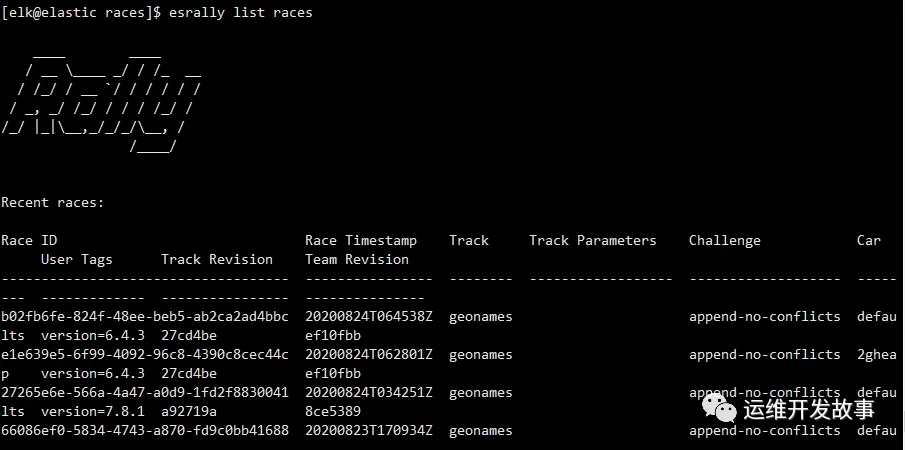

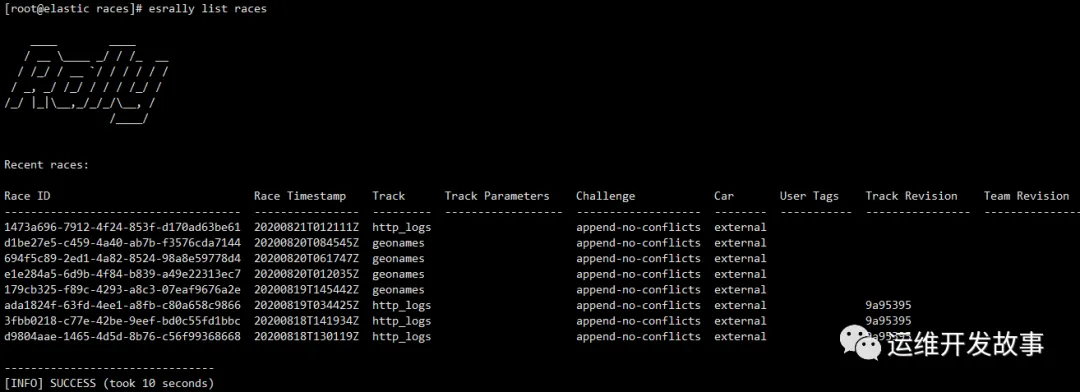

表示某一次的压测，并且可以指定赛道和赛车配置，不指定则使用默认配置，race结果存储在/home/elk/.rally/benchmarks/races目录下，执行命令esrally list races可查看以往比赛结果
并且可以对不同的race进行比较
esrally compare --baseline=d1be27e5-c459-4a40-ab7b-f3576cda7144 --contender=694f5c89-2ed1-4a82-8524-98a8e59778d4
👉pipeline

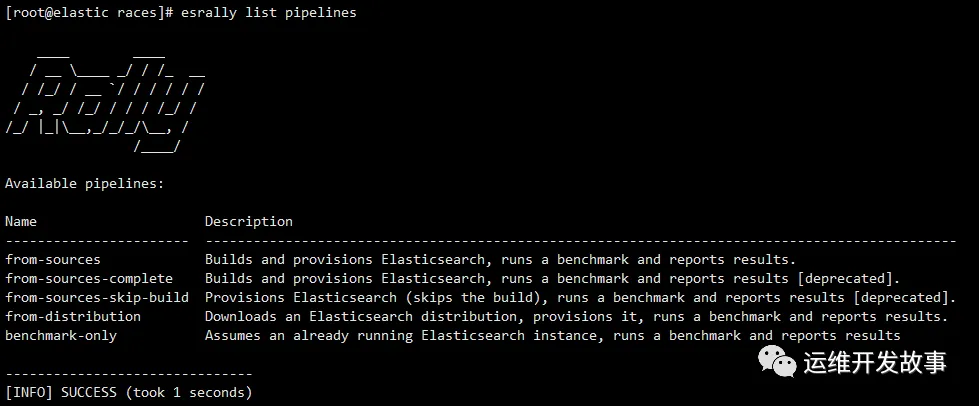

就是定义以何种方式来构建这个集群，通过esrally list pipelines可查看所有的pipeline
- from-sources-complete ：表示从源代码构建ES， --revision参数可以指定一个ES的修订版本，默认为最新版本、
- from-sources-skip-build ：表示如果之前已经通过源码构建过一次相同版本的ES了，那么本次将不再进行构建，这样可以节省测试的时间
- from-distribution：esrally将下载正式的ES发行版来进行测试， --distribution-version 参数可以指定ES版本，最低支持1.7.5
- benchmark-only ：将对已有的ES集群进行压测，--target-hosts参数可以指定ES集群地址
ESrally压测实例
👉测试5.4.3、6.4.3与7.8.1版本之间的写入性能差异
使用非root用户运行，并且保证内存够用，这里我是用geonames赛道进行测试，使用默认的car为1gb堆内存，为了快速测试，可以将测试数据和ES二进制包提前下到指定的目录下，ES二进制包存储在/home/elk/.rally/benchmarks/distributions目录下，测试数据存放在/home/elk/.rally/benchmarks/data/geonames目录下
esrally race --distribution-version=5.4.3 --track=geonames --user-tag="version:5.4.3" --include-tasks="type:bulk" esrally race --distribution-version=6.4.3 --track=geonames --user-tag="version:6.4.3" --include-tasks="type:bulk" esrally race --distribution-version=7.8.1 --track=geonames --user-tag="version:7.8.1" --include-tasks="type:bulk"

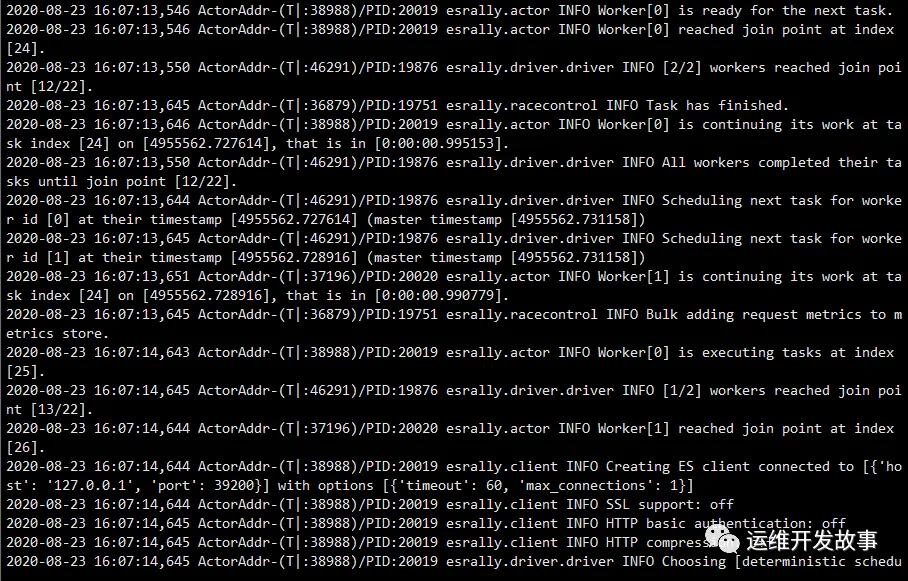

压测过程可以通过/home/elk/.rally/logs.log查看
👉对压测结果进行比较

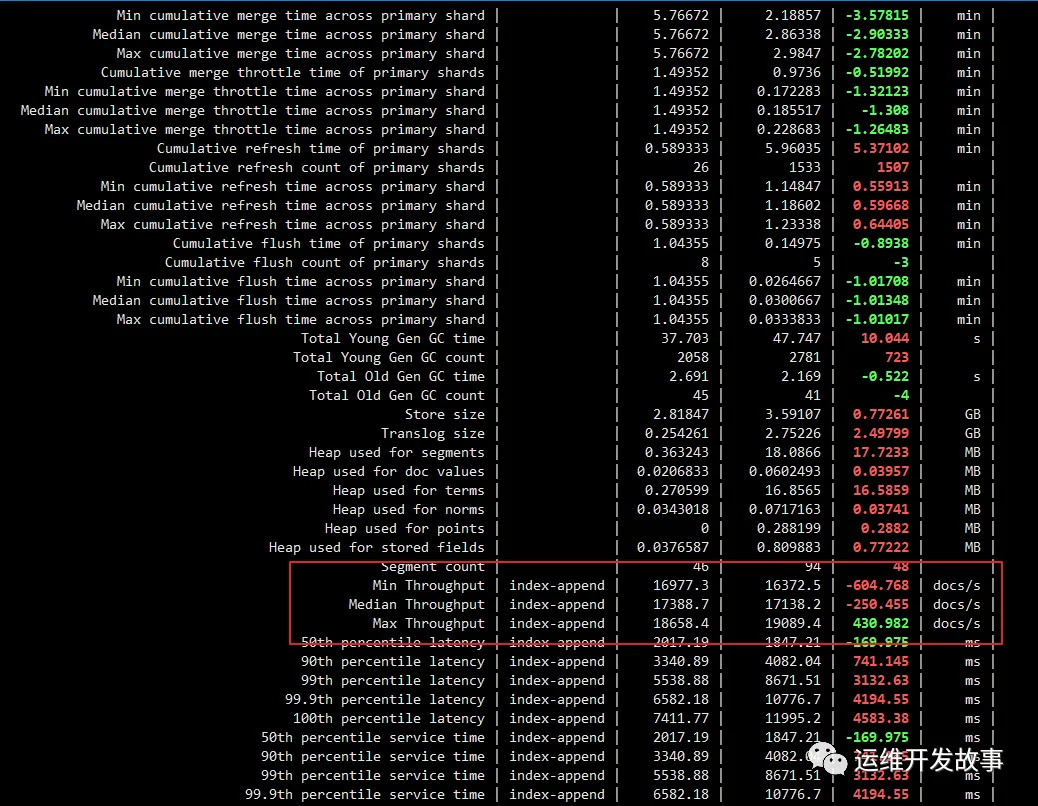

比较7.8.1与5.4.3的写入差异
esrally compare --baseline=27265e6e-566a-4a47-a0d9-1fd2f8830041 --contender=66086ef0-5834-4743-a870-fd9c0bb41688

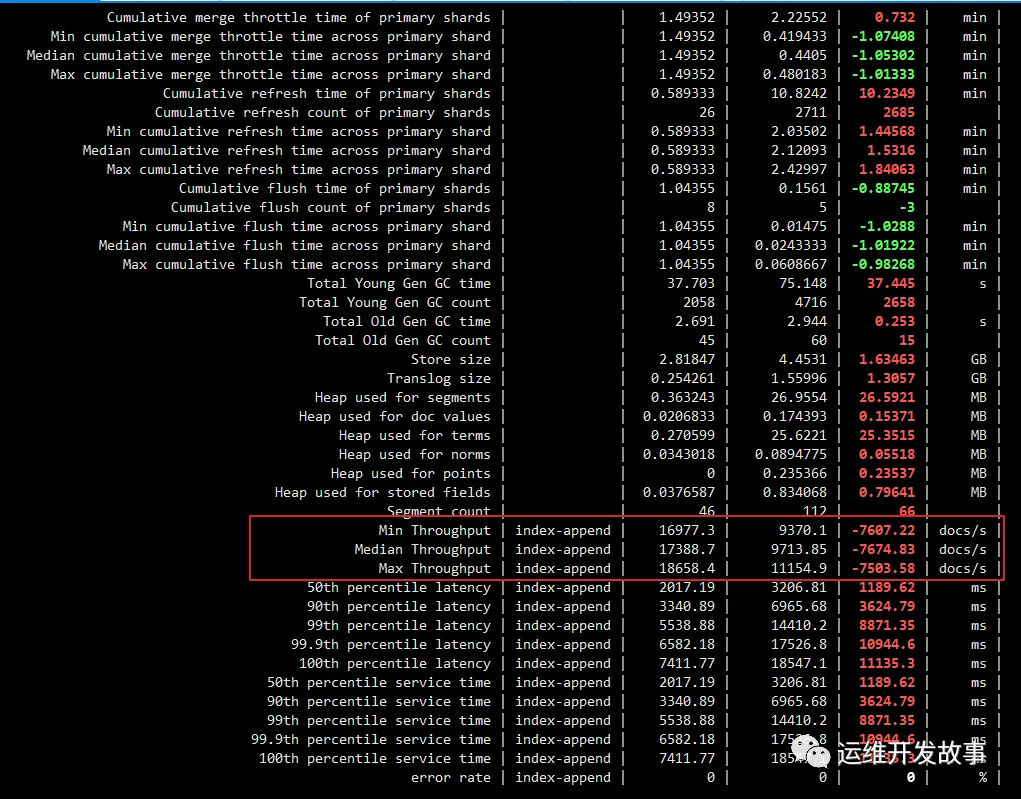

可以看到5.4版本的写入性能差别还是很大的

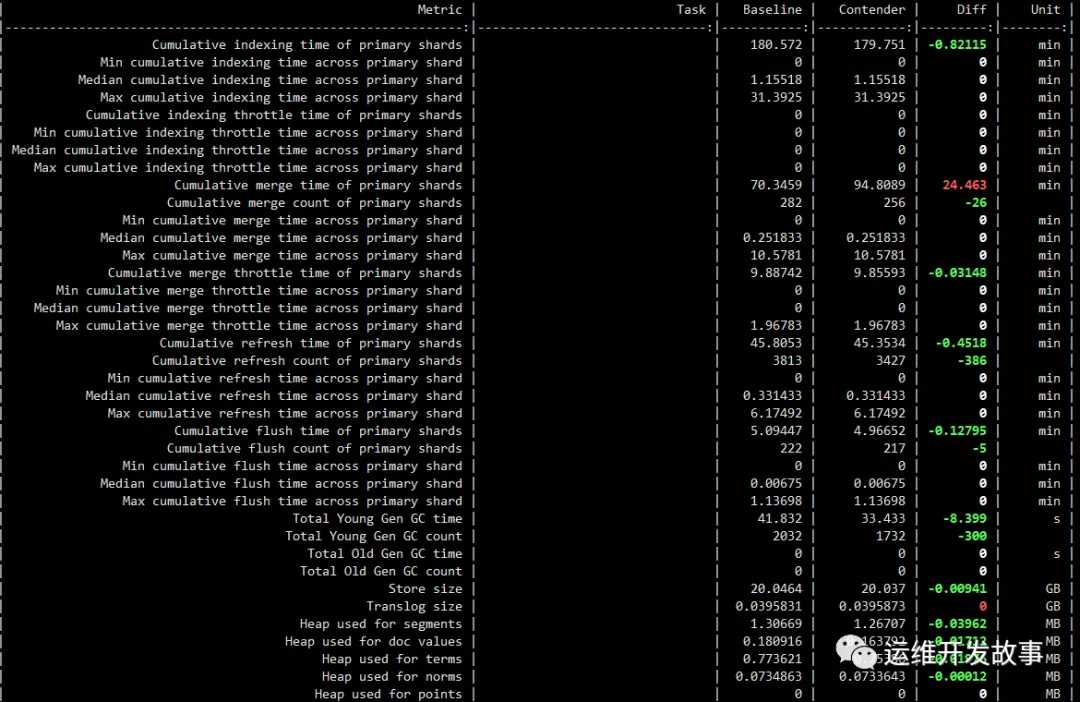

再看一下6.4.3与7.8.1的差异，写入性能差别不是很大
esrally compare --baseline=27265e6e-566a-4a47-a0d9-1fd2f8830041 --contender=b02fb6fe-824f-48ee-beb5-ab2ca2ad4bbc
👉测试x86_64平台与arm平台的性能差异
👉环境
阿里云2v4g 志强Platinum 8269CY CPU 2.50GHz x86_64
华为云2v4g 鲲鹏920 CPU 2.6GHz arm平台
两台云主机的ES配置均相同，2G堆内存，系统参数相同
开始测试
还是要提前下好测试数据，这个测试周日跑了一天，结果截图没保存，可能配置太低了，结果差别不是很大，而且不是在同一台机器上跑的，没法使用esrally compare进行比较
esrally race --pipeline=benchmark-only --target-hosts=172.16.0.95:9200 --track=http_logs --offline esrally race --pipeline=benchmark-only --target-hosts=172.26.214.32:9200 --track=http_logs --offline
👉中间遇到的问题

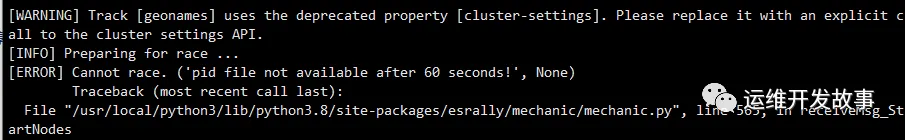

开始压测之后，报不能进入比赛，pid文件不可用

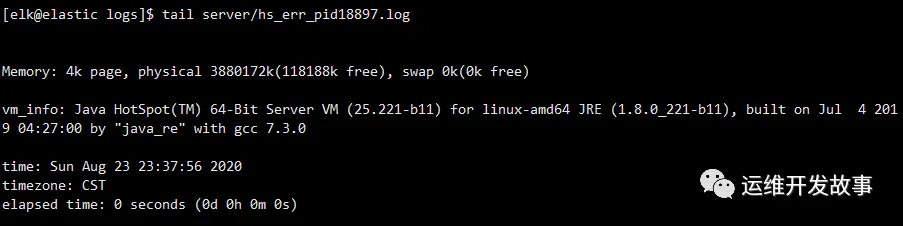

之后查看了相关race的日志,发现内存不够用了，因为之前已经跑了一个ES实例了，导致了我内存不足，把之前的ES实例关掉即可解决
