Grok 是啥？
Grok 是一种采用组合多个预定义的正则表达式。用来匹配分割文本，并且映射到关键字的工具。主要用来对日志数据进行预处理。Logstash 的 filter 模块中 grok 插件就是其应用。其实主要思想就是用正则的方式匹配出字段，然后映射成某个字段。
例如：
filter { grok { match => { "message" => "\[%{DATA:logtime}\]\[%{DATA:priority}\]\[%{DATA:thread}\]\[%{DATA:position}\]%{GREEDYDATA:info}" } add_tag => "systemlog" } }
Grock 预定义了 120 个预定义字段，可参考
https://github.com/logstash-plugins/logstash-patterns-core/tree/master/patterns
Grok 匹配栗子
正则表达式说明
\w （字母数字）和 \W （非字母数字） \b 匹配字母或数字边界
假设有如下一个日志
localhost GET /index.html 1024 0.016
参考 Grok 预定义字段
- localhost 一般指的是主机名或者 ip 对应的预定义字段就是 IPORHOST
- WORD \b\w+\b 表示的是数字或者字母 能和 Get 匹配
- URIPATHPARAM %{URIPATH}(?:%{URIPARAM})? 能和 /index.html 匹配上。
对应的就可以写出 如下 grok语句
%{IPORHOST:client} %{WORD:method} %{URIPATHPARAM:request} %{INT:size} %{NUMBER:duration}
logstash 收集这段日志的 filter 就可以写成如下
filter { grok { match => { "message" => "%{IPORHOST:client} %{WORD:method} %{URIPATHPARAM:request} %{INT:size} %{NUMBER:duration}" } } }
GROCK 调试工具

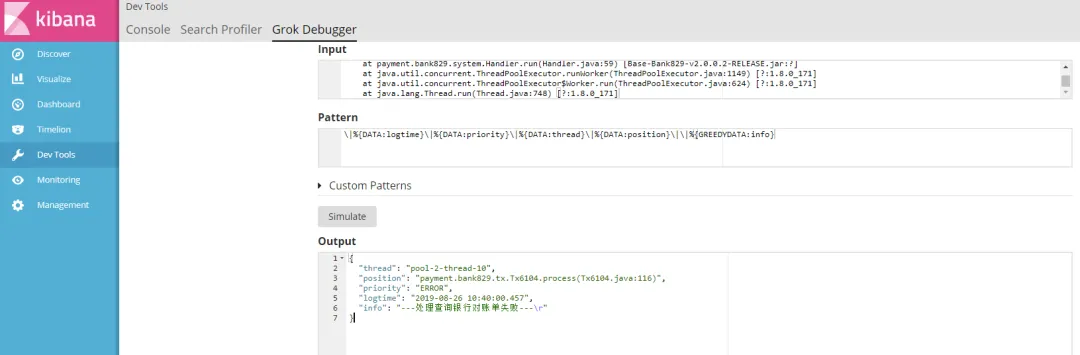

看个调试工具 是 Kibana 中自带的 Grok Debugger
日志输入
|2019-08-26 10:40:00.457|ERROR|pool-2-thread-10|payment.bank829.tx.Tx6104.process(Tx6104.java:116)||---处理查询银行对账单失败--- java.lang.NullPointerException: null at com.singlee.BatchFile.AccountRequestDemo.AccountClient(AccountRequestDemo.java:40) ~[zxpayclient-1.0.jar:?] at payment.bank829.tx.Tx6104.process(Tx6104.java:65) [Base-Bank829-v2.0.0.2-RELEASE.jar:?] at payment.bank829.system.Handler.run(Handler.java:59) [Base-Bank829-v2.0.0.2-RELEASE.jar:?] at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_171] at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_171] at java.lang.Thread.run(Thread.java:748) [?:1.8.0_171]
格式匹配
\|%{DATA:logtime}\|%{DATA:priority}\|%{DATA:thread}\|%{DATA:position}\|\|%{GREEDYDATA:info}
结果输出
{ "thread": "pool-2-thread-10", "position": "payment.bank829.tx.Tx6104.process(Tx6104.java:116)", "priority": "ERROR", "logtime": "2019-08-26 10:40:00.457", "info": "---处理查询银行对账单失败---\r" }
由于换行，结果存在点偏差，可以发现，经过 grok 之后，结果就是一个个 key value 值。
Grok 预定义匹配字段
其实所谓的预定义字段，其实就是某个字段 表示的是某个正则表达式。
预定义字段参考
USERNAME [a-zA-Z0-9._-]+ USER %{USERNAME} INT (?:[+-]?(?:[0-9]+)) BASE10NUM (?<![0-9.+-])(?>[+-]?(?:(?:[0-9]+(?:\.[0-9]+)?)|(?:\.[0-9]+))) NUMBER (?:%{BASE10NUM}) BASE16NUM (?<![0-9A-Fa-f])(?:[+-]?(?:0x)?(?:[0-9A-Fa-f]+)) BASE16FLOAT \b(?<![0-9A-Fa-f.])(?:[+-]?(?:0x)?(?:(?:[0-9A-Fa-f]+(?:\.[0-9A-Fa-f]*)?)|(?:\.[0-9A-Fa-f]+)))\b POSINT \b(?:[1-9][0-9]*)\b NONNEGINT \b(?:[0-9]+)\b WORD \b\w+\b NOTSPACE \S+ SPACE \s* DATA .*? GREEDYDATA .* QUOTEDSTRING (?>(?<!\\)(?>"(?>\\.|[^\\"]+)+"|""|(?>'(?>\\.|[^\\']+)+')|''|(?>`(?>\\.|[^\\`]+)+`)|``)) UUID [A-Fa-f0-9]{8}-(?:[A-Fa-f0-9]{4}-){3}[A-Fa-f0-9]{12} # Networking MAC (?:%{CISCOMAC}|%{WINDOWSMAC}|%{COMMONMAC}) CISCOMAC (?:(?:[A-Fa-f0-9]{4}\.){2}[A-Fa-f0-9]{4}) WINDOWSMAC (?:(?:[A-Fa-f0-9]{2}-){5}[A-Fa-f0-9]{2}) COMMONMAC (?:(?:[A-Fa-f0-9]{2}:){5}[A-Fa-f0-9]{2}) IPV6 ((([0-9A-Fa-f]{1,4}:){7}([0-9A-Fa-f]{1,4}|:))|(([0-9A-Fa-f]{1,4}:){6}(:[0-9A-Fa-f]{1,4}|((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3})|:))|(([0-9A-Fa-f]{1,4}:){5}(((:[0-9A-Fa-f]{1,4}){1,2})|:((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3})|:))|(([0-9A-Fa-f]{1,4}:){4}(((:[0-9A-Fa-f]{1,4}){1,3})|((:[0-9A-Fa-f]{1,4})?:((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3}))|:))|(([0-9A-Fa-f]{1,4}:){3}(((:[0-9A-Fa-f]{1,4}){1,4})|((:[0-9A-Fa-f]{1,4}){0,2}:((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3}))|:))|(([0-9A-Fa-f]{1,4}:){2}(((:[0-9A-Fa-f]{1,4}){1,5})|((:[0-9A-Fa-f]{1,4}){0,3}:((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3}))|:))|(([0-9A-Fa-f]{1,4}:){1}(((:[0-9A-Fa-f]{1,4}){1,6})|((:[0-9A-Fa-f]{1,4}){0,4}:((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3}))|:))|(:(((:[0-9A-Fa-f]{1,4}){1,7})|((:[0-9A-Fa-f]{1,4}){0,5}:((25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)(\.(25[0-5]|2[0-4]\d|1\d\d|[1-9]?\d)){3}))|:)))(%.+)? IPV4 (?<![0-9])(?:(?:25[0-5]|2[0-4][0-9]|[0-1]?[0-9]{1,2})[.](?:25[0-5]|2[0-4][0-9]|[0-1]?[0-9]{1,2})[.](?:25[0-5]|2[0-4][0-9]|[0-1]?[0-9]{1,2})[.](?:25[0-5]|2[0-4][0-9]|[0-1]?[0-9]{1,2}))(?![0-9]) IP (?:%{IPV6}|%{IPV4}) HOSTNAME \b(?:[0-9A-Za-z][0-9A-Za-z-]{0,62})(?:\.(?:[0-9A-Za-z][0-9A-Za-z-]{0,62}))*(\.?|\b) HOST %{HOSTNAME} IPORHOST (?:%{HOSTNAME}|%{IP}) HOSTPORT %{IPORHOST}:%{POSINT} # paths PATH (?:%{UNIXPATH}|%{WINPATH}) UNIXPATH (?>/(?>[\w_%!$@:.,-]+|\\.)*)+ TTY (?:/dev/(pts|tty([pq])?)(\w+)?/?(?:[0-9]+)) WINPATH (?>[A-Za-z]+:|\\)(?:\\[^\\?*]*)+ URIPROTO [A-Za-z]+(\+[A-Za-z+]+)? URIHOST %{IPORHOST}(?::%{POSINT:port})? # uripath comes loosely from RFC1738, but mostly from what Firefox # doesn't turn into %XX URIPATH (?:/[A-Za-z0-9$.+!*'(){},~:;=@#%_\-]*)+ #URIPARAM \?(?:[A-Za-z0-9]+(?:=(?:[^&]*))?(?:&(?:[A-Za-z0-9]+(?:=(?:[^&]*))?)?)*)? URIPARAM \?[A-Za-z0-9$.+!*'|(){},~@#%&/=:;_?\-\[\]]* URIPATHPARAM %{URIPATH}(?:%{URIPARAM})? URI %{URIPROTO}://(?:%{USER}(?::[^@]*)?@)?(?:%{URIHOST})?(?:%{URIPATHPARAM})? # Months: January, Feb, 3, 03, 12, December MONTH \b(?:Jan(?:uary)?|Feb(?:ruary)?|Mar(?:ch)?|Apr(?:il)?|May|Jun(?:e)?|Jul(?:y)?|Aug(?:ust)?|Sep(?:tember)?|Oct(?:ober)?|Nov(?:ember)?|Dec(?:ember)?)\b MONTHNUM (?:0?[1-9]|1[0-2]) MONTHNUM2 (?:0[1-9]|1[0-2]) MONTHDAY (?:(?:0[1-9])|(?:[12][0-9])|(?:3[01])|[1-9]) # Days: Monday, Tue, Thu, etc... DAY (?:Mon(?:day)?|Tue(?:sday)?|Wed(?:nesday)?|Thu(?:rsday)?|Fri(?:day)?|Sat(?:urday)?|Sun(?:day)?) # Years? YEAR (?>\d\d){1,2} HOUR (?:2[0123]|[01]?[0-9]) MINUTE (?:[0-5][0-9]) # '60' is a leap second in most time standards and thus is valid. SECOND (?:(?:[0-5]?[0-9]|60)(?:[:.,][0-9]+)?) TIME (?!<[0-9])%{HOUR}:%{MINUTE}(?::%{SECOND})(?![0-9]) # datestamp is YYYY/MM/DD-HH:MM:SS.UUUU (or something like it) DATE_US %{MONTHNUM}[/-]%{MONTHDAY}[/-]%{YEAR} DATE_EU %{MONTHDAY}[./-]%{MONTHNUM}[./-]%{YEAR} ISO8601_TIMEZONE (?:Z|[+-]%{HOUR}(?::?%{MINUTE})) ISO8601_SECOND (?:%{SECOND}|60) TIMESTAMP_ISO8601 %{YEAR}-%{MONTHNUM}-%{MONTHDAY}[T ]%{HOUR}:?%{MINUTE}(?::?%{SECOND})?%{ISO8601_TIMEZONE}? DATE %{DATE_US}|%{DATE_EU} DATESTAMP %{DATE}[- ]%{TIME} TZ (?:[PMCE][SD]T|UTC) DATESTAMP_RFC822 %{DAY} %{MONTH} %{MONTHDAY} %{YEAR} %{TIME} %{TZ} DATESTAMP_RFC2822 %{DAY}, %{MONTHDAY} %{MONTH} %{YEAR} %{TIME} %{ISO8601_TIMEZONE} DATESTAMP_OTHER %{DAY} %{MONTH} %{MONTHDAY} %{TIME} %{TZ} %{YEAR} DATESTAMP_EVENTLOG %{YEAR}%{MONTHNUM2}%{MONTHDAY}%{HOUR}%{MINUTE}%{SECOND} # Syslog Dates: Month Day HH:MM:SS SYSLOGTIMESTAMP %{MONTH} +%{MONTHDAY} %{TIME} PROG (?:[\w._/%-]+) SYSLOGPROG %{PROG:program}(?:\[%{POSINT:pid}\])? SYSLOGHOST %{IPORHOST} SYSLOGFACILITY <%{NONNEGINT:facility}.%{NONNEGINT:priority}> HTTPDATE %{MONTHDAY}/%{MONTH}/%{YEAR}:%{TIME} %{INT} # Shortcuts QS %{QUOTEDSTRING} # Log formats SYSLOGBASE %{SYSLOGTIMESTAMP:timestamp} (?:%{SYSLOGFACILITY} )?%{SYSLOGHOST:logsource} %{SYSLOGPROG}: COMMONAPACHELOG %{IPORHOST:clientip} %{USER:ident} %{USER:auth} \[%{HTTPDATE:timestamp}\] "(?:%{WORD:verb} %{NOTSPACE:request}(?: HTTP/%{NUMBER:httpversion})?|%{DATA:rawrequest})" %{NUMBER:response} (?:%{NUMBER:bytes}|-) COMBINEDAPACHELOG %{COMMONAPACHELOG} %{QS:referrer} %{QS:agent} # Log Levels LOGLEVEL ([Aa]lert|ALERT|[Tt]race|TRACE|[Dd]ebug|DEBUG|[Nn]otice|NOTICE|[Ii]nfo|INFO|[Ww]arn?(?:ing)?|WARN?(?:ING)?|[Ee]rr?(?:or)?|ERR?(?:OR)?|[Cc]rit?(?:ical)?|CRIT?(?:ICAL)?|[Ff]atal|FATAL|[Ss]evere|SEVERE|EMERG(?:ENCY)?|[Ee]merg(?:ency)?)
参考资料：
- https://www.elastic.co/guide/en/logstash/6.3/plugins-filters-grok.html
- https://github.com/elastic/logstash/blob/v1.4.2/patterns/grok-patterns
- http://grokdebug.herokuapp.com
- http://grokconstructor.appspot.com/
- http://doc.yonyoucloud.com/doc/logstash-best-practice-cn/filter/grok.html
