Google Earth Engine ——MCD64A1.006 MODIS Burned Area Monthly Global 500m第6版燃烧区数据产品

Terra和Aqua结合的MCD64A1第6版燃烧区数据产品是每月一次的全球网格化500米产品，包含每像素的燃烧区和质量信息。MCD64A1烧毁面积绘图方法采用了500米MODIS表面反射图像和1公里MODIS主动火灾观测。该算法使用对燃烧敏感的植被指数（VI）来创建动态阈值，应用于综合数据。VI是由MODIS短波红外大气校正表面反射带5和7得出的，带有时间纹理的测量。该算法确定了每个单独的MODIS瓦片中的500米网格单元的燃烧日期。日期被编码在一个单一的数据层中，作为焚烧发生的日历年的序日，其值被分配给未焚烧的土地像素，并为缺失的数据和水网格单元保留额外的特殊值。

The Terra and Aqua combined MCD64A1 Version 6 Burned Area data product is a monthly, global gridded 500m product containing per-pixel burned-area and quality information. The MCD64A1 burned-area mapping approach employs 500m MODIS Surface Reflectance imagery coupled with 1km MODIS active fire observations. The algorithm uses a burn sensitive vegetation index (VI) to create dynamic thresholds that are applied to the composite data. The VI is derived from MODIS shortwave infrared atmospherically corrected surface reflectance bands 5 and 7 with a measure of temporal texture. The algorithm identifies the date of burn for the 500m grid cells within each individual MODIS tile. The date is encoded in a single data layer as the ordinal day of the calendar year on which the burn occurred, with values assigned to unburned land pixels and additional special values reserved for missing data and water grid cells.

Documentation:

• User's Guide

• Algorithm Theoretical Basis Document (ATBD)


Dataset Availability

2000-11-01T00:00:00 - 2021-07-01T00:00:00

Dataset Provider

NASA LP DAAC at the USGS EROS Center

Collection Snippet

Copied

ee.ImageCollection("MODIS/006/MCD64A1")

Tags

burnfiregeophysicalmodismcd64a1monthlyglobalusgsnasa

DESCRIPTIONBANDSTERMS OF USECITATIONSDOIS

Resolution

500 meters

Bands Table

使用说明：

MODIS data and products acquired through the LP DAAC have no restrictions on subsequent use, sale, or redistribution.

通过LP DAAC获得的MODIS数据和产品对后续使用、销售或再分配没有限制。

引用：

代码：

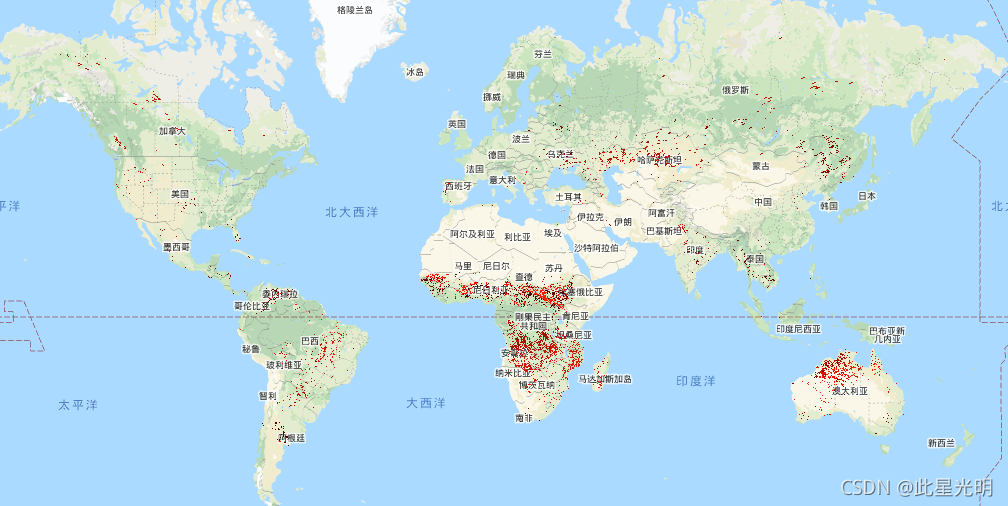

var dataset = ee.ImageCollection('MODIS/006/MCD64A1')
                  .filter(ee.Filter.date('2017-01-01', '2018-05-01'));
var burnedArea = dataset.select('BurnDate');
var burnedAreaVis = {
  min: 30.0,
  max: 341.0,
  palette: ['4e0400', '951003', 'c61503', 'ff1901'],
};
Map.setCenter(6.746, 46.529, 2);
Map.addLayer(burnedArea, burnedAreaVis, 'Burned Area');
