一、实验目的
了解和掌握指令编码的基本要求和基本原理
二、实验内容
使用编程工具编写一个程序，对一组指令进行霍夫曼编码，并输出最后的编码结果以及对指令码的长度进行评价，与扩展操作码和等长编码进行比较。
例如： 有一组指令的操作码共分七类，它们出现概率如下表所示。

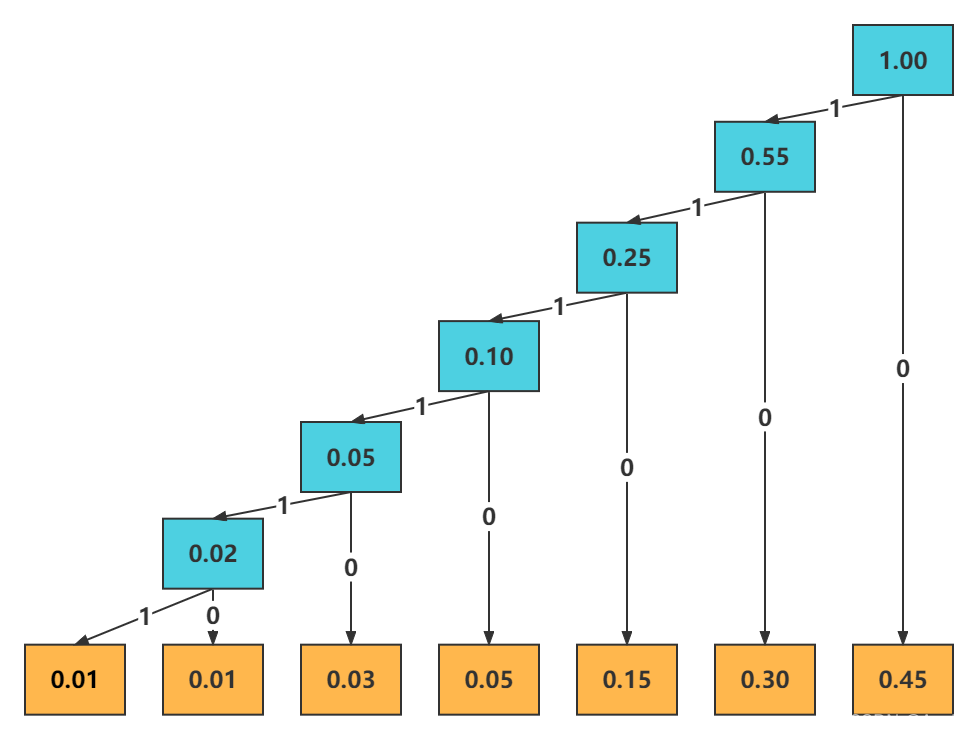

对此组指令进行 huffman 编码如下图所示：
最后得到的 huffman 编码如下表所示：
huffman 编码长度为： 0.45 x 1 + 0.30 x 2 + 0.15 x 3 + 0.05 x 4 + 0.03 x 5 + 0.01 x 6 + 0.01 x 6 = 1.97
要对指令的操作码进行 huffman 编码，只要根据指令的各类操作码的出现概率构造 huffman 树再进行 huffman 编码。此过程的难点在于构造 huffman 树，进行 huffman 编码只要对所生成的 huffman 树进行中序遍历即可完成编码工作。
三、实验步骤
观察上图，不难看出构造 huffman 树所要做的工作：
- 先对各指令操作码的出现概率进行排序，构造一个有序链表。
- 再取出两个最小的概率节点相加，生成一个生的节点加入到链表中，同时从两表中删除此两个节点。
- 在对链表进行排序，链表是否只有一个节点，是则 huffman 树构造完毕，否则继续做步骤 2 的操作。
- 为此设计一个工作链表、huffman 树节点、huffman 编码表节点。

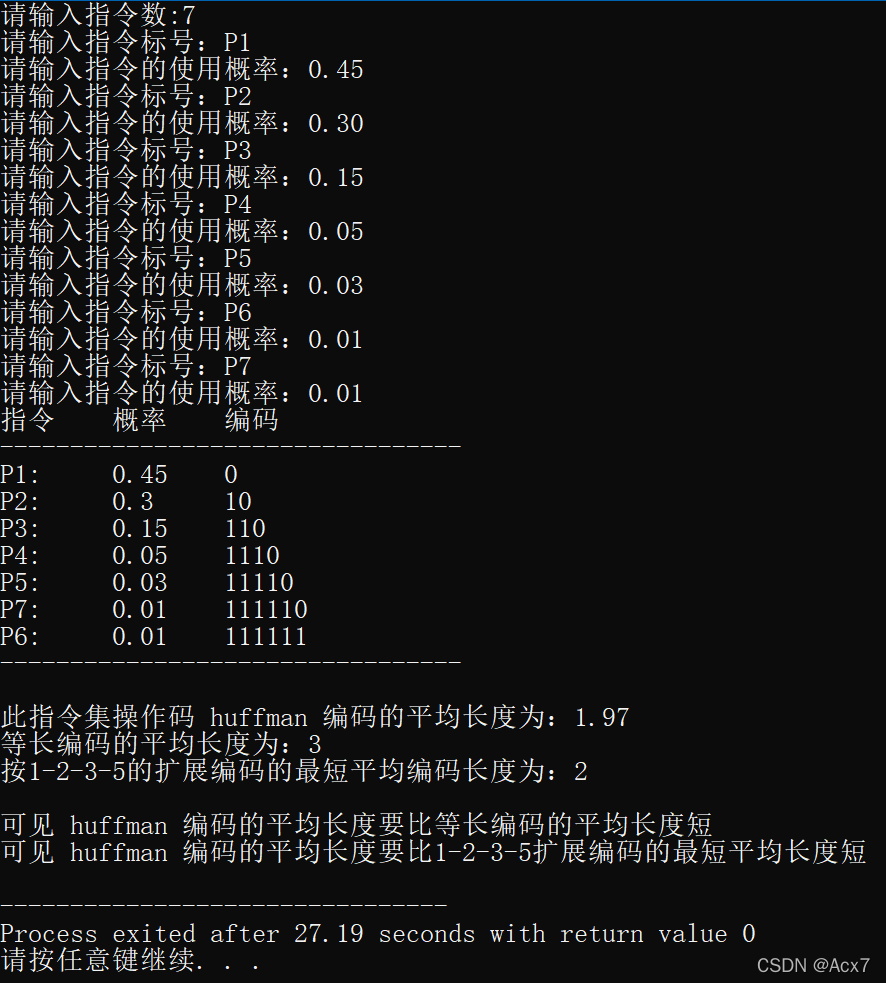

四、实验结果
五、实验代码
#include<iostream> #include<cmath> #include<cstring> using namespace std; const int N = 8; // huffman编码最大长度 class huff_p { public: huff_p* r_child; // 大概率的节点 huff_p* l_child; // 小概率的节点 char op_mask[3]; // 指令标号 float p; // 指令使用概率 }; class f_min_p{ public: f_min_p* next; char op_mask[3]; // 指令标号 float p; // 指令使用概率 huff_p* huf_p; }; // huff_man code class huff_code{ public: huff_code* next; float p; char op_mask[3]; char code[N]; // huffman 编码 }; f_min_p* input_instruct_set(); // 输入指令集子模块； huff_p* creat_huffman_tree(f_min_p* head); // 构造huffman树; f_min_p* fin_min(f_min_p* h); f_min_p* del_min(f_min_p* h,f_min_p* p); void insert_n(f_min_p* h,f_min_p* p); huff_p* creat_huffp(f_min_p* p); void creat_huffman_code(huff_p* h1,huff_code* h);// 生成 huffman 编码; void r_find(huff_p* p1,char code[],int i,huff_code* h); void output_huffman(huff_code* head);// 输出huffman编码; void cal_sort_length(huff_code* head);// 计算指令用huffman编码的平均编码字长 void print(huff_p* h1); int main() { f_min_p *h, *h1; huff_p *root; huff_code* head, *pl; h = input_instruct_set(); h1 = h; root = creat_huffman_tree(h1); head = new huff_code; head->next = NULL; creat_huffman_code(root, head); output_huffman(head); cal_sort_length(head); pl = head->next; while (pl) { delete head; head = pl; pl = pl->next; } } f_min_p* input_instruct_set() { f_min_p* head; f_min_p* h; h = new f_min_p; h->next = NULL; h->huf_p = NULL; head = h; int n; cout << "请输入指令数:"; cin >> n; cout << "请输入指令标号："; cin >> h->op_mask; cout << "请输入指令的使用概率："; cin >> h->p; f_min_p* point; f_min_p* p1 = head; for (int i = 0; i < n-1; i++) { point = new f_min_p; cout << "请输入指令标号："; cin >> point->op_mask; point->op_mask[2] = '\0'; cout << "请输入指令的使用概率："; cin >> point->p; point->huf_p = NULL; point->next = p1->next; p1->next = point; p1 = point; } return head; } huff_p* creat_huffman_tree(f_min_p* h) { f_min_p *h1, *min1, *min2, *comb; huff_p* head, *rd, *ld, *parent; h1 = h; min1 = fin_min(h1); ld = creat_huffp(min1); h1 = del_min(h1, min1); if (h1->next) { min2 = fin_min(h1); } else { min2 = h1; } rd = creat_huffp(min2); comb = new f_min_p; comb->next = NULL; comb->p = rd->p + ld->p; comb->op_mask[0] = '\0'; comb->op_mask[1] = '\0'; parent = creat_huffp(comb); insert_n(h1, comb); if (h1->next != NULL) { h1 = del_min(h1, min2); } parent->l_child = ld; parent->r_child = rd; comb->huf_p = parent; head = parent; while (h1->next != NULL) { min1 = fin_min(h1); if (min1->huf_p == NULL) { ld = creat_huffp(min1); } else { ld = min1->huf_p; } h1 = del_min(h1, min1); if (h1->next) { min2=fin_min(h1); } else { min2=h1; } if (min2->huf_p == NULL) { rd = creat_huffp(min2); } else { rd = min2->huf_p; } comb = new f_min_p; comb->next = NULL; comb->p = rd->p + ld->p; comb->op_mask[0] = '\0'; comb->op_mask[1] = '\0'; parent = creat_huffp(comb); if (h1 != NULL) { insert_n(h1, comb); } if (h1->next != NULL) { h1 = del_min(h1, min2); } if (h1->next == NULL && ld->p < rd->p) { huff_p* tmp = ld; ld = rd; rd = tmp; } parent->l_child = ld; parent->r_child = rd; comb->huf_p = parent; head = parent; if (h1->next == NULL) { break; } } delete comb; return head; } f_min_p* fin_min(f_min_p* h) { f_min_p *h1, *p1; h1 = h; p1 = h1; float min = h1->p; h1 = h1->next; while (h1) { if (min > (h1->p)) { min = h1->p; p1 = h1; } h1 = h1->next; } return p1; } f_min_p* del_min(f_min_p *h,f_min_p *p) { f_min_p *p1, *p2; p1 = h; p2 = h; if (h == p) { h = h->next; delete p; } else { while (p1->next != NULL) { p1 = p1->next; if (p1 == p) { p2->next = p1->next; delete p; break; } p2 = p1; } } return h; } void insert_n(f_min_p *h, f_min_p *p1) { p1->next = h->next; h->next = p1; } huff_p* creat_huffp(f_min_p* d) { huff_p* p1; p1 = new huff_p; p1->l_child = NULL; p1->r_child = NULL; p1->p = d->p; p1->op_mask[0] = d->op_mask[0]; p1->op_mask[1] = d->op_mask[1]; return p1; } void r_find(huff_p* p1, char code[], int i, huff_code* h) { if (p1->l_child) { code[i] = '1'; r_find(p1->l_child, code, i+1, h); } if (p1->op_mask[0] != '\0') { huff_code* p2 = new huff_code; p2->op_mask[0] = p1->op_mask[0]; p2->op_mask[1] = p1->op_mask[1]; p1->op_mask[2] = '\0'; p2->p = p1->p; int j = 0; for (; j < i; j++) { p2->code[j] = code[j]; } p2->code[j] = '\0'; p2->next = h->next; h->next = p2; } if (p1->r_child) { code[i] = '0'; r_find(p1->r_child, code, i+1, h); } delete p1; } void creat_huffman_code(huff_p* h1, huff_code* h) { int i = 0; char code[N] = {'\0'}; r_find(h1, code, i, h); } void output_huffman(huff_code* head) { huff_code* h = head->next; cout << "指令\t" << "概率\t" << "编码" << endl; cout<<"---------------------------------"<<endl; while (h) { h->op_mask[2] = '\0'; cout << h->op_mask << ":\t" << h->p << "\t" << h->code << endl; h = h->next; } cout << "---------------------------------" << endl; cout << endl; } void cal_sort_length(huff_code* head) { huff_code *h = head->next; double j = 0; float one_length = 0; float per_length = 0; float ext_length = 0;//按1-2-3-5扩展编码的最小长度为。 while (h) { float length = 0; int i = 0; while (h->code[i] != '\0') { length++; i++; } one_length = h->p*length; per_length = per_length + one_length; h = h->next; j++; } int i1 = int(j); huff_code *p2 = head->next; float* p_a = new float[i1]; //sort指令概率 int i0 = 0; while (p2) { p_a[i0++] = p2->p; p2 = p2->next; } float max, temp; int l; for (int s = 0; s < i1; s++) { max = p_a[s]; l = s; for (int k = s+1; k < i1; k++) { if (max<p_a[k]) { max = p_a[k]; l = k; } } temp = p_a[s]; p_a[s] = max; p_a[l] = temp; } //计算1-2-3-5扩展编码的最短平均长度 float* code_len = new float[i1]; code_len[0] = 1; code_len[1] = 2; code_len[2] = 3; code_len[3] = 5; for (int i = 4; i < j; i++) { code_len[i]=5; } l = 0; while (l<i1) { ext_length = ext_length + code_len[l]*p_a[l]; l++; } //计算等长编码平均长度； int q_length = ceil(log10(j)/log10(2)); cout << "此指令集操作码 huffman 编码的平均长度为：" << per_length<<endl; cout << "等长编码的平均长度为：" << q_length << endl; cout << "按1-2-3-5的扩展编码的最短平均编码长度为：" << ext_length; cout << endl; cout << endl; if (q_length > per_length) { cout << "可见 huffman 编码的平均长度要比等长编码的平均长度短" << endl; } else { cout << "huffman 编码有问题请仔细查看算法，以及输入的指令集的概率之和是否大于1。" << endl; } if (ext_length>per_length) { cout << "可见 huffman 编码的平均长度要比1-2-3-5扩展编码的最短平均长度短" << endl; } else { cout << "huffman 编码有问题请仔细查看算法，以及输入的指令集的概率之和是否大于1。" << endl; } }
