简单来说，观察者模式=发布者+订阅者。

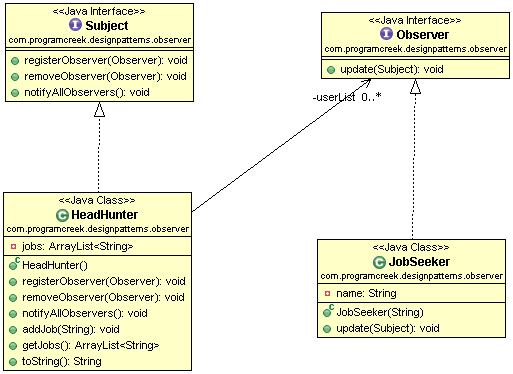

下面是一个有关猎头的典型的例子。在下面这张图当中有两个角色：猎头和寻找工作的人。找工作的人向猎头订阅，告知自己希望得到一份工作，当有新的工作机会的时候，猎头就会把这个信息通知给曾经向他订阅过的人。
Java代码
Subject接口：
1 |
public interface Subject { |
2 |
public void registerObserver(Observer observer); |
3 |
public void removeObserver(Observer observer); |
4 |
public void notifyAllObservers(); |
5 |
} |
Observer接口：
1 |
public interface Observer { |
2 |
public void update(Subject subject); |
3 |
} |
HeadCounter实现了Subject接口，实际上就是发布者：
01 |
public class HeadCounter implements Subject { |
02 |
03 |
private List<Observer> observerList; |
04 |
private List<String> jobList; |
05 |
06 |
public HeadCounter(){ |
07 |
observerList = new ArrayList<Observer>(); |
08 |
jobList = new ArrayList<String>(); |
09 |
} |
10 |
11 |
@Override |
12 |
public void registerObserver(final Observer observer) { |
13 |
if(! observerList.contains(observer)){ |
14 |
observerList.add(observer); |
15 |
} |
16 |
} |
17 |
18 |
@Override |
19 |
public void removeObserver(final Observer observer) { |
20 |
if(observerList.contains(observer)){ |
21 |
observerList.remove(observer); |
22 |
} |
23 |
} |
24 |
25 |
@Override |
26 |
public void notifyAllObservers() { |
27 |
for(Observer observer : observerList){ |
28 |
observer.update(this); |
29 |
} |
30 |
} |
31 |
32 |
public void addJob(final String job){ |
33 |
this.jobList.add(job); |
34 |
notifyAllObservers(); |
35 |
} |
36 |
37 |
public List<String> getJobs(){ |
38 |
return jobList; |
39 |
} |
40 |
41 |
public String toString(){ |
42 |
return jobList.toString(); |
43 |
} |
JobSeeker实现了Observer接口，实际上就是订阅者：
01 |
public class JobSeeker implements Observer { |
02 |
private String name; |
03 |
04 |
public JobSeeker(String name){ |
05 |
this.name = name; |
06 |
} |
07 |
08 |
@Override |
09 |
public void update(Subject subject) { |
10 |
System.out.println(this.name + " got notified!"); |
11 |
System.out.println(subject); |
12 |
} |
13 |
} |
程序实例入口：
01 |
public class Main { |
02 |
public static void main(String[] args) { |
03 |
HeadCounter headCounter = new HeadCounter(); |
04 |
//注册订阅者 |
05 |
headCounter.registerObserver(new JobSeeker("Mike")); |
06 |
headCounter.registerObserver(new JobSeeker("Chris")); |
07 |
headCounter.registerObserver(new JobSeeker("Jeff")); |
08 |
//通知所有订阅者有新的工作机会 |
09 |
headCounter.addJob("Google Job"); |
10 |
headCounter.addJob("Yahoo Job"); |
11 |
} |
12 |
} |
