部署三主三从redis cluster集群

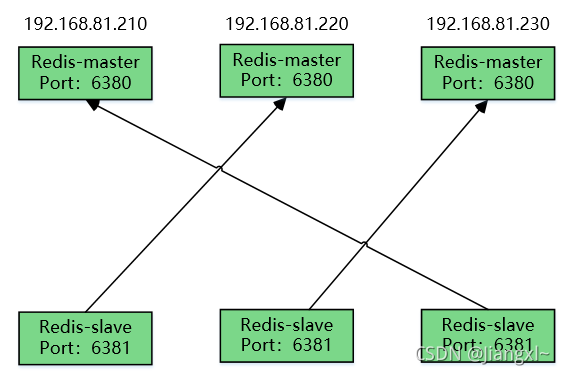

架构图
环境准备
1.redis运维脚本
使用这个脚本管理redis
#!/bin/bash #redis控制脚本 redis_port=$2 redis_name="redis_${redis_port}" redis_home=/data/redis_cluster/${redis_name} redis_conf=${redis_home}/conf/${redis_name}.conf redis_host=`ifconfig ens33 | awk 'NR==2{print $2}'` redis_pass=$3 red="\e[031m" green="\e[032m" yellow="\e[033m" black="\e[0m" Usage(){ echo "usage: sh $0 {start|stop|restart|login|ps|logs|-h} PORT" } Start(){ redis_cz=`netstat -lnpt | grep redis | grep "${redis_port}" | wc -l` if [ $redis_cz -eq 0 ];then redis-server ${redis_conf} if [ -z $state ];then echo -e "${green}redis ${redis_port}实例启动成功!${black}" else echo -e "${green}redis ${redis_port}实例重启成功!${black}" fi netstat -lnpt | grep ${redis_port} else if [ -z $state ];then echo -e "${yellow}redis "${redis_port}"实例已经是启动状态!${black}" netstat -lnpt | grep ${redis_port} fi fi } Stop(){ redis_cz=`netstat -lnpt | grep redis | grep "${redis_port}" | wc -l` if [ $redis_cz -gt 0 ];then redis-cli -h $redis_host -p $redis_port shutdown if [ -z $state ];then echo -e "${green}redis ${redis_port}实例关闭成功!" fi else if [ -z $state ];then echo -e "${red}redis "${redis_port}"实例没有启动!${black}" fi fi } Restart(){ state=restart Stop Start } Login(){ redis_cz=`netstat -lnpt | grep redis | grep "${redis_port}" | wc -l` if [ $redis_cz -gt 0 ];then redis-cli -h $redis_host -p $redis_port else echo -e "${red}redis ${redis_port}实例没有启动!${black}" echo -en "${yellow}是否要启动reis? [y/n]${black}" read action case $action in y|Y) Start Login ;; n|N) exit 1 ;; esac fi } Ps(){ ps aux | grep redis } Logs(){ tail -f ${redis_home}/logs/${redis_name}.log } Help(){ Usage echo "+-------------------------------------------------------------------------------+" echo "| start 启动redis |" echo "| stop 关闭redis |" echo "| restart 重启redis |" echo "| login 登陆redis |" echo "| ps 查看redis的进程信息,不需要加端口号 |" echo "| logs 查看redis日志持续输出 |" echo "| 除ps命令外,所有命令后面都需要加端口号 |" echo "+-------------------------------------------------------------------------------+" } if [ $# -ne 2 ];then if [ "$1" != "ps" ] && [ "$1" != "-h" ];then Usage exit 1 fi fi case $1 in start) Start ;; stop) Stop ;; restart) Restart ;; login) Login ;; ps) Ps ;; logs) Logs ;; -h) Help ;; *) Help ;; esac
2.部署redis节点
三个主机都执行,共部署两个redis节点,一个6380一个6381端口

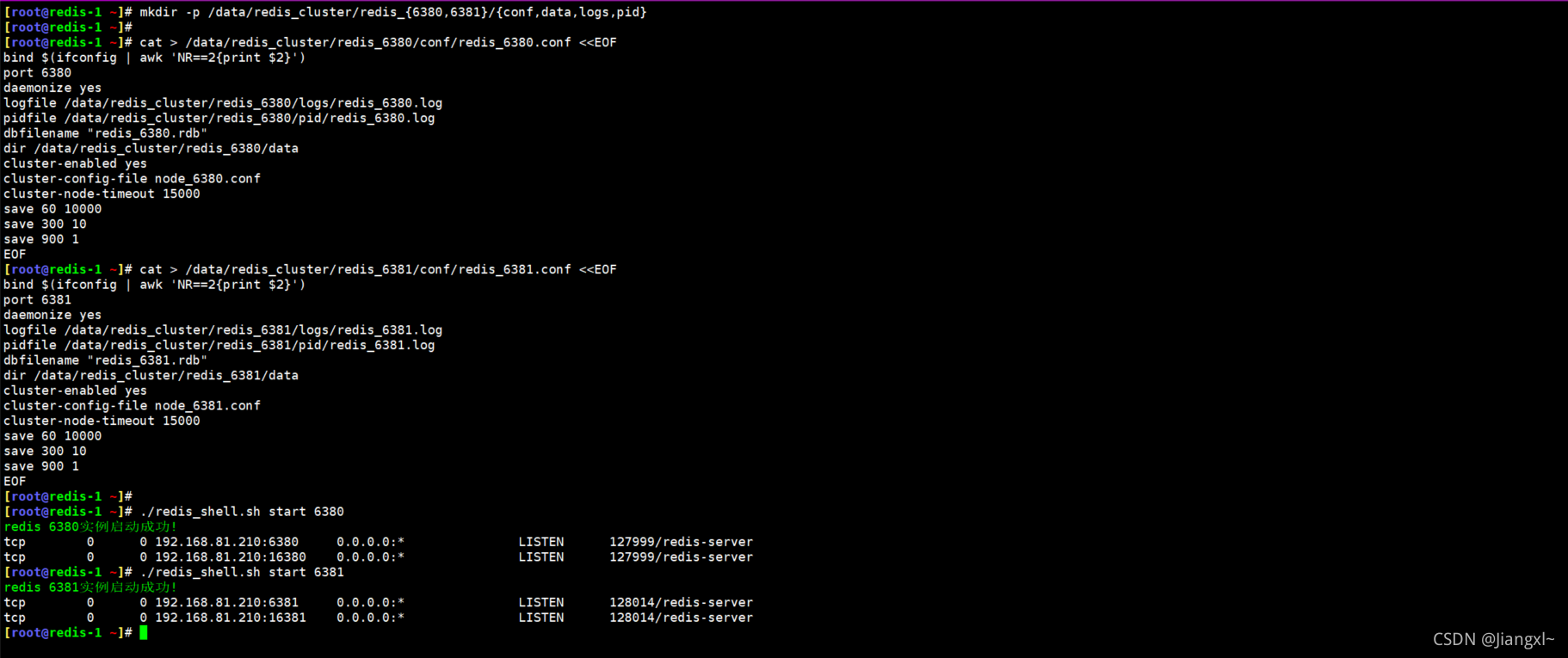

1.创建部署路径 mkdir -p /data/redis_cluster/redis_{6380,6381}/{conf,data,logs,pid} 2.准备配置文件 cat > /data/redis_cluster/redis_6380/conf/redis_6380.conf <<EOF bind $(ifconfig | awk 'NR==2{print $2}') port 6380 daemonize yes logfile /data/redis_cluster/redis_6380/logs/redis_6380.log pidfile /data/redis_cluster/redis_6380/pid/redis_6380.log dbfilename "redis_6380.rdb" dir /data/redis_cluster/redis_6380/data cluster-enabled yes cluster-config-file node_6380.conf cluster-node-timeout 15000 save 60 10000 save 300 10 save 900 1 EOF cat > /data/redis_cluster/redis_6381/conf/redis_6381.conf <<EOF bind $(ifconfig | awk 'NR==2{print $2}') port 6381 daemonize yes logfile /data/redis_cluster/redis_6381/logs/redis_6381.log pidfile /data/redis_cluster/redis_6381/pid/redis_6381.log dbfilename "redis_6381.rdb" dir /data/redis_cluster/redis_6381/data cluster-enabled yes cluster-config-file node_6381.conf cluster-node-timeout 15000 save 60 10000 save 300 10 save 900 1 EOF 3.启动 [root@redis-1 ~]# ./redis_shell.sh start 6380 redis 6380实例启动成功! tcp 0 0 192.168.81.210:6380 0.0.0.0:* LISTEN 127999/redis-server tcp 0 0 192.168.81.210:16380 0.0.0.0:* LISTEN 127999/redis-server [root@redis-1 ~]# ./redis_shell.sh start 6381 redis 6381实例启动成功! tcp 0 0 192.168.81.210:6381 0.0.0.0:* LISTEN 128014/redis-server tcp 0 0 192.168.81.210:16381 0.0.0.0:* LISTEN 128014/redis-server
3.配置集群节点之间相互发现
互相发现只需要在一个节点上操作即可

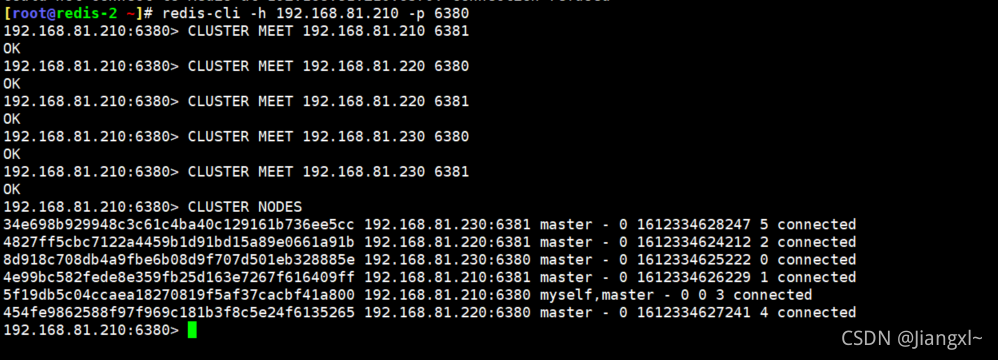

[root@redis-2 ~]# redis-cli -h 192.168.81.210 -p 6380 192.168.81.210:6380> CLUSTER MEET 192.168.81.210 6381 OK 192.168.81.210:6380> CLUSTER MEET 192.168.81.220 6380 OK 192.168.81.210:6380> CLUSTER MEET 192.168.81.220 6381 OK 192.168.81.210:6380> CLUSTER MEET 192.168.81.230 6380 OK 192.168.81.210:6380> CLUSTER MEET 192.168.81.230 6381 OK 192.168.81.210:6380> CLUSTER NODES 34e698b929948c3c61c4ba40c129161b736ee5cc 192.168.81.230:6381 master - 0 1612334628247 5 connected 4827ff5cbc7122a4459b1d91bd15a89e0661a91b 192.168.81.220:6381 master - 0 1612334624212 2 connected 8d918c708db4a9fbe6b08d9f707d501eb328885e 192.168.81.230:6380 master - 0 1612334625222 0 connected 4e99bc582fede8e359fb25d163e7267f616409ff 192.168.81.210:6381 master - 0 1612334626229 1 connected 5f19db5c04ccaea18270819f5af37cacbf41a800 192.168.81.210:6380 myself,master - 0 0 3 connected 454fe9862588f97f969c181b3f8c5e24f6135265 192.168.81.220:6380 master - 0 1612334627241 4 connected
6个redis节点已经全部发现
4.配置cluster分配槽位
在redis-1上操作即可
1.分配槽位 [root@redis-1 ~]# redis-cli -h 192.168.81.210 -p 6380 cluster addslots {0..5461} OK [root@redis-1 ~]# redis-cli -h 192.168.81.220 -p 6380 cluster addslots {5462..10922} OK [root@redis-1 ~]# redis-cli -h 192.168.81.230 -p 6380 cluster addslots {10923..16383} OK 2.查看集群状态 [root@redis-1 ~]# redis-cli -h 192.168.81.210 -p 6380 cluster info cluster_state:ok cluster_slots_assigned:16384 cluster_slots_ok:16384 cluster_slots_pfail:0 cluster_slots_fail:0 cluster_known_nodes:6 cluster_size:1 cluster_current_epoch:5 cluster_my_epoch:3 cluster_stats_messages_sent:488 cluster_stats_messages_received:488
5.配置三主三从集群

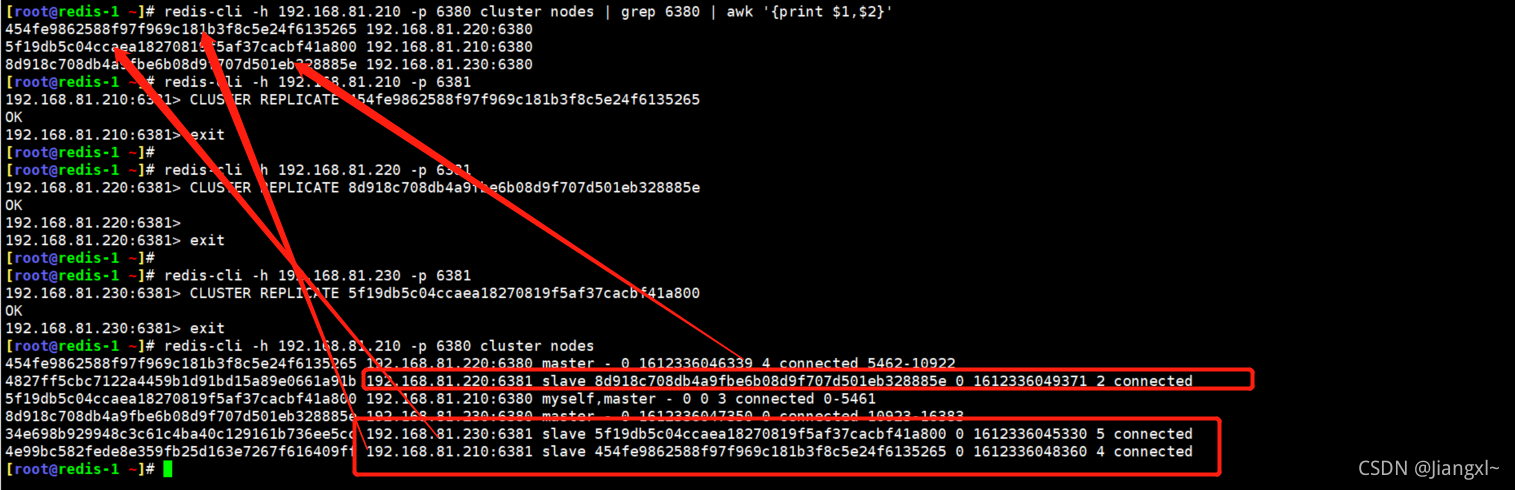

1.获取集群信息 [root@redis-1 ~]# redis-cli -h 192.168.81.210 -p 6380 cluster nodes | grep 6380 | awk '{print $1,$2}' 454fe9862588f97f969c181b3f8c5e24f6135265 192.168.81.220:6380 5f19db5c04ccaea18270819f5af37cacbf41a800 192.168.81.210:6380 8d918c708db4a9fbe6b08d9f707d501eb328885e 192.168.81.230:6380 2.配置交叉复制 [root@redis-1 ~]# redis-cli -h 192.168.81.210 -p 6381 192.168.81.210:6381> CLUSTER REPLICATE 454fe9862588f97f969c181b3f8c5e24f6135265 OK [root@redis-1 ~]# redis-cli -h 192.168.81.220 -p 6381 192.168.81.220:6381> CLUSTER REPLICATE 8d918c708db4a9fbe6b08d9f707d501eb328885e OK [root@redis-1 ~]# redis-cli -h 192.168.81.230 -p 6381 192.168.81.230:6381> CLUSTER REPLICATE 5f19db5c04ccaea18270819f5af37cacbf41a800 OK [root@redis-1 ~]# redis-cli -h 192.168.81.210 -p 6380 cluster nodes 454fe9862588f97f969c181b3f8c5e24f6135265 192.168.81.220:6380 master - 0 1612336046339 4 connected 5462-10922 4827ff5cbc7122a4459b1d91bd15a89e0661a91b 192.168.81.220:6381 slave 8d918c708db4a9fbe6b08d9f707d501eb328885e 0 1612336049371 2 connected 5f19db5c04ccaea18270819f5af37cacbf41a800 192.168.81.210:6380 myself,master - 0 0 3 connected 0-5461 8d918c708db4a9fbe6b08d9f707d501eb328885e 192.168.81.230:6380 master - 0 1612336047350 0 connected 10923-16383 34e698b929948c3c61c4ba40c129161b736ee5cc 192.168.81.230:6381 slave 5f19db5c04ccaea18270819f5af37cacbf41a800 0 1612336045330 5 connected 4e99bc582fede8e359fb25d163e7267f616409ff 192.168.81.210:6381 slave 454fe9862588f97f969c181b3f8c5e24f6135265 0 1612336048360 4 connected
已经交叉复制,到此三主三从redis cluster集群部署完成
6.快速删除一个redis cluster集群方式
两种方法:
- 将所有redis节点的数据文件全部删除包括rdb、node_6380.conf
- 登陆每一个节点,执行cluster reset
