命令行输出 :
D:\ffmpeg>ffmpeg -layouts ffmpeg version n4.4-19-g8d172d9409 Copyright (c) 2000-2021 the FFmpeg developers built with gcc 10-win32 (GCC) 20210408 configuration: --prefix=/ffbuild/prefix --pkg-config-flags=--static --pkg-config=pkg-config --cross-prefix=x86_64-w64-mingw32- --arch=x86_64 --target-os=mingw32 --enable-gpl --enable-version3 --disable-debug --enable-shared --disable-static --disable-w32threads --enable-pthreads --enable-iconv --enable-libxml2 --enable-zlib --enable-libfreetype --enable-libfribidi --enable-gmp --enable-lzma --enable-fontconfig --enable-libvorbis --enable-opencl --enable-libvmaf --enable-vulkan --enable-amf --enable-libaom --enable-avisynth --enable-libdav1d --enable-libdavs2 --enable-ffnvcodec --enable-cuda-llvm --enable-libglslang --enable-libgme --enable-libass --enable-libbluray --enable-libmp3lame --enable-libopus --enable-libtheora --enable-libvpx --enable-libwebp --enable-lv2 --enable-libmfx --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librav1e --enable-librubberband --enable-schannel --enable-sdl2 --enable-libsoxr --enable-libsrt --enable-libsvtav1 --enable-libtwolame --enable-libuavs3d --enable-libvidstab --enable-libx264 --enable-libx265 --enable-libxavs2 --enable-libxvid --enable-libzimg --extra-cflags=-DLIBTWOLAME_STATIC --extra-cxxflags= --extra-ldflags=-pthread --extra-ldexeflags= --extra-libs=-lgomp libavutil 56. 70.100 / 56. 70.100 libavcodec 58.134.100 / 58.134.100 libavformat 58. 76.100 / 58. 76.100 libavdevice 58. 13.100 / 58. 13.100 libavfilter 7.110.100 / 7.110.100 libswscale 5. 9.100 / 5. 9.100 libswresample 3. 9.100 / 3. 9.100 libpostproc 55. 9.100 / 55. 9.100 Individual channels: NAME DESCRIPTION FL front left FR front right FC front center LFE low frequency BL back left BR back right FLC front left-of-center FRC front right-of-center BC back center SL side left SR side right TC top center TFL top front left TFC top front center TFR top front right TBL top back left TBC top back center TBR top back right DL downmix left DR downmix right WL wide left WR wide right SDL surround direct left SDR surround direct right LFE2 low frequency 2 TSL top side left TSR top side right BFC bottom front center BFL bottom front left BFR bottom front right Standard channel layouts: NAME DECOMPOSITION mono FC stereo FL+FR 2.1 FL+FR+LFE 3.0 FL+FR+FC 3.0(back) FL+FR+BC 4.0 FL+FR+FC+BC quad FL+FR+BL+BR quad(side) FL+FR+SL+SR 3.1 FL+FR+FC+LFE 5.0 FL+FR+FC+BL+BR 5.0(side) FL+FR+FC+SL+SR 4.1 FL+FR+FC+LFE+BC 5.1 FL+FR+FC+LFE+BL+BR 5.1(side) FL+FR+FC+LFE+SL+SR 6.0 FL+FR+FC+BC+SL+SR 6.0(front) FL+FR+FLC+FRC+SL+SR hexagonal FL+FR+FC+BL+BR+BC 6.1 FL+FR+FC+LFE+BC+SL+SR 6.1(back) FL+FR+FC+LFE+BL+BR+BC 6.1(front) FL+FR+LFE+FLC+FRC+SL+SR 7.0 FL+FR+FC+BL+BR+SL+SR 7.0(front) FL+FR+FC+FLC+FRC+SL+SR 7.1 FL+FR+FC+LFE+BL+BR+SL+SR 7.1(wide) FL+FR+FC+LFE+BL+BR+FLC+FRC 7.1(wide-side) FL+FR+FC+LFE+FLC+FRC+SL+SR octagonal FL+FR+FC+BL+BR+BC+SL+SR hexadecagonal FL+FR+FC+BL+BR+BC+SL+SR+TFL+TFC+TFR+TBL+TBC+TBR+WL+WR downmix DL+DR 22.2 FL+FR+FC+LFE+BL+BR+FLC+FRC+BC+SL+SR+TC+TFL+TFC+TFR+TBL+TBC+TBR+LFE2+TSL+TSR+BFC+BFL+BFR D:\ffmpeg>
前置左声道 :
FL front left
前置右声道 :
FR front right
前置中间声道 :
FC front center
低音炮 :
LFE low frequency
立体声 = 前置左声道 + 前置右声道
stereo FL+FR
单声道 = 前置中间声道
mono FC
六、显示可用的音频采样格式
帮助文档对应内容 :
-sample_fmts show available audio sample formats // 显示可用的音频采样格式
显示可用的音频采样格式命令 :

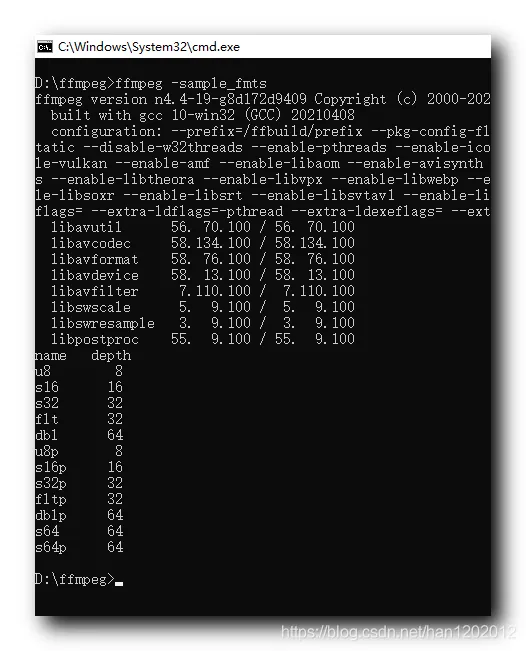

ffmpeg -sample_fmts
执行过程 :
命令行输出 :
D:\ffmpeg>ffmpeg -sample_fmts ffmpeg version n4.4-19-g8d172d9409 Copyright (c) 2000-2021 the FFmpeg developers built with gcc 10-win32 (GCC) 20210408 configuration: --prefix=/ffbuild/prefix --pkg-config-flags=--static --pkg-config=pkg-config --cross-prefix=x86_64-w64-mingw32- --arch=x86_64 --target-os=mingw32 --enable-gpl --enable-version3 --disable-debug --enable-shared --disable-static --disable-w32threads --enable-pthreads --enable-iconv --enable-libxml2 --enable-zlib --enable-libfreetype --enable-libfribidi --enable-gmp --enable-lzma --enable-fontconfig --enable-libvorbis --enable-opencl --enable-libvmaf --enable-vulkan --enable-amf --enable-libaom --enable-avisynth --enable-libdav1d --enable-libdavs2 --enable-ffnvcodec --enable-cuda-llvm --enable-libglslang --enable-libgme --enable-libass --enable-libbluray --enable-libmp3lame --enable-libopus --enable-libtheora --enable-libvpx --enable-libwebp --enable-lv2 --enable-libmfx --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librav1e --enable-librubberband --enable-schannel --enable-sdl2 --enable-libsoxr --enable-libsrt --enable-libsvtav1 --enable-libtwolame --enable-libuavs3d --enable-libvidstab --enable-libx264 --enable-libx265 --enable-libxavs2 --enable-libxvid --enable-libzimg --extra-cflags=-DLIBTWOLAME_STATIC --extra-cxxflags= --extra-ldflags=-pthread --extra-ldexeflags= --extra-libs=-lgomp libavutil 56. 70.100 / 56. 70.100 libavcodec 58.134.100 / 58.134.100 libavformat 58. 76.100 / 58. 76.100 libavdevice 58. 13.100 / 58. 13.100 libavfilter 7.110.100 / 7.110.100 libswscale 5. 9.100 / 5. 9.100 libswresample 3. 9.100 / 3. 9.100 libpostproc 55. 9.100 / 55. 9.100 name depth u8 8 s16 16 s32 32 flt 32 dbl 64 u8p 8 s16p 16 s32p 32 fltp 32 dblp 64 s64 64 s64p 64 D:\ffmpeg>
每个音频采样为 16 位 ; 注意 s16 与 s16p 是不同的 ;
s16 16 s16p 16
七、显示可用的颜色名称
帮助文档对应内容 :
-colors show available color names // 显示可用的颜色名称
显示可用的颜色名称命令 :

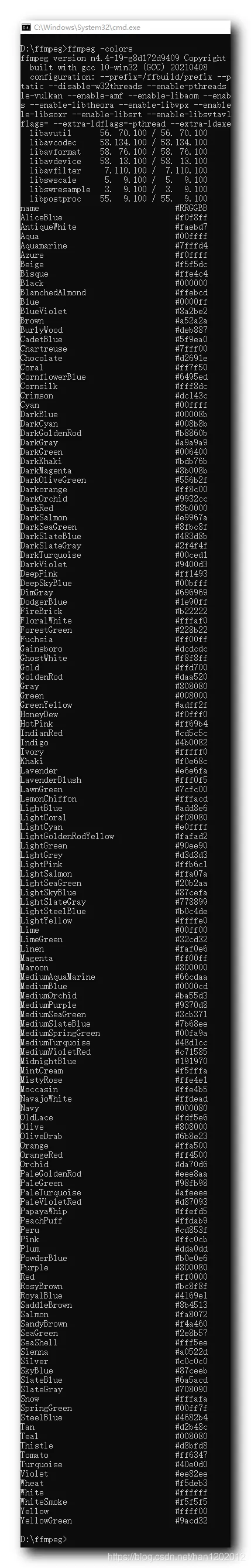

ffmpeg -colors
执行过程 :
命令行输出 :
D:\ffmpeg>ffmpeg -colors ffmpeg version n4.4-19-g8d172d9409 Copyright (c) 2000-2021 the FFmpeg developers built with gcc 10-win32 (GCC) 20210408 configuration: --prefix=/ffbuild/prefix --pkg-config-flags=--static --pkg-config=pkg-config --cross-prefix=x86_64-w64-mingw32- --arch=x86_64 --target-os=mingw32 --enable-gpl --enable-version3 --disable-debug --enable-shared --disable-static --disable-w32threads --enable-pthreads --enable-iconv --enable-libxml2 --enable-zlib --enable-libfreetype --enable-libfribidi --enable-gmp --enable-lzma --enable-fontconfig --enable-libvorbis --enable-opencl --enable-libvmaf --enable-vulkan --enable-amf --enable-libaom --enable-avisynth --enable-libdav1d --enable-libdavs2 --enable-ffnvcodec --enable-cuda-llvm --enable-libglslang --enable-libgme --enable-libass --enable-libbluray --enable-libmp3lame --enable-libopus --enable-libtheora --enable-libvpx --enable-libwebp --enable-lv2 --enable-libmfx --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librav1e --enable-librubberband --enable-schannel --enable-sdl2 --enable-libsoxr --enable-libsrt --enable-libsvtav1 --enable-libtwolame --enable-libuavs3d --enable-libvidstab --enable-libx264 --enable-libx265 --enable-libxavs2 --enable-libxvid --enable-libzimg --extra-cflags=-DLIBTWOLAME_STATIC --extra-cxxflags= --extra-ldflags=-pthread --extra-ldexeflags= --extra-libs=-lgomp libavutil 56. 70.100 / 56. 70.100 libavcodec 58.134.100 / 58.134.100 libavformat 58. 76.100 / 58. 76.100 libavdevice 58. 13.100 / 58. 13.100 libavfilter 7.110.100 / 7.110.100 libswscale 5. 9.100 / 5. 9.100 libswresample 3. 9.100 / 3. 9.100 libpostproc 55. 9.100 / 55. 9.100 name #RRGGBB AliceBlue #f0f8ff AntiqueWhite #faebd7 Aqua #00ffff Aquamarine #7fffd4 Azure #f0ffff Beige #f5f5dc Bisque #ffe4c4 Black #000000 BlanchedAlmond #ffebcd Blue #0000ff BlueViolet #8a2be2 Brown #a52a2a BurlyWood #deb887 CadetBlue #5f9ea0 Chartreuse #7fff00 Chocolate #d2691e Coral #ff7f50 CornflowerBlue #6495ed Cornsilk #fff8dc Crimson #dc143c Cyan #00ffff DarkBlue #00008b DarkCyan #008b8b DarkGoldenRod #b8860b DarkGray #a9a9a9 DarkGreen #006400 DarkKhaki #bdb76b DarkMagenta #8b008b DarkOliveGreen #556b2f Darkorange #ff8c00 DarkOrchid #9932cc DarkRed #8b0000 DarkSalmon #e9967a DarkSeaGreen #8fbc8f DarkSlateBlue #483d8b DarkSlateGray #2f4f4f DarkTurquoise #00ced1 DarkViolet #9400d3 DeepPink #ff1493 DeepSkyBlue #00bfff DimGray #696969 DodgerBlue #1e90ff FireBrick #b22222 FloralWhite #fffaf0 ForestGreen #228b22 Fuchsia #ff00ff Gainsboro #dcdcdc GhostWhite #f8f8ff Gold #ffd700 GoldenRod #daa520 Gray #808080 Green #008000 GreenYellow #adff2f HoneyDew #f0fff0 HotPink #ff69b4 IndianRed #cd5c5c Indigo #4b0082 Ivory #fffff0 Khaki #f0e68c Lavender #e6e6fa LavenderBlush #fff0f5 LawnGreen #7cfc00 LemonChiffon #fffacd LightBlue #add8e6 LightCoral #f08080 LightCyan #e0ffff LightGoldenRodYellow #fafad2 LightGreen #90ee90 LightGrey #d3d3d3 LightPink #ffb6c1 LightSalmon #ffa07a LightSeaGreen #20b2aa LightSkyBlue #87cefa LightSlateGray #778899 LightSteelBlue #b0c4de LightYellow #ffffe0 Lime #00ff00 LimeGreen #32cd32 Linen #faf0e6 Magenta #ff00ff Maroon #800000 MediumAquaMarine #66cdaa MediumBlue #0000cd MediumOrchid #ba55d3 MediumPurple #9370d8 MediumSeaGreen #3cb371 MediumSlateBlue #7b68ee MediumSpringGreen #00fa9a MediumTurquoise #48d1cc MediumVioletRed #c71585 MidnightBlue #191970 MintCream #f5fffa MistyRose #ffe4e1 Moccasin #ffe4b5 NavajoWhite #ffdead Navy #000080 OldLace #fdf5e6 Olive #808000 OliveDrab #6b8e23 Orange #ffa500 OrangeRed #ff4500 Orchid #da70d6 PaleGoldenRod #eee8aa PaleGreen #98fb98 PaleTurquoise #afeeee PaleVioletRed #d87093 PapayaWhip #ffefd5 PeachPuff #ffdab9 Peru #cd853f Pink #ffc0cb Plum #dda0dd PowderBlue #b0e0e6 Purple #800080 Red #ff0000 RosyBrown #bc8f8f RoyalBlue #4169e1 SaddleBrown #8b4513 Salmon #fa8072 SandyBrown #f4a460 SeaGreen #2e8b57 SeaShell #fff5ee Sienna #a0522d Silver #c0c0c0 SkyBlue #87ceeb SlateBlue #6a5acd SlateGray #708090 Snow #fffafa SpringGreen #00ff7f SteelBlue #4682b4 Tan #d2b48c Teal #008080 Thistle #d8bfd8 Tomato #ff6347 Turquoise #40e0d0 Violet #ee82ee Wheat #f5deb3 White #ffffff WhiteSmoke #f5f5f5 Yellow #ffff00 YellowGreen #9acd32 D:\ffmpeg>
前者是别名 , 后面是 RGB 颜色值 , 这 3 33 个分量 , 每个分量占 1 11 字节 , 橙色 的颜色值为 # f f a 500 \rm \#ffa500#ffa500 ;
Orange #ffa500
