交换器介绍
RabbitMQ中有三种主要的交互器分别如下
交换器 说明
direct 发布与订阅 完全匹配
topic 主体，规则匹配
fanout 广播
topic介绍
TopicExchange 是比较复杂也比较灵活的 种路由策略,在TopicExchange 中,Queue 通过routingkey 绑定到 TopicExchange 上,当消息到达 TopicExchange 后,TopicExchange 根据消息的routingkey 消息路由到一个或者多 Queue上，相比direct模式topic会更加的灵活些。

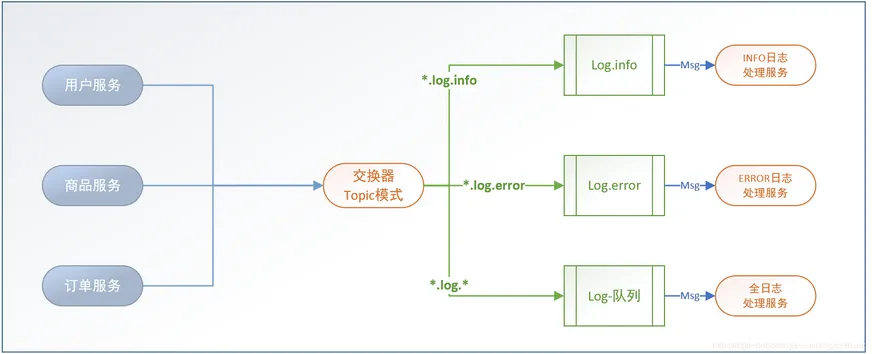

本案例通过两个项目来实现，一个consumer项目和一个provider项目。
1.创建消费者

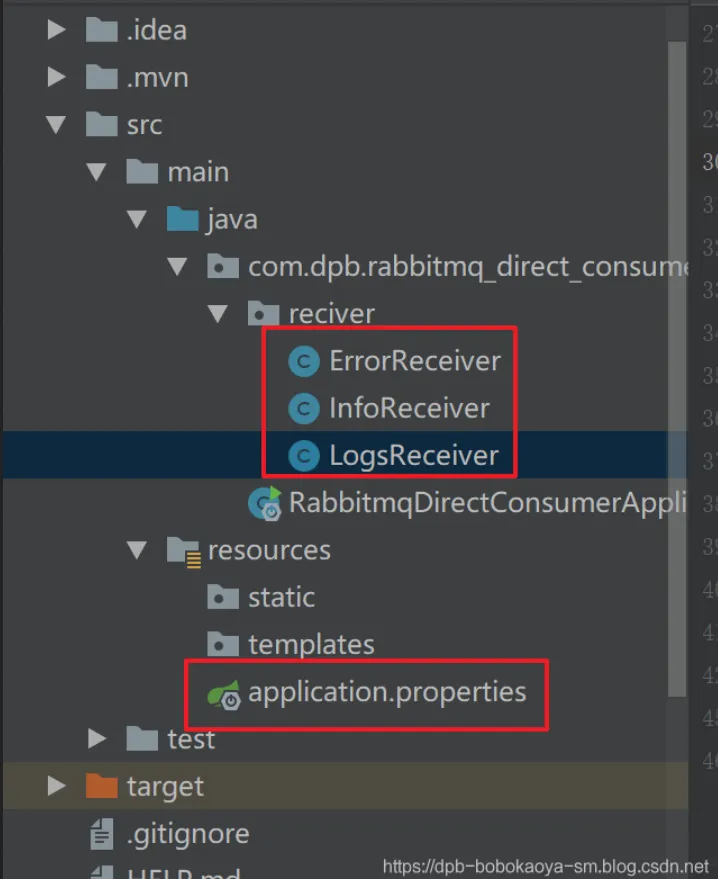

项目结构
配置文件
spring.application.name=springcloud-mq spring.rabbitmq.host=192.168.88.150 spring.rabbitmq.port=5672 spring.rabbitmq.username=dpb spring.rabbitmq.password=123 #设置交换器的名称 mq.config.exchange=log.topic #info 队列名称 mq.config.queue.info=log.info #error 队列名称 mq.config.queue.error=log.error # log 队列名称 mq.config.queue.logs=log.all
三个消费者
@Component @RabbitListener( bindings=@QueueBinding( value=@Queue(value="${mq.config.queue.info}",autoDelete="true"), exchange=@Exchange(value="${mq.config.exchange}",type= ExchangeTypes.TOPIC), key="*.log.info" ) ) public class InfoReceiver { /** * 接收消息的方法。采用消息队列监听机制 * @param msg */ @RabbitHandler public void process(String msg){ System.out.println("Info........receiver: "+msg); } }
@Component @RabbitListener( bindings=@QueueBinding( value=@Queue(value="${mq.config.queue.error}",autoDelete="true"), exchange=@Exchange(value="${mq.config.exchange}",type= ExchangeTypes.TOPIC), key="*.log.error" ) ) public class ErrorReceiver { /** * 接收消息的方法。采用消息队列监听机制 * @param msg */ @RabbitHandler public void process(String msg){ System.out.println("Error........receiver: "+msg); } }
@Component @RabbitListener( bindings=@QueueBinding( value=@Queue(value="${mq.config.queue.logs}",autoDelete="true"), exchange=@Exchange(value="${mq.config.exchange}",type= ExchangeTypes.TOPIC), key="*.log.*" ) ) public class LogsReceiver { /** * 接收消息的方法。采用消息队列监听机制 * @param msg */ @RabbitHandler public void process(String msg){ System.out.println("All........receiver: "+msg); } }
然后启动项目等待消息即可~
2.创建服务提供者

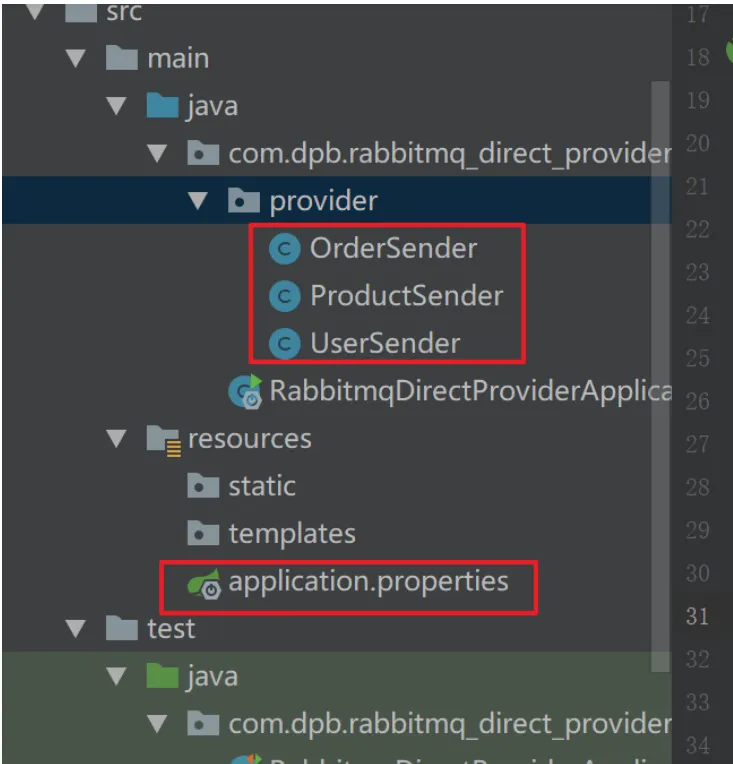

目录结构
配置文件
spring.application.name=springcloud-mq spring.rabbitmq.host=192.168.88.150 spring.rabbitmq.port=5672 spring.rabbitmq.username=dpb spring.rabbitmq.password=123 #设置交换器的名称 mq.config.exchange=log.topic
三个服务提供者
@Component public class UserSender { @Autowired private AmqpTemplate rabbitAmqpTemplate; //exchange 交换器名称 @Value("${mq.config.exchange}") private String exchange; /* * 发送消息的方法 */ public void send(String msg){ //向消息队列发送消息 //参数一：交换器名称。 //参数二：路由键 //参数三：消息 this.rabbitAmqpTemplate.convertAndSend(this.exchange,"user.log.debug", "user.log.debug....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"user.log.info", "user.log.info....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"user.log.warn","user.log.warn....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"user.log.error", "user.log.error....."+msg); } }
@Component public class ProductSender { @Autowired private AmqpTemplate rabbitAmqpTemplate; //exchange 交换器名称 @Value("${mq.config.exchange}") private String exchange; /* * 发送消息的方法 */ public void send(String msg){ //向消息队列发送消息 //参数一：交换器名称。 //参数二：路由键 //参数三：消息 this.rabbitAmqpTemplate.convertAndSend(this.exchange,"product.log.debug", "product.log.debug....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"product.log.info", "product.log.info....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"product.log.warn","product.log.warn....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"product.log.error", "product.log.error....."+msg); } }
@Component public class OrderSender { @Autowired private AmqpTemplate rabbitAmqpTemplate; //exchange 交换器名称 @Value("${mq.config.exchange}") private String exchange; /* * 发送消息的方法 */ public void send(String msg){ //向消息队列发送消息 //参数一：交换器名称。 //参数二：路由键 //参数三：消息 this.rabbitAmqpTemplate.convertAndSend(this.exchange,"order.log.debug", "order.log.debug....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"order.log.info", "order.log.info....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"order.log.warn","order.log.warn....."+msg); this.rabbitAmqpTemplate.convertAndSend(this.exchange,"order.log.error", "order.log.error....."+msg); } }
单元测试
@RunWith(SpringRunner.class) @SpringBootTest(classes = RabbitmqDirectProviderApplication.class) public class RabbitmqDirectProviderApplicationTests { @Autowired private UserSender usersender; @Autowired private ProductSender productsender; @Autowired private OrderSender ordersender; @Test public void contextLoads() throws Exception{ this.usersender.send("UserSender....."); this.productsender.send("ProductSender...."); this.ordersender.send("OrderSender......"); } }

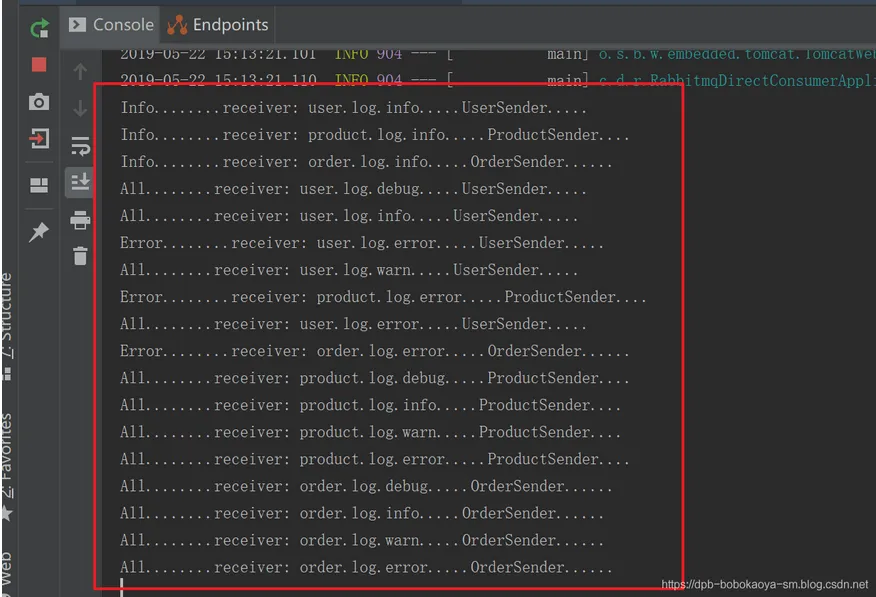

启动服务观察消费者控制台的输出

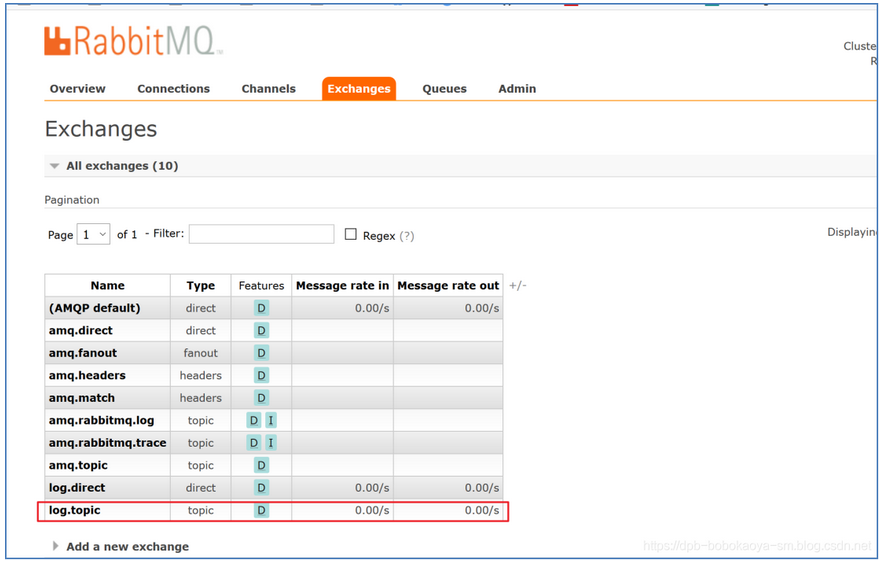

也可以观察控制台
搞定~
