.Net通用钉钉自定义机器人
本文提供全流程,中文翻译
Chinar的初衷是将一种简单的生活方式带给世人
使有限时间 具备无限可能
Chinar 教程效果:
全文高清图片,点击即可放大观看 (很多人竟然不知道)
1
Presentation —— 介绍
疫情原因,居家办公,移动办公或将成为未来世界的主流。
一、实现钉钉自己定义消息通知?
项目需求:需要直接通知消息或相关资料分享到钉钉里。
看了下钉钉官方文档,搜索了下发现网络上教程接入这块不够详细,初学者入门较难。各种失败案例!
官方文档详细,但实现方式上没有过多的说明。
本质上就是一个 POST 消息请求
所以我们只要, 完成正常发送POST 使得钉钉方从中可获取对应格式的数据 即可!
ps:最近有人吐槽我说:粉丝文章真恶心,不开放阅读不如不看。
我想说:辛苦总结的资料,基本都是经过多次测试,拿来即用。
您不点赞也就算了,关注一下都不愿意,也是醉了。
我的时间和经验也不是大风刮来的。
2
Utility Class —— 工具类
Chinar 为您节约宝贵时间,所有函数都已封装完毕。无任何数据类,无需序列化。
只此一个工具脚本!.Net通用!
您只需

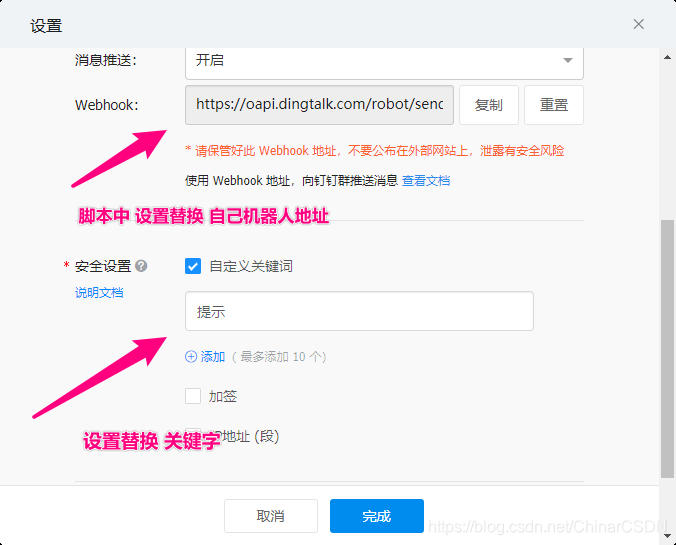

1. Webhook地址和关键字改用自己机器人
2. 调用对应方法即可发送消息。
工具类代码
using System;
using System.Collections.Generic;
using System.IO;
using System.Net;
using System.Text;
public class ChinarDing
{
/// <summary>
/// Webhook 地址
/// </summary>
public static string WebHookUrl = "https://oapi.dingtalk.com/robot/send?access_token=b6592dff2c2d2f";
/// <summary>
/// 关键字 1
/// 机器人设置的关键字
/// </summary>
private const string keyWord = "【提示】";
/// <summary>
/// 缓存 Json
/// </summary>
private static readonly StringBuilder jsonStringBuilder = new StringBuilder(512);
/// <summary>
/// 发送 Post 数据
/// </summary>
/// <param name="data">数据</param>
/// <returns>Json</returns>
public static String Post(string data)
{
var httpWebRequest = (HttpWebRequest) WebRequest.Create(WebHookUrl);
httpWebRequest.ContentType = "application/json";
httpWebRequest.Method = WebRequestMethods.Http.Post;
if (data != null)
{
byte[] dataBytes = Encoding.UTF8.GetBytes(data);
httpWebRequest.ContentLength = dataBytes.Length;
using (var reqStream = httpWebRequest.GetRequestStream())
{
reqStream.Write(dataBytes, 0, dataBytes.Length);
httpWebRequest.GetRequestStream().Write(dataBytes, 0, dataBytes.Length);
}
}
using (var httpWebResponse = (HttpWebResponse) httpWebRequest.GetResponse())
{
var responseStream = httpWebResponse.GetResponseStream();
return responseStream == null ? null : new StreamReader(responseStream, Encoding.UTF8).ReadToEnd();
}
}
/// <summary>
/// 发送 text 类型
/// </summary>
/// <param name="content">内容</param>
/// <param name="phoneNumbers">@谁?支持多人</param>
/// <param name="isAtAll">@所有人</param>
public static void SendText(string content, List<string> phoneNumbers, bool isAtAll)
{
//var addColon = mobileList.Select(_ => $"\"{_}\""); //有时特殊需要,对电话号码每一项加上 “132XXX43210”
jsonStringBuilder.Clear();
var listToString = string.Join(",", phoneNumbers);
jsonStringBuilder.Append($"{{\"msgtype\":\"text\",\"text\":{{\"content\":\"{keyWord + content}\"}},\"at\":{{\"atMobiles\":[{listToString}],\"isAtAll\":{isAtAll.ToString().ToLower()}}}}}");
string ReturnJson = Post(jsonStringBuilder.ToString());
Console.Write(ReturnJson);
}
/// <summary>
/// 发送 Link 类型
/// </summary>
/// <param name="title">标题</param>
/// <param name="text">内容</param>
/// <param name="imageUrl">图片链接</param>
/// <param name="contentUrl">消息跳转链接</param>
public static void SendLink(string title, string text, string imageUrl, string contentUrl)
{
jsonStringBuilder.Clear();
jsonStringBuilder.Append("{\"msgtype\":\"link\",\"link\":{" +
$"\"title\":\"{keyWord + title}\"," +
$"\"text\":\"{text}\"," +
$"\"picUrl\":\"{imageUrl}\"," +
$"\"messageUrl\":\"{contentUrl}\"}}}}");
string ReturnJson = Post(jsonStringBuilder.ToString());
Console.Write(ReturnJson);
}
/// <summary>
/// 发送markdown类消息
/// </summary>
/// <param name="title">标题</param>
/// <param name="text">消息主体</param>
/// <param name="atMobiles">@人员电话</param>
/// <param name="isAtAll">是否@群所有成员</param>
public static void SendMarkdown(string title, string text, string imageUrl, List<string> phoneNumbers, bool isAtAll)
{
var listToString = string.Join(",", phoneNumbers);
jsonStringBuilder.Clear();
jsonStringBuilder.Append($"{{\"msgtype\":\"markdown\",\"" +
$"markdown\":{{\"title\":\"{keyWord + title}\"," +
$"\"text\":\"{text} " +
$"![screenshot]({imageUrl})\\n> [Chinar](https://www.chinar.com) \\n\"}}," +
$"\"at\":{{\"atMobiles\":[\"{listToString}\"]," +
$"\"isAtAll\":{isAtAll.ToString().ToLower()}}}}}");
string ReturnJson = Post(jsonStringBuilder.ToString());
Console.Write(ReturnJson);
}
/// <summary>
/// 整体发送ActionCard类型消息
/// </summary>
/// <param name="title">标题</param>
/// <param name="imageUrl">图片Url</param>
/// <param name="texttitle">文本标题</param>
/// <param name="text">文本</param>
/// <param name="btnTitle">按钮标题</param>
/// <param name="buttonUrl">按钮Url</param>
/// <param name="btnOrientation">按钮排列 0-按钮竖直排列,1-按钮横向排列</param>
public static void SendActionCard(string title, string imageUrl, string texttitle, string text, string btnTitle, string buttonUrl, string btnOrientation)
{
jsonStringBuilder.Clear();
jsonStringBuilder.Append($"{{\"actionCard\":{{\"title\":\"{keyWord + title}\"," +
$"\"text\":\"![screenshot]({imageUrl}) \\r\\n ### {texttitle} \\r\\n {text}\"," +
$"\"btnOrientation\":\"{btnOrientation}\"," +
$"\"singleTitle\":\"{btnTitle}\"," +
$"\"singleURL\":\"{buttonUrl}\"}}," +
$"\"msgtype\":\"actionCard\"}}");
string ReturnJson = Post(jsonStringBuilder.ToString());
//Console.Write(ReturnJson);
}
/// <summary>
/// 独立发送 ActionCard类型消息
/// </summary>
/// <param name="title">标题</param>
/// <param name="imageUrl">图片Url</param>
/// <param name="texttitle">文本标题</param>
/// <param name="text">文本</param>
/// <param name="buttonUrl1">按钮1Url</param>
/// <param name="buttonUrl2">按钮2Url</param>
/// <param name="singleURL1">按钮1访问Url</param>
/// <param name="singleURL2">按钮2访问Url</param>
/// <param name="btnOrientation"></param>
public static void SendActionCard(string title, string imageUrl, string texttitle, string text, string buttonUrl1, string buttonUrl2, string singleURL1, string singleURL2, string btnOrientation)
{
jsonStringBuilder.Clear();
jsonStringBuilder.Append($"{{\"actionCard\":{{\"title\":\"{keyWord + title}\"," +
$"\"text\":\"![screenshot]({imageUrl}) \\r\\n ### {texttitle} \\r\\n {text}\"," +
$"\"btnOrientation\":\"{btnOrientation}\"," +
$"\"btns\":[{{\"title\":\"{buttonUrl1}\"," +
$"\"actionURL\":\"{singleURL1}\"}}," +
$"{{\"title\":\"{buttonUrl2}\"," +
$"\"actionURL\":\"{singleURL2}\"}}]}}," +
$"\"msgtype\":\"actionCard\"}}");
string ReturnJson = Post(jsonStringBuilder.ToString());
//Console.Write(ReturnJson);
}
/// <summary>
/// 发送 FeedCard类型消息
/// </summary>
/// <param name="title1">标题 单条信息文本</param>
/// <param name="messageUrl1">点击单条信息到跳转链接</param>
/// <param name="imageUrl1">单条信息后面图片的URL</param>
/// <param name="title2"></param>
/// <param name="messageUrl2"></param>
/// <param name="imageUrl2"></param>
public static void SendFeedCard(string title1, string messageUrl1, string imageUrl1, string title2, string messageUrl2, string imageUrl2)
{
jsonStringBuilder.Clear();
jsonStringBuilder.Append($"{{\"feedCard\":{{\"links\":[{{\"title\":\"{keyWord + title1}\"," +
$"\"messageURL\":\"{messageUrl1}\"," +
$"\"picURL\":\"{imageUrl1}\"}}," +
$"{{\"title\":\"{title2}\"," +
$"\"messageURL\":\"{messageUrl2}\"," +
$"\"picURL\":\"{imageUrl2}\"}}]}}," +
$"\"msgtype\":\"feedCard\"}}");
string ReturnJson = Post(jsonStringBuilder.ToString());
}
}
3
Use —— 使用方法
疫情原因,居家办公,移动办公或将成为未来世界的主流。
静态函数,直接调用即可

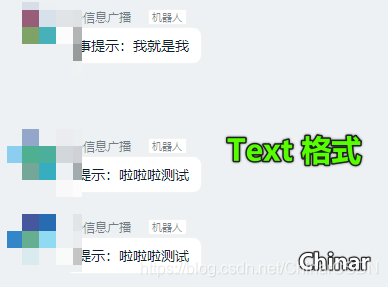

// 1- Text 类型
ChinarDing.SendText("Hello World!", new List<string>(), false);
//2- Link 类型
ChinarDing.SendLink("Link", "测试 Post Link 请求", "http://qiniu.chinar.xin/DingChinar-3.png", "http://www.chinar.xin");

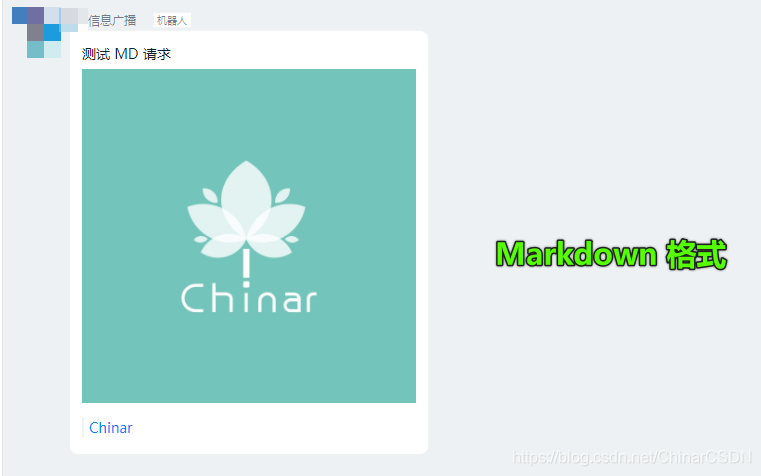

// 3- Markdown 类型
ChinarDing.SendMarkdown("Markdown", "测试 MD 请求", "http://qiniu.chinar.xin/DingChinar-3.png", new List<string> {"135XXX53210"}, false);

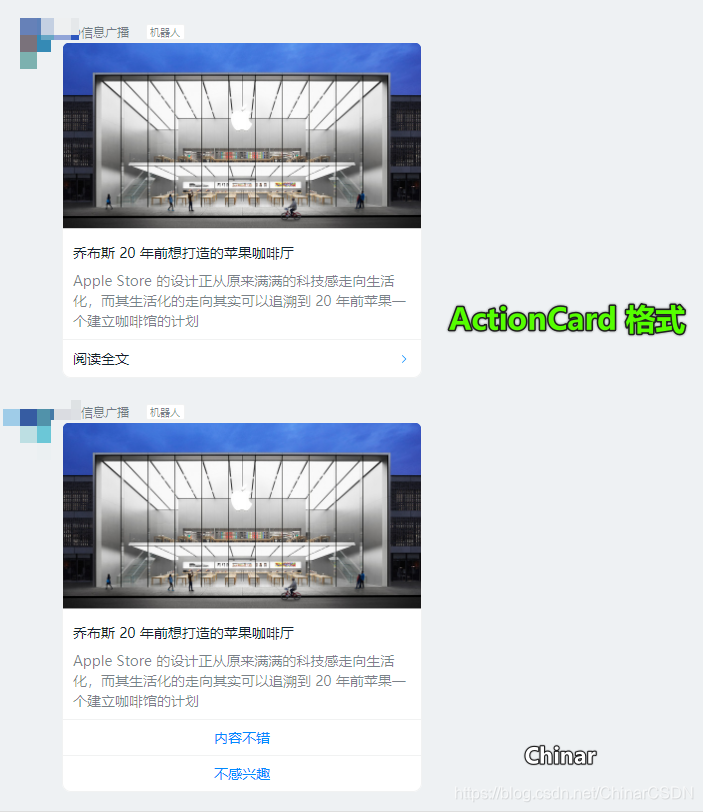

// 4- Markdown 类型
ChinarDing.SendActionCard("Card", "http://qiniu.chinar.xin/DingChinar-3.png", "Text 标题", "测试 MD 请求", "内容不错", "不感兴趣", "https://www.dingtalk.com/", "https://www.dingtalk.com/", "0");
ChinarDing.SendActionCard("乔布斯 20 年前想打", "https://gw.alicdn.com/tfs/TB1ut3xxbsrBKNjSZFpXXcXhFXa-846-786.png", "乔布斯 20 年前想打造的苹果咖啡厅", "Apple Store 的设计正从原来满满的科技感走向生活化,", "内容不错", "不感兴趣", "https://www.dingtalk.com/", "https://www.dingtalk.com/", "0");
ChinarDing.SendFeedCard("时代的火车向前开", "https://www.dingtalk.com/s?__biz=MzA4NjMwMTA2Ng==&mid=2650316842&idx=1&sn=60da3ea2b29f1dcc43a7c8e4a7c97a16&scene=2&srcid=09189AnRJEdIiWVaKltFzNTw&from=timeline&isappinstalled=0&key=&ascene=2&uin=&devicetype=android-23&version=26031933&nettype=WIFI", "https://gw.alicdn.com/tfs/TB1ayl9mpYqK1RjSZLeXXbXppXa-170-62.png", "时代的火车向前开", "https://www.dingtalk.com/s?__biz=MzA4NjMwMTA2Ng==&mid=2650316842&idx=1&sn=60da3ea2b29f1dcc43a7c8e4a7c97a16&scene=2&srcid=09189AnRJEdIiWVaKltFzNTw&from=timeline&isappinstalled=0&key=&ascene=2&uin=&devicetype=android-23&version=26031933&nettype=WIFI", "https://gw.alicdn.com/tfs/TB1ayl9mpYqK1RjSZLeXXbXppXa-170-62.png");
ChinarDing.SendActionCard("乔布斯 20 年前想打", "https://gw.alicdn.com/tfs/TB1ut3xxbsrBKNjSZFpXXcXhFXa-846-786.png", "乔布斯 20 年前想打造的苹果咖啡厅", "Apple Store 的设计正从原来满满的科技感走向生活化,", "内容不错", "https://www.dingtalk.com/", "0");
Console.ReadKey();
