关于OpenTelementry一些思考

简介: 从KubeConf关于OpenTelemetry PPT中的一些思考

(未完待续)








Open Telemetry模块分解

  1. Collectors can communicate with various backends via exporters
  2. Configuration controls aggregation, batching, and processing
  3. In-proc exporters are easily replaceable to work with different backend
  4. SDK allows various extensions: sampling, filtering, enrichments
  5. OpenTelemetry SDK package can be completely replaced


最佳实践

Tracer:

  • Customer Attributes: Add custom properties for easier querying and differentiating telemetry.
  • Resource API: define resource attributes, which are distinct from regular attributes

    • Deployment name and location
    • App name and version
    • Hosting environment
    • Propagation:

      • use it as a metrics dimension or
      • attribute spans

OT视角的一种实现

jobsQueuedGauge := meter.NewFloat64Gauge("jobs_queued", metric.WithDescription("The number of jobs currently queued"))

err := tracer.WithSpan(ctx, "jobEnqueue", func(ctx context.Context) error { jobsTotal, err := jobQueue.Enqueue(job) if err != nil { return err } jobsQueuedGauge.Set(ctx, jobsTotal)

})


基于M3DB的一种实现

# HELP http_requests_total http_requests # TYPE http_requests_total counter http_requests_total{endpoint="/search",status_code="2xx"} 1725 # {trace_id="b096e71d..."} http_requests_total{endpoint="/search",status_code="4xx"} 4 # {trace_id=" 944a6d97..."} http_requests_total{endpoint="/search",status_code="5xx"} 27 # {trace_id="50785260..."} http_request_latency_bucket{endpoint="/search",le="0.1"} 7 # {trace_id=" 7f78deda..."}


支持采样机制


统一模型

Trace有Metric关系


数据表示上可以用Time + KeyValue方式融合

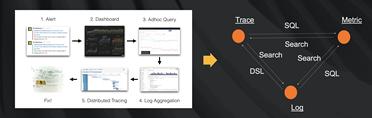

Metric与Trace、Log关联原理

  • 同一个时间段
  • 同一个实体Entity:例如通过Namespace,Location,Label等关联
  • (*)同一个TraceId


一种融合的观点

(待添加)

Reference

  • OpenTelemetry The First Release, What’s Next, and How to Get Involved - Morgan McLean, Google; Tristan Sloughter, Postmates; Sergey Kanzhelev, Microsoft; & Chris Kleinknecht, Google
  • Beyond Getting Started Using OpenTelemetry to Its Full Potential - Sergey Kanzhelev, Microsoft & Morgan McLean
