AJAX完成三级级下拉联动【省份-城市-区域】-阿里云开发者社区

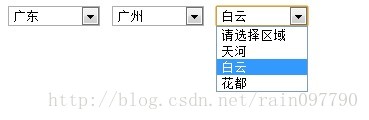

AJAX应用案例--基于mysql，以POST方式，用DOM对象，完成三级级下拉联动【省份-城市-区域】，效果图如下：

数据库如下：

省份城市区域

Jsp页面代码：

[html]view
 plaincopy

<%@ page language="java" pageEncoding="UTF-8"%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">

<html>

  <body>

    <select id="provinceID">

        <option>请选择省份</option>

        <option value="1">广东</option>

        <option value="2">湖南</option>

    </select>

    <select id="cityID">

        <option>请选择城市</option>

    </select>

    <select id="areaID">

        <option>请选择区域</option>

    </select>

    <script type="text/javascript">

        function createAJAX(){

            var ajax = null;

            try{

                ajax = new ActiveXObject("microsoft.xmlhttp");

            }catch(e){

                try{

                    ajax = new XMLHttpRequest();

                }catch(e){

                    alert("请更换浏览器");

                }

            }

            return ajax;

        }

    </script>

    <script type="text/javascript">

        //创建AJAX引擎对象

        var ajax = createAJAX();

        //产生事件

        document.getElementById("provinceID").onchange = function(){

                //再次选择省份时，清空city下拉框

              //定位city下拉框

              var citySelectElement = document.getElementById("cityID");

              var optionElementArray = citySelectElement.options;

              var size = optionElementArray.length;

              if(size>1){

                for(var i=size-1;i>0;i--){

                    citySelectElement.removeChild(optionElementArray[i]);

                }

              }

              //再次选择省份时，清空area下拉框

               //定位area下拉框

              var areaSelectElement = document.getElementById("areaID");

              var areaOptionArray = areaSelectElement.options;

              var size = areaOptionArray.length;

              if(size>1){

                for(var i=size-1;i>0;i--){

                    areaSelectElement.removeChild(areaOptionArray[i]);

                }

              }

              //获取选中省份的编号

              var optionElement = this[this.selectedIndex];

              var provinceId = optionElement.value;

              //准备发送请求

              var method = "POST";

              var url = "${pageContext.request.contextPath}/ProvinceCityAreaServlet?id="+new Date().getTime();

              ajax.open(method,url);

              //设置以POST表单形式发送，自动将请求体的中文进行编码

              ajax.setRequestHeader("content-type","application/x-www-form-urlencoded");

              //真正发送请求体中的数据

              var content = "provinceId="+provinceId + "&method=provinceToCity";

              ajax.send(content);

              //监听服务端的响应

              ajax.onreadystatechange = function(){

                if(ajax.readyState==4){

                    if(ajax.status==200){

                        var jsonJavaString = ajax.responseText;

                        //jsonJavaString = [{"name":"长沙"},{"name":"湘潭"},{"name":"株洲"}]

                        var json = eval("("+jsonJavaString+")");

                        //返回值，就是可解析并执行的JavaScript代码

                        //json = [{"name":"长沙"},{"name":"湘潭"},{"name":"株洲"}]

                        var size = json.length;

                        //迭代

                        for(var i=0;i<size;i++){

                            var city = json[i].name;

                            var cid = json[i].id;

                            //创建option节点

                            var optionElement = document.createElement("option");

                            //设置option节点之间的内容

                            optionElement.innerHTML = city;

                            optionElement.setAttribute("value",cid);

                            //添加到city下拉框中

                            citySelectElement.appendChild(optionElement);

                        }

                    }

                }

              };

        };

        //===============================cityToArea==================================================

        //产生事件

        document.getElementById("cityID").onchange = function(){

              //再次选择城市时，定位area下拉框，清空area下拉框

              var areaSelectElement = document.getElementById("areaID");

              var areaOptionArray = areaSelectElement.options;

              var size = areaOptionArray.length;

              if(size>1){

                for(var i=size-1;i>0;i--){

                    areaSelectElement.removeChild(areaOptionArray[i]);

                }

              }

              //获取选中城市的编号

              var optionElement = this[this.selectedIndex];

              var cid = optionElement.value;

              //准备发送请求

              var method = "POST";

              var url = "${pageContext.request.contextPath}/ProvinceCityAreaServlet?id="+new Date().getTime();

              ajax.open(method,url);

              //设置以POST表单形式发送，自动将请求体的中文进行编码

              ajax.setRequestHeader("content-type","application/x-www-form-urlencoded");

              //真正发送请求体中的数据

              var content = "cid="+cid + "&method=cityToArea";

              ajax.send(content);

              //监听服务端的响应

              ajax.onreadystatechange = function(){

                if(ajax.readyState==4){

                    if(ajax.status==200){

                        var jsonJavaString = ajax.responseText;

                        //jsonJavaString = [{"name":"长沙"},{"name":"湘潭"},{"name":"株洲"}]

                        var json = eval("("+jsonJavaString+")");

                        //返回值，就是可解析并执行的JavaScript代码

                        //json = [{"name":"长沙"},{"name":"湘潭"},{"name":"株洲"}]

                        var size = json.length;

                        //迭代

                        for(var i=0;i<size;i++){

                            var area = json[i].name;

                            //var cid = json[i].name;

                            //创建option节点

                            var optionElement = document.createElement("option");

                            //设置option节点之间的内容

                            optionElement.innerHTML = area;

                            //optionElement.setAttribute("id",cid);

                            //添加到city下拉框中

                            areaSelectElement.appendChild(optionElement);

                        }

                    }

                }

              };

        };

    </script>

  </body>

</html>

servlet代码：

[java]view
 plaincopy

package kerwin.servlet;

import java.io.IOException;

import java.io.PrintWriter;

import java.util.List;

import javax.servlet.ServletException;

import javax.servlet.http.HttpServlet;

import javax.servlet.http.HttpServletRequest;

import javax.servlet.http.HttpServletResponse;

import kerwin.bean.Area;

import kerwin.bean.City;

import kerwin.service.ProvinceCityAreaService;

import net.sf.json.JSONArray;

import net.sf.json.JsonConfig;

public class ProvinceCityAreaServlet extends HttpServlet {

    ProvinceCityAreaService service = new ProvinceCityAreaService();

    public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        request.setCharacterEncoding("utf-8");

        String method = request.getParameter("method");

        if("provinceToCity".equals(method)){

            this.ProvinceToCity(request, response);

        }else if("cityToArea".equals(method)){

            this.cityToArea(request, response);

        }

    }

    public void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        doGet(request, response);

    }

    public void ProvinceToCity(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        response.setContentType("text/html; charset=utf-8");

        PrintWriter out = response.getWriter();

        List<City> citys = null;

        //获取参数

        String pid = request.getParameter("provinceId");

        try {

            citys = service.findAllCityByProvince(pid);

            //使用第三方工具类，将对象转成JSON格式的字符串

            JsonConfig config = new JsonConfig();

            //去掉不需要的参数

            //config.setExcludes(new String[]{"id"});

            //将citys转换为json格式的字符串

            JSONArray jsonArray = JSONArray.fromObject(citys, config);

            String jsonJavaStr = jsonArray.toString();

            //将字符串响应给ajax引擎

            out.write(jsonJavaStr);

        } catch (Exception e) {

            e.printStackTrace();

        }

    }

    public void cityToArea(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        response.setContentType("text/html; charset=utf-8");

        PrintWriter out = response.getWriter();

        List<Area> areas = null;

        //获取参数

        String cid = request.getParameter("cid");

        try {

            areas = service.findAllAreaByProvince(cid);

            //使用第三方工具类，将对象转成JSON格式的字符串

            JsonConfig config = new JsonConfig();

            //去掉不需要的参数

            config.setExcludes(new String[]{"id"});

            //将citys转换为json格式的字符串

            JSONArray jsonArray = JSONArray.fromObject(areas, config);

            String jsonJavaStr = jsonArray.toString();

            //将字符串响应给ajax引擎

            out.write(jsonJavaStr);

        } catch (Exception e) {

            e.printStackTrace();

        }

    }

}

service层代码：省略.....

DAO层代码：

[java]view
 plaincopy

package kerwin.dao;

import java.util.List;

import org.apache.commons.dbutils.QueryRunner;

import org.apache.commons.dbutils.handlers.BeanListHandler;

import kerwin.bean.Area;

import kerwin.bean.City;

import kerwin.utils.JdbcUtil;

public class ProvinceCityAreaDao{

    public List<City> findAllCityByProvince(String pid)  throws Exception{

        List<City> citys = null;

        QueryRunner runner = new QueryRunner(JdbcUtil.dataSource);

        String sql = "select * from citys where pid = ?";

        Object params[]={pid};

        citys = runner.query(sql, new BeanListHandler<City>(City.class), params);

        return citys;

    }

    public List<Area> findAllAreaByProvince(String cid)  throws Exception{

        List<Area> areas = null;

        QueryRunner runner = new QueryRunner(JdbcUtil.dataSource);

        String sql = "select * from area where cid = ?";

        Object params[]={cid};

        areas = runner.query(sql, new BeanListHandler<Area>(Area.class), params);

        return areas;

    }

}

还有三个province、city、area JavaBean类省略......

mysql连接使用c3p0连接池：

c3p0-config.xml：

[html]view
 plaincopy

<?xml version="1.0" encoding="UTF-8"?>

<c3p0-config>

    <default-config>

        <property name="driverClass">com.mysql.jdbc.Driver</property>

        <property name="jdbcUrl">jdbc:mysql://127.0.0.1:3306/ajax</property>

        <property name="user">root</property>

        <property name="password">root</property>

        <property name="acquireIncrement">2</property>

        <property name="initialPoolSize">5</property>

        <property name="minPoolSize">1</property>

        <property name="maxPoolSize">5</property>

    </default-config>

</c3p0-config>

JdbcUtil.java：

[java]view
 plaincopy

package kerwin.utils;

import com.mchange.v2.c3p0.ComboPooledDataSource;

public class JdbcUtil {

    public static ComboPooledDataSource dataSource = new ComboPooledDataSource();

    public static ComboPooledDataSource getDataSource() {

        return dataSource;

    }

}
