阿里云RDS PostgreSQL时序数据的优化

  • 2008年6月8日
  • 版权声明:本文为博主chszs的原创文章,未经博主允许不得转载。

PostgreSQL是最流行的开源数据库之一。PostgreSQL的一个优势是它可以通过多种方式进行优化,例如数据合并和数据清理。而数据合并和数据清理在一些应用场景下是必需的。

例如:

  • 当数据表的具体内容被更新(插入、更新、删除)时,我们需要先合并,然后迅速得到每个主键的最新值。
  • 当我们有大量连续不断地报告数据的传感器时,我们需要及时收集每个传感器的最新读数。
  • 我们可以使用窗口查询进行这种操作,但我们需要快速检索批量数据。

通常有四种优化时序数据的方法:

  1. 当只有很少的唯一值和一个未知的范围时,我们可以使用递归(recursion)。
  2. 当只有很少的唯一值并且它们的范围已经确定,我们可以使用子查询(subquery)。
  3. 当有许多唯一值时,窗口查询(Window query)比上述方法更合适。
  4. 流计算(Stream computing)是所有场景中最好的。

本文只会比较前三种方法。流计算不需要进行比较,因为它是所有场景中最强大的方法。

递归 vs. 子查询 vs. 窗口查询

在比较中,将使用一个包含500万条唯一值的数据库作为数据源,并在以下情况下比较这些方法。

递归

情景1、有大量有效的唯一值(100万个唯一值)

第1步:创建一个表

\timing
drop table test;
create unlogged table test(id int , info text, crt_time timestamp);

第2步:构建数据

insert into test select ceil(random()*1000000), md5(random()::text), clock_timestamp() from generate_series(1,5000000);

第3步:创建一个索引

create index idx_test_1 on test (id, crt_time desc);

第4步:递归查询效率

explain (analyze,verbose,timing,costs,buffers) with recursive skip as (
  (
    select test as v from test where id in (select id from test where id is not null order by id,crt_time desc limit 1) limit 1
  )
  union all
  (
    select (
      select t as v from test t where t.id>(s.v).id and t.id is not null order by id,crt_time desc limit 1
    ) from skip s where (s.v).id is not null
  )      -- The "where (s.v).id is not null" must be included. Else you will be stuck in an infinite loop.
)
select (t.v).id, (t.v).info, (t.v).crt_time from skip t where t.* is not null;
                                                                                      QUERY PLAN
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
 CTE Scan on skip t  (cost=54.35..56.37 rows=100 width=44) (actual time=0.042..6626.084 rows=993288 loops=1)
   Output: (t.v).id, (t.v).info, (t.v).crt_time
   Filter: (t.* IS NOT NULL)
   Rows Removed by Filter: 1
   Buffers: shared hit=3976934
   CTE skip
     ->  Recursive Union  (cost=0.91..54.35 rows=101 width=69) (actual time=0.034..6006.615 rows=993289 loops=1)
           Buffers: shared hit=3976934
           ->  Limit  (cost=0.91..0.93 rows=1 width=69) (actual time=0.033..0.033 rows=1 loops=1)
                 Output: test.*
                 Buffers: shared hit=8
                 ->  Nested Loop  (cost=0.91..10.19 rows=500 width=69) (actual time=0.032..0.032 rows=1 loops=1)
                       Output: test.*
                       Buffers: shared hit=8
                       ->  HashAggregate  (cost=0.48..0.49 rows=1 width=4) (actual time=0.021..0.021 rows=1 loops=1)
                             Output: test_1.id
                             Group Key: test_1.id
                             Buffers: shared hit=4
                             ->  Limit  (cost=0.43..0.47 rows=1 width=12) (actual time=0.016..0.016 rows=1 loops=1)
                                   Output: test_1.id, test_1.crt_time
                                   Buffers: shared hit=4
                                   ->  Index Only Scan using idx_test_1 on public.test test_1  (cost=0.43..173279.36 rows=5000002 width=12) (actual time=0.015..0.015 rows=1 loops=1)
                                         Output: test_1.id, test_1.crt_time
                                         Index Cond: (test_1.id IS NOT NULL)
                                         Heap Fetches: 1
                                         Buffers: shared hit=4
                       ->  Index Scan using idx_test_1 on public.test  (cost=0.43..9.64 rows=6 width=73) (actual time=0.009..0.009 rows=1 loops=1)
                             Output: test.*, test.id
                             Index Cond: (test.id = test_1.id)
                             Buffers: shared hit=4
           ->  WorkTable Scan on skip s  (cost=0.00..5.14 rows=10 width=32) (actual time=0.006..0.006 rows=1 loops=993289)
                 Output: (SubPlan 1)
                 Filter: ((s.v).id IS NOT NULL)
                 Rows Removed by Filter: 0
                 Buffers: shared hit=3976926
                 SubPlan 1
                   ->  Limit  (cost=0.43..0.49 rows=1 width=81) (actual time=0.005..0.005 rows=1 loops=993288)
                         Output: t_1.*, t_1.id, t_1.crt_time
                         Buffers: shared hit=3976926
                         ->  Index Scan using idx_test_1 on public.test t_1  (cost=0.43..102425.17 rows=1666667 width=81) (actual time=0.005..0.005 rows=1 loops=993288)
                               Output: t_1.*, t_1.id, t_1.crt_time
                               Index Cond: ((t_1.id > (s.v).id) AND (t_1.id IS NOT NULL))
                               Buffers: shared hit=3976926
 Planning time: 0.354 ms
 Execution time: 6706.105 ms
(45 rows)

情景二、只有很少有效的唯一值(1,000个唯一值)

第1步:创建一个表

\timing
drop table test;
create unlogged table test(id int , info text, crt_time timestamp);

第2步:构建数据

insert into test select ceil(random()*1000), md5(random()::text), clock_timestamp() from generate_series(1,5000000);

第3步:创建一个索引

create index idx_test_1 on test (id, crt_time desc);

第4步:递归查询效率

Query statement stays unchanged
                                                                                      QUERY PLAN
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
 CTE Scan on skip t  (cost=55.09..57.11 rows=100 width=44) (actual time=0.046..8.859 rows=1000 loops=1)
   Output: (t.v).id, (t.v).info, (t.v).crt_time
   Filter: (t.* IS NOT NULL)
   Rows Removed by Filter: 1
   Buffers: shared hit=4007
   CTE skip
     ->  Recursive Union  (cost=0.91..55.09 rows=101 width=69) (actual time=0.039..8.203 rows=1001 loops=1)
           Buffers: shared hit=4007
           ->  Limit  (cost=0.91..1.67 rows=1 width=69) (actual time=0.038..0.038 rows=1 loops=1)
                 Output: test.*
                 Buffers: shared hit=8
                 ->  Nested Loop  (cost=0.91..6335.47 rows=8333 width=69) (actual time=0.038..0.038 rows=1 loops=1)
                       Output: test.*
                       Buffers: shared hit=8
                       ->  HashAggregate  (cost=0.48..0.49 rows=1 width=4) (actual time=0.021..0.021 rows=1 loops=1)
                             Output: test_1.id
                             Group Key: test_1.id
                             Buffers: shared hit=4
                             ->  Limit  (cost=0.43..0.47 rows=1 width=12) (actual time=0.016..0.017 rows=1 loops=1)
                                   Output: test_1.id, test_1.crt_time
                                   Buffers: shared hit=4
                                   ->  Index Only Scan using idx_test_1 on public.test test_1  (cost=0.43..173279.55 rows=5000002 width=12) (actual time=0.015..0.015 rows=1 loops=1)
                                         Output: test_1.id, test_1.crt_time
                                         Index Cond: (test_1.id IS NOT NULL)
                                         Heap Fetches: 1
                                         Buffers: shared hit=4
                       ->  Index Scan using idx_test_1 on public.test  (cost=0.43..6284.98 rows=5000 width=73) (actual time=0.015..0.015 rows=1 loops=1)
                             Output: test.*, test.id
                             Index Cond: (test.id = test_1.id)
                             Buffers: shared hit=4
           ->  WorkTable Scan on skip s  (cost=0.00..5.14 rows=10 width=32) (actual time=0.008..0.008 rows=1 loops=1001)
                 Output: (SubPlan 1)
                 Filter: ((s.v).id IS NOT NULL)
                 Rows Removed by Filter: 0
                 Buffers: shared hit=3999
                 SubPlan 1
                   ->  Limit  (cost=0.43..0.49 rows=1 width=81) (actual time=0.007..0.007 rows=1 loops=1000)
                         Output: t_1.*, t_1.id, t_1.crt_time
                         Buffers: shared hit=3999
                         ->  Index Scan using idx_test_1 on public.test t_1  (cost=0.43..102425.80 rows=1666667 width=81) (actual time=0.007..0.007 rows=1 loops=1000)
                               Output: t_1.*, t_1.id, t_1.crt_time
                               Index Cond: ((t_1.id > (s.v).id) AND (t_1.id IS NOT NULL))
                               Buffers: shared hit=3999
 Planning time: 0.353 ms
 Execution time: 8.980 ms
(45 rows)

子查询

情景1、有大量有效的唯一值(100万个唯一值)

第1步:子查询查询效率

如果ID的值范围过宽,子查询效率会很低下。

需要维护一个唯一的ID表。这里我们使用generate_series作为测试的替代。

explain (analyze,verbose,timing,costs,buffers) select (select test from test where id=t.id order by crt_time desc limit 1) from generate_series(1,1000000) t(id);
                                                                 QUERY PLAN
---------------------------------------------------------------------------------------------------------------------------------------------
 Function Scan on pg_catalog.generate_series t  (cost=0.00..1976.65 rows=1000 width=32) (actual time=70.682..2835.109 rows=1000000 loops=1)
   Output: (SubPlan 1)
   Function Call: generate_series(1, 1000000)
   Buffers: shared hit=3997082
   SubPlan 1
     ->  Limit  (cost=0.43..1.97 rows=1 width=77) (actual time=0.002..0.002 rows=1 loops=1000000)
           Output: test.*, test.crt_time
           Buffers: shared hit=3997082
           ->  Index Scan using idx_test_1 on public.test  (cost=0.43..9.64 rows=6 width=77) (actual time=0.002..0.002 rows=1 loops=1000000)
                 Output: test.*, test.crt_time
                 Index Cond: (test.id = t.id)
                 Buffers: shared hit=3997082
 Planning time: 0.119 ms
 Execution time: 2892.712 ms
(14 rows)

情景二、只有很少有效的唯一值(1,000个唯一值)

第1步:子查询查询效率

查询语句更改为

explain (analyze,verbose,timing,costs,buffers) select (select test from test where id=t.id order by crt_time desc limit 1) from generate_series(1,1000) t(id);
                                                                   QUERY PLAN
------------------------------------------------------------------------------------------------------------------------------------------------
 Function Scan on pg_catalog.generate_series t  (cost=0.00..1699.41 rows=1000 width=32) (actual time=0.107..7.041 rows=1000 loops=1)
   Output: (SubPlan 1)
   Function Call: generate_series(1, 1000)
   Buffers: shared hit=4000
   SubPlan 1
     ->  Limit  (cost=0.43..1.69 rows=1 width=77) (actual time=0.006..0.007 rows=1 loops=1000)
           Output: test.*, test.crt_time
           Buffers: shared hit=4000
           ->  Index Scan using idx_test_1 on public.test  (cost=0.43..6284.98 rows=5000 width=77) (actual time=0.006..0.006 rows=1 loops=1000)
                 Output: test.*, test.crt_time
                 Index Cond: (test.id = t.id)
                 Buffers: shared hit=4000
 Planning time: 0.131 ms
 Execution time: 7.126 ms
(14 rows)

窗口查询

情景1、有大量有效的唯一值(100万个唯一值)

第1步:窗口查询效率

explain (analyze,verbose,timing,costs,buffers) select id,info,crt_time from (select row_number() over (partition by id order by crt_time desc) as rn, * from test) t where rn=1;
postgres=# explain (analyze,verbose,timing,costs,buffers) select id,info,crt_time from (select row_number() over (partition by id order by crt_time desc) as rn, * from test) t where rn=1;
                                                                       QUERY PLAN
---------------------------------------------------------------------------------------------------------------------------------------------------------
 Subquery Scan on t  (cost=0.43..310779.41 rows=25000 width=45) (actual time=0.027..6398.308 rows=993288 loops=1)
   Output: t.id, t.info, t.crt_time
   Filter: (t.rn = 1)
   Rows Removed by Filter: 4006712
   Buffers: shared hit=5018864
   ->  WindowAgg  (cost=0.43..248279.39 rows=5000002 width=53) (actual time=0.026..5973.497 rows=5000000 loops=1)
         Output: row_number() OVER (?), test.id, test.info, test.crt_time
         Buffers: shared hit=5018864
         ->  Index Scan using idx_test_1 on public.test  (cost=0.43..160779.35 rows=5000002 width=45) (actual time=0.019..4058.476 rows=5000000 loops=1)
               Output: test.id, test.info, test.crt_time
               Buffers: shared hit=5018864
 Planning time: 0.121 ms
 Execution time: 6446.901 ms
(13 rows)

情景二、只有很少有效的唯一值(1,000个唯一值)

第1步:窗口查询效率

查询语句保持不变

                                                                       QUERY PLAN
---------------------------------------------------------------------------------------------------------------------------------------------------------
 Subquery Scan on t  (cost=0.43..310779.61 rows=25000 width=45) (actual time=0.027..6176.801 rows=1000 loops=1)
   Output: t.id, t.info, t.crt_time
   Filter: (t.rn = 1)
   Rows Removed by Filter: 4999000
   Buffers: shared hit=4744850 read=18157
   ->  WindowAgg  (cost=0.43..248279.58 rows=5000002 width=53) (actual time=0.026..5822.576 rows=5000000 loops=1)
         Output: row_number() OVER (?), test.id, test.info, test.crt_time
         Buffers: shared hit=4744850 read=18157
         ->  Index Scan using idx_test_1 on public.test  (cost=0.43..160779.55 rows=5000002 width=45) (actual time=0.020..4175.082 rows=5000000 loops=1)
               Output: test.id, test.info, test.crt_time
               Buffers: shared hit=4744850 read=18157
 Planning time: 0.108 ms
 Execution time: 6176.924 ms
(13    rows)

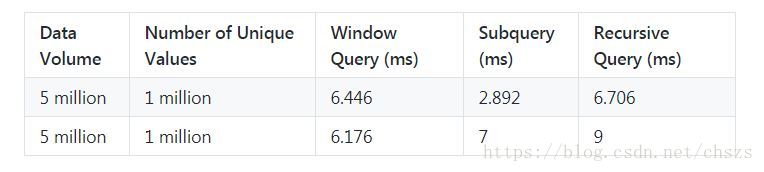

横向效率比较图

这里写图片描述

结论

随着物联网的兴起,越来越多的业务会使用时序数据,在必须根据这些数据提供服务的情况下,计算数据中的最新值和滑动窗口中的值是至关重要的。

PostgreSQL是开源数据库的最佳选择,因为它为相同的问题提供了几种解决方案。参考数据优化方法,我们可以得出结论:

  1. 递归适用于只有少量唯一值但范围未知的情况。
  2. 子查询适用于唯一值很少且范围已确定的情况。
  3. 当有大量唯一值时,窗口查询比子查询更合适。
  4. 流计算是所有场景的最佳选择。
