JavaEE Spring IoC注解

简介: 1. @Resource--手动注入使用Field注入(用于注解方式),注入依赖对象可以采用手工装配或自动装配.在实际应用中建议使用手工装配,因为自动装配会产生未知情况,开发人员无法预见最终的装配结果。

1. @Resource--手动注入

使用Field注入(用于注解方式),注入依赖对象可以采用手工装配或自动装配.在实际应用中建议使用手工装配,因为自动装配会产生未知情况,开发人员无法预见最终的装配结果。
@Resource注解和@Autowired一样,同样也可以标注在字段或属性的setter方法上,但它默认按名称装配。名称可以通过@Resource的name属性指定,如果没有指定name属性,当注解标注在字段上时,即默认取字段的名称作为bean名称寻找依赖对象,当注解标注在属性的setter方法上时,即默认取属性名作为bean名称寻找依赖对象。
**注意:如果没有指定name属性,并且按照默认的名称仍然找不到依赖对象时, @Resource注解会回退到按类型装配。但一旦指定了name属性,就只能按名称装配了。 **
1). 创建项目并导包
导入Jar包:spring-beans-5.0.5.RELEASE.jar、spring-context-5.0.5.RELEASE.jar、spring-core-5.0.5.RELEASE.jar、spring-expression-5.0.5.RELEASE.jar、spring-aop-5.0.5.RELEASE.jar、commons-logging-1.2.jar.(注:这里多了aop的jar包)


2). 在src目录下创建bean.xml文件,并向beans节点中添加<context:annotation-config/>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd">

    <!-- 在java代码中使用@Autowired或@Resource注解方式进行装配。
        @Autowired默认按类型装配,@Resource默认按名称装配,当找不到与名称匹配的bean才会按类型装配
        这个配置隐式注册了多个对注解进行解析处理的处理器:
        AutowiredAnnotationBeanPostProcessor
        CommonAnnotationBeanPostProcessor
        PersistenceAnnotationBeanPostProcessor
        RequiredAnnotationBeanPostProcessor
    -->
    <context:annotation-config/>

</beans>

3). 在src目录下新建com.mazaiting.dao包,然后创建PersonDao接口

public interface PersonDao {
    void add();
}

4). 创建com.mazaiting.dao.impl包,并创建实现PersonDao接口的PersonDaoImpl 实现类

public class PersonDaoImpl implements PersonDao {

    @Override
    public void add() {
        System.out.println("执行PersonDaoImpl中的add()方法");
    }

}

5). 创建com.mazaiting.service类,并创建PersonService接口

public interface PersonService {
    void save();
}

6). 创建com.mazaiting.service.impl,并创建实现PersonService接口的PersonServiceImpl实现类

public class PersonServiceImpl implements PersonService {
    private PersonDao personDao;
    private String name;

    public PersonServiceImpl() {}
    public PersonServiceImpl(PersonDao personDao, String name) {
        this.personDao = personDao;
        this.name = name;
    }

    @Override
    public void save() {
        System.out.println("PersonServiceImpl--" + name);
        personDao.add();
    }

}

7). 在bean.xml文件中添加配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd">

    <!-- 在java代码中使用@Autowired或@Resource注解方式进行装配。
        @Autowired默认按类型装配,@Resource默认按名称装配,当找不到与名称匹配的bean才会按类型装配
        这个配置隐式注册了多个对注解进行解析处理的处理器:
        AutowiredAnnotationBeanPostProcessor
        CommonAnnotationBeanPostProcessor
        PersistenceAnnotationBeanPostProcessor
        RequiredAnnotationBeanPostProcessor
    -->
    <context:annotation-config/>

    <bean id="personDao" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>
    <bean id="personService" class="com.mazaiting.service.impl.PersonServiceImpl"></bean>

</beans>

8). 在PersonServiceImpl中添加注解

public class PersonServiceImpl implements PersonService {
    @Resource private PersonDao personDao;
    private String name;

    public PersonServiceImpl() {}
    public PersonServiceImpl(PersonDao personDao, String name) {
        this.personDao = personDao;
        this.name = name;
    }

    @Override
    public void save() {
        personDao.add();
    }

}

9). 创建测试文件TestSpring

public class TestSpring {

    @Test
    public void test() {
        // 加载配置文件
        ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        // 创建对象
        PersonService service = (PersonService) context.getBean("personService");
        // 执行方法
        service.save();
    }
}

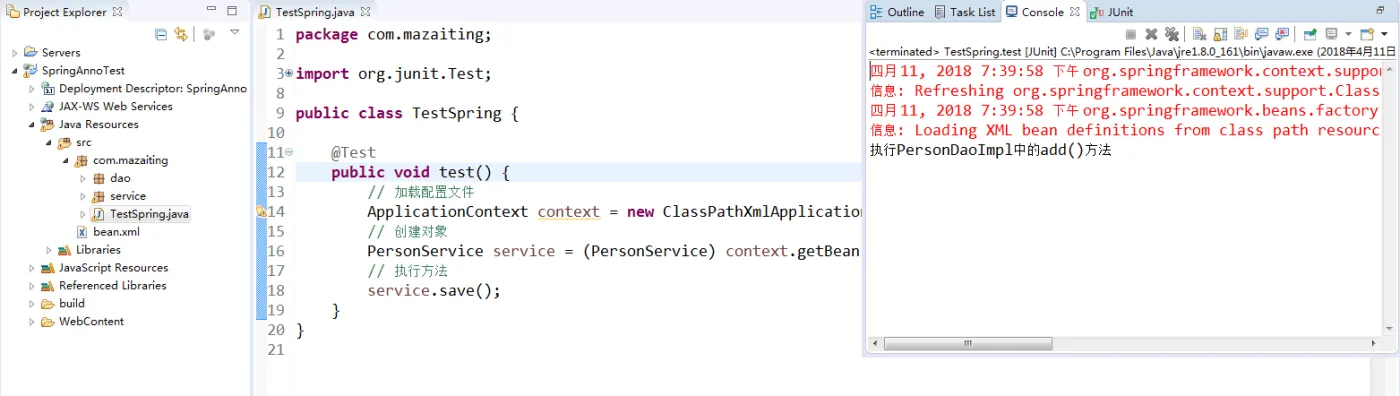

10). 打印结果



11). 将bean.xml文件中

<bean id="personDao" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>

修改为

<bean id="personDaoTest" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>

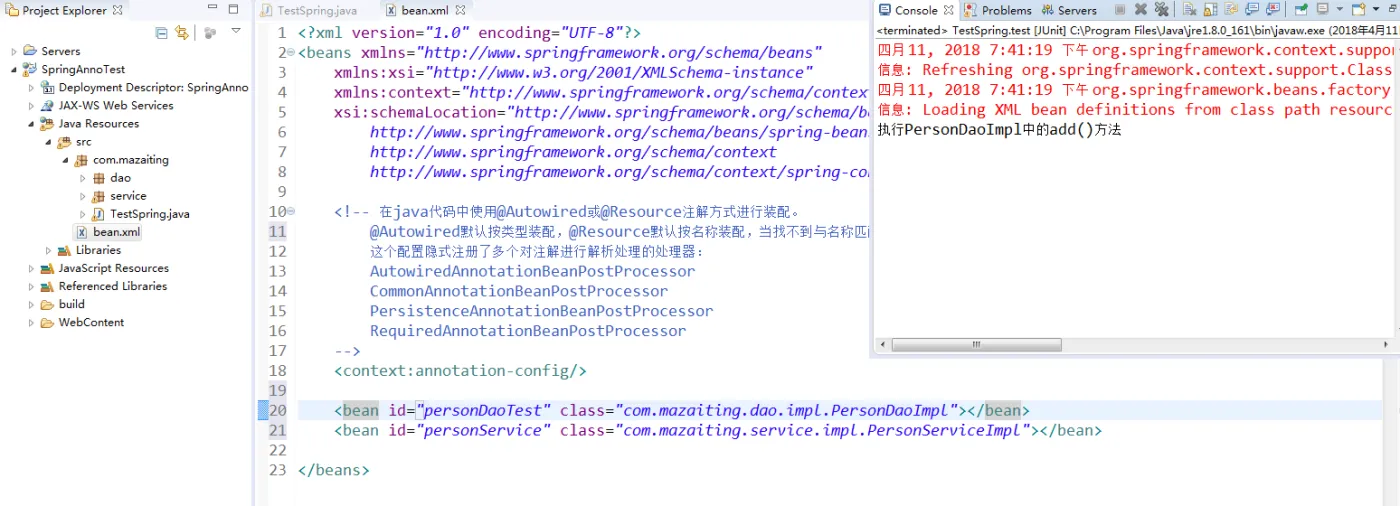

然后执行测试代码,打印结果为:



12). 修改PersonServiceImpl文件为

public class PersonServiceImpl implements PersonService {
//  1. 注解在变量上
//  @Resource private PersonDao personDao;

    // 2. 注解在set方法上
    private PersonDao personDao;
    @Resource
    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    private String name;

    public PersonServiceImpl() {}
    public PersonServiceImpl(PersonDao personDao, String name) {
        this.personDao = personDao;
        this.name = name;
    }

    @Override
    public void save() {
        personDao.add();
    }

}

执行结果:



2. @Autowire注解完成属性装配

1). 将PersonServiceImpl内容修改为

public class PersonServiceImpl implements PersonService {
//  1. 注解在变量上
//  @Resource private PersonDao personDao;

//  // 2. 注解在set方法上
//  private PersonDao personDao;
//  @Resource
//  public void setPersonDao(PersonDao personDao) {
//      this.personDao = personDao;
//  }

    // 3. @Autowire注解
    @Autowired private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }

}

运行测试代码结果:


注意:@Autowired注解是按类型装配依赖对象,默认情况下它要求依赖对象必须存在,如果允许null值,可以设置它的required属性为false。如:
@Autowired(required=true) @Qualifier("personDaoxxxx") private PersonDao personDao;

required=true代表字段personDao必须要注入值,也即是说在Spring容器中根据类型找不到对应的bean,那就会报异常;required=false意味着在Spring容器中根据类型找不到对应的的bean,就会把该字段设为null。

2). 与@Qualifier结合使用
将PersonServiceImpl中的代码修改为

public class PersonServiceImpl implements PersonService {
//  1. 注解在变量上
//  @Resource private PersonDao personDao;

//  // 2. 注解在set方法上
//  private PersonDao personDao;
//  @Resource
//  public void setPersonDao(PersonDao personDao) {
//      this.personDao = personDao;
//  }

    // 3. @Autowire注解
    @Autowired @Qualifier("personDaoTest") private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }
}

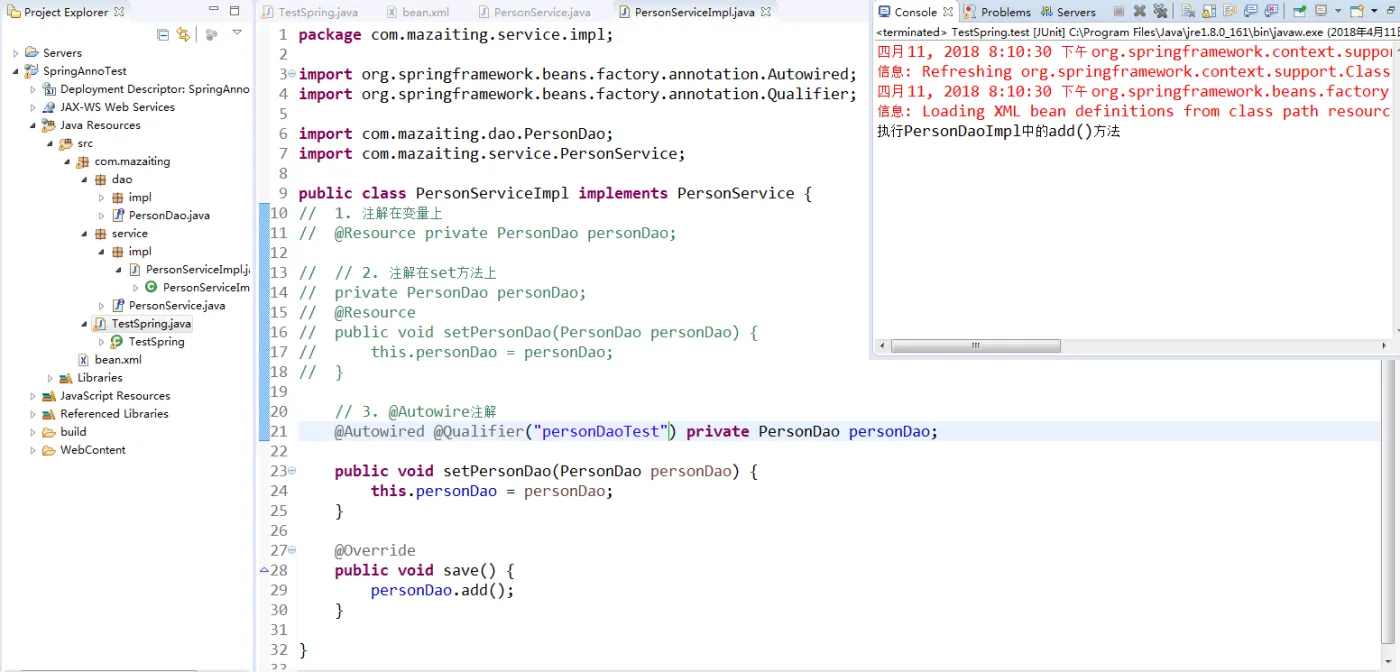

执行测试代码结果:



3. 依赖注入——自动装配依赖对象

示例:

<bean id="..." class="..." autowire="byType"/>

autowire属性取值如下:

  • byType:按类型装配,可以根据属性的类型,在容器中寻找跟该类型匹配的bean。如果发现多个,那么将会抛出异常。如果没有找到,即属性值为null。
  • byName:按名称装配,可以根据属性的名称,在容器中寻找跟该属性名相同的bean,如果没有找到,即属性值为null。
  • constructor与byType的方式类似,不同之处在于它应用于构造器参数。如果在容器中没有找到与构造器参数类型一致的bean,那么将会抛出异常。
  • autodetect:通过bean类的自省机制(introspection)来决定是使用constructor还是byType方式进行自动装配。如果发现默认的构造器,那么将使用byType方式。

1). 将PersonServiceImpl代码修改

public class PersonServiceImpl implements PersonService {
//  1. 注解在变量上
//  @Resource private PersonDao personDao;

//  // 2. 注解在set方法上
//  private PersonDao personDao;
//  @Resource
//  public void setPersonDao(PersonDao personDao) {
//      this.personDao = personDao;
//  }

    // 3. @Autowire注解
//  @Autowired @Qualifier("personDaoTest") private PersonDao personDao;

    // 4. 自动装配
    private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }
}

2). 修改bean.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd">

    <!-- 在java代码中使用@Autowired或@Resource注解方式进行装配。
        @Autowired默认按类型装配,@Resource默认按名称装配,当找不到与名称匹配的bean才会按类型装配
        这个配置隐式注册了多个对注解进行解析处理的处理器:
        AutowiredAnnotationBeanPostProcessor
        CommonAnnotationBeanPostProcessor
        PersistenceAnnotationBeanPostProcessor
        RequiredAnnotationBeanPostProcessor
    -->
    <context:annotation-config/>

    <bean id="personDaoTest" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>
    <!-- <bean id="personService" class="com.mazaiting.service.impl.PersonServiceImpl"></bean> -->
    <bean id="personService" class="com.mazaiting.service.impl.PersonServiceImpl" autowire="byType"></bean>
</beans>

运行测试代码打印:



3). 若将bean.xml文件改为

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd">

    <!-- 在java代码中使用@Autowired或@Resource注解方式进行装配。
        @Autowired默认按类型装配,@Resource默认按名称装配,当找不到与名称匹配的bean才会按类型装配
        这个配置隐式注册了多个对注解进行解析处理的处理器:
        AutowiredAnnotationBeanPostProcessor
        CommonAnnotationBeanPostProcessor
        PersistenceAnnotationBeanPostProcessor
        RequiredAnnotationBeanPostProcessor
    -->
    <context:annotation-config/>

    <bean id="personDaoTest" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>
    <!-- <bean id="personService" class="com.mazaiting.service.impl.PersonServiceImpl"></bean> -->
    <bean id="personService" class="com.mazaiting.service.impl.PersonServiceImpl" autowire="byName"></bean>
</beans>

则必须将其中的

<bean id="personDaoTest" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>

修改为

<bean id="personDao" class="com.mazaiting.dao.impl.PersonDaoImpl"></bean>

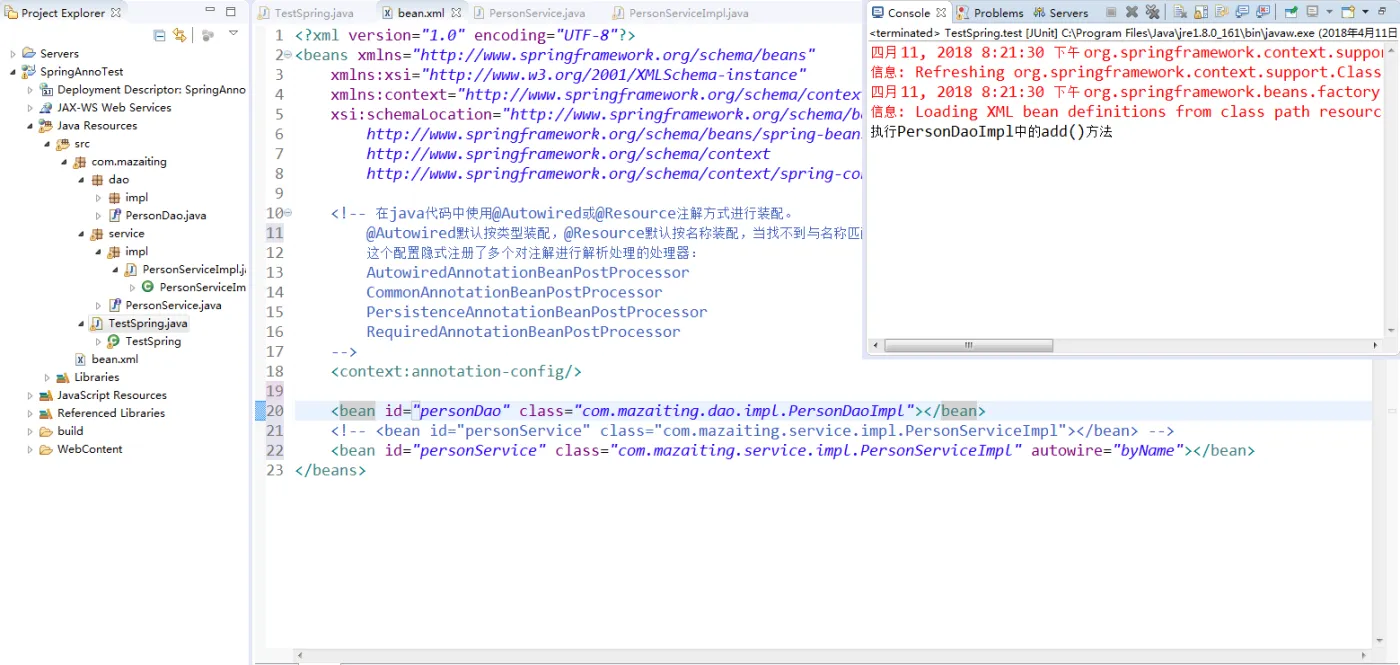

执行测试代码:



4. Spring自动扫描和管理Bean

1). 使用XML的bean定义来配置组件时,在一个稍大的项目中,通常会有上百个组件,如果这些组件采用XML的bean定义来配置,显然会增加配置文件的体积,查找及维护起来也不太方便。Spring2.5为我们引入了组件自动扫描机制,它可以在类路径底下寻找标注了@Component、@Service、@Controller、@Repository注解的类,并把这些类纳入进Spring容器中管理。它的作用和在XML文件中使用bean节点配置组件是一样的。要使用自动扫描机制,我们需要打开以下配置信息:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd">

    <context:component-scan base-package="com.mazaiting" />

</beans>

其中<context:component-scan base-package="com.mazaiting" />这个配置隐式注册了多个对注解进行解析处理的处理器,包括<context:annotation-config/>该配置注册的处理器,也就是说写了<context:component-scan base-package="com.mazaiting" />配置,就不用写<context:annotation-config/>配置了,此外base-package为需要扫描的包(含子包)。
@Service用于标注业务层组件、 @Controller用于标注控制层组件(如Struts2中的action)、@Repository用于标注数据访问组件,即DAO组件。而@Component泛指组件,当组件不好归类的时候,我们可以使用这个注解进行标注。
2). 修改bean.xml文件为:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd">

    <!-- 自动扫描和管理Bean配置 -->
    <context:component-scan base-package="com.mazaiting"/>
</beans>

3). 修改PersonServiceImpl和PersonDaoImpl类内容
PersonServiceImpl.java

@Service
public class PersonServiceImpl implements PersonService {
    private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }

}

PersonDaoImpl.java

@Repository
public class PersonDaoImpl implements PersonDao {

    @Override
    public void add() {
        System.out.println("执行PersonDaoImpl中的add()方法");
    }

}

4). 修改测试代码

public class TestSpring {

    @Test
    public void test() {
        // 加载配置文件
        ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        // 创建对象
        PersonService service = (PersonService) context.getBean("personServiceImpl");
        PersonDao dao = (PersonDao) context.getBean("PersonDaoImpl");
        System.out.println(service.toString());
        System.out.println(dao.toString());
    }
}

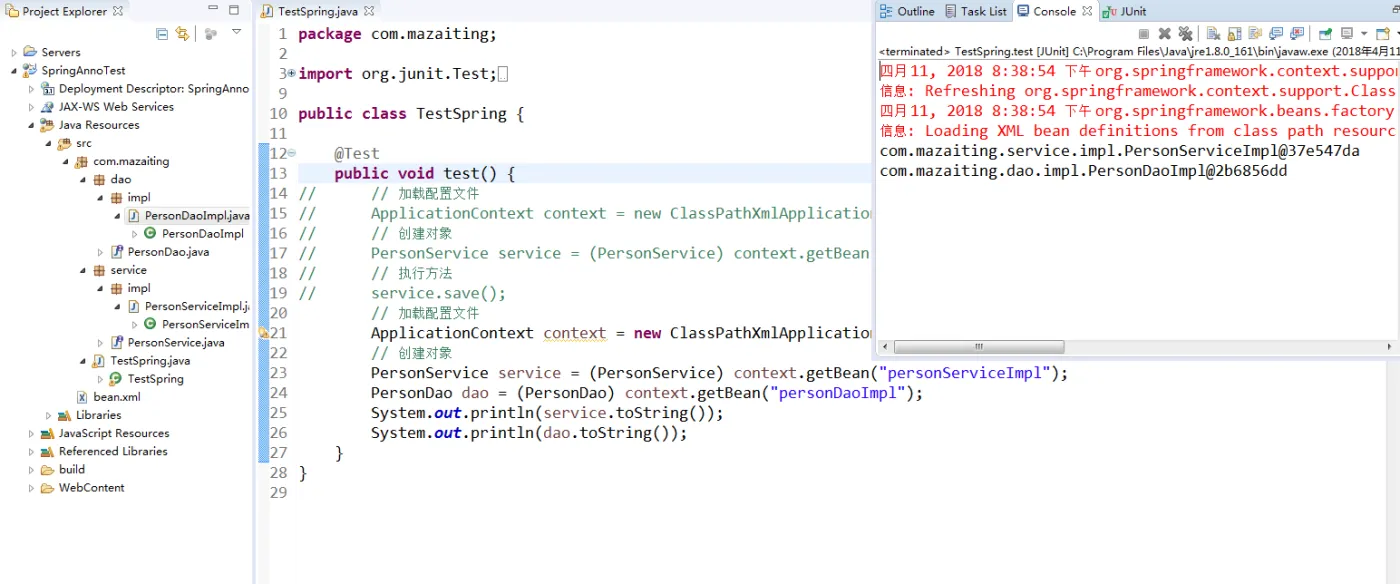

执行测试代码打印结果:



5). 如果我们想使用按指定名称获取,可将PersonServiceImpl类的代码修改为:
I. 修改PersonServiceImpl.java文件

@Service("personService")
public class PersonServiceImpl implements PersonService {
    private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }

}

II. 修改测试代码如下:

public class TestSpring {

    @Test
    public void test() {
        // 加载配置文件
        ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        // 创建对象
        PersonService service = (PersonService) context.getBean("personService");
        PersonDao dao = (PersonDao) context.getBean("personDaoImpl");
        System.out.println(service.toString());
        System.out.println(dao.toString());
    }
}

III. 执行测试代码,打印结果如下:



5. 管理作用域

默认创建的对象作用域为SingleTon, 我们可以通过@Scope来管理作用域
1). 修改PersonServiceImpl.java文件

@Service("personService")
@Scope("prototype")
public class PersonServiceImpl implements PersonService {
    private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }

}

2). 修改测试代码

public class TestSpring {

    @Test
    public void test() {
        // 加载配置文件
        ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        // 创建对象
        PersonService service1 = (PersonService) context.getBean("personService");
        PersonService service2 = (PersonService) context.getBean("personService");
        System.out.println(service1 == service2);
    }
}

执行测试代码,打印结果:


说明:prototype作用域意味着每次从Spring容器获取bean都是新的对象嘛。

3). 使用@PostConstruct和@PreDestroy来注解初始化方法和销毁当前类方法
修改PersonServiceImpl.java文件为:

@Service("personService")
public class PersonServiceImpl implements PersonService {
    private PersonDao personDao;

    public void setPersonDao(PersonDao personDao) {
        this.personDao = personDao;
    }

    @Override
    public void save() {
        personDao.add();
    }

    @PostConstruct
    public void init() {
        System.out.println("初始化");
    }

    @PreDestroy
    public void destroy() {
        System.out.println("销毁");
    }

}

修改测试代码为:

public class TestSpring {

    @Test
    public void test() {
        // 加载配置文件
        AbstractApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
        // 创建对象
        PersonService service1 = (PersonService) context.getBean("personService");
        context.close();
    }
}

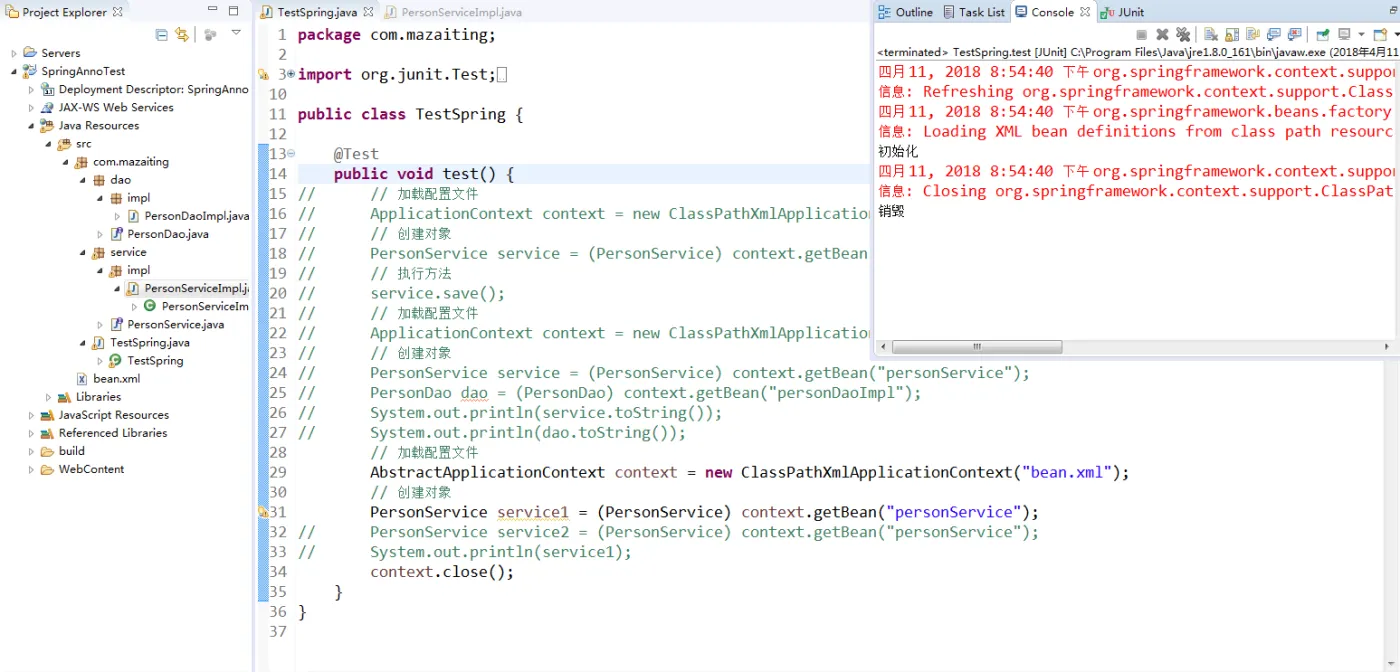

执行测试代码,打印结果为:



代码下载

目录
相关文章
|
7月前
|
XML Java 测试技术
Spring IOC—基于注解配置和管理Bean 万字详解(通俗易懂)
Spring 第三节 IOC——基于注解配置和管理Bean 万字详解!
486 26
|
3月前
|
Java 测试技术 数据库
说一说 SpringBoot 整合 Junit5 常用注解
我是小假 期待与你的下一次相遇 ~
|
4月前
|
XML Java 数据格式
Spring IoC容器的设计与实现
Spring 是一个功能强大且模块化的 Java 开发框架,其核心架构围绕 IoC 容器、AOP、数据访问与集成、Web 层支持等展开。其中,`BeanFactory` 和 `ApplicationContext` 是 Spring 容器的核心组件,分别定位为基础容器和高级容器,前者提供轻量级的 Bean 管理,后者扩展了事件发布、国际化等功能。
|
6月前
|
JSON 前端开发 Java
Spring MVC常用的注解
@RequestMapping:用于处理请求 url 映射的注解,可用于类或方法上。用于类上,则表示类中 的所有响应请求的方法都是以该地址作为父路径。 @RequestBody:注解实现接收http请求的json数据,将json转换为java对象。 @ResponseBody:注解实现将conreoller方法返回对象转化为json对象响应给客户。 @Controller:控制器的注解,表示是表现层,不能用用别的注解代替 @RestController : 组合注解 @Conntroller + @ResponseBody @GetMapping , @PostMapping , @Put
|
6月前
|
Java Spring
Spring Boot的核心注解是哪个?他由哪几个注解组成的?
Spring Boot的核心注解是@SpringBootApplication , 他由几个注解组成 : ● @SpringBootConfiguration: 组合了- @Configuration注解,实现配置文件的功能; ● @EnableAutoConfiguration:打开自动配置的功能,也可以关闭某个自动配置的选项 ● @ComponentScan:Spring组件扫描
|
6月前
|
Java 容器 Spring
什么是Spring IOC 和DI ?
IOC : 控制翻转 , 它把传统上由程序代码直接操控的对象的调用权交给容 器,通过容器来实现对象组件的装配和管理。所谓的“控制反转”概念就是对组件对象控制权的转 移,从程序代码本身转移到了外部容器。 DI : 依赖注入,在我们创建对象的过程中,把对象依赖的属性注入到我们的类中。
|
6月前
|
Java 测试技术 Spring
SpringBoot+@Async注解一起用,速度提升
本文介绍了异步调用在高并发Web应用性能优化中的重要性,对比了同步与异步调用的区别。同步调用按顺序执行,每一步需等待上一步完成;而异步调用无需等待,可提升效率。通过Spring Boot示例,使用@Async注解实现异步任务,并借助Future对象处理异步回调,有效减少程序运行时间。
168 3
|
5月前
|
人工智能 缓存 自然语言处理
保姆级Spring AI 注解式开发教程,你肯定想不到还能这么玩!
这是一份详尽的 Spring AI 注解式开发教程,涵盖从环境配置到高级功能的全流程。Spring AI 是 Spring 框架中的一个模块,支持 NLP、CV 等 AI 任务。通过注解(如自定义 `@AiPrompt`)与 AOP 切面技术,简化了 AI 服务集成,实现业务逻辑与 AI 基础设施解耦。教程包含创建项目、配置文件、流式响应处理、缓存优化及多任务并行执行等内容,助你快速构建高效、可维护的 AI 应用。
|
7月前
|
监控 Java Spring
SpringBoot:SpringBoot通过注解监测Controller接口
本文详细介绍了如何通过Spring Boot注解监测Controller接口,包括自定义注解、AOP切面的创建和使用以及具体的示例代码。通过这种方式,可以方便地在Controller方法执行前后添加日志记录、性能监控和异常处理逻辑,而无需修改方法本身的代码。这种方法不仅提高了代码的可维护性,还增强了系统的监控能力。希望本文能帮助您更好地理解和应用Spring Boot中的注解监测技术。
236 16
|
6月前
|
XML Java 数据库连接
微服务——SpringBoot使用归纳——Spring Boot集成MyBatis——基于注解的整合
本文介绍了Spring Boot集成MyBatis的两种方式:基于XML和注解的形式。重点讲解了注解方式,包括@Select、@Insert、@Update、@Delete等常用注解的使用方法,以及多参数时@Param注解的应用。同时,针对字段映射不一致的问题,提供了@Results和@ResultMap的解决方案。文章还提到实际项目中常结合XML与注解的优点,灵活使用两者以提高开发效率,并附带课程源码供下载学习。
491 0
