Android NestedScrollView滚动到顶部固定子View悬停挂靠粘在顶端
网上有一个StickyScrollView，称之为粘性ScrollView，比如一个垂直方向的布局，依次摆放几个子View，当某一个子View滚到到顶端时候要停靠在顶部，悬停在顶部的位置不动。这很像联系人的pinned，假设联系人按照Z分组后，若滚动到顶部，Z就悬停靠在顶端不动，下面到的联系人继续滚到。当用户下拉时候，又恢复正常。如：

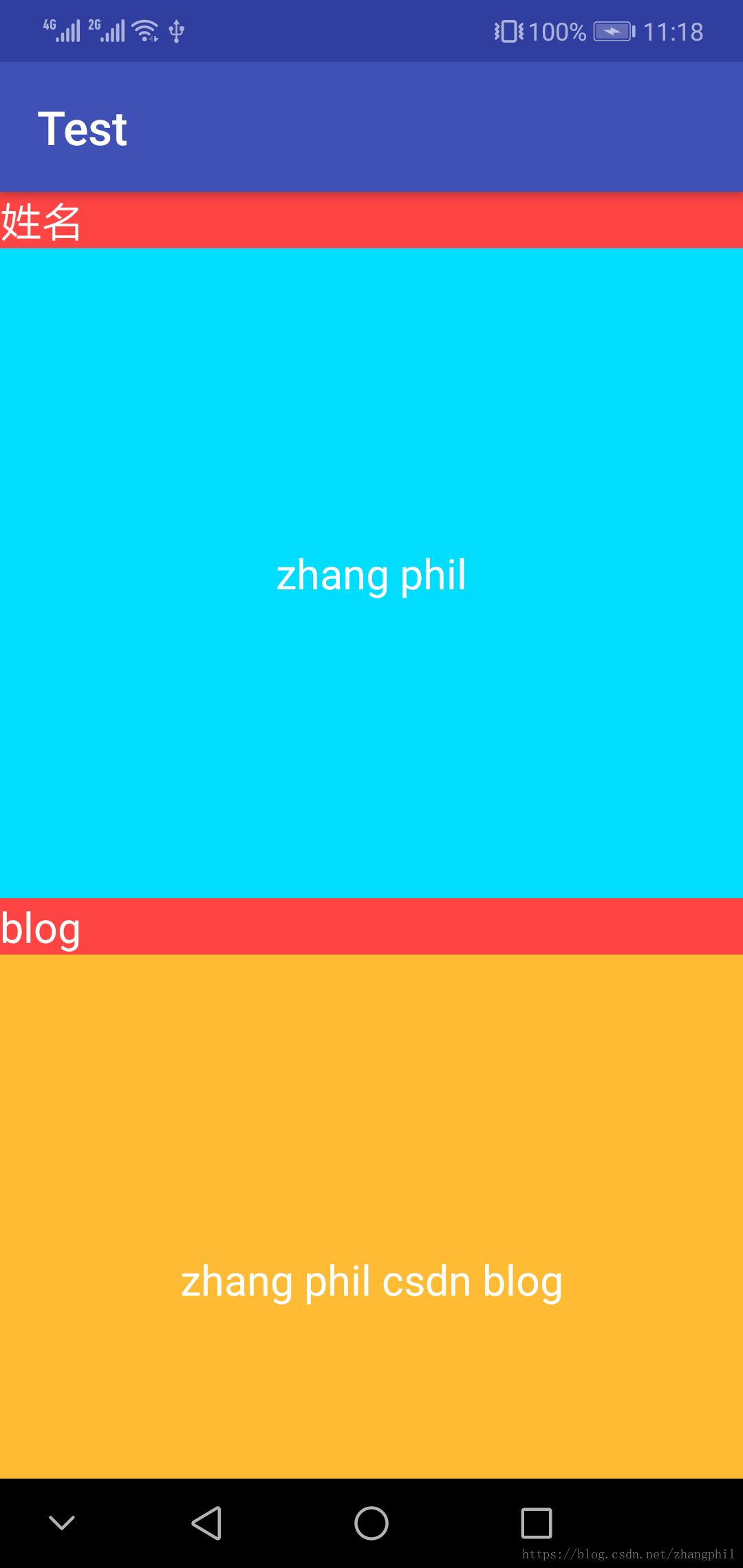

初始化阶段：

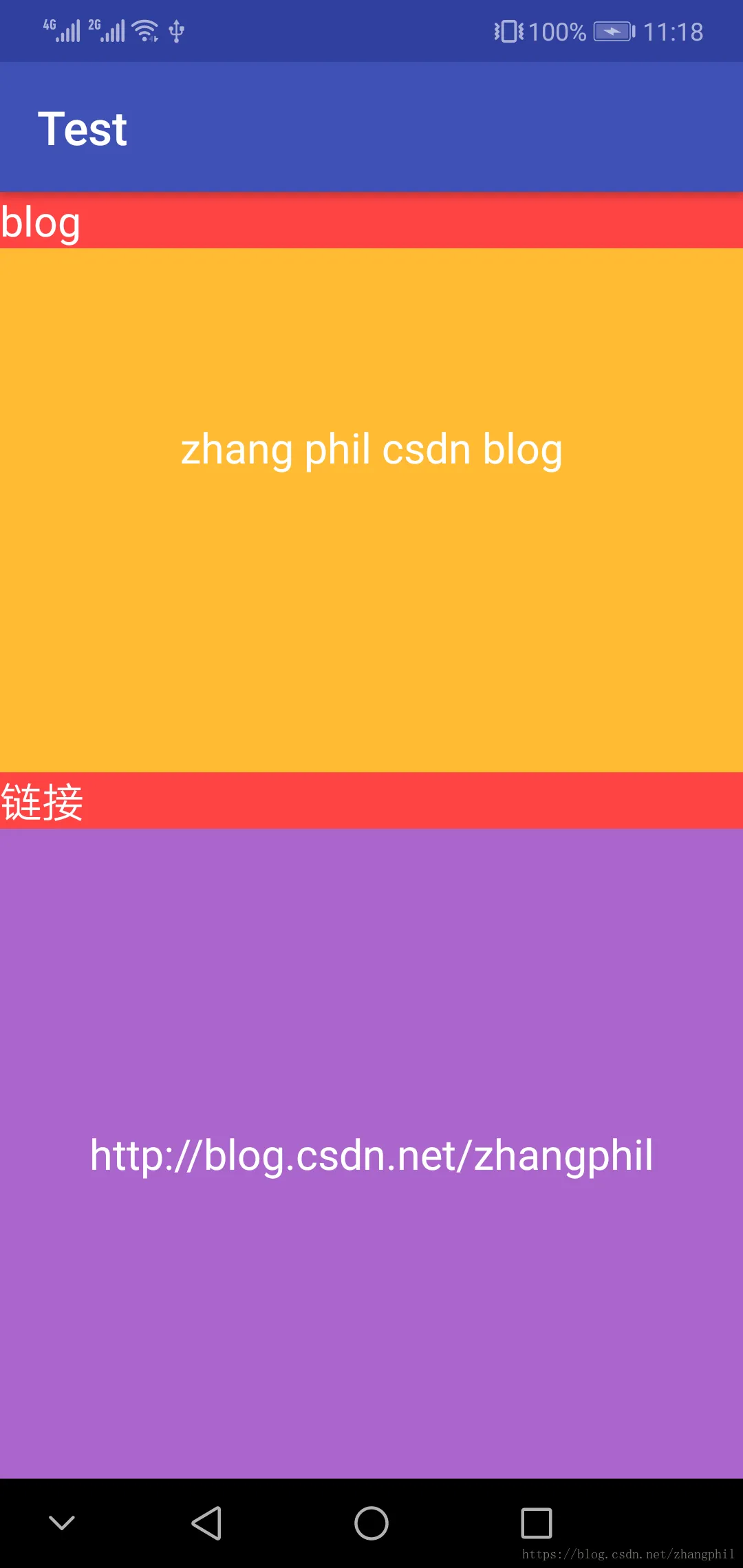

滚到使blog到顶端，然后此时姓名被顶走了：
StickyScrollView原先是继承自ScrollView，然而现在ScrollView已经被新型的NestedScrollView逐渐取代了，现在我把它改写成继承自NestedScrollView后，整理出来：
package zhangphil.test;
import java.util.ArrayList;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.drawable.Drawable;
import android.os.Build;
import android.support.v4.widget.NestedScrollView;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewGroup;
import android.view.animation.AlphaAnimation;
public class StickyScrollView extends NestedScrollView {
/**
* Tag for views that should stick and have constant drawing. e.g. TextViews, ImageViews etc
*/
public static final String STICKY_TAG = "sticky";
/**
* Flag for views that should stick and have non-constant drawing. e.g. Buttons, ProgressBars etc
*/
public static final String FLAG_NONCONSTANT = "-nonconstant";
/**
* Flag for views that have aren't fully opaque
*/
public static final String FLAG_HASTRANSPARANCY = "-hastransparancy";
/**
* Default height of the shadow peeking out below the stuck view.
*/
private static final int DEFAULT_SHADOW_HEIGHT = 10; // dp;
private ArrayList<View> stickyViews;
private View currentlyStickingView;
private float stickyViewTopOffset;
private int stickyViewLeftOffset;
private boolean redirectTouchesToStickyView;
private boolean clippingToPadding;
private boolean clipToPaddingHasBeenSet;
private int mShadowHeight;
private Drawable mShadowDrawable;
private final Runnable invalidateRunnable = new Runnable() {
@Override
public void run() {
if (currentlyStickingView != null) {
int l = getLeftForViewRelativeOnlyChild(currentlyStickingView);
int t = getBottomForViewRelativeOnlyChild(currentlyStickingView);
int r = getRightForViewRelativeOnlyChild(currentlyStickingView);
int b = (int) (getScrollY() + (currentlyStickingView.getHeight() + stickyViewTopOffset));
invalidate(l, t, r, b);
}
postDelayed(this, 16);
}
};
public StickyScrollView(Context context) {
this(context, null);
}
public StickyScrollView(Context context, AttributeSet attrs) {
this(context, attrs, android.R.attr.scrollViewStyle);
}
public StickyScrollView(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
setup();
TypedArray a = context.obtainStyledAttributes(attrs,
R.styleable.StickyScrollView, defStyle, 0);
final float density = context.getResources().getDisplayMetrics().density;
int defaultShadowHeightInPix = (int) (DEFAULT_SHADOW_HEIGHT * density + 0.5f);
mShadowHeight = a.getDimensionPixelSize(
R.styleable.StickyScrollView_stuckShadowHeight,
defaultShadowHeightInPix);
int shadowDrawableRes = a.getResourceId(
R.styleable.StickyScrollView_stuckShadowDrawable, -1);
if (shadowDrawableRes != -1) {
mShadowDrawable = context.getResources().getDrawable(
shadowDrawableRes);
}
a.recycle();
}
/**
* Sets the height of the shadow drawable in pixels.
*
* @param height
*/
public void setShadowHeight(int height) {
mShadowHeight = height;
}
public void setup() {
stickyViews = new ArrayList<View>();
}
private int getLeftForViewRelativeOnlyChild(View v) {
int left = v.getLeft();
while (v.getParent() != getChildAt(0)) {
v = (View) v.getParent();
left += v.getLeft();
}
return left;
}
private int getTopForViewRelativeOnlyChild(View v) {
int top = v.getTop();
while (v.getParent() != getChildAt(0)) {
v = (View) v.getParent();
top += v.getTop();
}
return top;
}
private int getRightForViewRelativeOnlyChild(View v) {
int right = v.getRight();
while (v.getParent() != getChildAt(0)) {
v = (View) v.getParent();
right += v.getRight();
}
return right;
}
private int getBottomForViewRelativeOnlyChild(View v) {
int bottom = v.getBottom();
while (v.getParent() != getChildAt(0)) {
v = (View) v.getParent();
bottom += v.getBottom();
}
return bottom;
}
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
super.onLayout(changed, l, t, r, b);
if (!clipToPaddingHasBeenSet) {
clippingToPadding = true;
}
notifyHierarchyChanged();
}
@Override
public void setClipToPadding(boolean clipToPadding) {
super.setClipToPadding(clipToPadding);
clippingToPadding = clipToPadding;
clipToPaddingHasBeenSet = true;
}
@Override
public void addView(View child) {
super.addView(child);
findStickyViews(child);
}
@Override
public void addView(View child, int index) {
super.addView(child, index);
findStickyViews(child);
}
@Override
public void addView(View child, int index, android.view.ViewGroup.LayoutParams params) {
super.addView(child, index, params);
findStickyViews(child);
}
@Override
public void addView(View child, int width, int height) {
super.addView(child, width, height);
findStickyViews(child);
}
@Override
public void addView(View child, android.view.ViewGroup.LayoutParams params) {
super.addView(child, params);
findStickyViews(child);
}
@Override
protected void dispatchDraw(Canvas canvas) {
super.dispatchDraw(canvas);
if (currentlyStickingView != null) {
canvas.save();
canvas.translate(getPaddingLeft() + stickyViewLeftOffset, getScrollY() + stickyViewTopOffset + (clippingToPadding ? getPaddingTop() : 0));
canvas.clipRect(0, (clippingToPadding ? -stickyViewTopOffset : 0),
getWidth() - stickyViewLeftOffset,
currentlyStickingView.getHeight() + mShadowHeight + 1);
if (mShadowDrawable != null) {
int left = 0;
int right = currentlyStickingView.getWidth();
int top = currentlyStickingView.getHeight();
int bottom = currentlyStickingView.getHeight() + mShadowHeight;
mShadowDrawable.setBounds(left, top, right, bottom);
mShadowDrawable.draw(canvas);
}
canvas.clipRect(0, (clippingToPadding ? -stickyViewTopOffset : 0), getWidth(), currentlyStickingView.getHeight());
if (getStringTagForView(currentlyStickingView).contains(FLAG_HASTRANSPARANCY)) {
showView(currentlyStickingView);
currentlyStickingView.draw(canvas);
hideView(currentlyStickingView);
} else {
currentlyStickingView.draw(canvas);
}
canvas.restore();
}
}
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
if (ev.getAction() == MotionEvent.ACTION_DOWN) {
redirectTouchesToStickyView = true;
}
if (redirectTouchesToStickyView) {
redirectTouchesToStickyView = currentlyStickingView != null;
if (redirectTouchesToStickyView) {
redirectTouchesToStickyView =
ev.getY() <= (currentlyStickingView.getHeight() + stickyViewTopOffset) &&
ev.getX() >= getLeftForViewRelativeOnlyChild(currentlyStickingView) &&
ev.getX() <= getRightForViewRelativeOnlyChild(currentlyStickingView);
}
} else if (currentlyStickingView == null) {
redirectTouchesToStickyView = false;
}
if (redirectTouchesToStickyView) {
ev.offsetLocation(0, -1 * ((getScrollY() + stickyViewTopOffset) - getTopForViewRelativeOnlyChild(currentlyStickingView)));
}
return super.dispatchTouchEvent(ev);
}
private boolean hasNotDoneActionDown = true;
@Override
public boolean onTouchEvent(MotionEvent ev) {
if (redirectTouchesToStickyView) {
ev.offsetLocation(0, ((getScrollY() + stickyViewTopOffset) - getTopForViewRelativeOnlyChild(currentlyStickingView)));
}
if (ev.getAction() == MotionEvent.ACTION_DOWN) {
hasNotDoneActionDown = false;
}
if (hasNotDoneActionDown) {
MotionEvent down = MotionEvent.obtain(ev);
down.setAction(MotionEvent.ACTION_DOWN);
super.onTouchEvent(down);
hasNotDoneActionDown = false;
}
if (ev.getAction() == MotionEvent.ACTION_UP || ev.getAction() == MotionEvent.ACTION_CANCEL) {
hasNotDoneActionDown = true;
}
return super.onTouchEvent(ev);
}
@Override
protected void onScrollChanged(int l, int t, int oldl, int oldt) {
super.onScrollChanged(l, t, oldl, oldt);
doTheStickyThing();
}
private void doTheStickyThing() {
View viewThatShouldStick = null;
View approachingView = null;
for (View v : stickyViews) {
int viewTop = getTopForViewRelativeOnlyChild(v) - getScrollY() + (clippingToPadding ? 0 : getPaddingTop());
if (viewTop <= 0) {
if (viewThatShouldStick == null || viewTop > (getTopForViewRelativeOnlyChild(viewThatShouldStick) - getScrollY() + (clippingToPadding ? 0 : getPaddingTop()))) {
viewThatShouldStick = v;
}
} else {
if (approachingView == null || viewTop < (getTopForViewRelativeOnlyChild(approachingView) - getScrollY() + (clippingToPadding ? 0 : getPaddingTop()))) {
approachingView = v;
}
}
}
if (viewThatShouldStick != null) {
stickyViewTopOffset = approachingView == null ? 0 : Math.min(0, getTopForViewRelativeOnlyChild(approachingView) - getScrollY() + (clippingToPadding ? 0 : getPaddingTop()) - viewThatShouldStick.getHeight());
if (viewThatShouldStick != currentlyStickingView) {
if (currentlyStickingView != null) {
stopStickingCurrentlyStickingView();
}
// only compute the left offset when we start sticking.
stickyViewLeftOffset = getLeftForViewRelativeOnlyChild(viewThatShouldStick);
startStickingView(viewThatShouldStick);
}
} else if (currentlyStickingView != null) {
stopStickingCurrentlyStickingView();
}
}
private void startStickingView(View viewThatShouldStick) {
currentlyStickingView = viewThatShouldStick;
if (getStringTagForView(currentlyStickingView).contains(FLAG_HASTRANSPARANCY)) {
hideView(currentlyStickingView);
}
if (((String) currentlyStickingView.getTag()).contains(FLAG_NONCONSTANT)) {
post(invalidateRunnable);
}
}
private void stopStickingCurrentlyStickingView() {
if (getStringTagForView(currentlyStickingView).contains(FLAG_HASTRANSPARANCY)) {
showView(currentlyStickingView);
}
currentlyStickingView = null;
removeCallbacks(invalidateRunnable);
}
/**
* Notify that the sticky attribute has been added or removed from one or more views in the View hierarchy
*/
public void notifyStickyAttributeChanged() {
notifyHierarchyChanged();
}
private void notifyHierarchyChanged() {
if (currentlyStickingView != null) {
stopStickingCurrentlyStickingView();
}
stickyViews.clear();
findStickyViews(getChildAt(0));
doTheStickyThing();
invalidate();
}
private void findStickyViews(View v) {
if (v instanceof ViewGroup) {
ViewGroup vg = (ViewGroup) v;
for (int i = 0; i < vg.getChildCount(); i++) {
String tag = getStringTagForView(vg.getChildAt(i));
if (tag != null && tag.contains(STICKY_TAG)) {
stickyViews.add(vg.getChildAt(i));
} else if (vg.getChildAt(i) instanceof ViewGroup) {
findStickyViews(vg.getChildAt(i));
}
}
} else {
String tag = (String) v.getTag();
if (tag != null && tag.contains(STICKY_TAG)) {
stickyViews.add(v);
}
}
}
private String getStringTagForView(View v) {
Object tagObject = v.getTag();
return String.valueOf(tagObject);
}
private void hideView(View v) {
if (Build.VERSION.SDK_INT >= 11) {
v.setAlpha(0);
} else {
AlphaAnimation anim = new AlphaAnimation(1, 0);
anim.setDuration(0);
anim.setFillAfter(true);
v.startAnimation(anim);
}
}
private void showView(View v) {
if (Build.VERSION.SDK_INT >= 11) {
v.setAlpha(1);
} else {
AlphaAnimation anim = new AlphaAnimation(0, 1);
anim.setDuration(0);
anim.setFillAfter(true);
v.startAnimation(anim);
}
}
}同时需要在res/values/attr.xml加入定义的属性：
<?xml version="1.0" encoding="utf-8"?>
<resources>
<declare-styleable name="StickyScrollView">
<attr name="stuckShadowHeight" format="dimension" />
<attr name="stuckShadowDrawable" format="reference" />
</declare-styleable>
</resources>使用起来很简单，在xml布局中把某一个子View增加一个属性：
android:tag="sticky"<?xml version="1.0" encoding="utf-8"?>
<zhangphil.test.StickyScrollView xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@android:color/holo_red_light"
android:tag="sticky"
android:text="姓名"
android:textColor="@android:color/white" />
<TextView
android:layout_width="match_parent"
android:layout_height="280dp"
android:background="@android:color/holo_blue_bright"
android:gravity="center"
android:text="zhang phil"
android:textColor="@android:color/white" />
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@android:color/holo_red_light"
android:tag="sticky"
android:text="blog"
android:textColor="@android:color/white" />
<TextView
android:layout_width="match_parent"
android:layout_height="280dp"
android:background="@android:color/holo_orange_light"
android:gravity="center"
android:text="zhang phil csdn blog"
android:textColor="@android:color/white" />
<TextView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@android:color/holo_red_light"
android:tag="sticky"
android:text="链接"
android:textColor="@android:color/white" />
<TextView
android:layout_width="match_parent"
android:layout_height="280dp"
android:background="@android:color/holo_purple"
android:gravity="center"
android:text="http://blog.csdn.net/zhangphil"
android:textColor="@android:color/white" />
</LinearLayout>
</zhangphil.test.StickyScrollView>
