30分钟搞定iOS自定义相机

　最近公司的项目中用到了相机，由于不用系统的相机，UI给的相机切图，必须自定义才可以。就花时间简单研究了一下相机的自定义。

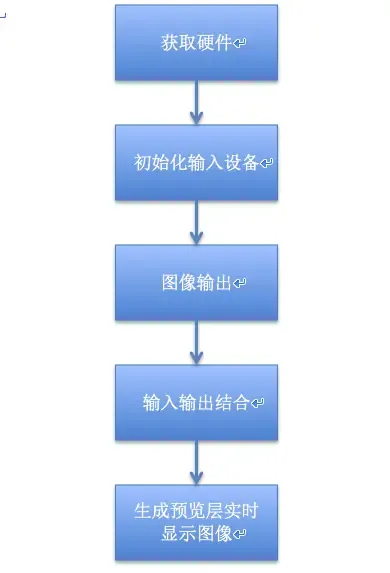

　　相机属于系统硬件，这就需要我们来手动调用iPhone的相机硬件，分为以下步骤：

2016-03-30 上午9.51.09.png

1、首先声明以下对象

#import <AVFoundation/AVFoundation.h>
//捕获设备，通常是前置摄像头，后置摄像头，麦克风（音频输入）
@property (nonatomic, strong) AVCaptureDevice *device;

//AVCaptureDeviceInput 代表输入设备，他使用AVCaptureDevice 来初始化
@property (nonatomic, strong) AVCaptureDeviceInput *input;

//输出图片
@property (nonatomic ,strong) AVCaptureStillImageOutput *imageOutput;

//session：由他把输入输出结合在一起，并开始启动捕获设备（摄像头）
@property (nonatomic, strong) AVCaptureSession *session;

//图像预览层，实时显示捕获的图像
@property (nonatomic ,strong) AVCaptureVideoPreviewLayer *previewLayer;

2、初始化各个对象

- (void)cameraDistrict
{
//    AVCaptureDevicePositionBack  后置摄像头
//    AVCaptureDevicePositionFront 前置摄像头
   self.device = [self cameraWithPosition:AVCaptureDevicePositionFront];
    self.input = [[AVCaptureDeviceInput alloc] initWithDevice:self.device error:nil];

    self.imageOutput = [[AVCaptureStillImageOutput alloc] init];

    self.session = [[AVCaptureSession alloc] init];
    //     拿到的图像的大小可以自行设定
    //    AVCaptureSessionPreset320x240
    //    AVCaptureSessionPreset352x288
    //    AVCaptureSessionPreset640x480
    //    AVCaptureSessionPreset960x540
    //    AVCaptureSessionPreset1280x720
    //    AVCaptureSessionPreset1920x1080
    //    AVCaptureSessionPreset3840x2160
    self.session.sessionPreset = AVCaptureSessionPreset640x480;
    //输入输出设备结合
    if ([self.session canAddInput:self.input]) {
        [self.session addInput:self.input];
    }
    if ([self.session canAddOutput:self.imageOutput]) {
        [self.session addOutput:self.imageOutput];
    }
    //预览层的生成
    self.previewLayer = [[AVCaptureVideoPreviewLayer alloc] initWithSession:self.session];
    self.previewLayer.frame = CGRectMake(0, 64, SCREEN_WIDTH, SCREEN_HEIGHT-64);
    self.previewLayer.videoGravity = AVLayerVideoGravityResizeAspectFill;
    [self.view.layer addSublayer:self.previewLayer];
    //设备取景开始
    [self.session startRunning];
    if ([_device lockForConfiguration:nil]) {
    //自动闪光灯，
        if ([_device isFlashModeSupported:AVCaptureFlashModeAuto]) {
            [_device setFlashMode:AVCaptureFlashModeAuto];
        }
        //自动白平衡,但是好像一直都进不去
        if ([_device isWhiteBalanceModeSupported:AVCaptureWhiteBalanceModeAutoWhiteBalance]) {
            [_device setWhiteBalanceMode:AVCaptureWhiteBalanceModeAutoWhiteBalance];
        }
        [_device unlockForConfiguration];
    }

}

根据前后置位置拿到相应的摄像头：

- (AVCaptureDevice *)cameraWithPosition:(AVCaptureDevicePosition)position{
    NSArray *devices = [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];
    for ( AVCaptureDevice *device in devices )
        if ( device.position == position ){
            return device;
        }
    return nil;
}

3、拍照拿到相应图片：

- (void)photoBtnDidClick
{
    AVCaptureConnection *conntion = [self.imageOutput connectionWithMediaType:AVMediaTypeVideo];
      if (!conntion) {
          NSLog(@"拍照失败!");
          return;
          }
    [self.imageOutput captureStillImageAsynchronouslyFromConnection:conntion completionHandler:^(CMSampleBufferRef imageDataSampleBuffer, NSError *error) {
        if (imageDataSampleBuffer == nil) {
            return ;
          }
        NSData *imageData = [AVCaptureStillImageOutput jpegStillImageNSDataRepresentation:imageDataSampleBuffer];
        self.image = [UIImage imageWithData:imageData];
        [self.session stopRunning];
        [self.view addSubview:self.cameraImageView];
}

4、保存照片到相册：

#pragma - 保存至相册
- (void)saveImageToPhotoAlbum:(UIImage*)savedImage
{

    UIImageWriteToSavedPhotosAlbum(savedImage, self, @selector(image:didFinishSavingWithError:contextInfo:), NULL);

}
// 指定回调方法

- (void)image: (UIImage *) image didFinishSavingWithError: (NSError *) error contextInfo: (void *) contextInfo

{
    NSString *msg = nil ;
    if(error != NULL){
        msg = @"保存图片失败" ;
    }else{
        msg = @"保存图片成功" ;
    }
    UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"保存图片结果提示"
                                            message:msg
                                            delegate:self
                                          cancelButtonTitle:@"确定"
                                          otherButtonTitles:nil];
    [alert show];
}

5、前后置摄像头的切换

- (void)changeCamera{
    NSUInteger cameraCount = [[AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo] count];
    if (cameraCount > 1) {
        NSError *error;
        //给摄像头的切换添加翻转动画
        CATransition *animation = [CATransition animation]；
        animation.duration = .5f；
        animation.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseInEaseOut];
        animation.type = @"oglFlip";

        AVCaptureDevice *newCamera = nil;
        AVCaptureDeviceInput *newInput = nil;
  //拿到另外一个摄像头位置
        AVCaptureDevicePosition position = [[_input device] position];
        if (position == AVCaptureDevicePositionFront){
            newCamera = [self cameraWithPosition:AVCaptureDevicePositionBack];
            animation.subtype = kCATransitionFromLeft;//动画翻转方向
        }
        else {
            newCamera = [self cameraWithPosition:AVCaptureDevicePositionFront];
            animation.subtype = kCATransitionFromRight;//动画翻转方向
        }
        //生成新的输入
        newInput = [AVCaptureDeviceInput deviceInputWithDevice:newCamera error:nil];
        [self.previewLayer addAnimation:animation forKey:nil];
        if (newInput != nil) {
            [self.session beginConfiguration];
            [self.session removeInput:self.input];
            if ([self.session canAddInput:newInput]) {
                [self.session addInput:newInput];
                self.input = newInput;

            } else {
                [self.session addInput:self.input];
            }
            [self.session commitConfiguration];

        } else if (error) {
            NSLog(@"toggle carema failed, error = %@", error);
        }
    }
}

6、相机的其它参数设置

//AVCaptureFlashMode  闪光灯
//AVCaptureFocusMode  对焦
//AVCaptureExposureMode  曝光
//AVCaptureWhiteBalanceMode  白平衡
//闪光灯和白平衡可以在生成相机时候设置
//曝光要根据对焦点的光线状况而决定,所以和对焦一块写
//point为点击的位置
- (void)focusAtPoint:(CGPoint)point{
    CGSize size = self.view.bounds.size;
    CGPoint focusPoint = CGPointMake( point.y /size.height ,1-point.x/size.width );
    NSError *error;
    if ([self.device lockForConfiguration:&error]) {
        //对焦模式和对焦点
        if ([self.device isFocusModeSupported:AVCaptureFocusModeAutoFocus]) {
            [self.device setFocusPointOfInterest:focusPoint];
            [self.device setFocusMode:AVCaptureFocusModeAutoFocus];
        }
        //曝光模式和曝光点
        if ([self.device isExposureModeSupported:AVCaptureExposureModeAutoExpose ]) {
            [self.device setExposurePointOfInterest:focusPoint];
            [self.device setExposureMode:AVCaptureExposureModeAutoExpose];
        }

        [self.device unlockForConfiguration];
        //设置对焦动画
        _focusView.center = point;
        _focusView.hidden = NO;
        [UIView animateWithDuration:0.3 animations:^{
            _focusView.transform = CGAffineTransformMakeScale(1.25, 1.25);
        }completion:^(BOOL finished) {
            [UIView animateWithDuration:0.5 animations:^{
                _focusView.transform = CGAffineTransformIdentity;
            } completion:^(BOOL finished) {
                _focusView.hidden = YES;
            }];
        }];
    }

}

7、遇到的一些坑和解决办法

1) 前后置摄像头的切换

　　前后值不能切换，各种尝试找了半天没找到有原因。后来发现我在设置图片尺寸的时候设置为1080P [self.session canSetSessionPreset: AVCaptureSessionPreset1920x1080] ，前置摄像头并不支持这么大的尺寸，所以就不能切换前置摄像头。我验证了下 前置摄像头最高支持720P,720P以内可自由切换。　　当然也可以在前后置摄像头切换的时候，根据前后摄像头来设置不同的尺寸，这里不在赘述。

2）焦点位置

　　CGPoint focusPoint = CGPointMake( point.y /size.height ,1-point.x/size.width );
setExposurePointOfInterest：focusPoint 函数后面Point取值范围是取景框左上角（0，0）到取景框右下角（1，1）之间。官方是这么写的：
　　The value of this property is a CGPoint that determines the receiver's focus point of interest, if it has one. A value of (0,0) indicates that the camera should focus on the top left corner of the image, while a value of (1,1) indicates that it should focus on the bottom right. The default value is (0.5,0.5).
　　我也试了按这个来但位置就是不对，只能按上面的写法才可以。前面是点击位置的y/PreviewLayer的高度，后面是1-点击位置的x/PreviewLayer的宽度

3）对焦和曝光

　　我在设置对焦是 先设置了模式setFocusMode，后设置对焦位置，就会导致很奇怪的现象，对焦位置是你上次点击的位置。所以一定要先设置位置，再设置对焦模式。
　　曝光同上
