Hadoop2.7实战v1.0之动态添加DataNode和NodeManager节点(不修改dfs.replication)

简介: Hadoop2.7实战v1.0之动态添加DataNode和NodeManager节点(不修改dfs.replication)【终极版】 0.
+关注继续查看

Hadoop2.7实战v1.0之动态添加DataNode和NodeManager节点(不修改dfs.replication)【终极版】


0.添加大文件到hdfs系统中去,是为了后期的动态添加datanode的机器,datanode机器的数据量不均衡,为了模拟均衡实验

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-01 ~]# hadoop fs -put /root/oracle-j2sdk1.7-1.7.0+update67-1.x86_64.rpm /testdir

  2. [root@sht-sgmhadoopnn-01 ~]# hadoop fs -put /root/012_HDFS.avi /testdir

  3. [root@sht-sgmhadoopnn-01 ~]# hadoop fs -put /root/016_Hadoop.avi /testdir


###3
datanode节点数据量和数据块相等

1.修改系统hostname(通过hostname/etc/sysconfig/network进行修改)

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-04 ~]# hostname

  2. sht-sgmhadoopdn-04.telenav.cn

  3. [root@sht-sgmhadoopdn-04 ~]# more /etc/sysconfig/network

  4. NETWORKING=yes

  5. HOSTNAME=sht-sgmhadoopdn-04.telenav.cn

  6. GATEWAY=172.16.101.1

2.修改hosts文件,将集群所有节点hosts配置进去(集群所有节点保持hosts文件统一)

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-04 ~]# more /etc/hosts
  2. 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
  3. ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

  4. 172.16.101.54 sht-sgmhadoopcm-01.telenav.cn sht-sgmhadoopcm-01
  5. 172.16.101.55 sht-sgmhadoopnn-01.telenav.cn sht-sgmhadoopnn-01
  6. 172.16.101.56 sht-sgmhadoopnn-02.telenav.cn sht-sgmhadoopnn-02
  7. 172.16.101.58 sht-sgmhadoopdn-01.telenav.cn sht-sgmhadoopdn-01
  8. 172.16.101.59 sht-sgmhadoopdn-02.telenav.cn sht-sgmhadoopdn-02
  9. 172.16.101.60 sht-sgmhadoopdn-03.telenav.cn sht-sgmhadoopdn-03
  10. 172.16.101.66 sht-sgmhadoopdn-04.telenav.cn sht-sgmhadoopdn-04
  11. [root@sht-sgmhadoopdn-04 ~]#

##修改集群的其他节点hosts文件

3.查看是否有.ssh文件夹,删除.ssh,重新配置

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-04 ~]# ls -l -a

  2. total 138948

  3. drwxr-x---. 7 root root 4096 Feb 1 17:06 .

  4. dr-xr-xr-x. 25 root root 4096 Feb 9 09:34 ..

  5. drwxr-x---. 2 root root 4096 Dec 31 15:29 .ssh

  6. [root@sht-sgmhadoopdn-04 ~]# rm -rf .ssh




  7. [root@sht-sgmhadoopdn-04 ~]# ssh-keygen

  8. Generating public/private rsa key pair.

  9. Enter file in which to save the key (/root/.ssh/id_rsa):

  10. Created directory '/root/.ssh'.

  11. Enter passphrase (empty for no passphrase):

  12. Enter same passphrase again:

  13. Your identification has been saved in /root/.ssh/id_rsa.

  14. Your public key has been saved in /root/.ssh/id_rsa.pub.

  15. The key fingerprint is:

  16. 2e:24:52:bf:9d:c4:b8:d8:d6:7a:45:47:7b:cc:54:d0 root@sht-sgmhadoopdn-04.telenav.cn

  17. The key

4.设置NameNode(两台HA均需要)到DataNode的免密码登录(ssh-copy-id命令实现,可以免去cp *.pub文件后的权限修改)

参考 http://blog.itpub.net/30089851/viewspace-1992210/

###其实最好将集群的每台都互相配置信任,包括新加的机器(我采取这个)

5.修改主节点slave文件,添加新增节点的ip信息,这里添加的是hostname:sht-sgmhadoopdn-04(集群重启时使用)

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-01 ~]# cd /hadoop/hadoop-2.7.2/etc/hadoop

  2. [root@sht-sgmhadoopnn-01 hadoop]# vi slaves

  3. sht-sgmhadoopdn-01

  4. sht-sgmhadoopdn-02

  5. sht-sgmhadoopdn-03

  6. sht-sgmhadoopdn-04




  7. "slaves" 4L, 76C written

  8. [root@sht-sgmhadoopnn-01 hadoop]# scp slaves root@sht-sgmhadoopnn-02:/hadoop/hadoop-2.7.2/etc/hadoop

  9. slaves 100% 76 0.1KB/s 00:00

  10. [root@sht-sgmhadoopnn-01 hadoop]#

###我觉得这里应该将slaves文件scpstandbyNameNode即可,当然我倾向scp到其他所有节点(standbyNameNode,other DataNode);
毕竟假如集群重启了,active节点机器变为standby节点,standby节点机器变为active节点,那么假如slaves文件没有改变的话,那么执行start-dfs.sh脚本的话,那么新加的datanode节点就起不来!

6.新增的datanode 节点安装hadoop软件

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-04 ~]# cd /tmp

  2. [root@sht-sgmhadoopdn-04 tmp]# wget https://www.apache.org/dist/hadoop/core/hadoop-2.7.2/hadoop-2.7.2.tar.gz --no-check-certificate

  3. [root@sht-sgmhadoopnn-04 tmp]# tar -xvf hadoop-2.7.2.tar.gz

  4. [root@sht-sgmhadoopdn-04 tmp]# mv hadoop-2.7.2 /hadoop/hadoop-2.7.2

  5. [root@sht-sgmhadoopdn-04 tmp]# cd /hadoop/hadoop-2.7.2/

  6. [root@sht-sgmhadoopdn-04 hadoop-2.7.2]# ll

  7. total 52

  8. drwxr-xr-x 2 10011 10011 4096 Jan 26 08:20 bin

  9. drwxr-xr-x 3 10011 10011 4096 Jan 26 08:20 etc

  10. drwxr-xr-x 2 10011 10011 4096 Jan 26 08:20 include

  11. drwxr-xr-x 3 10011 10011 4096 Jan 26 08:20 lib

  12. drwxr-xr-x 2 10011 10011 4096 Jan 26 08:20 libexec

  13. -rw-r--r-- 1 10011 10011 15429 Jan 26 08:20 LICENSE.txt

  14. -rw-r--r-- 1 10011 10011 101 Jan 26 08:20 NOTICE.txt

  15. -rw-r--r-- 1 10011 10011 1366 Jan 26 08:20 README.txt

  16. drwxr-xr-x 2 10011 10011 4096 Jan 26 08:20 sbin

  17. drwxr-xr-x 4 10011 10011 4096 Jan 26 08:20 share

  18. [root@sht-sgmhadoopdn-04 hadoop-2.7.2]#

7.hadoop的配置文件scp到新的节点上

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-01 ~]# cd /hadoop/hadoop-2.7.2/etc/hadoop/

  2. [root@sht-sgmhadoopnn-01 hadoop]# scp * root@sht-sgmhadoopdn-04:/hadoop/hadoop-2.7.2/etc/hadoop/

8.在新节点上启动datanode进程和nodemanager进程之前,必须检查$HADOOP_HOME/data/目录是否存在?假如存在,就直接先删除该目录的所有的文件

原因是机器有可能第二次添加为数据节点,清除数据文件等

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-04 ~]# cd /hadoop/hadoop-2.7.2/data/

  2. [root@sht-sgmhadoopnn-04 data]# rm -rf *

【启动datanode进程】

9.在新增的节点上,启动datanode进程

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-04 hadoop]# cd ../../sbin

  2. [root@sht-sgmhadoopdn-04 sbin]# ./hadoop-daemon.sh start datanode

  3. starting datanode, logging to /hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-sht-sgmhadoopdn-04.telenav.cn.out

然后在namenode通过hdfs dfsadmin -report或者web

v  [root@sht-sgmhadoopdn-01 bin]# ./hdfs dfsadmin –report

v  http://172.16.101.55:50070/dfshealth.html#tab-datanode

###负载不均衡, sht-sgmhadoopdn-04的数据块0Used24kb

      @假如sht-sgmhadoopdn-04datanode进程已经起来了,那么web界面datanode就是不显示sht-sgmhadoopdn-04这一行数据,先执行./hadoop-daemon.sh stop datanode命令关闭当前进程;

      @然后再要检查是否设置了dfs.hostsdfs.hosts.exclude参数,那么就注释这两个参数,然后执行hdfs dfsadmin -refreshNodes,刷新一下配置,然后有可能出现下面这幅1Dead状态;

      @最后只要再执行./hadoop-daemon.sh start datanode,刷新web就行,2, 继续执行。

【启动nodemanager进程】

10.在新增的节点上,启动nodemanager进程

由于Hadoop 2.X引入了YARN框架,所以对于每个计算节点都可以通过NodeManager进行管理,同理启动NodeManager进程后,即可将其加入集群

在新增节点,运行sbin/yarn-daemon.sh start nodemanager即可

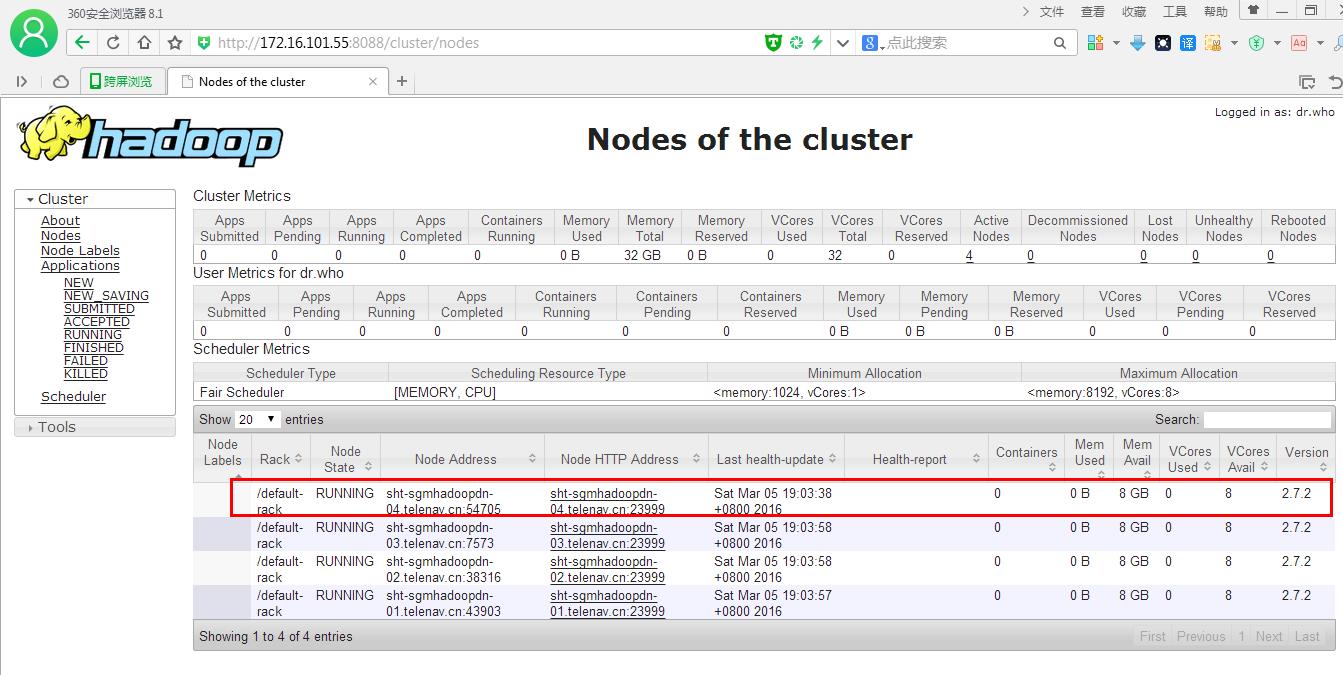

ResourceManager,通过yarn node -list查看集群情况

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-04 sbin]# ./yarn-daemon.sh start nodemanager

  2. starting nodemanager, logging to /hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-sht-sgmhadoopdn-04.telenav.cn.out




  3.  [root@sht-sgmhadoopdn-04 sbin]# jps

  4. 14508 DataNode

  5. 15578 Jps

  6. 15517 NodeManager

  7. [root@sht-sgmhadoopdn-04 sbin]# cd ../bin

  8.  [root@sht-sgmhadoopdn-04 bin]# ./yarn node -list

  9. 16/03/05 19:00:04 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable

  10. Total Nodes:4

  11.          Node-Id Node-State Node-Http-Address Number-of-Running-Containers

  12. sht-sgmhadoopdn-04.telenav.cn:54705 RUNNING sht-sgmhadoopdn-04.telenav.cn:23999 0

  13. sht-sgmhadoopdn-03.telenav.cn:7573 RUNNING sht-sgmhadoopdn-03.telenav.cn:23999 0

  14. sht-sgmhadoopdn-02.telenav.cn:38316 RUNNING sht-sgmhadoopdn-02.telenav.cn:23999 0

  15. sht-sgmhadoopdn-01.telenav.cn:43903 RUNNING sht-sgmhadoopdn-01.telenav.cn:23999 0

11.最后还需要对hdfs负载设置均衡,因为默认的数据传输带宽比较低,可以设置为64Mhdfs dfsadmin -setBalancerBandwidth 67108864即可

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-01 ~]# cd /hadoop/hadoop-2.7.2/bin

  2. [root@sht-sgmhadoopdn-01 bin]# ./hdfs dfsadmin -setBalancerBandwidth 67108864

  3. Balancer bandwidth is set to 67108864 for sht-sgmhadoopnn-01/172.16.101.55:8020

  4. Balancer bandwidth is set to 67108864 for sht-sgmhadoopnn-02/172.16.101.56:8020

12.默认balancerthreshold10%,即各个节点与集群总的存储使用率相差不超过10%,我们可将其设置为5%;然后启动Balancer,sbin/start-balancer.sh -threshold 5,等待集群自均衡完成即可。

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopdn-01 bin]# cd ../sbin

  2. starting balancer, logging to /hadoop/hadoop-2.7.2/logs/hadoop-root-balancer-sht-sgmhadoopnn-01.telenav.cn.out

  3. [root@sht-sgmhadoopnn-01 sbin]# ./start-balancer.sh -threshold 5

  4. starting balancer, logging to /hadoop/hadoop-2.7.2/logs/hadoop-root-balancer-sht-sgmhadoopnn-01.telenav.cn.out

###运行这个命令start-balancer.sh -threshold 5和使用hdfs balancer是一样的

#### Usage: hdfs balancer

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-01 bin]# ./hdfs balancer -threshold 5

  2. 16/03/05 18:57:33 INFO balancer.Balancer: Using a threshold of 1.0

  3. 16/03/05 18:57:33 INFO balancer.Balancer: namenodes = [hdfs://mycluster]

  4. 16/03/05 18:57:33 INFO balancer.Balancer: parameters = Balancer.Parameters[BalancingPolicy.Node, threshold=1.0, max idle iteration = 5, number of nodes to be excluded = 0, number of nodes to be included = 0]

  5. Time Stamp Iteration# Bytes Already Moved Bytes Left To Move Bytes Being Moved

  6. 16/03/05 18:57:34 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable

  7. 16/03/05 18:57:35 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.58:50010

  8. 16/03/05 18:57:35 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.60:50010

  9. 16/03/05 18:57:35 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.66:50010

  10. 16/03/05 18:57:35 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.59:50010

  11. 16/03/05 18:57:35 INFO balancer.Balancer: 0 over-utilized: []

  12. 16/03/05 18:57:35 INFO balancer.Balancer: 0 underutilized: []

  13. The cluster is balanced. Exiting...

  14. Mar 5, 2016 6:57:35 PM 0 0 B 0 B -1 B

  15. Mar 5, 2016 6:57:35 PM Balancing took 2.66 seconds

A.      为什么我执行该命令hdfs balancer -threshold 5平衡数据命令没有反应呢?

5表示5%

群总存储使用率:           1.74%

sht-sgmhadoopdn-01:   1.74%

sht-sgmhadoopdn-02:   1.74%

sht-sgmhadoopdn-03:   1.74%

sht-sgmhadoopdn-04:     0%

执行-threshold  5, 表示每一个 datanode 存储使用率和集群总存储使用率的差值都应该小于这个阀值5%

假如超过5%,会执行数据平衡操作。

B.      怎样判断执行命令是否会生效,数据平衡操作?

if  (群总存储使用率  每一台datanode 存储使用率) > -threshold  5

      #会执行数据平衡

else

      #该命令不生效

end if

C.      the threshold  range of [1.0, 100.0],所以最小只能设置 -threshold  1

13. 执行命令hdfs balancer -threshold 1

[root@sht-sgmhadoopnn-01 hadoop]# hdfs balancer -threshold 1

……………..

……………..

16/03/08 16:08:09 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.59:50010

16/03/08 16:08:09 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.58:50010

16/03/08 16:08:09 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.66:50010

16/03/08 16:08:09 INFO net.NetworkTopology: Adding a new node: /default-rack/172.16.101.60:50010

16/03/08 16:08:09 INFO balancer.Balancer: 0 over-utilized: []

16/03/08 16:08:09 INFO balancer.Balancer: 0 underutilized: []

The cluster is balanced. Exiting...

Mar 8, 2016 4:08:09 PM            1            382.22 MB                 0 B               -1 B

Mar 8, 2016 4:08:09 PM   Balancing took 6.7001 minutes

###新增数据节点的411.7M

14.问题:active namenode上成功执行数据平衡命令,namenode的状态发生的failover

问题描述:

                      sht-sgmhadoopnn-01 :active—>standby

                      sht-sgmhadoopnn-02 :standby—>active,发生了failover操作.

揣测:active节点上操作数据平衡命令,可能cpu等资源不够用了,就发生了failover,建议在新的数据节点datanode上操作.

修正:

点击(此处)折叠或打开

  1. [root@sht-sgmhadoopnn-01 hadoop]# hdfs haadmin -failover nn2 nn1
  2. Failover to NameNode at sht-sgmhadoopnn-01/172.16.101.55:8020 successful
  3. [root@sht-sgmhadoopnn-01 hadoop]# hdfs haadmin -getServiceState nn1
  4. active
  5. [root@sht-sgmhadoopnn-01 hadoop]# hdfs haadmin -getServiceState nn2
  6. standby
  7.  [root@sht-sgmhadoopnn-01 hadoop]#
