前言
springboot内置有org.springframework.scheduling.annotation.Scheduled可以让我们进行简单快速的任务调度（例如定时执行的任务），当我们一些和任务调度有关的业务开始复杂的时候，极其需要非常灵活的任务调度策略；在这种情况，博主使用了quartz，写下此文以记；
依赖（gradle）
compile group: 'org.quartz-scheduler', name: 'quartz', version: '2.2.1'
quartz的配置文件
springboot中集成quartz并进行持久化配置，在springboot项目中的resources目录下创建properties文件（和springboot的配置文件同级），命名quartz.properties；
内容如下：
# 固定前缀org.quartz
# 主要分为scheduler、threadPool、jobStore、plugin等部分
#
#实例名
org.quartz.scheduler.instanceName=TioadScheduler
#实例id（唯一，有缺省值）
org.quartz.scheduler.instanceId=TioadSchedulerId
org.quartz.scheduler.rmi.export=false
org.quartz.scheduler.rmi.proxy=false
org.quartz.scheduler.wrapJobExecutionInUserTransaction=false
# 实例化ThreadPool时，使用的线程类为SimpleThreadPool
org.quartz.threadPool.class=org.quartz.simpl.SimpleThreadPool
# threadCount和threadPriority将以setter的形式注入ThreadPool实例
# 并发个数
org.quartz.threadPool.threadCount=5
# 优先级
org.quartz.threadPool.threadPriority=5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread=true
org.quartz.jobStore.misfireThreshold=5000
# 默认存储在内存中
#org.quartz.jobStore.class = org.quartz.simpl.RAMJobStore
#持久化
org.quartz.jobStore.class=org.quartz.impl.jdbcjobstore.JobStoreTX
org.quartz.jobStore.tablePrefix=QRTZ_
org.quartz.jobStore.dataSource=qzDS
org.quartz.dataSource.qzDS.driver=com.mysql.jdbc.Driver
#dev(第一次初始化quartz，需要执行quartz包下的sql，创建表结构)
org.quartz.dataSource.qzDS.URL=持久化的数据库url配置
org.quartz.dataSource.qzDS.user=持久化的数据库连接用户账号配置
org.quartz.dataSource.qzDS.password=持久化的数据库连接用户密码配置
org.quartz.dataSource.qzDS.maxConnections=10持久化数据库建表
从官网下载对应版本的quartz，解压，目录下的docs/dbTables会有大多数数据库的建表语句，执行建表；
基于注解的quartz配置
import org.quartz.Scheduler;
import org.quartz.ee.servlet.QuartzInitializerListener;
import org.springframework.beans.factory.config.PropertiesFactoryBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.scheduling.quartz.SchedulerFactoryBean;
import java.io.IOException;
import java.util.Properties;
@Configuration
public class SchedulerConfig {
@Autowired
TioadJobFactory tioadJobFactory;//注入我们自己的factory，防止无法在job中注入service层
@Bean(name="TioadSchedulerFactory")
public SchedulerFactoryBean tioadSchedulerFactoryBean() throws IOException {
SchedulerFactoryBean schedulerFactoryBean = new SchedulerFactoryBean();
schedulerFactoryBean.setQuartzProperties(quartzProperties());
// schedulerFactoryBean.setJobFactory(tioadJobFactory);
return schedulerFactoryBean;
}
@Bean
public Properties quartzProperties() throws IOException {
PropertiesFactoryBean propertiesFactoryBean = new PropertiesFactoryBean();
propertiesFactoryBean.setLocation(new ClassPathResource("/quartz.properties"));
//在quartz.properties中的属性被读取并注入后再初始化对象
propertiesFactoryBean.afterPropertiesSet();
return propertiesFactoryBean.getObject();
}
/*
* quartz初始化监听器
*/
@Bean
public QuartzInitializerListener executorListener() {
return new QuartzInitializerListener();
}
/*
* 通过SchedulerFactoryBean获取Scheduler的实例
*/
@Bean(name="TioadScheduler")
public Scheduler scheduler() throws IOException {
return tioadSchedulerFactoryBean().getScheduler();
}新建测试任务Job1
实现quartz的job接口，重写execute（），这里就是任务的逻辑，在execute()中执行的任务逻辑如果用到service层，发现注入不成功的话，需要在上面的SchedulerConfig.class中set我们自己的；
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.stereotype.Component;
import java.text.SimpleDateFormat;
import java.util.Date;
@Component
public class Job1 implements Job {
@Override
public void execute(JobExecutionContext context) throws JobExecutionException {
SimpleDateFormat sdf = new SimpleDateFormat("yyyyMMdd HH:mm:ss");
System.out.println("job 1 " + sdf.format(new Date()));
}
}我们自己的工厂防止无法注入问题TioadJobFactory
@Component
public class TioadJobFactory extends AdaptableJobFactory {
@Autowired
private AutowireCapableBeanFactory capableBeanFactory;
@Override
protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception {
Object jobInstance = super.createJobInstance(bundle);
capableBeanFactory.autowireBean(jobInstance); //这一步解决不能spring注入bean的问题
return jobInstance;
}
}controller级测试使用quartz
import com.crm.restapi.param.QuartzParam;
import com.crm.restapi.result.ApiResult;
import org.quartz.*;
import org.quartz.impl.matchers.GroupMatcher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.*;
import javax.validation.Valid;
import java.util.HashMap;
import java.util.Set;
import static org.quartz.CronScheduleBuilder.cronSchedule;
import static org.quartz.JobBuilder.newJob;
import static org.quartz.TriggerBuilder.newTrigger;
@Validated
@RequestMapping(value = "/task")
@RestController
public class TaskController extends BaseController{
@Autowired @Qualifier("TioadScheduler")//这里是config里面定义的scheduler，通过添加注解@Qualifier，使@Autowired的自动注入由bytype变为byname
private Scheduler scheduler;
@Value("${quartzname}")
private String quartzname;//这是我自己定义的quartzname,这里是字符串：IamROOT
@Value("${quartzpath}")
private String quartzpath;//这是配置好的反射path,这里是：com.crm.restapi.schedule.job.
@PostMapping(value = "/startjob")
public ApiResult startjob(@RequestBody @Valid QuartzParam quartzParam) throws ClassNotFoundException, SchedulerException {
// 定义jobdetail
Class jobclass = Class.forName(quartzpath + quartzParam.getClassName());
JobDetail job = newJob(jobclass)
.withIdentity(quartzParam.getJobName(), quartzParam.getJobGroup())
.build();
// 定义trigger触发器
Trigger trigger = newTrigger()
.withIdentity(quartzParam.getTgName(), quartzParam.getTgGroup())
.startNow()
.withSchedule(cronSchedule(quartzParam.getTrigger()))//这里是cron表达式
.build();
// Tell quartz to schedule the job using our trigger
scheduler.scheduleJob(job, trigger);//定义的JobDetail和trigger注册到scheduler里
return new ApiResult().success();
}
@GetMapping("/start")
public ApiResult startTask() throws ClassNotFoundException, SchedulerException {
scheduler.start();
return new ApiResult().success();
}
@GetMapping("/stop")
public ApiResult stopTrigger() throws ClassNotFoundException, SchedulerException {
scheduler.standby();//这里使用standby()方法，shutdown()方法会把scheduler实例关闭，start也会无法启动
return new ApiResult().success();
}
@GetMapping("/list")
public ApiResult list() throws ClassNotFoundException, SchedulerException {
HashMap map = new HashMap();
Set<JobKey> jobKeySet = scheduler.getJobKeys(GroupMatcher.groupEquals("group1"));
map.put("jobNum", jobKeySet.size());
map.put("jobDedail", jobKeySet);
map.put("nowJob", scheduler.getCurrentlyExecutingJobs());
return new ApiResult().success(map);
}
}
QuartzParam.java（这里我用了validation验证）
import javax.validation.constraints.NotNull;
import javax.validation.constraints.Size;
public class QuartzParam {
@Size(min = 1, message = "类(名)不能为空")
@NotNull(message = "类(名)不能为空")
private String className;
@Size(min = 1, message = "任务(名)不能为空")
@NotNull(message = "任务(名)不能为空")
private String jobName;
@Size(min = 1, message = "任务(名)不能为空")
@NotNull(message = "任务(名)不能为空")
private String jobGroup;
@Size(min = 1, message = "触发器(名)不能为空")
@NotNull(message = "触发器(名)不能为空")
private String tgName;
@Size(min = 1, message = "触发器(组)不能为空")
@NotNull(message = "触发器(组)不能为空")
private String tgGroup;
@Size(min = 1, message = "触发器(规则)不能为空")
@NotNull(message = "触发器(规则)不能为空")
private String trigger;
public String getClassName() {
return className;
}
public void setClassName(String className) {
this.className = className;
}
public String getJobName() {
return jobName;
}
public void setJobName(String jobName) {
this.jobName = jobName;
}
public String getJobGroup() {
return jobGroup;
}
public void setJobGroup(String jobGroup) {
this.jobGroup = jobGroup;
}
public String getTgName() {
return tgName;
}
public void setTgName(String tgName) {
this.tgName = tgName;
}
public String getTgGroup() {
return tgGroup;
}
public void setTgGroup(String tgGroup) {
this.tgGroup = tgGroup;
}
public String getTrigger() {
return trigger;
}
public void setTrigger(String trigger) {
this.trigger = trigger;
}
}
Run起来
springboot启动后scheduler实例会自动start
使用postman测试

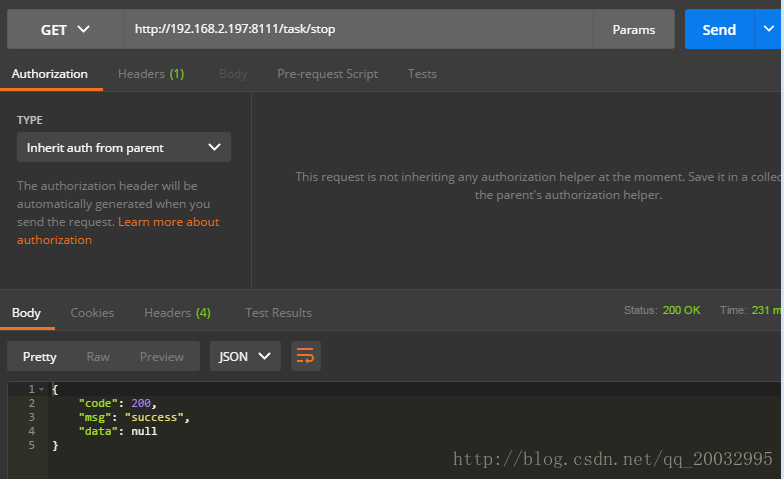

stop
console

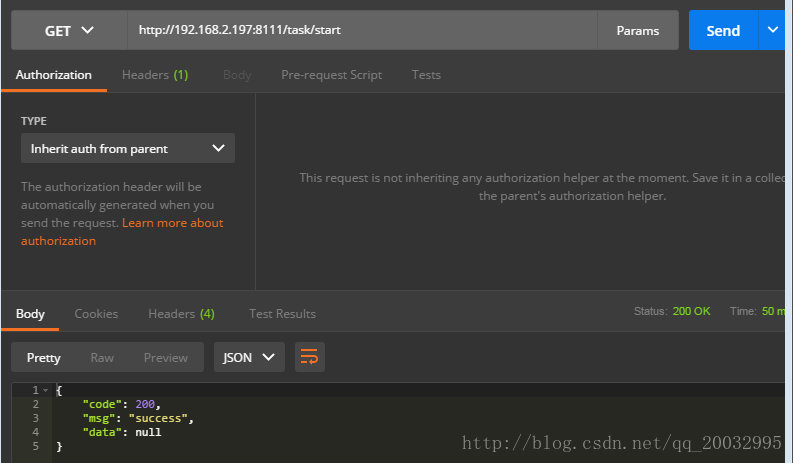

start
console

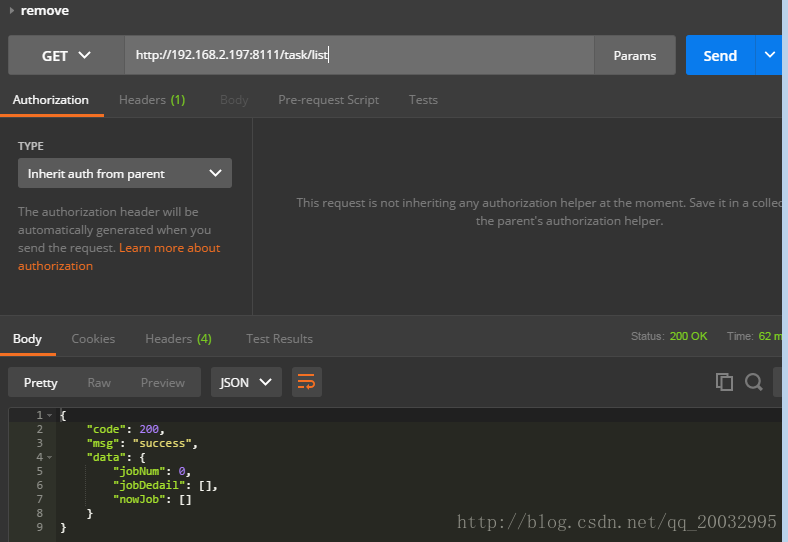

list

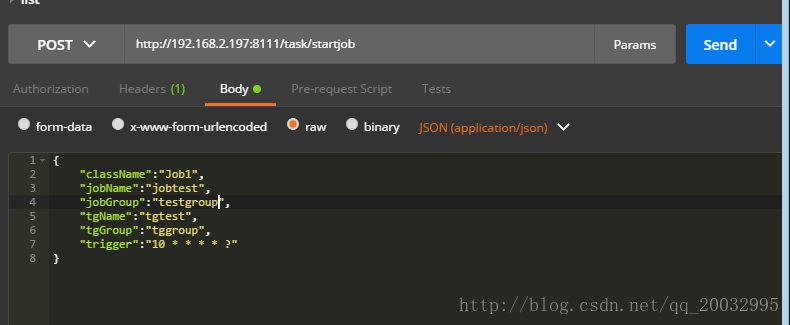

startjob
console

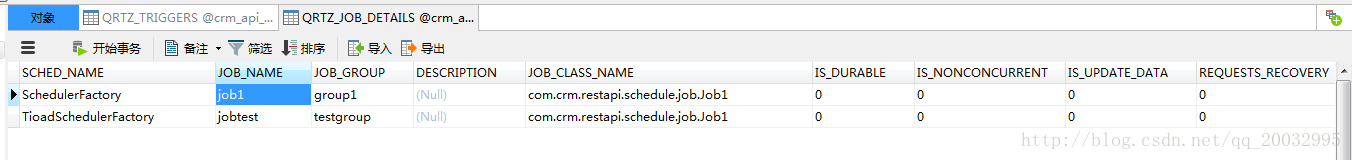

检查持久化
前面步骤，早就已经创建好的数据库表

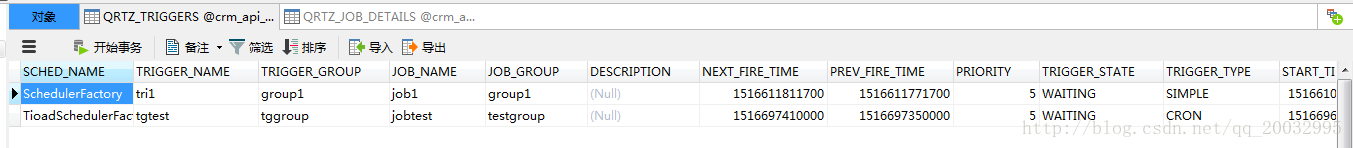

查看
持久化成功（第一条别纠结，那是我以前用的，第二条数据才是我们测的）
尾
简单快速上手springboot集成quartz的快速教程，简单粗暴的还是需要官方文档；
有问题，欢迎留言；
附上官方文档
org.quartz-scheduler官方文档
quartz学习
Quartz学习——Quartz大致介绍（一）
常见问题
quartz Couldn’t rollback jdbc connection. Communications link failure during rollback().
java.net.SocketException: Broken pipe with Quartz and MySQL and Tomcat (Tomcat Crash)
