mangopollo：http://mangopollo.codeplex.com/
利用mangopollo可以让我们在7.8方便的创建live tiles…
Mangopollo will allow you to easily take advantage of new windows phone tiles (cyclic, flip, iconic) if your application is run from a Windows Phone 7.8 or 8 as well as new launchers if your application is run from a Windows Phone 8 while remaining compatible with windows phone 7.
安装mangopollo可以通过nuget
PM> Install-Package Mangopollo
还是来看使用效果吧
首先是判断：
//判断是否wp8 private void TestIfWP8_Click(object sender, RoutedEventArgs e) { if (Utils.IsWP8) { MessageBox.Show("It's a Windows Phone 8 !"); } else { MessageBox.Show("It's a Windows Phone 7 !"); } }
//判断是否支持新的Tiles
private void TestIfWP78_Click(object sender, RoutedEventArgs e)
{
if (Utils.CanUseLiveTiles)
{
MessageBox.Show("It's a Windows Phone 7.8 or sup !");
}
else
{
MessageBox.Show("It's a Windows Phone 7 !");
}
}
创建CycleTile：
private void CreateCycleTile_Click(object sender, RoutedEventArgs e) { if (!Utils.CanUseLiveTiles) { MessageBox.Show("This feature needs Windows Phone 8"); return; } try { var mytile = new CycleTileData { Title = "cyclic tile", Count = 42, SmallBackgroundImage = new Uri("/Assets/logo159x159.png", UriKind.Relative), CycleImages = new List<Uri> {new Uri("/Assets/Image1.png", UriKind.Relative), new Uri("/Assets/Image2.png", UriKind.Relative), new Uri("/Assets/Image3.png", UriKind.Relative)} }; #if ALTERNATIVE_SOLUTION var mytile = Mangopollo.Tiles.TilesCreator.CreateCyclicTile("cyclic tile", 42, new Uri("/Assets/logo159x159.png", UriKind.Relative), new List<Uri>() { new Uri("/Assets/Image1.png", UriKind.Relative), new Uri("/Assets/Image2.png", UriKind.Relative), new Uri("/Assets/Image3.png", UriKind.Relative) }); #endif ShellTileExt.Create(new Uri("/MainPage.xaml?msg=from%20cycle%20tile", UriKind.Relative), mytile, false); } catch { MessageBox.Show("remove tile before create it again"); } } private void CreateCycleTileWide_Click(object sender, RoutedEventArgs e) { if (!Utils.CanUseLiveTiles) { MessageBox.Show("This feature needs Windows Phone 8"); return; } try { var mytile = new CycleTileData { Title = "cyclic wide tile", Count = 42, SmallBackgroundImage = new Uri("/Assets/logo159x159.png", UriKind.Relative), CycleImages = new List<Uri> {new Uri("/Assets/Image1.png", UriKind.Relative), new Uri("/Assets/Image2.png", UriKind.Relative), new Uri("/Assets/Image3.png", UriKind.Relative)} }; #if ALTERNATIVE_SOLUTION var mytile = Mangopollo.Tiles.TilesCreator.CreateCyclicTile("cyclic wide tile", 42, new Uri("/Assets/logo159x159.png", UriKind.Relative), new List<Uri>() { new Uri("/Assets/Image1.png", UriKind.Relative), new Uri("/Assets/Image2.png", UriKind.Relative), new Uri("/Assets/Image3.png", UriKind.Relative) }); #endif ShellTileExt.Create(new Uri("/MainPage.xaml?msg=from%20wide%20cycle%20tile", UriKind.Relative), mytile, true); } catch { MessageBox.Show("remove tile before create it again"); } }

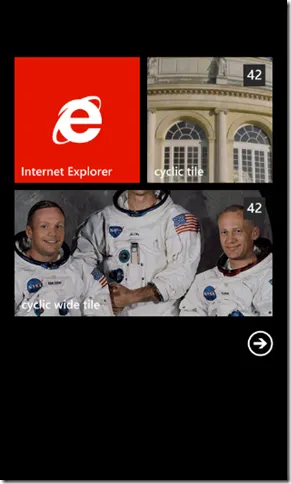

效果：
创建IconicTile：
private void CreateIconicTile_Click(object sender, RoutedEventArgs e)
{
if (!Utils.CanUseLiveTiles)
{
MessageBox.Show("This feature needs Windows Phone 8");
return;
}
try
{
var mytile = new IconicTileData
{
Title = "iconic tile",
Count = 8,
BackgroundColor = Colors.Purple,
IconImage = new Uri("/Assets/logo202x202.png", UriKind.Relative),
SmallIconImage = new Uri("/Assets/logo110x110.png", UriKind.Relative)
};
#if ALTERNATIVE_SOLUTION
var mytile = Mangopollo.Tiles.TilesCreator.CreateIconicTile("iconic tile", 8, Colors.Purple, new Uri("/Assets/logo202x202.png", UriKind.Relative), new Uri("/Assets/logo110x110.png", UriKind.Relative));
#endif
ShellTileExt.Create(new Uri("/MainPage.xaml?msg=from%20iconic%20tile", UriKind.Relative), mytile, false);
}
catch
{
MessageBox.Show("remove tile before create it again");
}
}
private void CreateIconicTileWide_Click(object sender, RoutedEventArgs e)
{
if (!Utils.CanUseLiveTiles)
{
MessageBox.Show("This feature needs Windows Phone 8");
return;
}
try
{
var mytile = new IconicTileData
{
Title = "iconic tile",
Count = 8,
BackgroundColor = Color.FromArgb(255, 200, 10, 30),
IconImage = new Uri("/Assets/logo202x202.png", UriKind.Relative),
SmallIconImage = new Uri("/Assets/logo110x110.png", UriKind.Relative),
WideContent1 = "Mangopollo Library",
WideContent2 = "use Windows Phone 8 features",
WideContent3 = "on Windows Phone 7 apps"
};
#if ALTERNATIVE_SOLUTION
var mytile = Mangopollo.Tiles.TilesCreator.CreateIconicTile("iconic wide tile", 8, Colors.Gray, new Uri("/Assets/logo202x202.png", UriKind.Relative), new Uri("/Assets/logo110x110.png", UriKind.Relative), "Mangopollo Library", "created by", "Rudy Huyn");
#endif
ShellTileExt.Create(new Uri("/MainPage.xaml?msg=from%20wide%20iconic%20tile", UriKind.Relative), mytile, true);
}
catch
{
MessageBox.Show("remove tile before create it again");
}
}

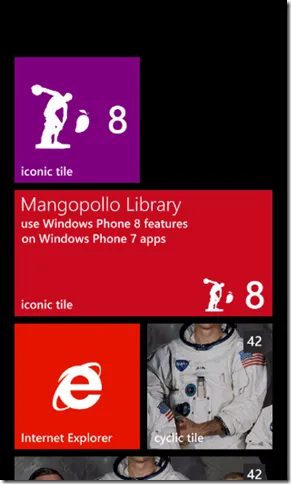

效果：
创建FlipTile：
private void CreateFlipTile_Click(object sender, RoutedEventArgs e)
{
if (!Utils.CanUseLiveTiles)
{
MessageBox.Show("This feature needs Windows Phone 8");
return;
}
try
{
var mytile = new FlipTileData
{
Title = "wide flip tile",
BackTitle = "created by",
BackContent = "Rudy Huyn",
Count = 9,
SmallBackgroundImage = new Uri("/Assets/logo159x159.png", UriKind.Relative),
BackgroundImage = new Uri("/Assets/Background336x336_1.png", UriKind.Relative),
BackBackgroundImage = new Uri("/Assets/Background336x336_2.png", UriKind.Relative)
};
#if ALTERNATIVE_SOLUTION
var mytile = Mangopollo.Tiles.TilesCreator.CreateFlipTile("wide flip tile", "created by", "Rudy Huyn", 9, new Uri("/Assets/logo159x159.png", UriKind.Relative), new Uri("/Assets/Background336x336_1.png", UriKind.Relative), new Uri("/Assets/Background336x336_2.png", UriKind.Relative));
#endif
ShellTileExt.Create(new Uri("/MainPage.xaml?msg=from%20flip%20tile", UriKind.Relative), mytile, false);
}
catch
{
MessageBox.Show("remove tile before create it again");
}
}
private void CreateFlipTileWide_Click(object sender, RoutedEventArgs e)
{
if (!Utils.CanUseLiveTiles)
{
MessageBox.Show("This feature needs Windows Phone 8");
return;
}
try
{
var mytile = new FlipTileData
{
Title = "wide flip tile",
BackTitle = "created by",
BackContent = "Rudy Huyn",
Count = 9,
SmallBackgroundImage = new Uri("/Assets/logo159x159.png", UriKind.Relative),
BackgroundImage = new Uri("/Assets/Background336x336_1.png", UriKind.Relative),
BackBackgroundImage = new Uri("/Assets/Background336x336_2.png", UriKind.Relative),
WideBackContent = "This is a very long long text to demonstrate the back content of a wide flip tile",
WideBackgroundImage = new Uri("/Assets/Background691x336_1.png", UriKind.Relative),
WideBackBackgroundImage = new Uri("/Assets/Background691x336_2.png", UriKind.Relative)
};
#if ALTERNATIVE_SOLUTION
var mytile = Mangopollo.Tiles.TilesCreator.CreateFlipTile("flip tile", "created by", "Rudy Huyn", "This is a very long long text to demonstrate the back content of a wide flip tile", 9, new Uri("/Assets/logo159x159.png", UriKind.Relative), new Uri("/Assets/Background336x336_1.png", UriKind.Relative), new Uri("/Assets/Background336x336_2.png", UriKind.Relative), new Uri("/Assets/Background691x336_1.png", UriKind.Relative), new Uri("/Assets/Background691x336_2.png", UriKind.Relative));
#endif
ShellTileExt.Create(new Uri("/MainPage.xaml?msg=from%20wipe%20flip%20tile", UriKind.Relative), mytile, true);
}
catch
{
MessageBox.Show("remove tile before create it again");
}
}

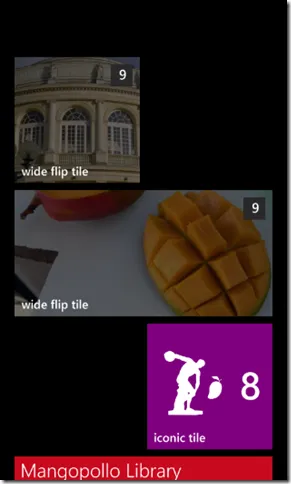

效果：
更新主Tile：
private void UpdateMainTile_Click(object sender, RoutedEventArgs e)
{
if (!Utils.CanUseLiveTiles)
{
MessageBox.Show("This feature needs Windows Phone 8");
return;
}
var maintile = new FlipTileData
{
Title = "main tile",
BackTitle = "this is",
BackContent = "main tile",
Count = 3,
SmallBackgroundImage = new Uri("/Assets/logo159x159.png", UriKind.Relative),
BackgroundImage = new Uri("/Assets/Background336x336_2.png", UriKind.Relative),
BackBackgroundImage = new Uri("/Assets/Background336x336_1.png", UriKind.Relative),
WideBackContent = "This is a very long long text to demonstrate the back content of a wide flip tile",
WideBackgroundImage = new Uri("/Assets/Background691x336_2.png", UriKind.Relative),
WideBackBackgroundImage = new Uri("/Assets/Background691x336_1.png", UriKind.Relative)
};
#if ALTERNATIVE_SOLUTION
var maintile = Mangopollo.Tiles.TilesCreator.CreateFlipTile("main tile", "This is", "main tile", "This is a very long long text to demonstrate the back content of a wide flip tile", 9, new Uri("/Assets/logo159x159.png", UriKind.Relative), new Uri("/Assets/Background336x336_1.png", UriKind.Relative), new Uri("/Assets/Background336x336_2.png", UriKind.Relative), new Uri("/Assets/Background691x336_1.png", UriKind.Relative), new Uri("/Assets/Background691x336_2.png", UriKind.Relative));
#endif
ShellTile.ActiveTiles.First().Update(maintile);
}

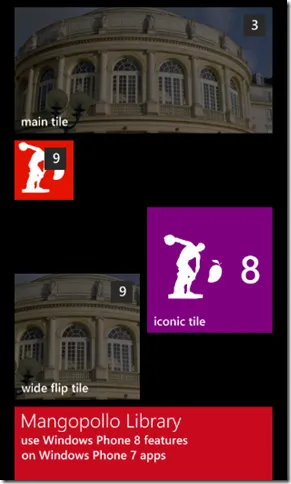

效果：
