1、路由反射器解析

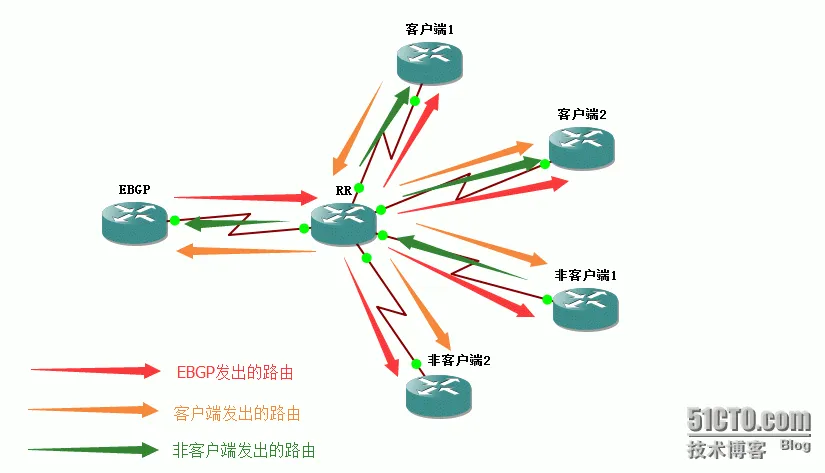

路由反射器工作原理：
RR从EBGP收到的路由，会反射给客户端和非客户端
RR从客户端收到的路由，会反射给客户端、EBGP邻居和非客户端
RR从非客户端收到的路由，只会反射给客户端和EBGP邻居，不会反射给非客户端

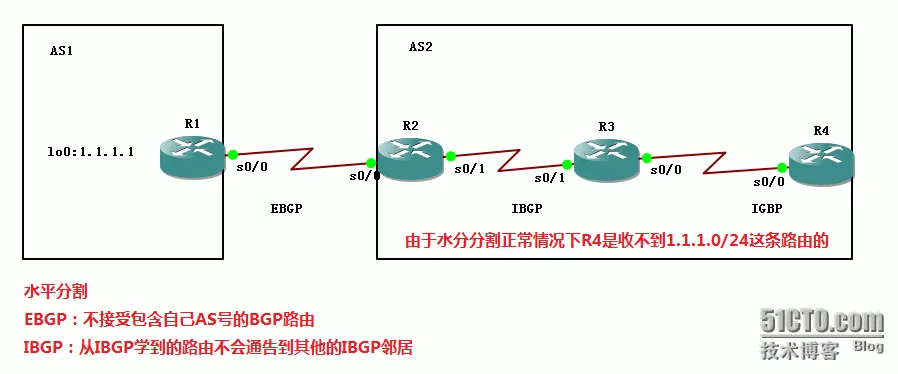

2、实验拓扑
3、基础配置
R1配置
interface Loopback0
ip address 1.1.1.1 255.255.255.0
interface Serial0/0
ip address 12.1.1.1 255.255.255.0
router bgp 1
no synchronization
bgp router-id 1.1.1.1
network 1.1.1.0 mask 255.255.255.0
neighbor 12.1.1.2 remote-as 2
no auto-summary
R2配置
interface Loopback0
ip address 2.2.2.2 255.255.255.0
interface Serial0/0
ip address 12.1.1.2 255.255.255.0
interface Serial0/1
ip address 23.1.1.2 255.255.255.0
router ospf 110
router-id 2.2.2.2
network 2.2.2.0 0.0.0.255 area 0
network 23.1.1.0 0.0.0.255 area 0
router bgp 2
no synchronization
bgp router-id 2.2.2.2
neighbor 3.3.3.3 remote-as 2
neighbor 3.3.3.3 update-source Loopback0
neighbor 3.3.3.3 next-hop-self
neighbor 12.1.1.1 remote-as 1
no auto-summary
R3配置
interface Loopback0
ip address 3.3.3.3 255.255.255.0
interface Serial0/0
ip address 34.1.1.3 255.255.255.0
interface Serial0/1
ip address 23.1.1.3 255.255.255.0
router ospf 110
router-id 3.3.3.3
network 3.3.3.0 0.0.0.255 area 0
network 23.1.1.0 0.0.0.255 area 0
network 34.1.1.0 0.0.0.255 area 0
router bgp 2
no synchronization
bgp router-id 3.3.3.3
neighbor 2.2.2.2 remote-as 2
neighbor 2.2.2.2 update-source Loopback0
neighbor 4.4.4.4 remote-as 2
neighbor 4.4.4.4 update-source Loopback0
no auto-summary
R4配置
interface Loopback0
ip address 4.4.4.4 255.255.255.0
interface Serial0/0
ip address 34.1.1.4 255.255.255.0
router ospf 110
router-id 4.4.4.4
network 4.4.4.0 0.0.0.255 area 0
network 34.1.1.0 0.0.0.255 area 0
router bgp 2
no synchronization
bgp router-id 4.4.4.4
neighbor 3.3.3.3 remote-as 2
neighbor 3.3.3.3 update-source Loopback0
no auto-summary

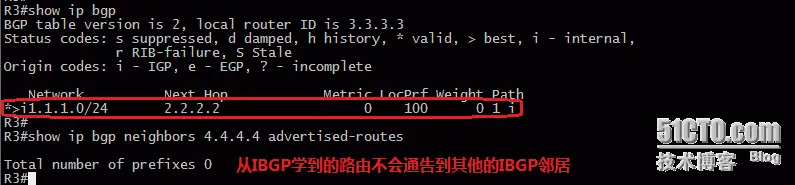

4、水平分割导致的问题

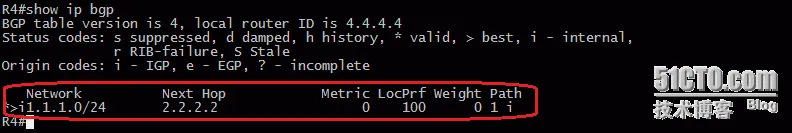

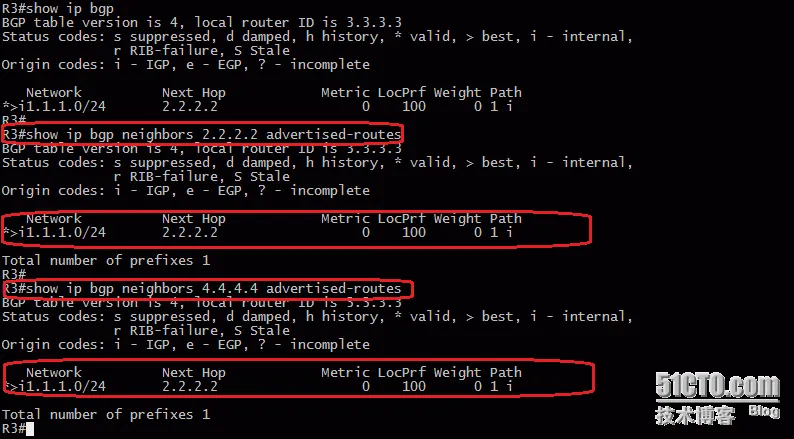

5、配置路由反射器解决水平分割
R3配置
router bgp 2
neighbor 2.2.2.2 route-reflector-client
neighbor 4.4.4.4 route-reflector-client
