1.静态迁移就是虚拟机在关机状态下，拷贝虚拟机虚拟磁盘文件与配置文件到目标虚拟主机中，实现的迁移。分为以下情况：
(1)虚拟主机各自使用本地存储存放虚拟机磁盘文件（本文实现基于本地磁盘存储虚拟机磁盘文件的迁移方式）
(2)虚拟主机之间使用共享存储存放虚拟机磁盘文件（该方式只是在目标虚拟主机上重新定义虚拟机就可以了）
2,静态迁移的过程如下：
（1）确定虚拟机处于关闭状态，本文以hadoop3为例：
|
1
2
3
4
5
6
7
8
9
|
[root@KVM
install
]
# virsh list --all
Id Name State
----------------------------------------------------
1 win7 running
18 hadoop4 running
20 hadoop2 running
21 hadoop1 running
- hadoop3 shut off
[root@KVM
install
]
#
|
（2）准备迁移虚拟机，查看虚拟机的磁盘配置文件
|
1
2
3
4
5
6
7
|
[root@KVM
install
]
# virsh domblklist hadoop3
Target Source
------------------------------------------------
hda
/images/test/hadoop3
.qcow2
hdb
/images/test/hadoop3_add
.qcow2
hdc -
[root@KVM
install
]
#
|
（3）导入虚拟机的配置文件
|
1
2
3
4
|
[root@KVM
install
]
# virsh dumpxml hadoop3 > /tmp/hadoop3.xml
[root@KVM
install
]
# ll /tmp/hadoop3*
-rw-r--r-- 1 root root 3016 Feb 6 12:43
/tmp/hadoop3
.xml
[root@KVM
install
]
#
|
（4）拷贝配置文件到目标主机上
|
1
2
3
4
5
6
7
|
[root@KVM
install
]
# scp /tmp/hadoop3.xml root@10.1.156.211:/etc/libvirt/qemu
The authenticity of host
'10.1.156.211 (10.1.156.211)'
can't be established.
RSA key fingerprint is 20:8e:24:a6:ef:b3:d6:71:72:bb:39:e7:88:f9:38:
cd
.
Are you sure you want to
continue
connecting (
yes
/no
)?
yes
Warning: Permanently added
'10.1.156.211'
(RSA) to the list of known hosts.
root@10.1.156.211's password:
[root@KVM
install
]
#
|
（5）拷贝虚拟机的磁盘文件到目标主机上
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
[root@KVM
install
]
# scp /tmp/hadoop3.xml root@10.1.156.211:/etc/libvirt/qemu
The authenticity of host
'10.1.156.211 (10.1.156.211)'
can't be established.
RSA key fingerprint is 20:8e:24:a6:ef:b3:d6:71:72:bb:39:e7:88:f9:38:
cd
.
Are you sure you want to
continue
connecting (
yes
/no
)?
yes
Warning: Permanently added
'10.1.156.211'
(RSA) to the list of known hosts.
root@10.1.156.211's password:
[root@KVM
install
]
# virsh domblklist hadoop3
Target Source
------------------------------------------------
hda
/images/test/hadoop3
.qcow2
hdb
/images/test/hadoop3_add
.qcow2
hdc -
[root@KVM
install
]
# scp /images/test/hadoop3.qcow2 /images/test/hadoop3_add.qcow2 root@10.1.156.211:/data/test/
root@10.1.156.211's password:
[root@KVM
install
]
#
|
3，在目标主机上做如下操作：
（1）查看目标虚拟主机的环境
|
1
2
3
|
[root@KVM
test
]
# virsh list --all
Id Name State
----------------------------------------------------
|

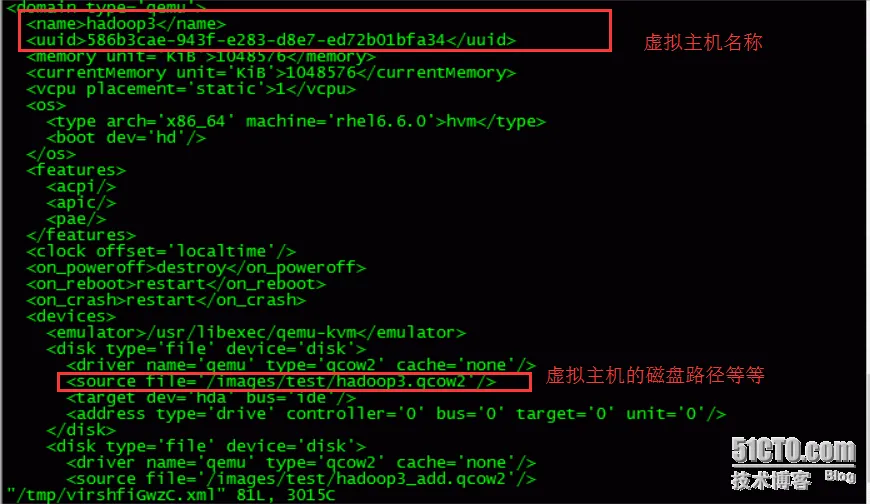

（2）修改目标主机的配置文件。
|
1
|
[root@KVM
test
]
#vi /etc/libvirt/qemu/hadoop3.xml
|
(3)定义注册虚拟主机
|
1
2
|
[root@KVM
test
]
# virsh define /etc/libvirt/qemu/hadoop3.xml
Domain hadoop3 defined from
/etc/libvirt/qemu/hadoop3
.xml
|
（4）启动并确认虚拟机
|
1
2
3
4
5
6
|
[root@KVM
test
]
# virsh list --all
Id Name State
----------------------------------------------------
- hadoop3 shut off
[root@KVM
test
]
# virsh start hadoop3
Domain hadoop3 started
|
至此，虚拟机的静态迁移成功
