docker实现tomcat+jdk+msm-阿里云开发者社区

Docker容器

docker版本 : 1.7.1

系统版本：CentOS release 6.8

tomcat版本：apache-tomcat-7.0.57

memcache版本：yum安装

Docker 容器在运行里有些步骤出错会产生<none>之类的无效镜像，产生之后直接运行脚本

删除

[root@1xx tom]#cat kong.sh

#!/bin/bash

for I in `docker images | grep"<none>" | awk -F" " '{print $3}'`;do

echo"none key name $I"

dockerstop $I

docker rmi -f $I

echo$keys

done

docker images

Tomcat 配置

[root@1xx tom]#cat Dockerfile

FROM centos #基础镜像来自于centos

MAINTAINER xiong <812374156@qq.com> #作者信息

#安装ifconfig 类型工具

RUN yum -y install net-tools

#ADD复制本地文件并自动解压至目录下

ADD apache-tomcat-7.0.57.tar.gz/usr/local/

# 运行软链接命令

RUN ln -sv /usr/local/apache-tomcat-7.0.57/usr/local/tomcat

# 定义tomcat环境变量值

ENV CATALINA_HOME /usr/local/tomcat

ENV PATH $PATH:$CATALINA_HOME/bin

#复制jdk文件到root目录并使用rpm命令安装

COPY jdk-7u79-linux-x64.rpm /root/

RUN rpm -ivh /root/jdk-7u79-linux-x64.rpm

#定义java环境变量

ENV JAVA_HOME=/usr/java/latest

ENV PATH $PATH:$JAVA_HOME/bin

# 当机器运行里自动启动，此处可省略

RUN echo"/usr/local/tomcat/catalina.sh start" >> /etc/rc.d/rc.local

# 产先配置好server.xml文件然后直接复制到conf文件目录下

COPY server.xml /usr/local/tomcat/conf/

# 复制msm文件至lib文件下

COPY mem/* /usr/local/tomcat/lib/

# 运行启动catalina.sh脚本使用run 脚本在运行之后启动并打印debug信息在使用ctrl+p ctrl+q 运行容器，否则脚本运行后之后脚本会退出

CMD["catalina.sh","run"]

Msm下载

memcached session manager

https://github.com/magro/memcached-session-manager/wiki/SetupAndConfiguration

memcached-session-manager-tc6-${version}.jar for tomcat6,

memcached-session-manager-tc7-${version}.jar for tomcat7

(attention: tomcat 7.0.23+) or memcached-session-manager-tc8-${version}.jar for tomcat8.

下载需要注意版本信息并且需要注意的是版本号需要对应一致否则有可能报错

javolution-5.4.3.1.jar

memcached-session-manager-tc7-2.1.1.jar

spymemcached-2.11.1.jar

memcached-session-manager-2.1.1.jar

msm-javolution-serializer-2.1.1.jar #也可以选择其它

tomcat删除脚本

[root@1xxtom]#cat del.sh

#!/bin/bash

docker rm -f tom{1..9}

docker rm -f mem{1..9}

docker rmi xiong

docker build -t xiong .

docker images

Memcached 配置

[root@1xx memcached]# cat Dockerfile

FROMcentos #基础镜像来自于centos

MAINTAINER xiong812374156@qq.com #作者信息

RUN yum -yinstall memcached net-tools #安装mem以及ifconfig 类型工具

#运行memcached命令，别使用daemon 脚本在运行完之后容器会自动退出

CMD["/usr/bin/memcached","-p","11211","-m","64","-c","1024","-u","root"]

Memcached删除脚本

[root@1xxmemcached]# cat del.sh

#!/bin/bash

docker rm -f mem1

docker rmi mem

docker build -t mem .

配置完基础镜像运行容器，为方便我这里也定义了脚本

[root@1xx tom]#cat docktest.sh

#!/bin/bash

# docker 运行容器名称tom2 端口本地92 容器8080 数据卷本地xx/xx/tom2/ 容器/web/apps 基础镜像

docker run -it--name tom2 -p 92:8080 -v /root/tom/tom2:/web/apps/ xiong

docker run -it--name tom3 -p 93:8080 -v /root/tom/tom3:/web/apps/ xiong

#docker 运行容器名称m2m1 端口本地201 远端11211 基础镜像

docker run -it--name mem1 -p 201:11211 mem

docker run -it--name mem2 -p 202:11211 mem

docker ps

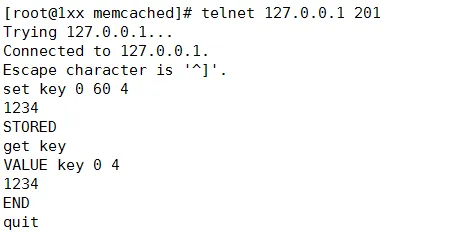

# 测试容器memcached是否运行成功本地运行telnet

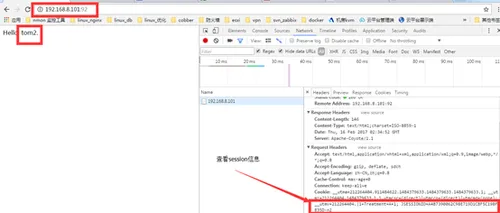

容器tom2号 session信息

JSESSIONID=A4B7390062C98E719D1CBF5C198F835D-n2

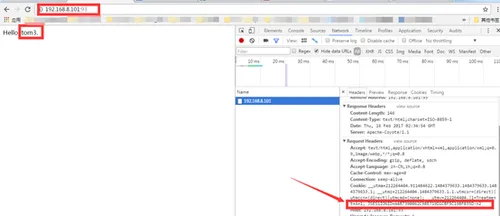

验证

Session信息一致说明成功

Service.xml文件内容

[root@1xx tom]# cat server.xml

<?xmlversion='1.0' encoding='utf-8'?>

<!--

Licensed to the Apache Software Foundation(ASF) under one or more

contributor license agreements. See the NOTICE file distributed with

thiswork for additional information regarding copyright ownership.

The ASF licenses this file to You under theApache License, Version 2.0

(the "License"); you may not usethis file except in compliance with

the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreedto in writing, software

distributed under the License is distributedon an "AS IS" BASIS,

WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND,either express or implied.

See the License for the specific languagegoverning permissions and

limitations under the License.

-->

<!--Note: A "Server" is not itselfa "Container", so you may not

define subcomponents such as"Valves" at this level.

Documentation at /docs/config/server.html

-->

<Serverport="8005" shutdown="SHUTDOWN">

<ListenerclassName="org.apache.catalina.startup.VersionLoggerListener" />

<!-- Security listener. Documentation at/docs/config/listeners.html

<ListenerclassName="org.apache.catalina.security.SecurityListener" />

-->

<ListenerclassName="org.apache.catalina.core.AprLifecycleListener"SSLEngine="on" />

<ListenerclassName="org.apache.catalina.core.JasperListener" />

<ListenerclassName="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener"/>

<ListenerclassName="org.apache.catalina.core.ThreadLocalLeakPreventionListener"/>

<!-- Global JNDI resources

Documentation at/docs/jndi-resources-howto.html

-->

<!-- Editable user database that canalso be used by

UserDatabaseRealm to authenticateusers

-->

<Resource name="UserDatabase"auth="Container"

type="org.apache.catalina.UserDatabase"

description="User databasethat can be updated and saved"

factory="org.apache.catalina.users.MemoryUserDatabaseFactory"

pathname="conf/tomcat-users.xml"/>

</GlobalNamingResources>

<!-- A "Service" is a collectionof one or more "Connectors" that share

a single "Container"Note: A "Service" is notitself a "Container",

so you may not define subcomponents suchas "Valves" at this level.

Documentation at/docs/config/service.html

-->

<!--

<Executorname="tomcatThreadPool" namePrefix="catalina-exec-"

maxThreads="150"minSpareThreads="4"/>

-->

<!-- A "Connector" representsan endpoint by which requests are received

and responses are returned.Documentation at :

Java HTTP Connector: /docs/config/http.html(blocking & non-blocking)

Java AJP Connector: /docs/config/ajp.html

APR (HTTP/AJP) Connector:/docs/apr.html

Define a non-SSL HTTP/1.1 Connector onport 8080

-->

<Connector port="8080"protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8443"/>

<!--

<Connectorexecutor="tomcatThreadPool"

port="8080"protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8443"/>

-->

<!-- Define a SSL HTTP/1.1 Connector onport 8443

This connector uses the BIOimplementation that requires the JSSE

style configuration. When using theAPR/native implementation, the

OpenSSL style configuration isrequired as described in the APR/native

documentation -->

<!--

<Connector port="8443"protocol="org.apache.coyote.http11.Http11Protocol"

maxThreads="150"SSLEnabled="true" scheme="https" secure="true"

clientAuth="false"sslProtocol="TLS" />

-->

<!-- An Engine represents the entrypoint (within Catalina) that processes

every request. The Engine implementation for Tomcat standalone

analyzes the HTTP headers includedwith the request, and passes them

on to the appropriate Host (virtualhost).

Documentation at/docs/config/engine.html -->

<!-- You should set jvmRoute to supportload-balancing via AJP ie :

-->

<!--For clustering, please take a lookat documentation at:

/docs/cluster-howto.html (simple how to)

/docs/config/cluster.html (referencedocumentation) -->

<!--

-->

<!-- Use the LockOutRealm to preventattempts to guess user passwords

via a brute-force attack -->

<RealmclassName="org.apache.catalina.realm.LockOutRealm">

<!-- This Realm uses theUserDatabase configured in the global JNDI

resources under the key"UserDatabase". Any edits

that are performed against thisUserDatabase are immediately

available for use by theRealm. -->

<Realm className="org.apache.catalina.realm.UserDatabaseRealm"

resourceName="UserDatabase"/>

</Realm>

<ManagerclassName="de.javakaffee.web.msm.MemcachedBackupSessionManager"

memcachedNodes="n1:192.168.8.101:201,n2:192.168.8.101:202"

failoverNodes="n1"

storageKeyPrefix="context"

requestUriIgnorePattern=".*\.(ico|png|gif|jpg|css|js)$"

transcoderFactoryClass="de.javakaffee.web.msm.serializer.javolution.JavolutionTranscoderFactory"

</Context>

<ValveclassName="org.apache.catalina.valves.AccessLogValve"directory="/web/logs"

prefix="app_access_log"suffix=".txt"

pattern="%h %l %u %t"%r" %s %b" />

</Host>

</Engine>

</Service>

</Server>

Tomcat数据卷中 tomcat 目录 index.jsp

[root@1xx tom]# cat tom2/index.jsp

<%@ page language="java" %>

<%@ page import="java.util.*"%>

<html>

<head>

</head>

<body>

<% out.println("Hello,tom2."); %>

</body>

</html>

本文转自812374156 51CTO博客，原文链接：http://blog.51cto.com/xiong51/1898356，如需转载请自行联系原作者
