Silverlight之视频录制

简介:

摘要:在前两篇Silverlight的文章中跟大家一块学习了Silverlight的基础知识、Silverlight摄像头麦克风的相关操作以及截图、声音录制等,在文章后面也简单的说明了为什么没有视频录制,今天就和大家一块看一下上一节中最后的一个问题:如何使用Silverlight进行视频录制。

主要内容:

1.NESL项目简介

2.使用NESL实现视频录制

3.注意

一、NESL项目简介

在silverlight 中如何录制视频?相信这个问题有不少朋友都搜索过,但是好像目前还没有见到很好的答案,究其原因其实就是视频编码问题。当然也有朋友提到直接进行截图,只要每秒截取足够多的图片,然后依次播放就可以形成视频。但是我看到国外一个朋友使用此方法进行了几十秒的视频录制,其文件大小就达到了百兆级别,而且还进行了优化。因此这种方式要实现视频录制就目前而言还不是很合适。那么到底有没有好的方法呢?答案是有,但有限制,那就是借助于NESL。

Native Extensions for Silverlight(简称NESL)是由微软Silverlight团队进行开发,其目的主要为了增强Silverlight Out-of-Browser离线应用的功能。大家都知道虽然Silverlight 4的OOB应用支持信任人权限提升功能,允许Silverlight的OOB应用对COM组件的访问,但对绝大多数Windows API仍旧无法调用,而NESL的出现正是为了解决这个问题。在最新的NESL 2.0中包含了大量有用的功能,而这其中就包括今天要说的视频编码部分。在NESL中有一个类库Microsoft.Silverlight.Windows.LocalEncode.dll主要负责本地视频和音频编码,这里就是用此类库来解决上面提到的视频录制问题。

二、使用NESL实现视频录制

在Microsoft.Silverlight.Windows.LocalEncode.dll中一个核心类就是EncodeSession,它负责音频和视频的编码输出工作。使用EncodeSession进行视频录制大概分为下面两步:

1.准备输入输出信息

在这个过程中需要定义VideInputFormatInfo、AudioInputFormatInfo、VideoOutputFormatInfo、AudioOutputFormatInfo和OutputContainerInfo,然后调用EncodeSession.Prepare()方法。

2.捕获视频输出

当输入输出信息准备好之后接下来就是调用EncodeSession.Start()方法进行视频编码输出。当然为了接收音频和视频数据必须准备两个sink类,分别继承于AudioSink和VideoSink,在这两个sink中指定CaptureSource,并且在对应的OnSample中调用EncodeSession的WirteVideoSample()和WirteAudioSample()接收并编码数据(关于AudioSink在前面的文章中已经说过,VideoSink与之类似)。

知道了EncodeSession的使用方法后下面就将其操作进行简单封装,LocalCamera.cs是本例中的核心类:

using  System;
using  System.Collections.ObjectModel;
using  System.IO;
using  System.Windows;
using  System.Windows.Threading;
using  System.Windows.Media;
using  System.Windows.Controls;
using  System.Windows.Shapes;
using  Microsoft.Silverlight.Windows.LocalEncode;

namespace  Cmj.MyWeb.MySilverlight.SilverlightMeida
{
     /// <summary>
     /// 编码状态
     /// </summary>
     public  enum  EncodeSessionState
     {
         Start,
         Pause,
         Stop
     }
     /// <summary>
     /// 本地视频对象
     /// </summary>
     public  class  LocalCamera
     {
         private  string  _saveFullPath = "" ;
         private  uint  _videoWidth = 640;
         private  uint  _videoHeight = 480;
         private  VideoSinkExtensions _videoSink = null ;
         private  AudioSinkExtensions _audioSink= null ;
         private  EncodeSession _encodeSession = null ;
         private  UserControl _page = null ;
         private  CaptureSource _cSource = null ;
         public  LocalCamera(UserControl page,VideoFormat videoFormat,AudioFormat audioFormat)
         {
             //this._saveFullPath = saveFullPath;
             this ._videoWidth = ( uint )videoFormat.PixelWidth;
             this ._videoHeight = ( uint )videoFormat.PixelHeight;
             this ._page = page;
             this .SessionState = EncodeSessionState.Stop;
             //this._encodeSession = new EncodeSession();
             _cSource = new  CaptureSource();
             this .VideoDevice = DefaultVideoDevice;
             this .VideoDevice.DesiredFormat = videoFormat;
             this .AudioDevice = DefaultAudioDevice;
             this .AudioDevice.DesiredFormat = audioFormat;
             _cSource.VideoCaptureDevice = this .VideoDevice;
             _cSource.AudioCaptureDevice = this .AudioDevice;
             audioInputFormatInfo = new  AudioInputFormatInfo() { SourceCompressionType = FormatConstants.AudioFormat_PCM };
             videoInputFormatInfo = new  VideoInputFormatInfo() { SourceCompressionType = FormatConstants.VideoFormat_ARGB32 };
             audioOutputFormatInfo = new  AudioOutputFormatInfo() { TargetCompressionType = FormatConstants.AudioFormat_AAC };
             videoOutputFormatInfo = new  VideoOutputFormatInfo() { TargetCompressionType = FormatConstants.VideoFormat_H264 };
             outputContainerInfo = new  OutputContainerInfo() { ContainerType = FormatConstants.TranscodeContainerType_MPEG4 };
         }

         public  LocalCamera(UserControl page,VideoCaptureDevice videoCaptureDevice,AudioCaptureDevice audioCaptureDevice, VideoFormat videoFormat, AudioFormat audioFormat)
         {
             //this._saveFullPath = saveFullPath;
             this ._videoWidth = ( uint )videoFormat.PixelWidth;
             this ._videoHeight = ( uint )videoFormat.PixelHeight;
             this ._page = page;
             this .SessionState = EncodeSessionState.Stop;
             //this._encodeSession = new EncodeSession();
             _cSource = new  CaptureSource();
             this .VideoDevice = videoCaptureDevice;
             this .VideoDevice.DesiredFormat = videoFormat;
             this .AudioDevice = audioCaptureDevice;
             this .AudioDevice.DesiredFormat = audioFormat;
             _cSource.VideoCaptureDevice = this .VideoDevice;
             _cSource.AudioCaptureDevice = this .AudioDevice;
             audioInputFormatInfo = new  AudioInputFormatInfo() { SourceCompressionType = FormatConstants.AudioFormat_PCM };
             videoInputFormatInfo = new  VideoInputFormatInfo() { SourceCompressionType = FormatConstants.VideoFormat_ARGB32 };
             audioOutputFormatInfo = new  AudioOutputFormatInfo() { TargetCompressionType = FormatConstants.AudioFormat_AAC };
             videoOutputFormatInfo = new  VideoOutputFormatInfo() { TargetCompressionType = FormatConstants.VideoFormat_H264 };
             outputContainerInfo = new  OutputContainerInfo() { ContainerType = FormatConstants.TranscodeContainerType_MPEG4 };
         }

         public  EncodeSessionState SessionState
         {
             get ;
             set ;
         }
         public  EncodeSession Session
         {
             get
             {
                 return  _encodeSession;
             }
             set
             {
                 _encodeSession = value;
             }
         }
         /// <summary>
         /// 编码对象所在用户控件对象
         /// </summary>
         public  UserControl OwnPage
         {
             get
             {
                 return  _page;
             }
             set
             {
                 _page = value;
             }
         }
         /// <summary>
         /// 捕获源
         /// </summary>
         public  CaptureSource Source
         {
             get
             {
                 return  _cSource;
             }
         }
         /// <summary>
         /// 操作音频对象
         /// </summary>
         public  AudioSinkExtensions AudioSink
         {
             get
             {
                 return  _audioSink;
             }
         }

         public  static  VideoCaptureDevice DefaultVideoDevice
         {
             get
             {
                 return  CaptureDeviceConfiguration.GetDefaultVideoCaptureDevice();
             }
         }

         public  static  ReadOnlyCollection<VideoCaptureDevice> AvailableVideoDevice
         {
             get
             {
                 return  CaptureDeviceConfiguration.GetAvailableVideoCaptureDevices();
             }
         }

         public  VideoCaptureDevice VideoDevice
         {
             get ;
             set ;
         }

         public  static  AudioCaptureDevice DefaultAudioDevice
         {
             get
             {
                 return  CaptureDeviceConfiguration.GetDefaultAudioCaptureDevice();
             }
         }
         public  static  ReadOnlyCollection<AudioCaptureDevice> AvailableAudioDevice
         {
             get
             {
                 return  CaptureDeviceConfiguration.GetAvailableAudioCaptureDevices();
             }
         }

         public  AudioCaptureDevice AudioDevice
         {
             get ;
             set ;
         }

         private  Object lockObj = new  object ();
         internal  VideoInputFormatInfo videoInputFormatInfo;
         internal  AudioInputFormatInfo audioInputFormatInfo;
         internal  VideoOutputFormatInfo videoOutputFormatInfo;
         internal  AudioOutputFormatInfo audioOutputFormatInfo;
         internal  OutputContainerInfo outputContainerInfo;
         /// <summary>
         /// 视频录制
         /// </summary>
         public  void  StartRecord()
         {
             lock  (lockObj)
             {
                 if  ( this .SessionState == EncodeSessionState.Stop)
                 {
                     _videoSink = new  VideoSinkExtensions( this );
                     _audioSink = new  AudioSinkExtensions( this );
                     //_audioSink.VolumnChange += new AudioSinkExtensions.VolumnChangeHanlder(_audioSink_VolumnChange);
                     if  (_encodeSession == null )
                     {
                         _encodeSession = new  EncodeSession();
                     }
                     PrepareFormatInfo(_cSource.VideoCaptureDevice.DesiredFormat, _cSource.AudioCaptureDevice.DesiredFormat);
                     _encodeSession.Prepare(videoInputFormatInfo, audioInputFormatInfo, videoOutputFormatInfo, audioOutputFormatInfo, outputContainerInfo);
                     _encodeSession.Start( false , 200);
                     this .SessionState = EncodeSessionState.Start;
                 }
             }
         }
         /// <summary>
         /// 音量大小指示
         /// </summary>
         /// <param name="sender"></param>
         /// <param name="e"></param>
         //void _audioSink_VolumnChange(object sender, VolumnChangeArgs e)
         //{
         //    this.OwnPage.Dispatcher.BeginInvoke(new Action(() =>
         //    {
         //        (
         //            this.OwnPage.Tag as ProgressBar).Value = e.Volumn;
         //    }));
         //}

         /// <summary>
         /// 暂停录制
         /// </summary>
         public  void  PauseRecord()
         {
             lock  (lockObj)
             {
                 this .SessionState = EncodeSessionState.Pause;
                 _encodeSession.Pause();
             }
         }
         /// <summary>
         /// 停止录制
         /// </summary>
         public  void  StopRecord()
         {
             lock  (lockObj)
             {
                 this .SessionState = EncodeSessionState.Stop;
                 _encodeSession.Shutdown();
                 _videoSink = null ;
                 _audioSink = null ;
             }
         }

         /// <summary>
         /// 准备编码信息
         /// </summary>
         /// <param name="videoFormat"></param>
         /// <param name="audioFormat"></param>
         private  void  PrepareFormatInfo(VideoFormat videoFormat, AudioFormat audioFormat)
         {
             uint  FrameRateRatioNumerator = 0;
             uint  FrameRateRationDenominator = 0;
             FormatConstants.FrameRateToRatio(( float )Math.Round(videoFormat.FramesPerSecond, 2), ref  FrameRateRatioNumerator, ref  FrameRateRationDenominator);

             videoInputFormatInfo.FrameRateRatioNumerator = FrameRateRatioNumerator;
             videoInputFormatInfo.FrameRateRatioDenominator = FrameRateRationDenominator;
             videoInputFormatInfo.FrameWidthInPixels = _videoWidth;
             videoInputFormatInfo.FrameHeightInPixels = _videoHeight ;
             videoInputFormatInfo.Stride = ( int )_videoWidth*-4;

             videoOutputFormatInfo.FrameRateRatioNumerator = FrameRateRatioNumerator;
             videoOutputFormatInfo.FrameRateRatioDenominator = FrameRateRationDenominator;
             videoOutputFormatInfo.FrameWidthInPixels = videoOutputFormatInfo.FrameWidthInPixels == 0 ? ( uint )videoFormat.PixelWidth : videoOutputFormatInfo.FrameWidthInPixels;
             videoOutputFormatInfo.FrameHeightInPixels = videoOutputFormatInfo.FrameHeightInPixels == 0 ? ( uint )videoFormat.PixelHeight : videoOutputFormatInfo.FrameHeightInPixels;

             audioInputFormatInfo.BitsPerSample = ( uint )audioFormat.BitsPerSample;
             audioInputFormatInfo.SamplesPerSecond = ( uint )audioFormat.SamplesPerSecond;
             audioInputFormatInfo.ChannelCount = ( uint )audioFormat.Channels;
             if  (outputContainerInfo.FilePath == null  || outputContainerInfo.FilePath == string .Empty)
             {
                 _saveFullPath=System.IO.Path.Combine(Environment.GetFolderPath(Environment.SpecialFolder.MyVideos), "cCameraRecordVideo.tmp" );
             }
             outputContainerInfo.FilePath = _saveFullPath;
             //outputContainerInfo.FilePath = _saveFullPath;
             if  (audioOutputFormatInfo.AverageBitrate == 0)
                 audioOutputFormatInfo.AverageBitrate = 24000;
             if  (videoOutputFormatInfo.AverageBitrate == 0)
                 videoOutputFormatInfo.AverageBitrate = 2000000;
         }

         /// <summary>
         /// 开始捕获
         /// </summary>
         public  void  StartCaptrue()
         {
             if  (CaptureDeviceConfiguration.AllowedDeviceAccess || CaptureDeviceConfiguration.RequestDeviceAccess())
             {
                 _cSource.Start();
             }
         }

         /// <summary>
         /// 停止捕获
         /// </summary>
         public  void  StopCapture()
         {
             _videoSink = null ;
             _audioSink = null ;
             _cSource.Stop();
         }

         /// <summary>
         /// 获得视频
         /// </summary>
         /// <returns></returns>
         public  VideoBrush GetVideoBrush()
         {
             VideoBrush vBrush = new  VideoBrush();
             vBrush.SetSource(_cSource);
             return  vBrush;
         }

         /// <summary>
         /// 获得视频
         /// </summary>
         /// <returns></returns>
         public  Rectangle GetVideoRectangle()
         {
             Rectangle rctg = new  Rectangle();
             rctg.Width = this ._videoWidth;
             rctg.Height = this ._videoHeight;
             rctg.Fill = GetVideoBrush();
             return  rctg;
         }

         /// <summary>
         /// 保存视频
         /// </summary>
         public  void  SaveRecord()
         {
             if  (_saveFullPath == string .Empty)
             {
                 MessageBox.Show( "尚未录制视频,无法进行保存!" , "系统提示" , MessageBoxButton.OK);
                 return ;
             }
             SaveFileDialog sfd = new  SaveFileDialog
             {
                 Filter = "MP4 Files (*.mp4)|*.mp4" ,
                 DefaultExt = ".mp4" ,
                 FilterIndex = 1
             };

             if  (( bool )sfd.ShowDialog())
             {
                 using  (Stream stm=sfd.OpenFile())
                 {
                     FileStream fs = new  FileStream(_saveFullPath, FileMode.Open, FileAccess.Read);
                     try
                     {
                         byte [] buffur = new  byte [fs.Length];
                         fs.Read(buffur, 0, ( int )fs.Length);
                         stm.Write(buffur, 0, ( int )buffur.Length);
                         fs.Close();
                         File.Delete(_saveFullPath);
                     }
                     catch  (IOException ioe)
                     {
                         MessageBox.Show( "文件保存失败!错误信息如下:" +Environment.NewLine+ioe.Message, "系统提示" ,MessageBoxButton.OK);
                     }
                     stm.Close();
                 }
             }
         }
     }
}

当然上面说过必须有两个Sink:



using  System;
using  System.Windows.Media;
using  System.Windows.Controls;
using  Microsoft.Silverlight.Windows.LocalEncode;

namespace  Cmj.MyWeb.MySilverlight.SilverlightMeida
{
     public  class  VideoSinkExtensions:VideoSink
     {
         //private UserControl _page;
         //private EncodeSession _session;
         private  LocalCamera _localCamera;
         public  VideoSinkExtensions(LocalCamera localCamera)
         {
             //this._page = page;
             this ._localCamera = localCamera;
             //this._session = session;
             this .CaptureSource = _localCamera.Source;
         }

         protected  override  void  OnCaptureStarted()
         {

         }

         protected  override  void  OnCaptureStopped()
         {

         }

         protected  override  void  OnFormatChange(VideoFormat videoFormat)
         {

         }

         protected  override  void  OnSample( long  sampleTimeInHundredNanoseconds, long  frameDurationInHundredNanoseconds, byte [] sampleData)
         {
             if  (_localCamera.SessionState == EncodeSessionState.Start)
             {
                 _localCamera.OwnPage.Dispatcher.BeginInvoke( new  Action< long , long , byte []>((ts, dur, data) =>
                 {
                     _localCamera.Session.WriteVideoSample(data, data.Length, ts, dur);
                 }), sampleTimeInHundredNanoseconds, frameDurationInHundredNanoseconds, sampleData);
             }
         }
     }
}



using  System;
using  System.Windows.Media;
using  System.Windows.Controls;
using  Microsoft.Silverlight.Windows.LocalEncode;


namespace  Cmj.MyWeb.MySilverlight.SilverlightMeida
{
     public  class  AudioSinkExtensions:AudioSink
     {
         private  LocalCamera _localCamera;
         public  AudioSinkExtensions(LocalCamera localCamera)
         {
             this ._localCamera = localCamera;
             this .CaptureSource = _localCamera.Source;

         }
         protected  override  void  OnCaptureStarted()
         {

         }

         protected  override  void  OnCaptureStopped()
         {

         }

         protected  override  void  OnFormatChange(AudioFormat audioFormat)
         {

         }

         protected  override  void  OnSamples( long  sampleTimeInHundredNanoseconds, long  sampleDurationInHundredNanoseconds, byte [] sampleData)
         {
             if  (_localCamera.SessionState == EncodeSessionState.Start)
             {
                 _localCamera.OwnPage.Dispatcher.BeginInvoke( new  Action< long , long , byte []>((ts, dur, data) =>
                 {
                     _localCamera.Session.WriteAudioSample(data, data.Length, ts, dur);
                 }), sampleTimeInHundredNanoseconds, sampleDurationInHundredNanoseconds, sampleData);

                 //计算音量变化
                 //for (int index = 0; index < sampleData.Length; index += 1)
                 //{
                 //    short sample = (short)((sampleData[index] << 8) | sampleData[index]);
                 //    float sample32 = sample / 32768f;
                 //    float maxValue = 0;
                 //    float minValue = 0;
                 //    maxValue = Math.Max(maxValue, sample32);
                 //    minValue = Math.Min(minValue, sample32);
                 //    float lastPeak = Math.Max(maxValue, Math.Abs(minValue));
                 //    float micLevel = (100 - (lastPeak * 100)) * 10;
                 //    OnVolumnChange(this, new VolumnChangeArgs() { Volumn=micLevel});
                 //}
             }
         }


         /// <summary>
         /// 定义一个事件,反馈音量变化
         /// </summary>
         /// <param name="sender"></param>
         /// <param name="e"></param>
         //public delegate void VolumnChangeHanlder(object sender, VolumnChangeArgs e);
         //public event VolumnChangeHanlder VolumnChange;
         //private void OnVolumnChange(object sender, VolumnChangeArgs e)
         //{
         //    if (VolumnChange != null)
         //    {
         //        VolumnChange(sender, e);
         //    }
         //}
     }

     //public class VolumnChangeArgs : EventArgs
     //{
     //    public float Volumn
     //    {
     //        get;
     //        internal set;
     //    }
     //}
}

有了这三个类,下面准备一个界面,使用LocalCamera进行视频录制操作。

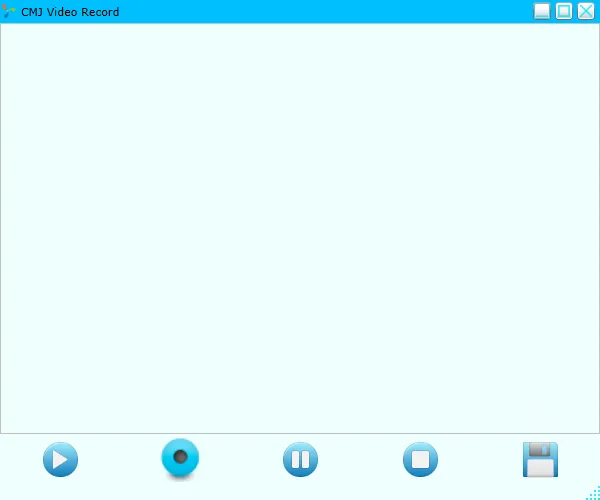

recordUI

需要注意的是保存操作,事实上在EncodeSession中视频的保存路径是在视频录制之前就必须指定的(当然这一点并不难理解,因为长时间的视频录制是会形成很大的文件的,保存之前缓存到内存中也不是很现实),在LocalCamera中对保存方法的封装事实上是文件的读取和删除操作。另外在这个例子中用到了前面文章中自定义的OOB控件,不明白的朋友可以查看前面的文章内容。下面是调用代码:

OK,下面是视频录制的截图:

正在录制

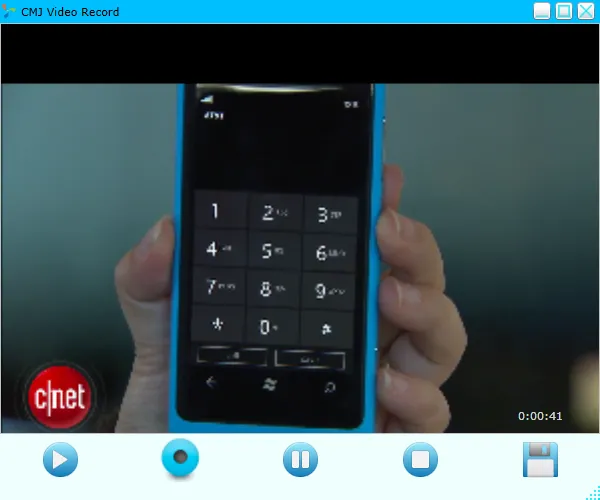

 recordStop

停止录制后保存

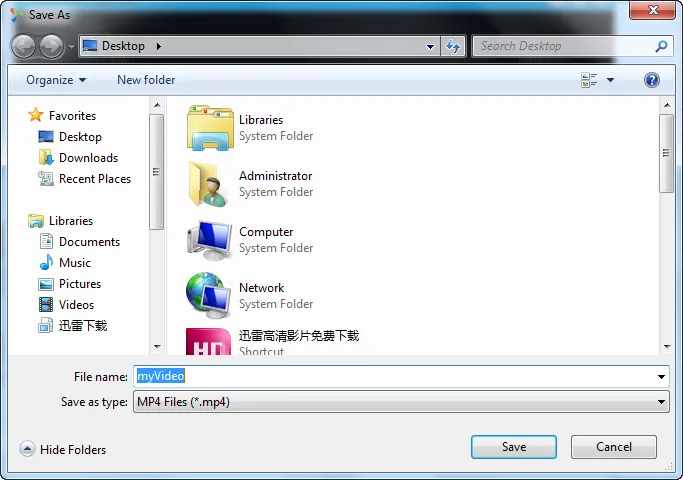

saveRecord

播放录制的视频

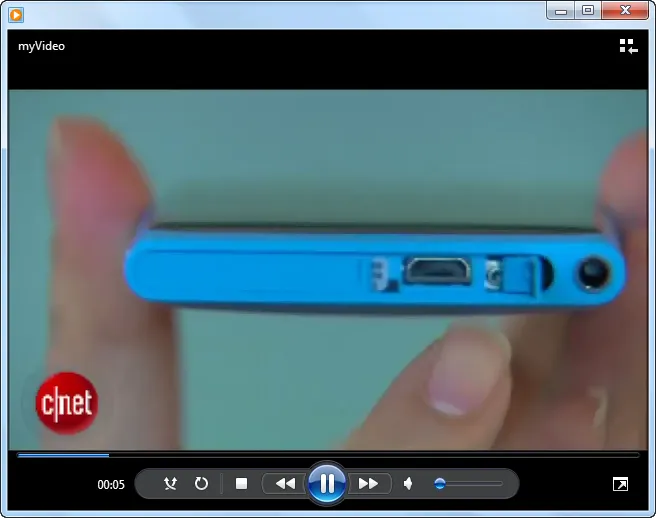

recordVideoPlay

三、注意:

1.video sink和audio sink都是运行在不同于UI的各自的线程中,你可以使用UI的Dispathcher或者SynchronizationContext进行不同线程之间的调用。

2.在video sink和audio sink的OnSample方法中必须进行状态判断,因为sink实例创建之后就会执行OnSample方法,但此时EncodeSession还没有启动因此如果不进行状态判读就会抛出com异常。

3.视频的宽度和高度不能够随意指定,这个在NESL的帮助文档中也是特意说明的,如果任意指定同样会抛出异常。

4.最后再次提醒大家,上面的视频录制是基于NESL的因此必须将应用运行到浏览器外(OOB)。

源代码下载download

目录
相关文章
