一、安装说明
系统环境CentOS7.2_x64 yum安装数据库：mariadb 5.5 yum安装 zabbix 3.2.8
编译安装nginx 1.2.1(最新稳定版) 编译安装 php 5.6.31最新稳定版。测试的机器ip:
172.16.3.152
关闭selinux
防火墙添加好规则，tcp/10051（进出）tcp/10050（出）或为了便于测试直接关闭。
约定说明
以下实践是本人整理基于以上提到的环境，不完全保证没有遗漏之处，如有错误请留言，
涉及到/etc/init.d/中的脚本请在复制后 chmod +x添加可执行权限。nginx,php-fpm等参数
在本次测试中除了非必要没有做性能调优,如生产线上使用,勿必修改对应的参数,提高性能.
二、安装nginx
1、编译安装nginx
##添加系统nginx用户
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
cd nginx-1.12.1
./configure --prefix=/usr \
--sbin-path=/usr/sbin/nginx \
--conf-path=/etc/nginx/nginx.conf \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--pid-path=/var/run/nginx/nginx.pid \
--lock-path=/var/lock/nginx.lock \
--user=nginx \
--group=nginx \
--with-http_ssl_module \
--with-http_flv_module \
--with-http_stub_status_module \
--with-http_gzip_static_module \
--with-pcre \
|
2、添加系统服务（sysv）
cat /etc/init.d/nginx
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
|
#!/bin/sh
. /etc/rc.d/init.d/functions
. /etc/sysconfig/network
[ "$NETWORKING" = "no" ] && exit 0
nginx="/usr/sbin/nginx"
prog=$(basename $nginx)
NGINX_CONF_FILE="/etc/nginx/nginx.conf"
[ -f /etc/sysconfig/nginx ] && . /etc/sysconfig/nginx
lockfile=/var/lock/subsys/nginx
make_dirs() {
user=`nginx -V 2>&1 | grep "configure arguments:" | sed 's/[^*]*--user=\([^ ]*\).*/\1/g' -`
options=`$nginx -V 2>&1 | grep 'configure arguments:'`
for opt in $options; do
if [ `echo $opt | grep '.*-temp-path'` ]; then
value=`echo $opt | cut -d "=" -f 2`
if [ ! -d "$value" ]; then
mkdir -p $value && chown -R $user $value
fi
fi
done
}
start() {
[ -x $nginx ] || exit 5
[ -f $NGINX_CONF_FILE ] || exit 6
make_dirs
echo -n $"Starting $prog: "
daemon $nginx -c $NGINX_CONF_FILE
retval=$?
echo
[ $retval -eq 0 ] && touch $lockfile
return $retval
}
stop() {
echo -n $"Stopping $prog: "
killproc $prog -QUIT
retval=$?
echo
[ $retval -eq 0 ] && rm -f $lockfile
return $retval
}
restart() {
configtest || return $?
stop
sleep 1
start
}
reload() {
configtest || return $?
echo -n $"Reloading $prog: "
killproc $nginx -HUP
RETVAL=$?
echo
}
force_reload() {
restart
}
configtest() {
$nginx -t -c $NGINX_CONF_FILE
}
rh_status() {
status $prog
}
rh_status_q() {
rh_status >/dev/null 2>&1
}
case "$1" in
start)
rh_status_q && exit 0
$1
;;
stop)
rh_status_q || exit 0
$1
;;
restart|configtest)
$1
;;
reload)
rh_status_q || exit 7
$1
;;
force-reload)
force_reload
;;
status)
rh_status
;;
condrestart|try-restart)
rh_status_q || exit 0
;;
*)
echo $"Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}"
exit 2
esac
|
3、添加开机启动及加载到 systemd管理
4、配置及启动nginx
cd /etc/nginx
cp nginx.conf nginxconf_def
cat nginx.conf
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
user nginx;
worker_processes 2;
error_log /data1/log/nginx/error.log warn;
pid /var/run/nginx.pid;
events {
worker_connections 1024;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /data1/log/nginx/access.log main;
server_tokens off;
sendfile on;
tcp_nopush on;
client_max_body_size 5m;
keepalive_timeout 60;
gzip on;
include /etc/nginx/conf.d/*.conf;
}
|
#mkdir -pv /etc/nginx/conf.d
#cat conf.d/test.conf
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
server {
listen 80;
server_name _;
access_log /data1/log/nginx/test.access.log main;
index index.php index.html index.html;
root /data1/site/test;
location /
{
try_files $uri $uri/ /index.php?$args;
}
location ~ .*\.(php)?$
{
expires -1s;
try_files $uri =404;
fastcgi_split_path_info ^(.+\.php)(/.+)$;
include fastcgi_params;
fastcgi_param PATH_INFO $fastcgi_path_info;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
}
}
|
##创建对应目录及授权
测试访问http://172.16.3.152 出现hello页面表示nginx配置成功。
三、安装maridb
添加zabbix数据库及zabbix用户名密码
>create database zabbix character set utf8 collate utf8_bin;
>grant all privileges on zabbix.* to 'zabbix'@'localhost' identified by '123456';
|
1
2
|
数据库的设置先到这里，到zabbix时再导入结构初始化表。
|
四、编译安装php5.6.31
1、安装依赖组件
2、下载php源码及编译安装
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
--with-config-file-path=/usr/local/php5631/etc \
--with-bz2 \
--with-curl \
--enable-ftp \
--enable-sockets \
--disable-ipv6 \
--with-gd \
--with-jpeg-dir=/usr/local \
--with-png-dir=/usr/local \
--with-freetype-dir=/usr/local \
--enable-gd-native-ttf \
--with-iconv-dir=/usr/local \
--enable-mbstring \
--enable-calendar \
--with-gettext \
--with-libxml-dir=/usr/local \
--with-zlib \
--with-pdo-mysql=mysqlnd \
--with-mysqli=mysqlnd \
--with-mysql=mysqlnd \
--enable-dom \
--enable-xml \
--enable-fpm \
--with-libdir=lib64 \
--enable-bcmath
|
2、添加环境变量
#cat /etc/profile.d/php.sh
export PATH=/usr/local/php5631/bin:$PATH
3、添加php-fpm系统服务
#cat /etc/init.d/php-fpm
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
|
#! /bin/sh
prefix=/usr/local/php5631
exec_prefix=${prefix}
php_fpm_BIN=${exec_prefix}/sbin/php-fpm
php_fpm_CONF=${prefix}/etc/php-fpm.conf
php_fpm_PID=${prefix}/var/run/php-fpm.pid
php_opts="--fpm-config $php_fpm_CONF --pid $php_fpm_PID"
wait_for_pid () {
try=0
while test $try -lt 35 ; do
case "$1" in
'created')
if [ -f "$2" ] ; then
try=''
break
fi
;;
'removed')
if [ ! -f "$2" ] ; then
try=''
break
fi
;;
esac
echo -n .
try=`expr $try + 1`
sleep 1
done
}
case "$1" in
start)
echo -n "Starting php-fpm "
$php_fpm_BIN --daemonize $php_opts
if [ "$?" != 0 ] ; then
echo " failed"
exit 1
fi
wait_for_pid created $php_fpm_PID
if [ -n "$try" ] ; then
echo " failed"
exit 1
else
echo " done"
fi
;;
stop)
echo -n "Gracefully shutting down php-fpm "
if [ ! -r $php_fpm_PID ] ; then
echo "warning, no pid file found - php-fpm is not running ?"
exit 1
fi
kill -QUIT `cat $php_fpm_PID`
wait_for_pid removed $php_fpm_PID
if [ -n "$try" ] ; then
echo " failed. Use force-quit"
exit 1
else
echo " done"
fi
;;
status)
if [ ! -r $php_fpm_PID ] ; then
echo "php-fpm is stopped"
exit 0
fi
PID=`cat $php_fpm_PID`
if ps -p $PID | grep -q $PID; then
echo "php-fpm (pid $PID) is running..."
fi
;;
force-quit)
echo -n "Terminating php-fpm "
if [ ! -r $php_fpm_PID ] ; then
echo "warning, no pid file found - php-fpm is not running ?"
exit 1
fi
kill -TERM `cat $php_fpm_PID`
wait_for_pid removed $php_fpm_PID
if [ -n "$try" ] ; then
echo " failed"
exit 1
else
echo " done"
fi
;;
restart)
$0 stop
$0 start
;;
reload)
echo -n "Reload service php-fpm "
if [ ! -r $php_fpm_PID ] ; then
echo "warning, no pid file found - php-fpm is not running ?"
exit 1
fi
kill -USR2 `cat $php_fpm_PID`
echo " done"
;;
*)
echo "Usage: $0 {start|stop|force-quit|restart|reload|status}"
exit 1
;;
esac
|
#添加开机启动重新加载systemd
4、修改php-fpm.conf并启动php-fpm
|
1
2
3
4
5
6
7
8
9
|
user = nginx
group = nginx
listen = 127.0.0.1:9000
pm = dynamic
pm.max_children = 5
pm.start_servers = 2
pm.min_spare_servers = 1
pm.max_spare_servers = 3
|
#systemctl start php-fpm
五、安装zabbix 3.2
1、安装zabbix官方yum库
2、安装zabbix server agent及mysql插件
3、配置zabbix_server.conf
egrep -v '(^$|^#)' /etc/zabbix/zabbix_server.conf
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
LogFile=/var/log/zabbix/zabbix_server.log
LogFileSize=0
PidFile=/var/run/zabbix/zabbix_server.pid
DBHost=localhost
DBName=zabbix
DBUser=zabbix
DBPassword=123456
DBSocket=/var/lib/mysql/mysql.sock
DBPort=3306
SNMPTrapperFile=/var/log/snmptrap/snmptrap.log
Timeout=4
AlertScriptsPath=/usr/lib/zabbix/alertscripts
ExternalScripts=/usr/lib/zabbix/externalscripts
LogSlowQueries=3000
|
4、初始化导入zabbix的表结构
至此数据库部分设置完毕
5、修改/etc/zabbix/web目录权限
注：此目录没有权限，后面web安装配置zabbix时提示没有权限类似如下信息：
|
1
2
|
Warning: require_once(/etc/zabbix/web/maintenance.inc.php): failed to open stream: Permission denied in /usr/local/nginx/html/zabbix/include/classes/core/ZBase.php on line 269
Fatal error: require_once(): Failed opening required '/etc/zabbix/web/maintenance.inc.php' (include_path='.:/usr/local/php/lib/php') in/usr/local/nginx/html/zabbix/include/classes/core/ZBase.php on line 269
|
6、配置zabbix-server，zabbix-agent服务并启动
六、zabbix web nginx配置
1、创建zabbix web目录并复制内容
2、创建zabbix.conf配置文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
|
server {
listen 80;
server_name zabbix.pkey.cn;
access_log /data1/log/nginx/zabbix.access.log main;
index index.php index.html index.html;
root /data1/site/zabbix;
location /
{
try_files $uri $uri/ /index.php?$args;
}
location ~ .*\.(php)?$
{
expires -1s;
try_files $uri =404;
fastcgi_split_path_info ^(.+\.php)(/.+)$;
include fastcgi_params;
fastcgi_param PATH_INFO $fastcgi_path_info;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
}
}
|
3、重启nginx
七、web配置安装zabbix

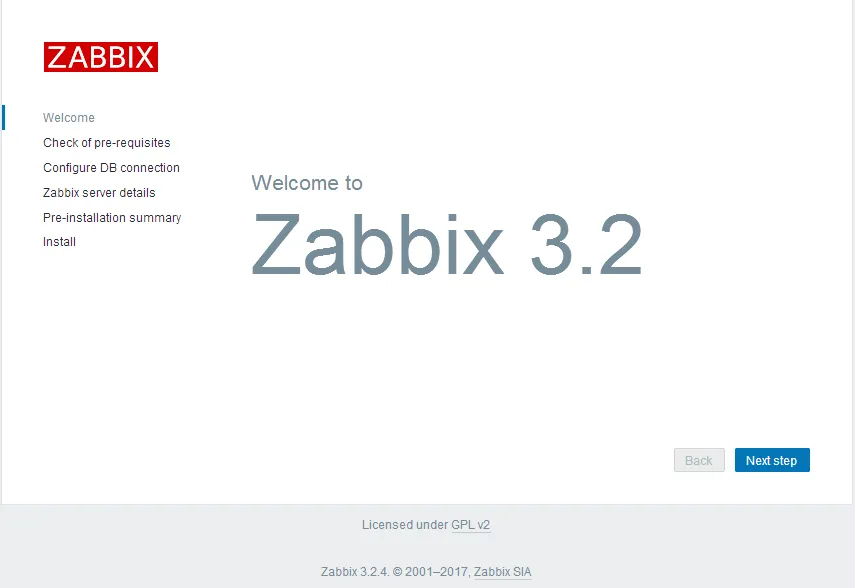

http://zabbix.pkey.cn
如图：

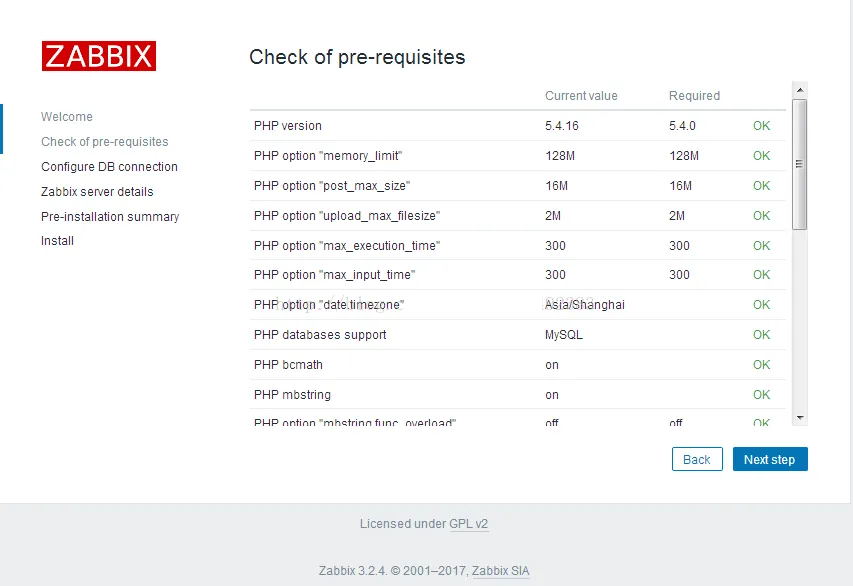

点 “next step” 如图：
注意：此时如果有fail项请按上面的提示找到php.ini文件对应着修改，
获取php.ini文件位置
#php -i |grep php.ini
通常需要修改如下项：
|
1
2
3
4
5
6
7
|
max_execution_time = 300
memory_limit = 128M
post_max_size = 16M
upload_max_filesize = 2M
max_input_time = 300
always_populate_raw_post_data = -1
date.timezone = Asia/Shanghai
|
直到如上所有的检测项均ok时再点next setp
出现如下图：

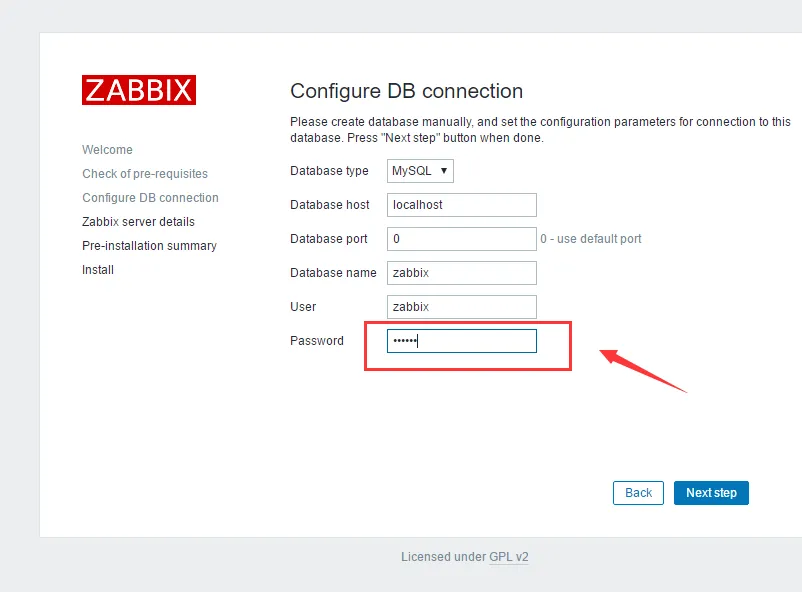

输入zabbix数据库的zabbix用户密码 ，如提示找不到文件夹之类的提示，Database host可以填写127.0.0.1，netxt setp 如下图：

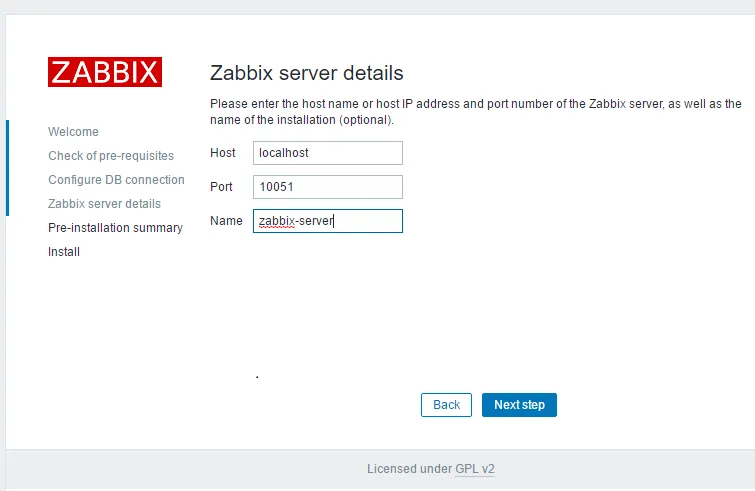

next step
此此zabbix web安装配置完成
再次访问http://zabbix.pkey.cn

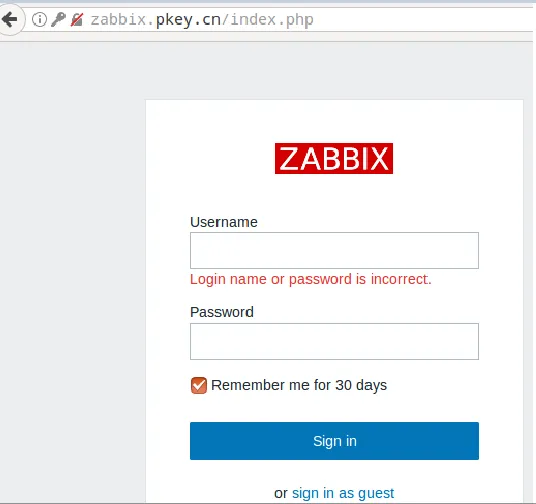

出现如下图：
默认的登录用户名密码：Admin/zabbix

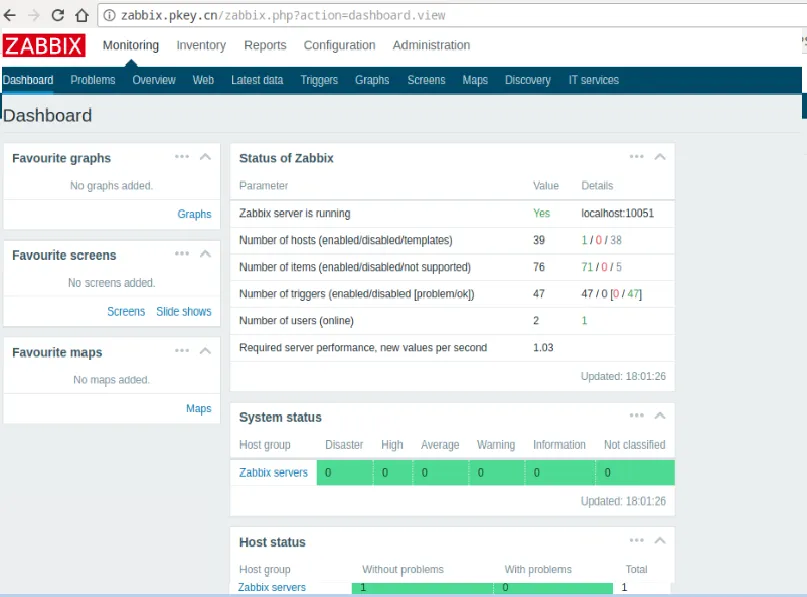

登录进去默认是英文如图：
修改为中文界面：
从windows 系统复制 c:/windows/fontes/simkai.ttf 字体上传到
/data1/site/zabbix/fonts/中
并修改配置文件
#sed -i 's/graphfont/simkai/g' ../include/defines.inc.php

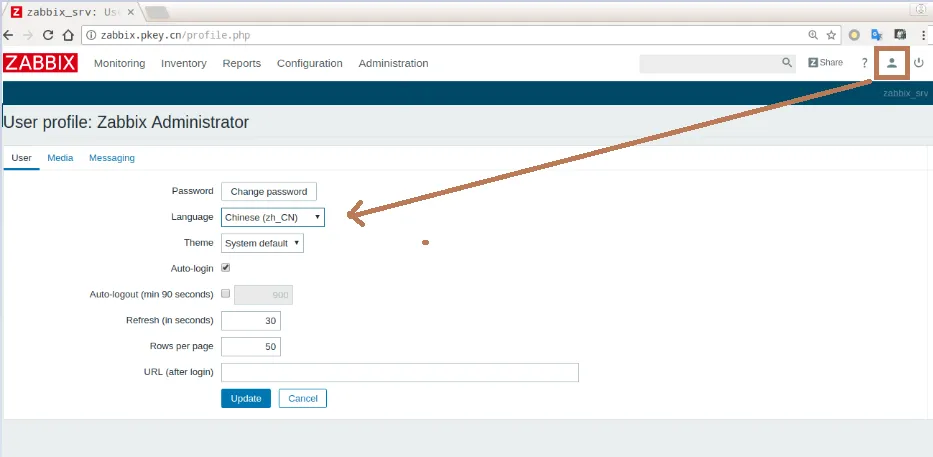

再在用户设置中修改为中文字体如图：

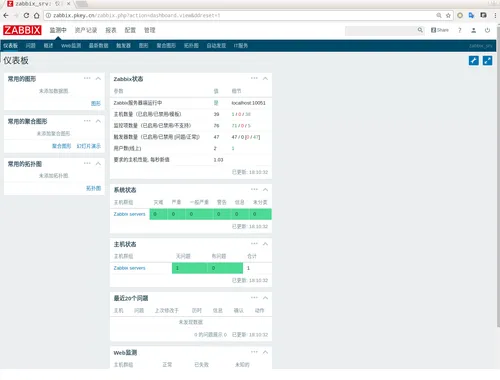

更新后，zabbixweb页默认字体就是中文且不乱码，如图：
至此一个基于CentOS7 LNMP环境 zabbix3.2.8 中文界面配置完成。
安装zabbix-server后启动过程中出现的一个错误提示：
症状：zabbix-server服务是启动的，就是不侦听端口，日志显示如下：
错误日志/var/log/zabbix/zabbix_server.log描述：
2597:20171009:103156.940 database is down: reconnecting in 10 seconds
2597:20171009:103159.761 Got signal [signal:15(SIGTERM),sender_pid:2646,sender_uid:0,reason:0]. Exiting ...
2597:20171009:103201.762 [Z3001] connection to database 'zabbix' failed: [0] received invalid response to SSL negotiation: R

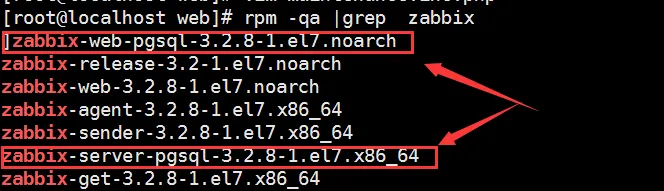

手动连接数据库是正常的，最后发现安装的包不对
如下：
正常的两个基于mysql(mariadb)的如下：
|
1
2
3
4
5
6
7
|
zabbix-server-mysql-3.2.8-1.el7.x86_64
zabbix-release-3.2-1.el7.noarch
zabbix-web-pgsql-3.2.8-1.el7.noarch
zabbix-sender-3.2.8-1.el7.x86_64
zabbix-get-3.2.8-1.el7.x86_64
zabbix-web-3.2.8-1.el7.noarch
zabbix-agent-3.2.8-1.el7.x86_64
|
安装了正常的包后故障排除，zabbix-server服务正常启动侦听10051端口。
CentOS 7.5搭建lnmp环境，并实现数据库远程连接及laravel和tp5项目部署配置
在 CentOS7 上手动部署LNMP环境
