环境
CA认证中心服务端：xuegod63.cn IP：192.168.1.63
客户端：xuegod64.cn IP：192.168.1.64
CA认证中心简述
CA ：CertificateAuthority的缩写，通常翻译成认证权威或者认证中心，主要用途是为用户发放数字证书。
功能：证书发放、证书更新、证书撤销和证书验证。
作用：身份认证，数据的不可否认性
端口：443

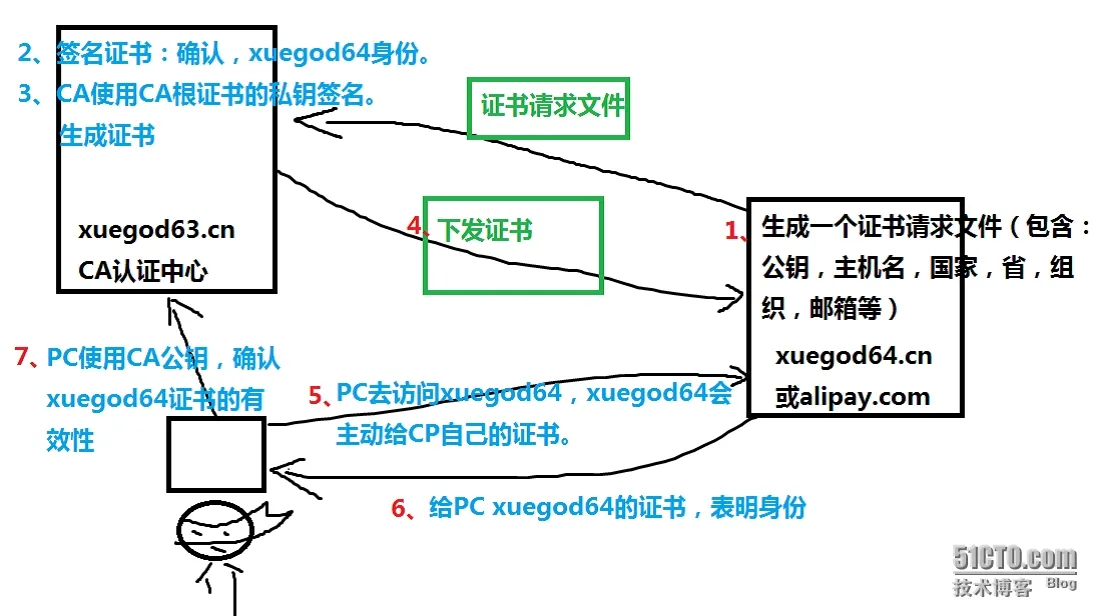

过程：
证书请求文件:CSR是Cerificate Signing Request的英文缩写，即证书请求文件，也就是证书申请者在申请数字证书时由CSP(加密服务提供者)在生成私钥的同时也生成证书请求文件，证书申请者只要把CSR文件提交给证书颁发机构后，证书颁发机构使用其根证书的私钥签名就生成了证书文件，也就是颁发给用户的证书。

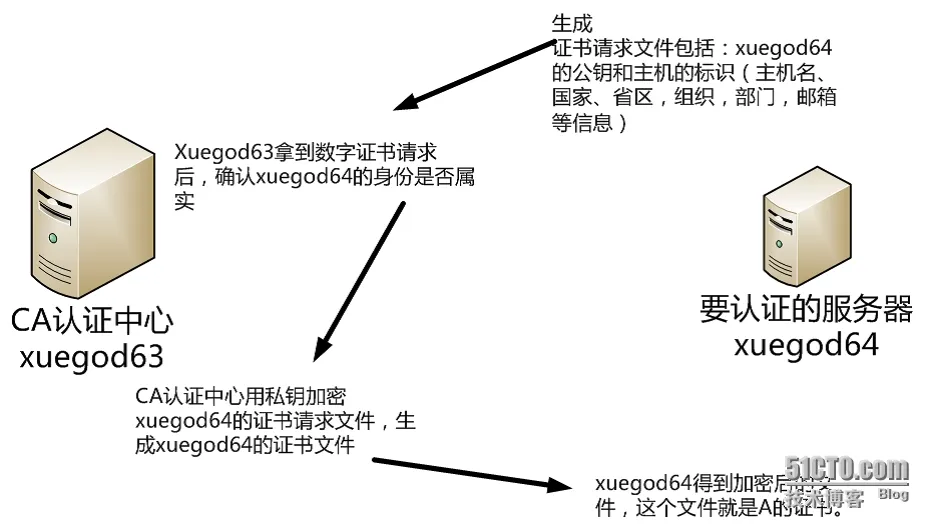

用户使用CA证书确认服务器身份过程：
一：搭建CA认证中心
配置一个自己的CA认证中心
|
1
2
3
|
[root@xuegod63 CA]
# vim /etc/pki/tls/openssl.cnf
改： 172
#basicConstraints=CA:FALSE
为：172 basicConstraints=CA:TRUE
#让自己成为CA认证中心
|
配置认证中心，生成私钥与根证书
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
|
[root@xuegod63 CA]
# /etc/pki/tls/misc/CA -h #查看帮助
usage:
/etc/pki/tls/misc/CA
-newcert|-newreq|-newreq-nodes|-newca|-sign|-verify
[root@xuegod63 ~]
# /etc/pki/tls/misc/CA -newca #配置一个新的CA认证中心
CA certificate filename (or enter to create)
#直接回车
Making CA certificate ...
Generating a 2048 bit RSA private key
....................+++
..........................................................................+++
writing new private key to
'/etc/pki/CA/private/./cakey.pem'
Enter PEM pass phrase:123456
# 输入密码，保护私钥
Verifying - Enter PEM pass phrase:123456
#再次输入密码
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or aDN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter
'.'
, the field will be left blank.
----
Country Name (2 letter code) [XX]:CN
#国家地区
State or Province Name (full name) []:beijing
#城市
Locality Name (eg, city) [Default City]:haidian
#当地名称
Organization Name (eg, company) [Default Company Ltd]: xuegod
#组织名称
Organizational Unit Name (eg, section) []:IT
#组织部门名称
Common Name (eg, your name or your server's
hostname
) []:xuegod63.cn
#通用名称（例如，您的姓名或您的服务器的主机名）,随便写
Email Address []:1@163.com
#邮箱
Please enter the following
'extra'
attributes
to be sent with your certificate request
#添加一个“额外”的属性，让客户端发送CA证书,请求文件时，要输入的密
A challenge password []:
#直接加车
An optional company name []:
#直接加车
Using configuration from
/etc/pki/tls/openssl
.cnf
#CA服务器的配置文件。上面修改的内容会添加到这个配置文件中
Enter pass phrase
for
/etc/pki/CA/private/
.
/cakey
.pem: 123456
#输入刚才保护CA密钥的密码
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number:
c9:16:bb:49:48:20:ed:16
Validity
Not Before: Dec 20 12:00:19 2014 GMT
Not After : Dec 19 12:00:19 2017 GMT
Subject（主题）:
countryName = CN
stateOrProvinceName = beijing
organizationName = xuegod
organizationalUnitName = IT
commonName = shenjianming
emailAddress = 1@163.com
X509v3 extensions:
X509v3 Subject Key Identifier:
BF:E3:16:CC:EB:42:BD:6D:56:8E:A4:21:70:E6:72:40:0C:77:C0:C0
X509v3 Authority Key Identifier:
keyid:BF:E3:16:CC:EB:42:BD:6D:56:8E:A4:21:70:E6:72:40:0C:77:C0:C0
X509v3 Basic Constraints:
CA:TRUE
Certificate is to be certified
until
Dec 19 12:00:19 2017 GMT (1095 days)
Write out database with 1 new entries
Data Base Updated
|
#这里了配置CA认证中心，在里面就生成了CA认证根证书的私钥，在配置完结束之后，就会生成一个根证书，这个根证书中有这证书的 公钥
注：到此CA认证中心就搭建好了。
查看生成的CA根证书：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
[root@xuegod63 CA]
#vim /etc/pki/CA/cacert.pem #存在CA认证下的根证书，这里面包含了根证书的公钥。
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
c0:1d:ed:ba:fc:7e:b4:40
Signature Algorithm: sha1WithRSAEncryption
Issuer:C=CN, ST=beijing, O=xuegod, OU=IT, CN=shenjianming
/emailAddress
=1@1
63.com
#CA 机构信息
Validity
Not Before: May 9 11:54:20 2015 GMT
Not After : May 8 11:54:20 2018 GMT
Subject: C=CN, ST=beijing, O=xuegod, OU=IT,CN=shenjianming
/emailAddress
=1@
163.com
SubjectPublic Key Info:
#CA认证中心公钥信息
Public Key Algorithm: rsaEncryption
Public-Key: (2048 bit)
Modulus:
|
#这里查看根证书的中，我们可以看到里面存在着根证书的公钥。
查看根证书的私钥
|
1
2
3
4
5
6
|
[root@xuegod63 CA]
# vim /etc/pki/CA/private/cakey.pem #存在CA认证下根证书的私钥
（cakey.pem）。
-----BEGIN ENCRYPTED PRIVATE KEY-----
MIIFDjBABgkqhkiG9w0BBQ0wMzAbBgkqhkiG9w0BBQwwDgQI2JxR6+eEWI0CAggA
MBQGCCqGSIb3DQMHBAjjVO7+mmTUuwSCBMil6B4xGLDfbskPQd++sEtyMtV8Y62l
GztBjiSSNCE0amDVvhi5hG5dZpq9i
/ik1Jh31DQ6siet10vm7/EZC4KSqagDsi66
|
二：使用证书搭建https
1、安装：httpd
|
1
2
3
4
5
|
[root@xuegod64 ~]
# yum install httpd
[root@xuegod64 ~]
# vim /etc/httpd/conf/httpd.conf
改：
#ServerName www.example.com:80
为：ServerName 192.168.1.64:80
[root@xuegod64 ~]
# service httpd restart
|
2、xuegod64生成证书请求文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
[root@xuegod64 ~]
# openssl genrsa -h #查看帮助
usage:genrsa [args] [numbits]
-des encrypt the generated key with DES
in
cbc mode
-des3 encrypt the generated key with DES
in
ede cbc mode (168 bit key)
-idea encrypt the generated key with IDEA
in
cbc mode
-seed
encrypt PEM output with cbcseed
-aes128, -aes192, -aes256
encrypt PEM output with cbcaes
-camellia128, -camellia192, -camellia256
encrypt PEM output with cbccamellia
-out
file
output the key to '
file
-passout arg output
file
pass phrase
source
-f4 use F4 (0x10001)
for
the E value
-3 use 3
for
the E value
-engine e use engine e, possibly a hardware device.
-rand
file
:
file
:...
load the
file
(or the files inthe directory) into
the random number generator
|
2.1：生一个私钥密钥：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
[root@xuegod64 ~]
# openssl genrsa -des3 -out /etc/httpd/conf.d/server.key
Generating RSA private key, 512 bit long modulus
.....++++++++++++
..............................++++++++++++
e is 65537 (0x10001)
Enter pass phrase
for
/etc/httpd/conf
.d
/server
.key:123456
#输入保护私钥的密码
Verifying - Enter pass phrase
for
/etc/httpd/conf
.d
/server
.key: 123456
[root@xuegod64 ~]
# cat /etc/httpd/conf.d/server.key #查看一下私钥
-----BEGIN RSA PRIVATE KEY-----
#
Proc-Type: 4,ENCRYPTED
DEK-Info: DES-EDE3-CBC,D1CCE8B91BCAD4F4
#进行了二次加密
TlIQpxnrXh9WgLpqfqvKymsCdDDYUjvGyc2C9FOdZtEo+4B2toHGRKjyCyyRcWb7
PV9AJU5FsGyMDVDnOvTcBjYy5MPFhSPUpJ7Y5WeQBWZ6cn5Yh5OtVqQh5EyIxhVJ
j1m6XOrcAVpgRDOfyH68r+mipmse95kiBAjxh2gm5OzLLJt27dFZ5XRmd7oXys0q
V1SFftuN7M7DEx6Qzsut
/C4teAZ64Bx3kM1RlXjAESixZUmrPyB/l12rVxd/kMQT
h2gvHM40mn52iNddaXQu8EeKy9CzJUpou85154v7tlqftJ98Hg9oFxebhIhS
/16f
:
|
2.2：生成请求文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
[root@xuegod64 ~]
# openssl req -new -key /etc/httpd/conf.d/server.key-out /server.csr #注意后期添加的国家，省，组织等信息要和CA保持一致
Enter pass phrase
for
/etc/httpd/conf
.d
/server
.key:123456
#输入私钥的密码
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or aDN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter
'.'
, the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:beijing
Locality Name (eg, city) [Default City]:haidian
Organization Name (eg, company) [Default Company Ltd]:xuegod
Organizational Unit Name (eg, section) []:IT
Common Name (eg, your name or your server's
hostname
) []:xuegod64.cn
#这里要求输入的CommonName必须不通过浏览器访问您网站的 URL 完全相同，否则用户会发现您服务器证书的通用名不站点的名字丌匹配，用户就会怀疑您的证书的真实性。可以使域名也可以使IP地址。
Email Address []:1@163.com
Please enter the following
'extra'
attributes
to be sent with your certificate request
A challenge password []:
#不输密码直接回车
An optional company name []:
|
3：将证书请求文件发给CA服务器：
|
1
2
3
4
5
6
7
|
[root@xuegod64 ~]
# scp /server.csr 192.168.1.63:/tmp/
The authenticity of host
'192.168.1.63 (192.168.1.63)'
can't beestablished.
RSA key fingerprint is f5:49:15:f3:62:37:05:0c:d5:15:ca:18:ea:c3:
df
:13.
Are you sure you want to
continue
connecting (
yes
/no
)?
yes
Warning: Permanently added
'192.168.1.63'
(RSA) to the list of knownhosts.
root@192.168.1.63's password:123456
server.csr 100% 688 0.7KB
/s
00:00
|
4：CA认证中心进行CA签名
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
[root@xuegod63 CA]
# openssl ca -h #查看CA认证中心的帮助内容
[root@xuegod63~]
# openssl ca -keyfile /etc/pki/CA/private/cakey.pem -cert /etc/pki/CA/cacert.pem-in /tmp/server.csr -out /server.crt
Using configuration from
/etc/pki/tls/openssl
.cnf
Enter pass phrase
for
/etc/pki/CA/private/cakey
.pem:123456
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number:
ce:60:e0:a3:fe:ee:88:09
Validity
Not Before: Dec 21 14:25:53 2014 GMT
Not After : Dec 21 14:25:53 2015 GMT
Subject:
countryName = CN
stateOrProvinceName = beijing
organizationName = xuegod
organizationalUnitName = IT
commonName = xuegod64.cn
emailAddress = 1@163.com
X509v3 extensions:
X509v3 Basic Constraints:
CA:TRUE
Netscape Comment:
OpenSSL Generated Certificate
X509v3 Subject Key Identifier:
1B:30:0B:28:4A:31:EA:FC:05:7D:54:A3:87:A0:6E:BE:F8:D6:3C:F8
X509v3 Authority Key Identifier:
keyid:6D:0F:0C:C5:96:32:A8:8B:D3:FF:36:39:5B:14:5B:9B:31:12:4A:C3
Certificate is to be certified
until
Dec 21 14:25:53 2015 GMT (365 days)
#证书有效期是365天。证书进行认证，直到12月21日十四时25分53秒格林尼治标准时间2015年（365天）
Sign the certificate? [y
/n
]:y
#注册证书
1 out of 1 certificate requests certified, commit? [y
/n
]y
#确认
Write out database with 1 new entries
Data Base Updated
将证书复制到xuegod64
[root@xuegod63 CA]
# scp /server.crt 192.168.1.64:/
|
#这里的认证中心进行的签名是用自己的私钥进行签名，
5：CA认证中心进行颁发证书
|
1
2
3
4
5
6
7
|
[root@xuegod63 ~]
# scp /server.csr 192.168.1.64:/
The authenticity of host
'192.168.1.64 (192.168.1.64)'
can't beestablished.
RSA key fingerprint is f5:49:15:f3:62:37:05:0c:d5:15:ca:18:ea:c3:
df
:13.
Are you sure you want to
continue
connecting (
yes
/no
)?
yes
Warning: Permanently added
'192.168.1.64'
(RSA) to the list of knownhosts.
root@192.168.1.64's password: 123456
server.csr 100% 688 0.7KB
/s
00:00
|
#这里再颁发之前，CA认证中心会使用自己的公钥进行加密
三：使用证书实现https
SSL：(Secure Socket Layer)安全套接字层，通过一种机制在互联网上提供密钥传输。其主要目标是保证两个应用间通信数据的保密性和可靠性,可在服务器端和用户端同时支持的一种加密算法。目前主流版本SSLV2、SSLV3(常用）。
SSL四次握手安全传输：
加密协议： SSL 3.0 或 TLS 1.0
C -------------------------------------------------> S 1. 请求一个安全的会话，协商算法
C <------------------------------------------------- S 2. 将自己Server端的证书给客户端，证书中包括了64自己的公钥。
C -------------------------------------------------> S 3. 客户端用浏览中存放CA的根证书检测xuegod64证书，如果对，使用CA根证书中的公钥解密。得到xuegod64的公钥； 然后生成一把对称的加密密钥,用xuegod64的公钥加密这个密钥发给xuegod64。 后期使用对称密钥加密数据
C <------------------------------------------------> S
4. xuegod64使用私钥解密，得到对称的加密密钥然后，使用对称加密密钥来进行安全快速传输数据
1：配置HTTPSweb服务器： xuegod64
安装复制并查看
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
|
[root@xuegod64 ~]
# yum install mod_ssl -y 安装：SSL模块
[root@xuegod64 ~]
# cp /server.crt /etc/httpd/conf.d/ #复制证书
[root@xuegod64 ~]
# cat /server.crt
ertificate:
Data:
Version: 3 (0x2)
Serial Number:
96:db:28:b4:8b:a7:fb:
bc
Signature Algorithm: sha1WithRSAEncryption
Issuer: C=CN, ST=beijing, O=xuegod,OU=IT, 颁发者是63-
CN=xuegod63.cn
/emailAddress
=1@163.cn
Validity
Not Before: Nov 3 11:12:34 2015 GMT
Not After : Nov 2 11:12:34 2016 GMT
Subject: C=CN, ST=beijing, O=xuegod,OU=IT, CN=xuegod63.cn
/emailAddress
=1@163.cn请求的是64，这里我没有修改
Subject Public Key Info:这里可以看出，证书中用了公钥加密
Public Key Algorithm: rsaEncryption
Public-Key: (1024 bit)
Modulus:
[root@xuegod64 ~]
# ls /etc/httpd/conf.d/server.key #查看私钥
/etc/httpd/conf
.d
/server
.key
[root@xuegod64 ~]
# vim /etc/httpd/conf.d/ssl.conf
104
# certificate can be generated using the genkey(1) command.
改：
105 SSLCertificateFile
/etc/pki/tls/certs/localhost
.crt
为：
SSLCertificateFile
/etc/httpd/conf
.d
/server
.crt
106
#SSLCertificateFile /etc/pki/tls/certs/localhost.crt
107
108
# Server Private Key:
109
# If the key is not combined with the certificate, use this
110
# directive to point at the key file. Keep in mind that if
111
# you've both a RSA and a DSA private key you can configure
112
# both in parallel (to also allow the use of DSA ciphers, etc.)
改：113 SSLCertificateKeyFile
/etc/pki/tls/private/localhost
.key
为：
SSLCertificateKeyFile
/etc/httpd/conf
.d
/server
.key
114
#SSLCertificateKeyFile /etc/pki/tls/private/localhost.key
|
启劢服务:
|
1
2
3
4
5
6
7
8
9
|
[root@xuegod64 ~]
# service httpd restart
Stopping httpd: [ OK ]
Starting httpd: Apache
/2
.2.15 mod_ssl
/2
.2.15 (Pass Phrase Dialog)
Some of your private key files are encrypted
for
security reasons.
In order to
read
them you have to provide the pass phrases.
Server bt-199-034.bta.net.cn:443 (RSA)
Enter pass phrase:123456
#保护私钥密码
OK: Pass Phrase Dialog successful.
[ OK ]
|
测试：
|
1
2
3
4
5
6
7
8
|
查看端口：
[root@xuegod64 ~]
# netstat -antup | grep 443 #发现找丌到
访问： https:
//192
.168.1.64/ 后
再查看：
[root@xuegod64 ~]
# netstat -antup | grep 443
tcp 0 0 :::443 :::* LISTEN 5138
/httpd
只有调用一下https，才会开启。 像
ftp
：20传输数据， 21 监听服务，传输命令。 没有数据传输时，看不到20端口。 修改物理机：C:\Windows\System32\drivers\etc\hosts 添加：
192.168.1.64 xuegod64.cn
|

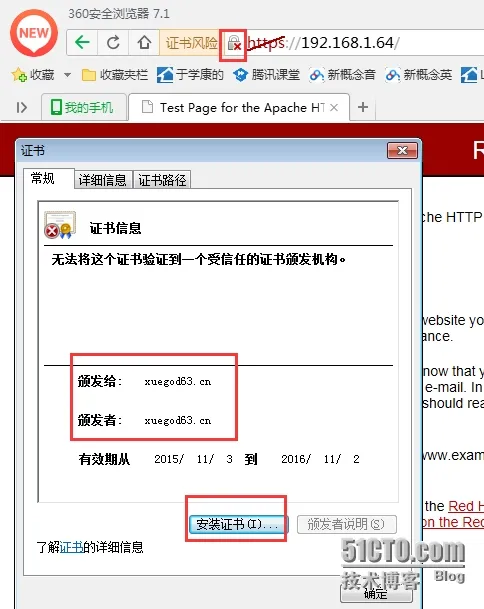

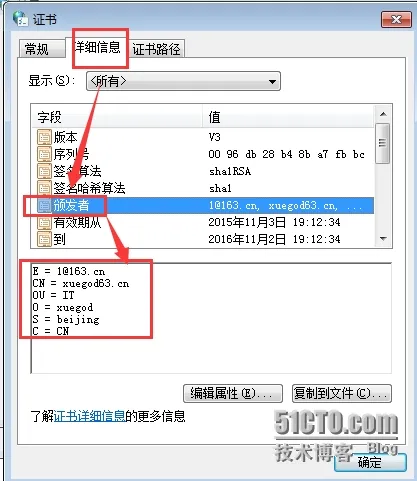

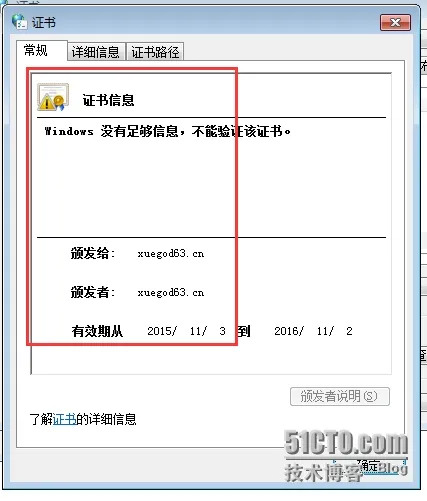

2：查看证书安装证书
本文转自 于学康 51CTO博客，原文链接：http://blog.51cto.com/blxueyuan/1709987，如需转载请自行联系原作者
